Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 301:

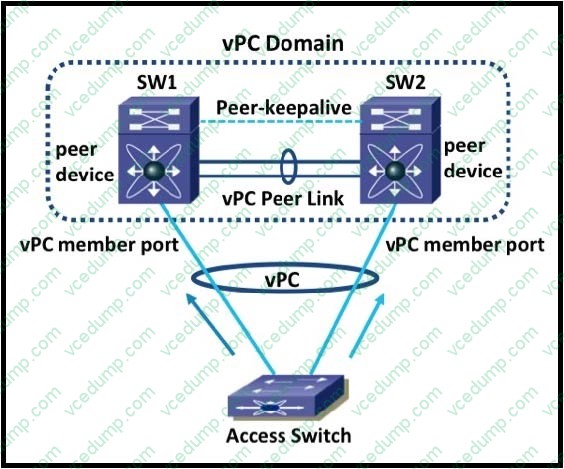

  Refer to the exhibit.



  Which three statements describe the use of the vPC peer link in this topology? (Choose three.)

  A. The peer link is used for synchronizing MAC addresses between SW1 and SW2.
  B. The peer link is used for control plane traffic only.
  C. The peer link provides necessary transport for multicast traffic.
  D. The peer link is used for the communication of orphaned ports.
  E. The peer link does not prevents the loops in the topology.
  F. The peer link always consists of two 10GB ports in a port-channel.
  A. The peer link is used for synchronizing MAC addresses between SW1 and SW2.
  C. The peer link provides necessary transport for multicast traffic.
  D. The peer link is used for the communication of orphaned ports.

• Question 302:

  Which three prerequisites must be met before configuring FabricPath on a Cisco Nexus 7000 switch? (Choose three.)

  A. Ensure that the Enhanced Layer 2 license is installed on the switch.
  B. The FabricPath feature set must be installed on the default and non-default VDCs.
  C. Spanning tree must be disabled on the switch.
  D. Ensure that you are working on the F Series module.
  E. Ensure that you are working on the M Series module.
  F. The FabricPath feature set must be installed only on the default VDC.
  A. Ensure that the Enhanced Layer 2 license is installed on the switch.
  B. The FabricPath feature set must be installed on the default and non-default VDCs.
  D. Ensure that you are working on the F Series module.

• Question 303:

  Which three statements about FabricPath are true? (Choose three.)

  A. Only FabricPath VLANs can cross a FabricPath domain.
  B. A vPC+ peer link can be formed out of F1 or F2 ports only.
  C. With FabricPath, vPC must be changed to vPC+.
  D. F1 ports must be placed into a separate VDCs.
  E. A vPC+ peer link can be formed out of F2 ports only.
  A. Only FabricPath VLANs can cross a FabricPath domain.
  B. A vPC+ peer link can be formed out of F1 or F2 ports only.
  C. With FabricPath, vPC must be changed to vPC+.

• Question 304:

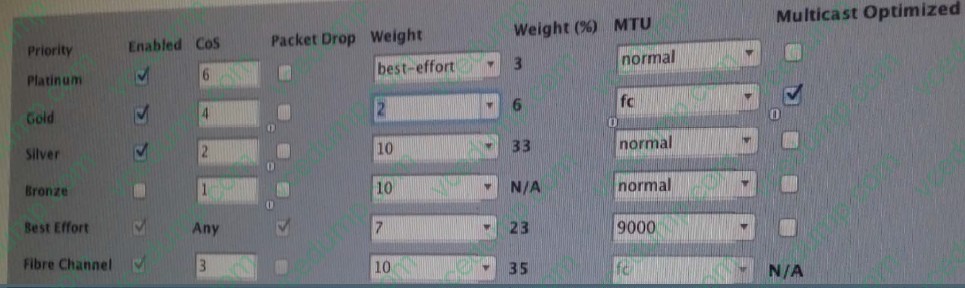

  Refer to the Exhibit.



  Which two statements are true? (Choose two.)

  A. You can enable Multicast Optimized to as many classes as you want as long as enough unutilized multicast queues are available.
  B. Four different MTUs are allowed: 1500.2158, 2240, and 9000.
  C. If you save the policy, it gives you an error because you can have the Fibre Channel class and one more as no drop policy. To fix it, check all the check boxes under packet Drop except one.
  D. Three different MTUs are 1500, 2158, and 9000
  E. If you save the policy, it gives you an error because you can have only one class with the no drop policy. To fix it, check all the check boxes under Packet Drop because the class Fibre Channel is already a no-drop class
  D. Three different MTUs are 1500, 2158, and 9000
  E. If you save the policy, it gives you an error because you can have only one class with the no drop policy. To fix it, check all the check boxes under Packet Drop because the class Fibre Channel is already a no-drop class

• Question 305:

  Which statement is correct about the number of available QoS system classes in FCoE?

  A. It's hard-set and cannot be disabled
  B. It's configurable, with an upper limit of 16
  C. It's hard-set but cannot disable best-effort and Fibre Channel
  D. It's hard-set but can disable all but one class
  E. It's configurable with an upper limit of eight
  C. It's hard-set but cannot disable best-effort and Fibre Channel

• Question 306:

  Which three options are valid SPAN sources? (Choose three.)

  A. VLANs, because when a VLAN is specified as a SPAN source, all supported interfaces in the VLAN are SPAN sources
  B. fabric port channels connected to the Cisco Nexus 2000 Series Fabric Extender
  C. Layer 2 subinterfaces
  D. satellite ports and host interface port channels on the Cisco Nexus 2000 Series Fabric Extender
  E. Layer 3 subinterfaces
  F. Remote Span Ethernet Ports
  A. VLANs, because when a VLAN is specified as a SPAN source, all supported interfaces in the VLAN are SPAN sources
  B. fabric port channels connected to the Cisco Nexus 2000 Series Fabric Extender
  D. satellite ports and host interface port channels on the Cisco Nexus 2000 Series Fabric Extender

• Question 307:

  Which two Cisco devices form the virtual access layer in the Cisco Data Center Architecture? (Choose two.)

  A. Cisco Nexus 7000
  B. Cisco Nexus 5000
  C. Cisco Nexus 1010
  D. Cisco Nexus 2000
  E. Cisco Nexus 1000V
  C. Cisco Nexus 1010
  E. Cisco Nexus 1000V

• Question 308:

  In a configuration with redundant supervisors, how many IP addresses are required to configure full remote access via management 0?

  A. Two IP addresses, one for each supervisor
  B. Three IP addresses, one virtual IP and one physical IP for each supervisor
  C. One IP address that is shared among supervisors
  D. None--management 0 will use the IP address from the first SVI that is created
  C. One IP address that is shared among supervisors

• Question 309:

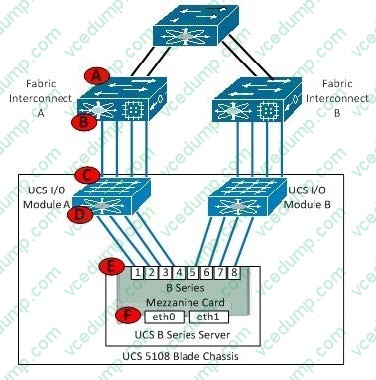

  Refer to the exhibit.



  On which of the interfaces can VLANs be configured or modified within this Cisco UCS domain?

  A. VLANs can be configured or modified on all ports.
  B. A, D, E, and F. Ports B and C are automatically configured by the fabric interconnect.
  C. A, E, and F. Ports B, C, and D are automatically configured by the fabric interconnect.
  D. A and F only. No other ports may have their VLAN configurations modified manually.
  E. A only. VLANs are configured on uplinks and are automatically available on any other port with no configuration necessary.
  F. F only. VLANs are only modified in the service profile.
  D. A and F only. No other ports may have their VLAN configurations modified manually.

• Question 310:

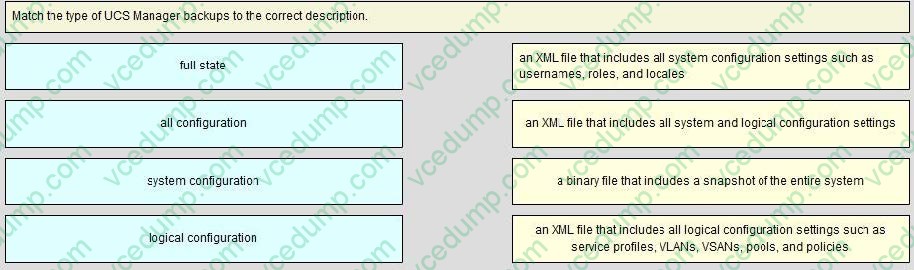

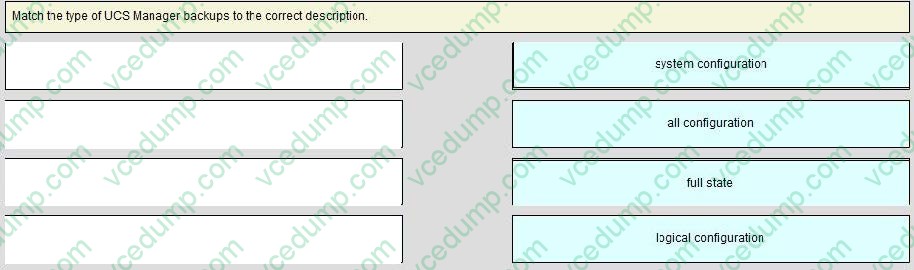

  Drag Drop

  Select and Place:
