Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 201:

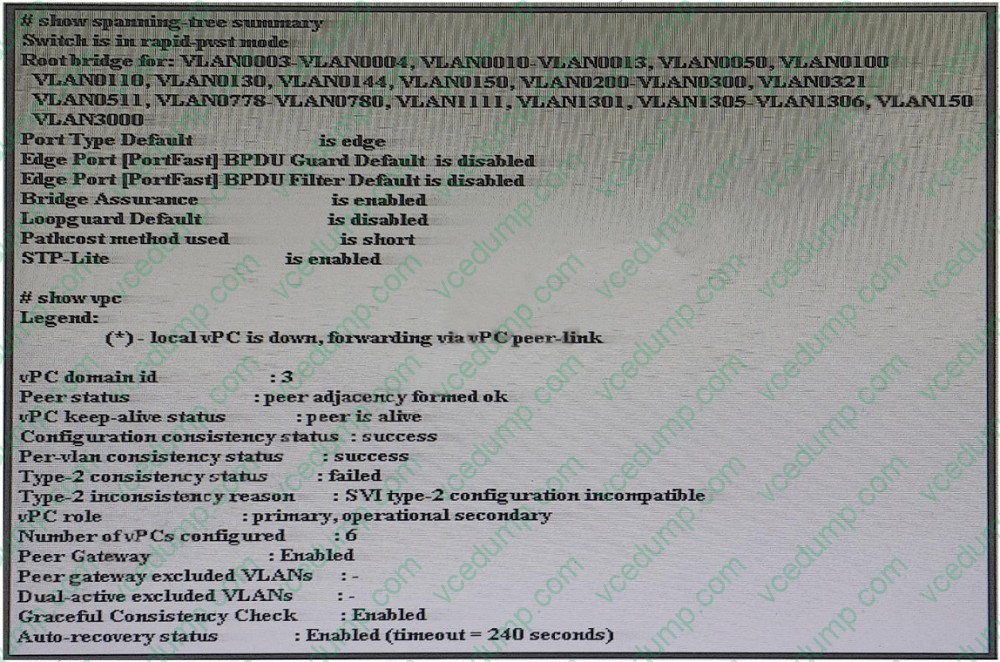

  Refer to the exhibit.



  Which two statements about spanning tree are true? (Choose two.)

  A. BPDUs from a vPC are processed on this switch
  B. BPDUs are processed and generated by both peer switches.
  C. This switch cannot generate BPDUs for a vPC.
  D. BPDUs are sent to the peer switch for processing.
  E. BPDUs received on this switch are dropped because of Type 2 inconsistency issues.
  F. This switch generates BPDUs for vPC.
  C. This switch cannot generate BPDUs for a vPC.
  D. BPDUs are sent to the peer switch for processing.

• Question 202:

  On Cisco Nexus 1000v Switch, you can allow the VSM and VEM to communicate over IP for control and packet traffic. Before you create a port profile for Layer 3 control, which two statements must be verified? (Choose two.)

  A. Only one port profile can be configured with the capability Layer 3 control command.
  B. All VEMs belong to the same Layer 2 domain.
  C. The transport mode for the VSM domain should be configured as Layer 3.
  D. The port profile must be a trunk port profile.
  E. Different hosts should belong to the same VLANs for Layer 3 control.
  B. All VEMs belong to the same Layer 2 domain.
  C. The transport mode for the VSM domain should be configured as Layer 3.

• Question 203:

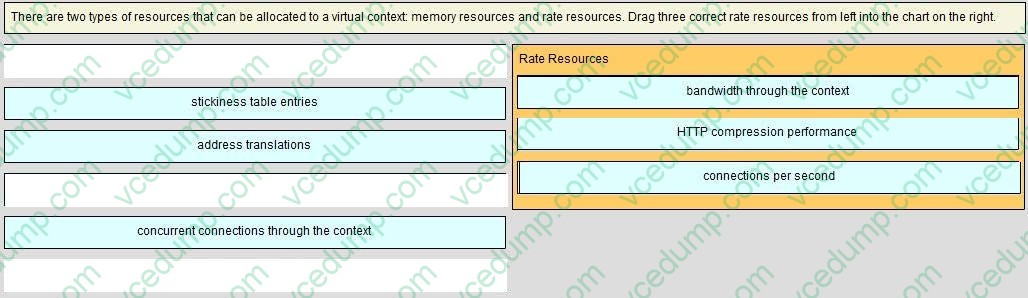

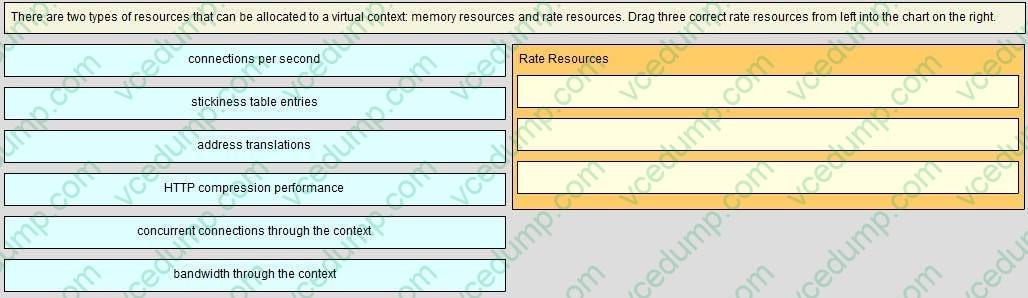

  Drag Drop

  Select and Place:





• Question 204:

  Which attribute is used to pass the user role back to the Nexus when remote AAA is enabled?

  A. Cisco AV-pair
  B. TACACS+ or RADIUS ack frame role attribute
  C. DH-CHAP challenge attribute
  D. privilege level attribute
  A. Cisco AV-pair

• Question 205:

  Which two server models support single-wire management for Cisco UCS C-Series integration with Cisco UCS Manager? (Choose two.)

  A. Cisco UCS C200 M2 server
  B. Cisco UCS C250 M2 server
  C. Cisco UCS C260 M2 server
  D. Cisco UCS C240 M3 server
  E. Cisco UCS C240 M2 server
  C. Cisco UCS C260 M2 server
  D. Cisco UCS C240 M3 server

• Question 206:

  Which two statements about Fibre Channel over IP are true? (Choose two.)

  A. FCIP links consist of a maximum of one TCP connection between two FCIP link endpoints.
  B. Each FCIP link carries encapsulated FCoE frames.
  C. The FCIP link is established between two peers, and the VE Port initialization behavior is identical to a normal E Port.
  D. The FCIP profile contains information about the local IP address and TCP parameters.
  E. The local IP address of the FCIP profile is the IP address of the management interface of the Cisco MDS switch.
  C. The FCIP link is established between two peers, and the VE Port initialization behavior is identical to a normal E Port.
  D. The FCIP profile contains information about the local IP address and TCP parameters.

• Question 207:

  Which two servers support memory extension technology and give list? (Choose two.)

  A. B200
  B. C210
  C. B250
  D. C260
  E. C460
  C. B250
  D. C260

• Question 208:

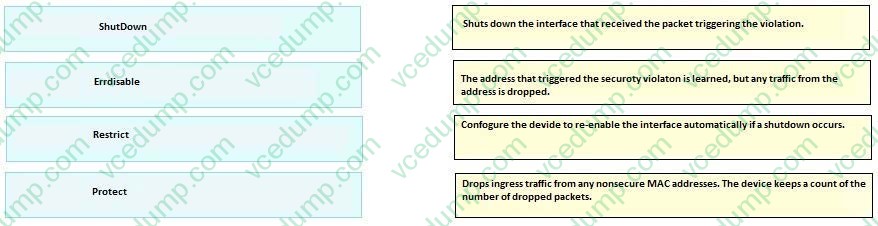

  Drag and drop the correct port security configuration on the left to the correct action on the right.

  Select and Place:





• Question 209:

  Refer to the exhibit.

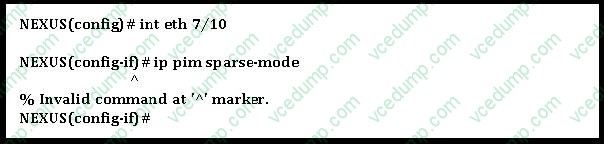

  The following message output was displayed while configuring PIM on Nexus 7000. Which command should be configured on the Cisco Nexus 7000 Series switch to allow the desired configuration?

  A. feature multicast
  B. feature pim
  C. ip multicast-routing
  D. ip pim routing
  B. feature pim

• Question 210:

  Refer to the exhibit.

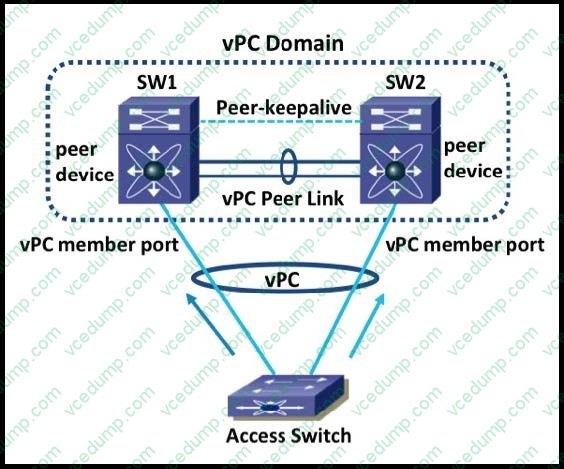

  The network topology that is shown in the exhibit has two aggregation switches (SW1 and SW2). The access layer switch connects to both aggregation switches. On SW1 and SW2, ports connecting to the access layer switches are configured as vPC member ports. SW1 and SW2 are also connected using a port channel that is configured as a vPC peer link. Which statement describes the use of the vPC peer-keepalive link in this topology?

  A. The peer-keepalive link is used for synchronizing MAC addresses between Agg1 and Agg2.
  B. The peer-keepalive link is used for control plane traffic. The peer link is used for the data plane.
  C. The peer-keepalive link is used to resolve dual-active scenarios, where the peer link connectivity is lost.
  D. The peer-keepalive link is used for the communication of orphaned ports.
  C. The peer-keepalive link is used to resolve dual-active scenarios, where the peer link connectivity is lost.
