Cisco 300-615 Online Practice Questions and Exam Preparation

Cisco 300-615 Online Questions & Answers

• Question 201:

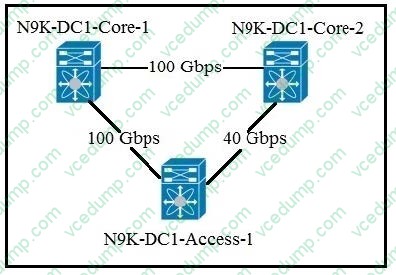

  Refer to the exhibit.



  The spanning tree is blocking the connection between N9K-DC1-Core-1 and N9K-DC1-Access-1. All ports are up and configured. Which configuration resolves the issue?

  A. Set the pathcost method to long on all three switches
  B. Configure a vPC between N9K-DC1-Core-1 and N9K-DC1-Access-1
  C. Configure LACP between N9K-DC1-Core-1 and N9K-DC1-Access-1
  D. Lower the spanning tree cost on the connection between N9K-DC1-Core-2 and N9K-DC1-Access-1
  D. Lower the spanning tree cost on the connection between N9K-DC1-Core-2 and N9K-DC1-Access-1

  ---

• Question 202:

  Refer to the exhibit.

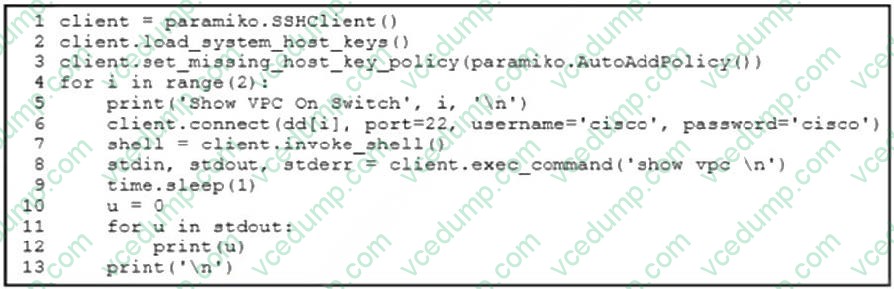

  A network engineer must display the status of the vPC domain using the Python script and guest shell. The status of Cisco Nexus switches 1 and 2 must be displayed, but the code fails and displays the status of Cisco Nexus switches 0 and 1 instead. Which code resolves the issue?

  A. print ('Show VPC On Switch', [i] + 1, '\n') on line 5
  B. print ('Show VPC On Switch', i + 2, '\n') on line 5
  C. for i in range(1,3): on line 4
  D. for i in range(1-2): on line 4
  C. for i in range(1,3): on line 4

  ---

• Question 203:

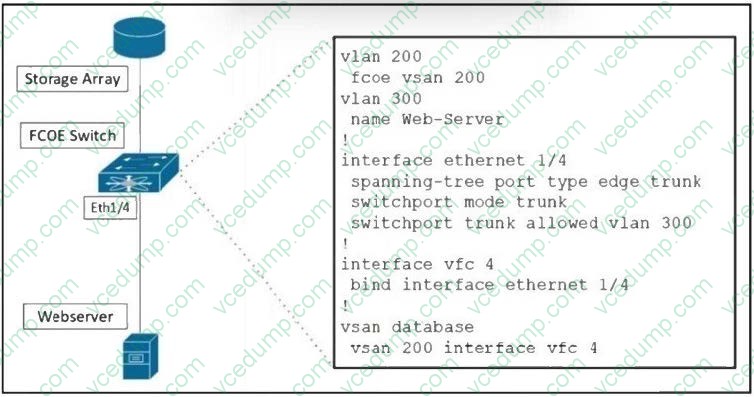

  Refer to the exhibit. The web server fails to communicate with the storage array using the FCoE protocol. Which action resolves the issue?

  A. Bind VSAN 300 interface vfc 4 instead of VSAN 200.
  B. Allow VLAN 200 and VLAN 300 on Ethernet 1/4.
  C. Configure FCOE VSAN 200 under VLAN 300.
  D. Change interface Ethernet 1/4 to an access port on VLAN 200.
  B. Allow VLAN 200 and VLAN 300 on Ethernet 1/4.

  ---

• Question 204:

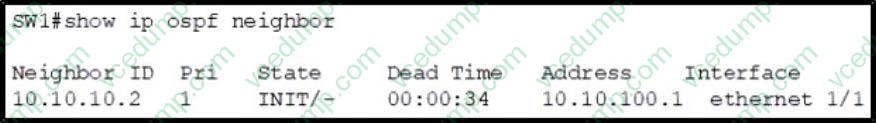

  Refer to the exhibit. Two Cisco Nexus Series Switches have been configured to form OSPF neighborship. Which action resolves the issue?

  A. Configure the same MTU values on adjacent interfaces
  B. Configure the switch ID of the neighbor as 10.10.100.2
  C. Configure the same authentication password on both switches
  D. Configure ACL to allow multicast IP on the OSPF interface
  A. Configure the same MTU values on adjacent interfaces

  ---

• Question 205:

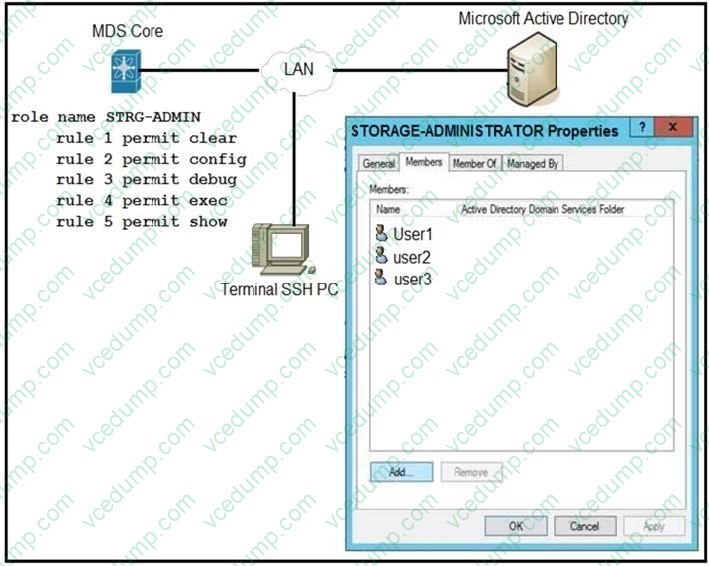

  Refer to the exhibit.



  An engineer is troubleshooting why user1, user2, and user3 from group STORAGE-ADMINISTRATOR in Microsoft Active Directory cannot log in to the Cisco MDS SSH CLI. Which action resolves the issue?

  A. Configure the role name to match the group name on Microsoft Active Directory.
  B. Include specific users into MDS role configuration.
  C. Configure SSH logins on Cisco MDS switch.
  D. Integrate Cisco MDS with Microsoft Active Directory.
  A. Configure the role name to match the group name on Microsoft Active Directory.

  ---

• Question 206:

  You upgrade Cisco UCS Director. When you power on the Cisco UCS Director VM, the websock service fails to start. Which action do you take to resolve the issue?

  A. Resynchronize the NTP time and time zone information on each node.
  B. Import the correct SSL certificates.
  C. After you power on the VM, press Alt-F1 to refresh the VMware console.
  D. Ensure that the websock service starts automatically after an upgrade.
  B. Import the correct SSL certificates.

  ---

• Question 207:

  Your client reports that many flaps and server cluster disconnects occur in their data center. While troubleshooting the issue, you discover a network attack hitting their Cisco Nexus 7000 Series Switches and determine that the source IP addresses are spoofed. Which first-line security solution resolves this issue?

  A. Dynamic ARP Inspection
  B. Unicast RPF
  C. IP Source Guard
  D. Storm Control
  A. Dynamic ARP Inspection

  ---

• Question 208:

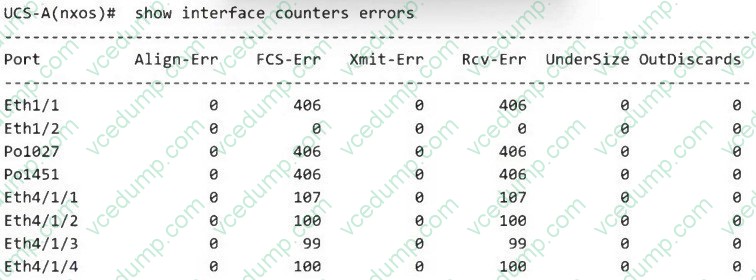

  Refer to the exhibit. The virtual machines running on Cisco UCS B-Series blades are experiencing performance issues that affect the network connectivity of the target application. The issue is intermittent and affects only some of the connectivity sessions. Which action resolves the issue?

  A. Change the Cisco UCS MTU size to 9000 bytes
  B. Replace the cable with a transceiver between the fabric interconnect and the switch.
  C. Implement an I/O module firmware upgrade Most Voted
  D. Replace blades connected to HIF Eth4/1/1 - 4.
  C. Implement an I/O module firmware upgrade Most Voted

  ---

• Question 209:

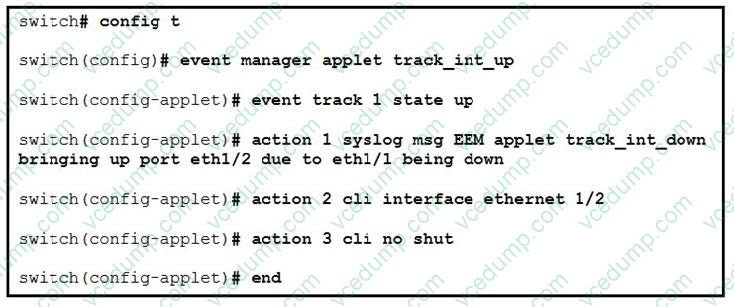

  Refer to the exhibit.



  The script fails to bring up Ethernet 1/2 when Ethernet 1/1 goes down. Which change enables the script to run as intended?

  A. Set the port VLAN
  B. Include an action to manually shut down Ethernet 1/1
  C. Add an action to configure the terminal
  D. Configure an enable action
  C. Add an action to configure the terminal

  ---

• Question 210:

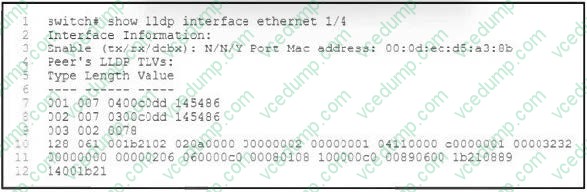

  Refer to the exhibit. The vFC interface is mapped to the port Ethernet 1/4 to which the FCoE-capable server is connected on the Cisco Nexus 9000 Series Switch. The Cisco Nexus switch is configured with the factory defaults. The vFC interfaces fails to initiate the FCoE connectivity. Which action resolves the issue?

  A. Restart LLDP.
  B. Insert the mandatory LLDP values.
  C. Enable LLDP.
  D. Enable Data Center Bridging Exchange.
  C. Enable LLDP.

  ---
