Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 31:

  Which statement is true regarding FHRP considerations for an OTV network?

  A. VRRP is recommended over HSRP or GLBP.
  B. Using an AED eliminates the need for FHRP.
  C. FHRP should be limited to only the internal OTV interfaces.
  D. Filtering FHRP across the OTV network is recommended to avoid a suboptimal path due to the election of a single default gateway.
  D. Filtering FHRP across the OTV network is recommended to avoid a suboptimal path due to the election of a single default gateway.

• Question 32:

  Which option describes why the service profiles do not inherit changes from the template?

  A. The service profile is not compatible with the changes.
  B. The changes to the template have not been committed.
  C. It is an initial template.
  D. The service profile has disabled inheritance.
  C. It is an initial template.

• Question 33:

  Refer to exhibit.



  After a boot policy is added, the profile stops working. Which option is a possible cause of the issue?

  A. An iSCSI adapter is being used on top of the vNIC.
  B. Both of the adapters from fabric A and fabric B must be specified.
  C. The name of the adapter is incorrect.
  D. The boot target does not exist.
  A. An iSCSI adapter is being used on top of the vNIC.

• Question 34:

  You use external storage to SAN boot Cisco UCS B-Series Blade Servers. The servers also have internal disks. You discover that one of the servers fails to boot from the SAN. Which two options do you verify? (Choose two.)

  A. the cabling
  B. the zoning
  C. the LUN masking on the storage array
  D. the boot order of the blade servers
  E. the blade power consumption
  B. the zoning
  C. the LUN masking on the storage array

• Question 35:

  You have enabled configuration synchronization between two Cisco Nexus 5548UP Switches. You create a port channel on switch 1 and determine that it was not synchronized with its peer. The peer switch can be pinged on the management VRF. When you check your peer status, you receive a "peer not reachable" message in the command output. What is the explanation for this?

  A. CDP is disabled.
  B. An LACP mismatch exists on the peer interfaces.
  C. UDLD is disabled.
  D. CFSoIP is disabled.
  E. Multicast routing is enabled.
  D. CFSoIP is disabled.

• Question 36:

  While performing an upgrade to Cisco UCS Release 2.2, the traffic in several VLANs is no longer active. What is the cause of this issue?

  A. Ethernet and FCoE VLANs cannot be configured on the same Cisco UCS domain.
  B. The UCS Manager detected overlapping VLANs during the upgrade, and Ethernet traffic on those VLANs is now dropped.
  C. The UCS Manager needs to be rebooted to force the configuration to work properly.
  D. Ethernet and FCoE VLANs cannot be configured different Cisco UCS domain.
  B. The UCS Manager detected overlapping VLANs during the upgrade, and Ethernet traffic on those VLANs is now dropped.

• Question 37:

  Which two fields should be examined when you use the show otv overlay command to verify that the overlay interface is enabled and the parameters match on both sides? (Choose two.)

  A. VPN name
  B. VPN state
  C. Control group
  D. Data group range
  E. Join interface
  F. Site VLAN
  B. VPN state
  C. Control group

• Question 38:

  You are troubleshooting a Cisco Nexus 1000V Series Switch. Which command can you use to re-establish communication between VSM and VMware vCenter?

  A. reset
  B. connect
  C. setup
  D. reload
  B. connect

• Question 39:

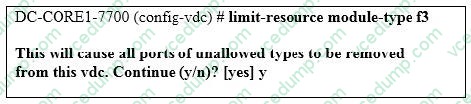

  Refer to the exhibit.



  Which result of running the command is true?

  A. All interfaces except M1, M2, and M3 modules are removed from the VDC.
  B. All interfaces except F3 modules are removed from the VDC.
  C. All F3 interfaces are removed from the VDC.
  D. All interfaces are reallocated to the VDC.
  B. All interfaces except F3 modules are removed from the VDC.

• Question 40:

  After migrating a server that is configured with dynamic vNICs, Cisco UCS Manager assigns new dynamic vNICs to the server. If you had been monitoring traffic on an original dynamic vNIC, what must you do when the server comes back up?"

  A. Reassign the dynamic vNIC back to the old configuration.
  B. Nothing; Cisco UCS Manager will take over.
  C. Reassign the service profile back to the master one.
  D. Remove and reconfigure the dynamic vNIC.
  E. Reassign the monitoring source.
  E. Reassign the monitoring source.
