Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 261:

  You discover that a new blade server encounters power spikes during peak hours. Which action occurs during the power spikes if you use manual blade-level power capping?

  A. The blade shuts down.
  B. An alert is generated.
  C. Power is reduced.
  D. The chassis enters standby mode.
  C. Power is reduced.

• Question 262:

  Which command would you use to check the status of your configuration synchronization peer?

  A. N5K2# show switch-profile peer
  B. N5K2# show config-sync peer
  C. N5K2# show synch peer
  D. N5K2# show peer status
  E. N5K2# show switch peer
  A. N5K2# show switch-profile peer

• Question 263:

  When does unicast RFP drop a packet?

  A. when there is no reverse path route on the receiving interface
  B. when the packet comes from an RFC1918 address
  C. when the destination address is not in the routing table
  D. when the source address is not in the routing table
  A. when there is no reverse path route on the receiving interface

• Question 264:

  What are the two most common causes of the "SFP validation failed" error on an interface when you attempt to connect a Cisco Nexus 2148T Fabric Extender to a Cisco Nexus 5548UP Switch? (Choose two.)

  A. The port must be in switchport monitor mode.
  B. It is a hardware limitation of the Cisco Nexus 2148T.
  C. The wrong speed is configured on the interface.
  D. The incorrect license has been applied on the Cisco Nexus 5548UP.
  E. The wrong switchport mode is configured on the interface.
  C. The wrong speed is configured on the interface.
  E. The wrong switchport mode is configured on the interface.

• Question 265:

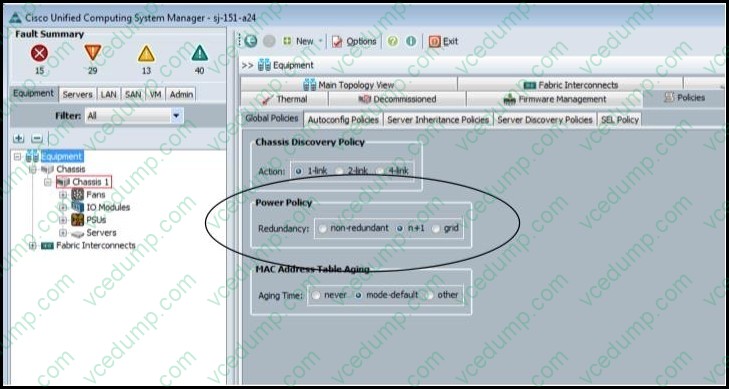

  Refer to the exhibit.



  Which type of power policy is shown when referring to a Cisco UCS environment?

  A. chassis
  B. blade server
  C. fabric interconnect
  D. global
  E. switch
  D. global

• Question 266:

  A customer calls you to report that it receives an error when entering the pinning max-links 4 command in FEX configuration mode on its Cisco Nexus 5596T Switch. Which of these is a likely cause for this condition?

  A. The FEX fabric interface is down.
  B. The transceiver is incorrect.
  C. A fabric interface is in a port channel.
  D. The fabric interface switchport mode is set to Access.
  E. Only two fabric interfaces are connected.
  C. A fabric interface is in a port channel.

• Question 267:

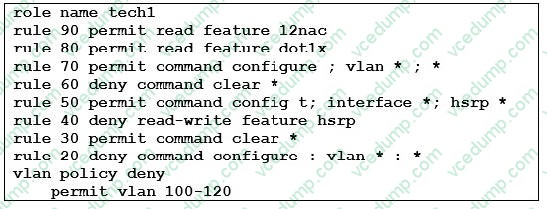

  Refer to the exhibit.



  Users in the tech1 role are unable to create VLAN 99. Which action do you take to resolve the issue?

  A. Add a rule that permits VLAN configuration.
  B. Allow the tech1 role to access the layer 2 configuration commands.
  C. Change rule 20 to permit access to the VLAN command.
  D. Add VLAN 99 to the permit vlan range.
  C. Change rule 20 to permit access to the VLAN command.

• Question 268:

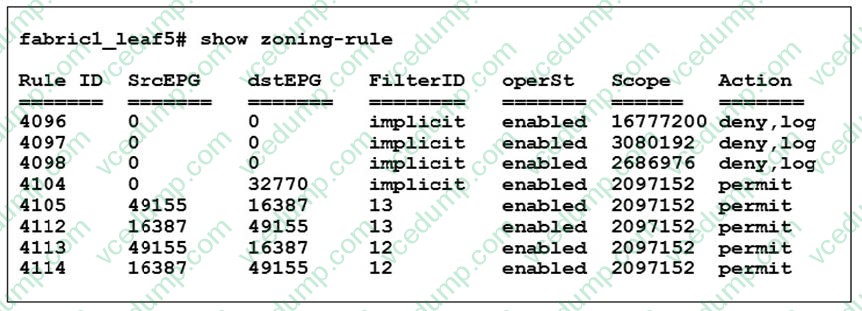

  Refer to the exhibit.



  What does the output in the Scope column indicate?

  A. the EPG to which the rule applies
  B. the VRF tenant to which the rule applies
  C. the VRF segment to which the rule applies
  D. the fabric zone to which the rule applies
  A. the EPG to which the rule applies

• Question 269:

  A UCS Admin is trying to launch the KVM console but it is failing to launch. All IP Pools for mgmt are configured and the CIMC has an address in UCSM. They SSH to the fabric Interconnect and run an ethanalyzer while issuing a ping from their local PC to the KVM IP address. The ping is successful but they do not see the ICMP requests and replies displayed in the capture. Here is the filter they used: FIA(nxos)# ethanalyzer local interface mgmt display-filter icmp limit-captured-frames 0

  What could be the reason pings are not seen in the capture and the KVM is failing to load?

  A. Java settings are preventing the KVM from loading
  B. There is a duplicate IP address for that CIMC address
  C. The switch upstream from the FI has the wrong vlan configured
  D. The CIMC IP pool is in the same subnet as the Fabric Interconnects mgmt 0 interface
  B. There is a duplicate IP address for that CIMC address

• Question 270:

  Refer to the exhibit.



  Which tab would be the most useful for troubleshooting a blade discovery problem?

  A. Faults
  B. Events
  C. FSM
  D. Servers
  C. FSM
