• Question 241:

  Which three send and receive locations an administrator can find the root cause for a network issue on the Cisco UCS domain? (Choose three.)

  A. between fabric interconnect and LAN or SAN
  B. between the FEX and fabric interconnect
  C. between each FEX on the Cisco UCS chassis
  D. between the host and FEX
  E. between fabric interconnects within the domain
  F. between the Cisco UCS chassis and system interconnects
  A. between fabric interconnect and LAN or SAN
  B. between the FEX and fabric interconnect
  D. between the host and FEX

• Question 242:

  While troubleshooting HSRP adjacency, a packet analyzer captures the remote packet with the information: IP 224.0.0.102 with a MAC address of 0000.0C9F.0256. The DCI local group number is 256.

  Which solution resolves the problem?

  A. Request that the remote data center change the HSRP version to V1.
  B. Report the issue as a suspected bug because the group number is correct based on the analyzer.
  C. Request that the remote data center verifies that they do not have an HSRP password configured.
  D. Request that the remote data center to use the correct HSRP group number.
  E. Change the local HSRP version to V1.
  D. Request that the remote data center to use the correct HSRP group number.

• Question 243:



  Refer to the exhibit. A user is assigned to the access-admin and fabric-admin roles in the APIC portal. Which additional role must be granted to the user to access the Cisco ACI End point tracker tool?

  A. tenant-ext-admin
  B. aaa
  C. ops
  D. nw-svc-params
  C. ops

• Question 244:

  Refer to the exhibit.



  You have an EPG named SQL_SERVERS that must be assigned to virtual machines. The SQL_SERVERS EPG fails to appear as a port group on the VMware vSphere web client. Other EPGs appear as port groups on the vSphere web client.

  Which action do you take to resolve the issue?

  A. Create the SQL_SERVERS port group on the vSphere web client.
  B. Create the SQL_SERVERS port group in the APIC GUI.
  C. Place the SQL_SEVERS EPG under quarantine until it is first used.
  D. Associate the SQL-SERVERS EPG to the VDS01 VMM domain.
  B. Create the SQL_SERVERS port group in the APIC GUI.

• Question 245:

  Your customer has a dual Cisco Nexus 7010 Switches in its data center. Customer's representatives want to know how to determine if Cisco IOS ISSU is possible on the switches as they are upgrading to version 6.0.4. Which command is useful to determine if the upgrade will be non-disruptive?

  A. N7010-C1# show system redundancy ha status
  B. N7010-C1# show incompatibility system
  C. N7010-C1# install all
  D. N7010-C1# show issu test bootflash:n7000-s1-system.6.0.4.bin
  C. N7010-C1# install all

• Question 246:

  Two fabric interconnects fail during a Cisco UCS firmware upgrade. Drag and drop the recovery steps from the left into the correct order on the right.

  Select and Place:





• Question 247:

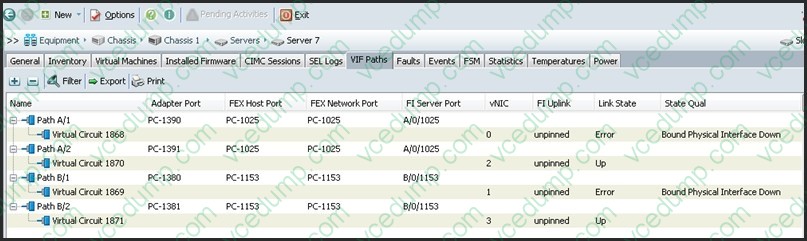

  Refer to the exhibit. A system administrator reviews the VIF paths and discovers an error. What is the cause of the error?



  A. The server has no connection to the SAN.
  B. The server is still booting over SAN.
  C. The server is still booting over iSCSI.
  D. The server has the VIC with errors and needed to make an RMA.
  E. The switch that is connected the fabric interconnect has a port that is unavailable.
  C. The server is still booting over iSCSI.

• Question 248:

  When configuring an FCoE host connection, you discover that interface vfc1 fails to come up.vfc1 is bound to interface eth 1/10. Which command can you run to check that the connected host supports FIP?

  A. show platform software fcoe-mgr info interface eth1/10
  B. show system internal dcbx info interface vfc1
  C. show platform software dcbx internal info interface vfc1
  D. show platform software fcoe_mgr info interface vfc1
  D. show platform software fcoe_mgr info interface vfc1

• Question 249:

  Refer to the exhibit.



  What does this adapter output indicate?

  A. The target of the configured zone does not match the target of the configured boot order.
  B. The port types between the target and initiator are incorrectly configured.
  C. The target device configuration is not allowing the initiator to access the LUN.
  D. The configured initiator LUN ID does not match the configured target LUN ID.
  C. The target device configuration is not allowing the initiator to access the LUN.

• Question 250:

  Which two statements about the Cisco UCS FSM are true? (Choose two.)

  A. The FSM is run on the DME.
  B. The FSM is a workflow model with a finite number of stages.
  C. The FSM is a process to upgrade the firmware.
  D. Cisco UCS has two FSMs.
  E. The FSM is used to observe the physical, logical, and virtual components on the Cisco UCS.
  A. The FSM is run on the DME.
  B. The FSM is a workflow model with a finite number of stages.
