Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 251:

  Which two items represent the features of Call Home on the Cisco Unified Computing System? (Choose two.)

  A. syslog
  B. send fault details to Cisco TAC
  C. SNMP trap receiver
  D. send email alerts to administrators
  E. central repository of normalized fault data
  B. send fault details to Cisco TAC
  D. send email alerts to administrators

• Question 252:

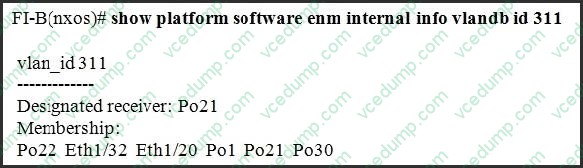

  Refer to the exhibit. Which two statements about the fabric interconnect are true? (Choose two.)



  A. The fabric interconnect forwards all broadcast packets on VLAN 311 out of each interface listed in the Membership.
  B. The fabric interconnect forwards broadcasts on VLAN 311 only when they are received on Po21.
  C. Without any changes to the switch, eth 1/32 could become the designated receiver for VLAN 311.
  D. All multicast traffic from a blade on VLAN 311 goes out of Po21.
  E. IGMP join packets from blades on VLAN 311 goes out Po21.
  B. The fabric interconnect forwards broadcasts on VLAN 311 only when they are received on Po21.
  E. IGMP join packets from blades on VLAN 311 goes out Po21.

• Question 253:

  Which option describes the difference between "high-performance" and "none" on a VM-FEX port profile?

  A. None is software assisted, and high-performance is software and hardware assisted.
  B. None indicates that VM-FEX is not used on this interface, and high-performance indicates that is used.
  C. None is used for management profiles, and high-performance is used for mission-critical data profiles.
  D. None assumes default scheduling settings for the port profile, and high-performance gives the ports priority in scheduling.
  A. None is software assisted, and high-performance is software and hardware assisted.

• Question 254:

  HOTSPOT



  Hot Area:





• Question 255:

  With Cisco UCS Manager, in which location do you monitor the chassis discovery process?

  A. CMC
  B. FSM
  C. CDP
  D. DME
  B. FSM

  ---

  http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/b_UCSM_GUI_Configuration_Guide_2_0_chapter_0 100011.html

• Question 256:

  For which reason would a user choose UEFI boot over Legacy mode?

  A. To support multiple GPU cards
  B. For checksum verification of the EFI shell
  C. To support 4k boot drives.
  D. To reduce BIOS POST times
  D. To reduce BIOS POST times

• Question 257:

  HOTSPOT



  Hot Area:





• Question 258:

  Which four physical connections on a fabric interconnect are needed to perform the initial system setup for a cluster configuration? (Choose four.)

  A. Ethernet uplink ports connected to upstream switch
  B. console port connected to a computer terminal or console server.
  C. Layer 1 ports on both fabric interconnects connected to each other
  D. Layer 1 port of the first fabric interconnect connected to Layer 2 port of the second fabric interconnect
  E. Layer 2 ports on both fabric interconnects connected to each other
  F. Fibre Channel uplink ports connected to upstream fabric switch
  G. management Ethernet port (mgmt0) connected to external switch or router
  H. port channel to each fabric interconnect
  B. console port connected to a computer terminal or console server.
  C. Layer 1 ports on both fabric interconnects connected to each other
  E. Layer 2 ports on both fabric interconnects connected to each other
  G. management Ethernet port (mgmt0) connected to external switch or router

• Question 259:

  You have a Cisco UCS C-Series Server. What can you use to log the blade server statistics?

  A. the Cisco Integrated Management Controller log
  B. RADIUS
  C. LDAP
  D. the XML API
  A. the Cisco Integrated Management Controller log

  ---

  http://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-c-series-rack-servers/datasheet-c78-733571.html

• Question 260:

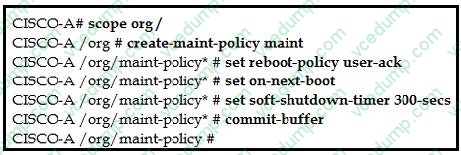

  Refer to the exhibit.



  Which result of implementing the maintenance policy is true?

  A. The FSM applies the waiting changes when the host OS resets.
  B. The Cisco UCS server reboots as soon as the change is made to the service profile.
  C. The Cisco UCS server reboots at a scheduled time.
  D. The Cisco UCS server reboots 300 seconds after the policy is applied.
  D. The Cisco UCS server reboots 300 seconds after the policy is applied.
