• Question 11:

  Which two prerequisites are required to configure a SAN boot from the iSCSI storage of a Cisco UCS system? (Choose two.)

  A. There must be FCIP connectivity between the Cisco UCS domain and the boot target storage.
  B. There must be IP connectivity between the Cisco UCS domain and the boot target storage.
  C. The operating system to boot must be iBFT-capabie.
  D. There must be a group of IP addresses that is associated with the WWN pool.
  E. The operating system to boot must be an iSCSI initiator and must be target-capable.
  B. There must be IP connectivity between the Cisco UCS domain and the boot target storage.
  C. The operating system to boot must be iBFT-capabie.

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/

  b_UCSM_GUI_Configuration_Guide_2_0_chapter_011101.html#concept_FBB613095A774844ACA4DD7377EE102D

  To use a SAN boot, ensure that the following is configured: The Cisco UCS domain must be able to communicate with the SAN storage device that hosts the operating system image.

  The next step, which is the installation of the operating system (OS), requires an OS that is iBFT capable.

  There must be FCIP connectivity between the Cisco UCS domain and the boot target storage. NOT CORRECT (FCIP IS FC)

  There must be IP connectivity between the Cisco UCS domain and the boot target storage. CORRECT

  The operating system to boot must be iBFT-capable. CORRECT

  There must be a group of IP addresses that is associated with the WWN pool. NOT CORRECT (WWN IS FC)

  The operating system to boot must be an iSCSI initiator and must be target-capable. MAYBE

• Question 12:

  You need to configure a new Fibre Channel port channel from the Cisco UCS Manager GUI. To do this, from the SAN tab. you navigate to SAN Cloud > Fabric A or B > FC Port Channels, and you click the plus sign. In the popup window, you specify the Fibre Channel port channel name and ID. Which two rules should you follow when you set the Fibre Channel port channel name and ID? (Choose two.)

  A. The Name field must be a number.
  B. The ID field can contain ASCI characters, except for spaces.
  C. The Name field is optional, but it cannot contain spaces.
  D. The Fibre Channel port channel ID is optional.
  E. The Fibre Channel port channel ID must be a number.
  C. The Name field is optional, but it cannot contain spaces.
  E. The Fibre Channel port channel ID must be a number.

  ---

  https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration_Guide_141_chapter5.html#concept_27BF341DAC6441EDB93F363AA6284E23 ID field

  The identifier for the port channel.

  Enter an integer between 1 and 256. This ID cannot be changed after the port channel has been saved.

  Name field

  A user-defined name for the port channel.

  This name can be between 1 and 16 alphanumeric characters. You cannot use spaces or any special characters other than - (hyphen), _ (underscore), : (colon), and . (period), and you cannot change this name after the object has been

  saved.

  The Fibre Channel port channel ID is NOT optional

  The ID field CANNOT contain ASCII characters, OR spaces.

  The Name field must be a number IS NOT CORRECT.

  The Fibre Channel port channel ID must be a number. IS CORRECT

  The Name field is optional, but it cannot contain spaces. IS CORRECT

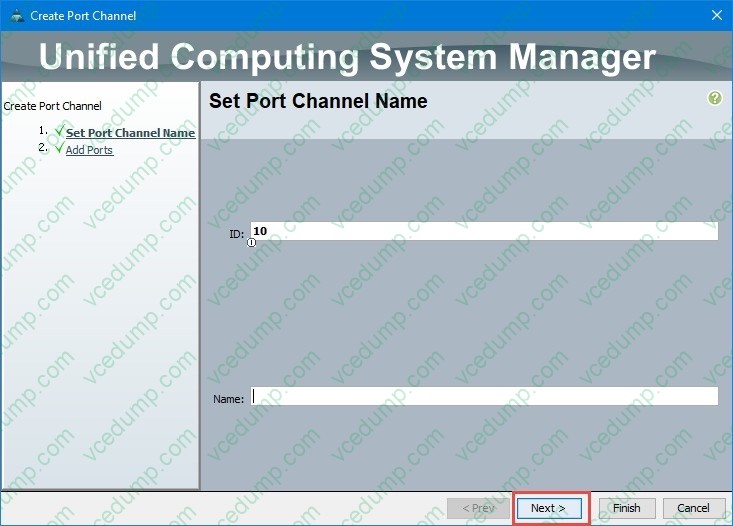

  The name field is optional (notice the "Next >" button is available when the name field is empty)

• Question 13:

  Which four Cisco UCS components use the Cisco NX-OS syslog services to generate syslog entries for system information and alerts? (Choose four.)

  A. I/O module
  B. fabric interconnect
  C. chassis
  D. Cisco Integrated Management Controller
  E. Cisco UCS Manager
  F. adapter
  G. Ethernet uplink
  H. storage module
  A. I/O module
  D. Cisco Integrated Management Controller
  E. Cisco UCS Manager
  F. adapter

• Question 14:

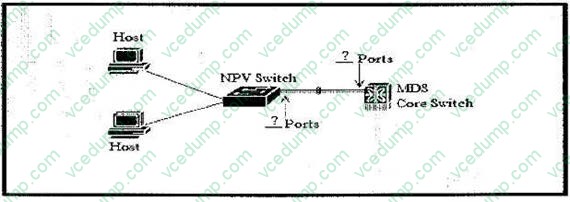

  Refer to the exhibit. An engineer is implementing a new network design that includes a port channel to connect an MDS core switch and an NPV switch. Which two Fibre Channel port types must be used to create the Fibre Channel port channel? (Choose two.)



  A. F Port
  B. NP Port
  C. NL Port
  D. E Port
  E. N Port
  F. TL Port

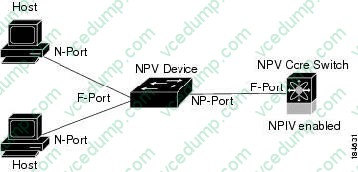

  A. F Port
  B. NP Port

  ---



  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/4_1/configuration/guides/cli_4_1/clibook/npv.html

• Question 15:

  Which configuration must be made to run the fabric interconnects as a vPC pair?

  A. The Ethernet mode must be set to switching.
  B. The Layer 1 and Layer 2 cables must be configured as a vpc peer-link
  C. The fabric interconnects cannot run as a VPC pair
  D. The ethernet mode must be set to end host
  C. The fabric interconnects cannot run as a VPC pair

  ---

  https://supportforums.cisco.com/t5/unified-computing-system/benefits-to-vpc-on-6200s-fabric-interconnects-in-ucs/td-p/2086588

• Question 16:

  What is the maximum number of ports on a VMware vCenter Distributed Virtual Switch?

  A. 64
  B. 128
  C. 1024
  D. 4096
  E. 8192
  D. 4096

• Question 17:

  Which two parameters must be configured on a standalone Cisco UCS C-Series Server to export the technical support data to a remote server? (Choose two)

  A. Specify a remote TFTP server IP address.
  B. Install a certificate
  C. Install an FTP server
  D. Set the source as the UCS server IP address.
  E. Specify the remote relative path and file name.
  A. Specify a remote TFTP server IP address.
  E. Specify the remote relative path and file name.

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/gui/config/guide/2-0/b_Cisco_UCS_C-series_GUI_Configuration_Guide_201.pdf

• Question 18:

  You plan to configure a SAN boot from the iSCSI storage of a Cisco UCS system. Which statement about an iSCSI vNIC is true?

  A. All iSCSI data traffic is carried over the vNIC after the boot.
  B. An iSCSI vNIC is an iBFT configuration placeholder for the iSCSI boot configuration. The vNIC exists only during the startup phase.
  C. Only iSCSI control data traffic is carried over the vNIC after the boot.
  D. An iSCSI vNIC is an iBFT configuration placeholder for the iSCSI boot process. The vNIC exists during and after the startup phase.
  D. An iSCSI vNIC is an iBFT configuration placeholder for the iSCSI boot process. The vNIC exists during and after the startup phase.

  ---

  https://overlaid.net/2014/09/05/ucs-boot-from-iscsi/ https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-manager/116003-iscsi-ucs-config-00.html https://supportforums.cisco.com/t5/unified-computing-system/iscsi-vnic-a-requirement/td-p/1801389 https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/ b_UCSM_GUI_Configuration_Guide_2_0_chapter_011101.html#concept_FBB613095A774844ACA4DD7377EE102D

• Question 19:

  Drag and Drop Question

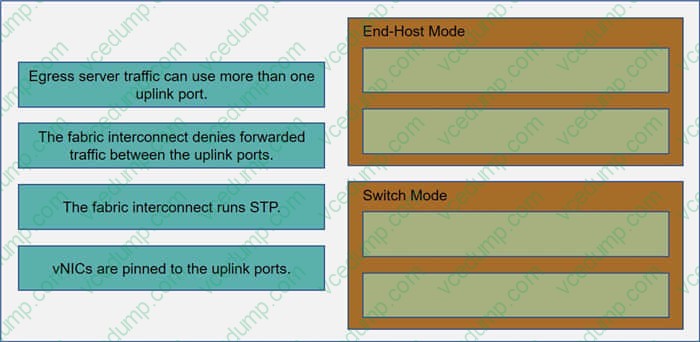

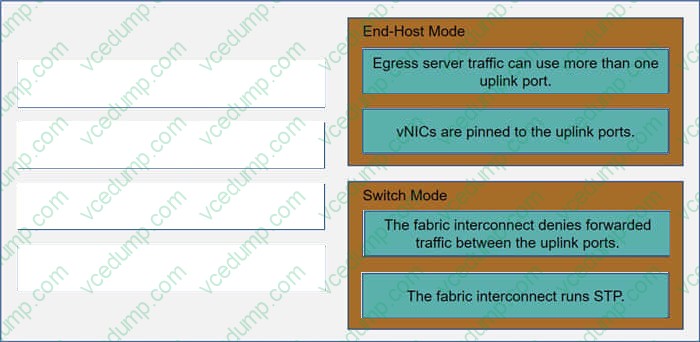

  Drag and drop the fabric interconnect characteristics on the left to the correct Ethernet switching modes on the right.

  Select and Place:





• Question 20:

  How does a dynamic vNIC get allocated?

  A. Dynamic vNICs are assigned to VMs in VMware vCenter.
  B. Dynamic vNICs can only be bound to the service profile through an updating template.
  C. Dynamic vNICs are bound directly to a service profile.
  D. Dynamic vNICs are assigned by binding a port profile to the service profile.
  C. Dynamic vNICs are bound directly to a service profile.
