Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 181:

  What is true statement concerning port personalities on the Cisco Unified Computing System 62XX Fabric Interconnect?

  A. Fibre Channel uplink ports must operate in Fibre Channel switching mode.
  B. The fabric interconnects use native FCoE storage ports to directly attach to the SAN infrastructure.
  C. By default, all Fibre Channel ports are unconfigured.
  D. The Fibre Channel uplink ports do not support VSAN trunking and Fibre Channel port channels.
  E. The Fibre Channel storage ports support VSAN trunking and Fibre Channel port channels.
  C. By default, all Fibre Channel ports are unconfigured.

• Question 182:

  How do you install a TPM and enable Intel Trusted Execution Technology on a Cisco UCS M2814 Compute Cartridge?

  A. A TPM module is installed by default. You must enable Intel Trusted Execution Technology support in Cisco UCS Manager.
  B. Decommission and power off the cartridge. Install a TPM module. TPM support and Intel Trusted Execution Technology are enabled by default.
  C. Decommission and power off the cartridge. Install a TPM module. TPM support is enabled by default. You must enable Intel Trusted Execution Technology support in the BIOS.
  D. A TPM module is installed by default. You must enable Intel Trusted Execution Technology support in the BIOS.
  D. A TPM module is installed by default. You must enable Intel Trusted Execution Technology support in the BIOS.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/2-5/b_UCSM_CLI_Quick_Reference_Guide_2_5/b_UCSM_CLI_Quick_Reference_Guide_2_5_chapter_0110.pdf

• Question 183:

  Refer to the exhibit.



  Which PFC capability mode is set for the interface?

  A. default
  B. negotiate
  C. force-enable
  D. disable
  A. default

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nx-os/qos/configuration/guide/nx-os_qos_book/qos_pfc.html

• Question 184:

  Which two statements about Cisco VM-FEX dynamic vNIC configuration and provisioning by using the Cisco UCS Manager are true? (Choose two.)

  A. Dynamic vNIC parameters are configured by using SNMP.
  B. Dynamic vNIC parameters must be configured manually before the virtual machine connects to its port group.
  C. Dynamic vNIC parameters are configured dynamically after the assigned virtual machine connects to the port group.
  D. Dynamic vNIC parameters are enabled by using the Fibre Channel Forwarder protocol.
  E. Dynamic vNIC parameters are configured by inheriting the port-group parameters of the associated virtual machines.
  C. Dynamic vNIC parameters are configured dynamically after the assigned virtual machine connects to the port group.
  D. Dynamic vNIC parameters are enabled by using the Fibre Channel Forwarder protocol.

  ---

  http://www.cisco.com/en/US/docs/switches/datacenter/nexus5000/sw/mkt_ops_guides/513_n1_1/ n5k_ops_vmfex.pdf

• Question 185:

  To boot from SAN, you must perform which two configurations on a Cisco UCS system? (Choose two.)

  A. Enter the boot LUN and the nWWNs.
  B. Put the boot VSAN in a dedicated boot service profile template.
  C. Create a LUN, and allow the server WWPN to have access to the LUN.
  D. Put the server WWPN and the storage array WWPN in the same zone.
  E. Create a dedicated boot VSAN.
  C. Create a LUN, and allow the server WWPN to have access to the LUN.
  D. Put the server WWPN and the storage array WWPN in the same zone.

  ---

  http://jeffsaidso.com/2010/11/boot-from-san-101-with-cisco-ucs/

• Question 186:

  Which consideration must be made while performing backup operations within the Cisco UCS Manager?

  A. Each backup destination can have multiple backup operations.
  B. Backups can be scheduled ahead of time.
  C. A user can perform incremental backups of a system configuration.
  D. Rerunning an existing backup operation overwrites the existing backup file.
  D. Rerunning an existing backup operation overwrites the existing backup file.

• Question 187:

  Which VMware ESXi 5.0 CLI command will validate PassThru interfaces when they are available?

  A. vem status -v
  B. vempassthru-v
  C. vemintf -v
  D. vemifconfig -v
  E. vempts -v
  A. vem status -v

• Question 188:

  Which Cisco UCS backup type results in an XML file that include all system and logical configuration settings?

  A. system configuration
  B. all configuration
  C. full state
  D. logical configuration
  A. system configuration

  ---

  System configuration - An XML file that includes all system configuration settings such as usernames, roles, and locales. You can use the file generated from this backup to import these configuration settings to the original fabric interconnect or to a different fabric interconnect. You cannot use this file for a system restore.

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/b_UCSM_GUI_Configuration_Guide_2_0_chapter_0100111.pdf

• Question 189:

  When running MultiHop FcOE , where are the FC frames de-encapsulated from Ethernet?

  A. At the first switch
  B. At each FCoE hop
  C. At the target device
  D. At the first native FC switch
  D. At the first native FC switch

  ---

  https://www.cisco.com/c/dam/en/us/solutions/collateral/data-center-virtualization/ieee-802-1-data-center-bridging/white_paper_FCIAFCoE.pdf

• Question 190:

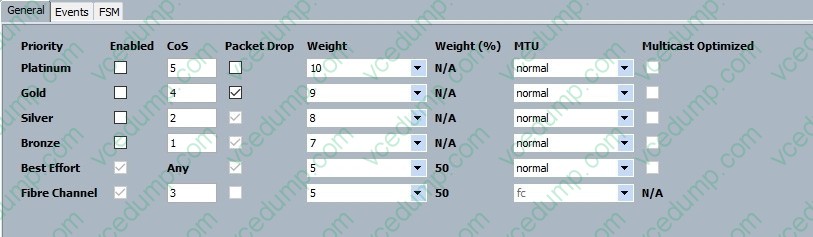

  A Cisco UCS administrator configuring QoS, Which two options are valid QoS system classes in a Cisco UCS blade system? (Choose two )

  A. drop eligible
  B. transactaional data
  C. best effort
  D. scavenger
  E. Fibre Channel
  C. best effort
  E. Fibre Channel

  ---
