Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 171:

  You are implementing a Cisco UCS system. When you create a local disk configuration policy, if you enable the Protect Configuration feature, what are two effects? (Choose two)

  A. When tie service profile is disassociated, the server cannot access its storage any longer, and it reverts to
  B. When the service profile is disassociated the server cannot protect its storage any longer, and an error message appears
  C. If a new service profile is associated, it must have a matching local storage policy otherwise an error message appears
  D. If a new service profile is associated, it must have a matching local storage policy otherwise the server reverts to the default remote storage policy
  E. If a new service profile is associated, it must have a matching local storage policy, otherwise the server halts
  F. When the service profile is disassociated the server retains the local storage configuration
  B. When the service profile is disassociated the server cannot protect its storage any longer, and an error message appears
  F. When the service profile is disassociated the server retains the local storage configuration

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/b_UCSM_GUI_Configuration_Guide_2_2/b_UCSM_GUI_Configuration_Guide_2_2_chapter_011110.html

• Question 172:

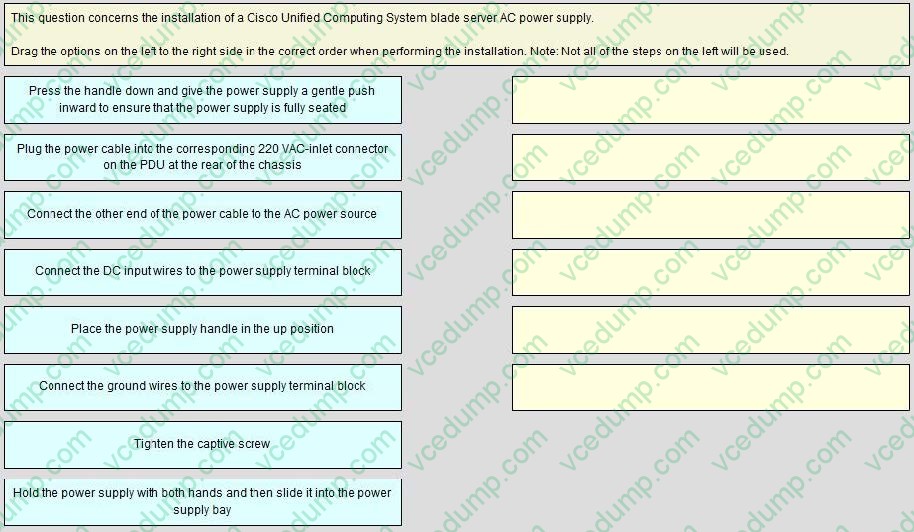

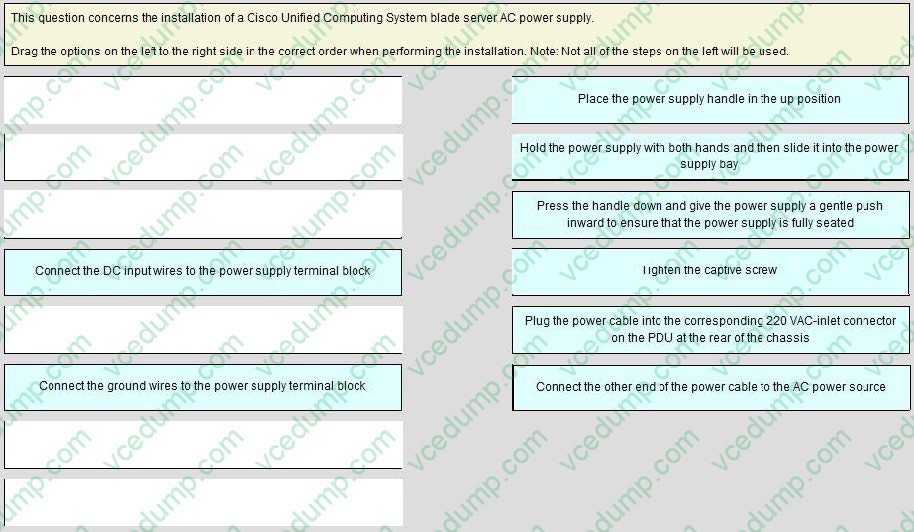

  Drag Drop This question concerns the installation of a Cisco Unified Computing System blade server AC power supply. Drag the options on the left to the right side in the correct order when performing the installation. Note: Not all of the steps on the left will be used.

  Select and Place:





• Question 173:

  Which solution enables Cisco devices to be monitored with automated support capabilities?

  A. Connected service assurances
  B. Cisco Intersight
  C. Cisco Intelligent Monitoring Agent
  D. Two-Tier smart agent
  B. Cisco Intersight

• Question 174:

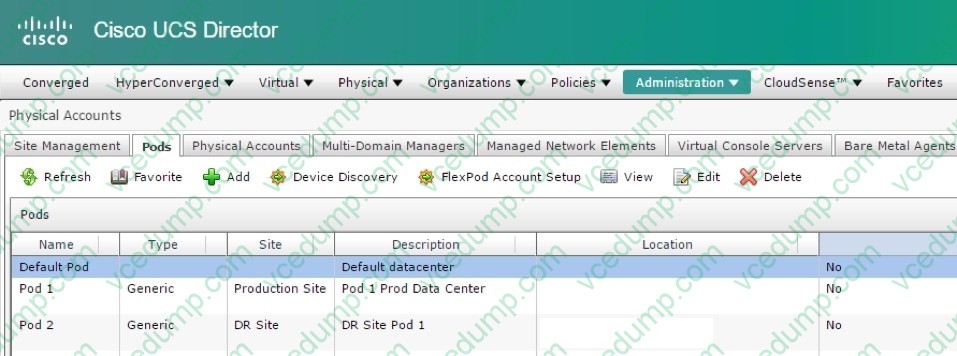

  Refer to the exhibit below.



  Which tab do you select to add an APIC account when adding an ACI fabric?

  A. Multi-Domain Managers
  B. Physical Accounts
  C. Managed Network Elements
  D. Bare Metal Agents
  A. Multi-Domain Managers

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-director/apic-management-guide/5-4/ b_UCS_Director_APIC_Management_Guide_54/ b_UCS_Director_APIC_Management_Guide_54_chapter_011.html Step 1 On the

  menu bar, choose Administration > Physical Accounts.

  Step 2 Click the Multi-Domain Managers tab.

  Step 3 Click Add.

  Step 4 In the Add Account dialog box, choose APIC from the Account Type drop-down list.

  Step 5 Click Submit.

• Question 175:

  Which of the following are true concerning authentication within a Cisco Unified Computing System?

  A. Authentication domains are used to leverage individual authentication systems.
  B. You can create up to 64 authentication domains, each associated with a provider group and realm in Cisco Unified Computing System.
  C. Cisco Unified Computing System supports LDAP or RADIUS for remote authentication.
  D. A locally authenticated user account is authenticated directly through the fabric interconnect.
  D. A locally authenticated user account is authenticated directly through the fabric interconnect.

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/b_UCSM_GUI_Configuration_Guide_2_0_chapter_0111.html

• Question 176:

  Refer to the exhibit.



  What statement is true regarding this setup created by this configuration?

  A. The NIC bypasses the kernel when sending and receiving networking packets
  B. The applications interact directly with the OS Kernel
  C. All of the other vNICs in the server are deleted and replaced by the usnic.
  D. Other answer (unknown)
  A. The NIC bypasses the kernel when sending and receiving networking packets

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/usnic/c/deployment/2_0_X/ b_Cisco_usNIC_Deployment_Guide_For_Standalone_C- SeriesServers.html#task_7B190C1F34C64BF7A04DF01D5E60454D

• Question 177:

  Which option enables you to update the third-party intel storage adapter firmware securely?

  A. The firmware auto sync server policy
  B. The host firmware package
  C. The secure firmware update
  D. The server profile
  C. The secure firmware update

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Firmware-Mgmt/3-1/b_UCSM_GUI_Firmware_Management_Guide_3_1/ b_UCSM_GUI_Firmware_Management_Guide_3_1_chapter_0111.html

• Question 178:

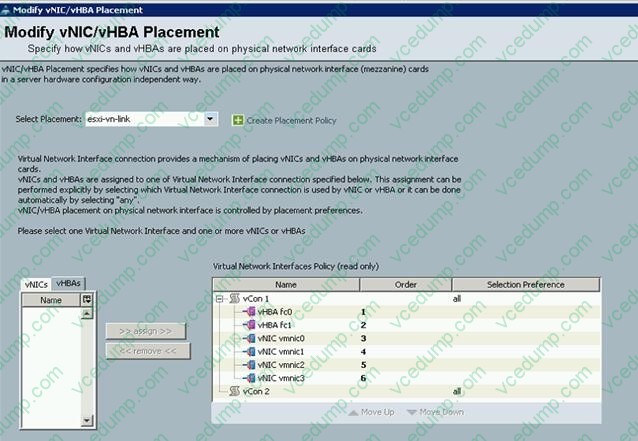

  Refer to the exhibit. Which action do you take to ensure that a vNIC is assigned to a spesific adapter?



  A. Manually assign each vCon to a physical adapter
  B. Order the vNics numerically
  C. Manually assign vNIC to a vCon
  D. Automatically place the vNIC on to a physical adapter
  C. Manually assign vNIC to a vCon

• Question 179:

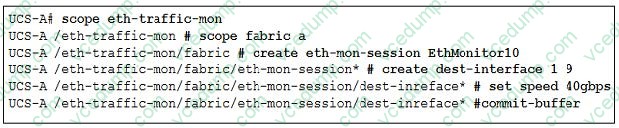

  Refer to the exhibit.



  Which description of the result is true?

  A. An Ethernet monitoring session was created where traffic may be copied and forwarded to slot 1 port 9 for analysis.
  B. An Ethernet monitoring session was created, activated and committed.
  C. Ethernet traffic from slot 9 port 1 will be copied and forwarded to the destination SPAN port for analysis.
  D. Ethernet traffic from slot 1 port 9 will be copied and forwarded to the destination SPAN port for analysis.
  D. Ethernet traffic from slot 1 port 9 will be copied and forwarded to the destination SPAN port for analysis.

• Question 180:

  Which two AAA protocols are supported by a remote AAA database? (Choose two.)

  A. Microsoft Active Directory
  B. RADIUS
  C. 802.1X
  D. Kerberos
  E. LDAP
  B. RADIUS
  E. LDAP

  ---

  https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration_Guide_141_chapter7.html#concept_FAA777771F5D4F14A82A479CED0D4AF4
