Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 191:

  When configuring roles in the Cisco UCS C-Series, which role should be assigned for a person who must be allowed to power on the server and install a hypervisor using virtual media, but not allowed to configure other Cisco Integrated Management Controller settings?

  A. read-only
  B. user
  C. VM admin
  D. admin
  B. user

• Question 192:

  Which network driver is required on a VMware ESXi 5.0 host for a vNIC to enter Cisco VM-FEX universal passthrough mode?

  A. VMXNET3
  B. Vlance
  C. Flexible
  D. E1000e
  E. VMXNET5
  A. VMXNET3

• Question 193:

  You plan to register a Cisco UCS domain to a Cisco UCS Central system UCS Central with determine the policy configuration. Which policy resolution mode must you use when you register the UCS domain?

  A. Global
  B. Private
  C. Local
  D. Central
  A. Global

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-central/deployment-guide/1-0/b_UCSC_Deployment_Guide_10/b_UCSC_Deployment_Guide_10_chapter_0100.pdf

• Question 194:

  You have a Cisco UCS C220 M4 Rack Server that has five physical hard drives and is integrated with Cisco UCS Manager You need to use two drives to configure RAID 1 and use the three drives that remain to configure RAID 5.

  Which three steps do you perform to accomplish this goal? (Choose three.)

  A. Create an Any Configuration local disk configuration policy
  B. Create a local disk configuration policy for a RAID 6 striped configuration that has dual parity
  C. Configure the volumes by using the LSI tools outside of Cisco UCS Manager
  D. Create a local disk configuration policy for a RAID 5 stnped configuration that has parity
  E. Create a local disk configuration policy for a RAID 1 mirrored configuration
  F. Assign the local disk configuration policy to the associated service profile of the server
  D. Create a local disk configuration policy for a RAID 5 stnped configuration that has parity
  E. Create a local disk configuration policy for a RAID 1 mirrored configuration
  F. Assign the local disk configuration policy to the associated service profile of the server

• Question 195:

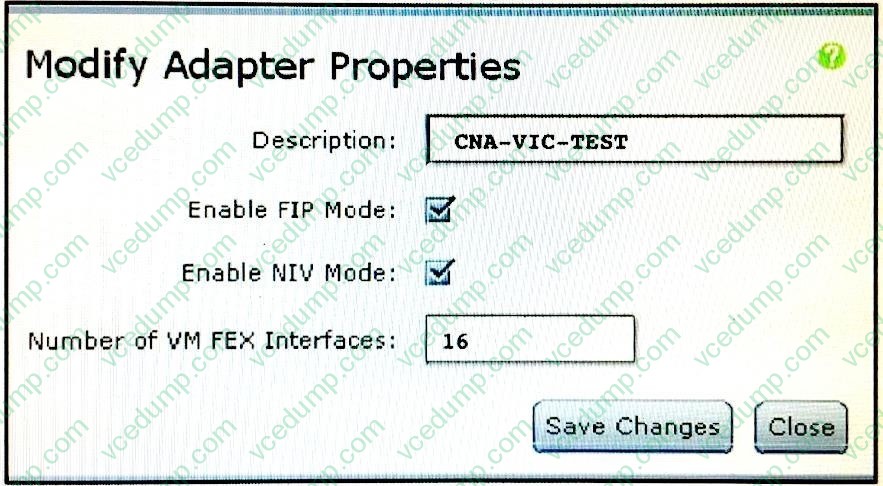

  Refer to the exhibit. From the Cisco Integrated Management Controller GUI, the Cisco Network Assistant VIC adapter properties of a Cisco UCS -Series Server in standalone mode are configured as shown. Which three options are results of the configuration? (Choose three.)



  A. Sixteen dynamic vNICs on the Cisco Network Assistant VIC adapter are provisioned.
  B. A description for the Cisco Network Assistant VIC adapter is assigned.
  C. Sixteen static vNICs on the Cisco Network Assistant VIC adapter are provisioned.
  D. FIP support on the Cisco Network Assistant VIC adapter is enabled.
  E. Sixteen dynamic device aliases for vNICs on the Cisco Network Assistant VIC adapter are provisioned.
  F. NIV mode for the Cisco Network Assistant VIC adapter is disabled.
  A. Sixteen dynamic vNICs on the Cisco Network Assistant VIC adapter are provisioned.
  B. A description for the Cisco Network Assistant VIC adapter is assigned.
  D. FIP support on the Cisco Network Assistant VIC adapter is enabled.

  ---

  http://www.cisco.com/c/en/us/support/docs/switches/nexus-5000-series-switches/117690-configure-vmfex-00.html

• Question 196:

  You manage Cisco UCS -Series Rack-Mount Servers. Which three components can you upgrade by using the Cisco Host Upgrade Utility? (Choose three.)

  A. the LAN on motherboard
  B. the Cisco Integrated Management Controller
  C. the operating system images
  D. the system BIOS
  E. the fabric interconnects
  F. the FEX modules
  A. the LAN on motherboard
  B. the Cisco Integrated Management Controller
  D. the system BIOS

  ---

  http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/lomug/2-0-x/b_huu_2_0_3/b_huu_2_0_3_chapter_01.html

• Question 197:

  Which option describes the Network Security feature of Cisco intergrated Mnagement Controller?

  A. User-configured ACLs that deny devices access to the Cisco IMC
  B. 802.1x support which permits the Cisco IMC access to the port security network
  C. A feature that locks users out of the Cisco IMC after a specified number of unsuccessful log in attempts
  D. A list that specifies the devices allowed to access the Cisco IMC
  C. A feature that locks users out of the Cisco IMC after a specified number of unsuccessful log in attempts

• Question 198:

  Which item describes the failure scenario called a "split-brain" in the Cisco Unified Computing System?

  A. failure of the Cisco Unified Computing System L1-L2 network
  B. failure of a Cisco Unified Computing System Chassis Management Controller
  C. failure of a Cisco Unified Computing System I/O module
  D. failure of a Cisco Unified Computing System Fabric Interconnect
  E. failure of a Cisco Unified Computing System Chassis Management Switch
  A. failure of the Cisco Unified Computing System L1-L2 network

• Question 199:

  You have a Cisco Nexus switch in NPV mode. Which technology do you use to enhance load balancing, capacity, and resiliency for the devices FLOGI'd into this switch?

  A. FabricPath
  B. F-port-channel-trunk
  C. Overlay vNIC
  D. FCoE
  D. FCoE

• Question 200:

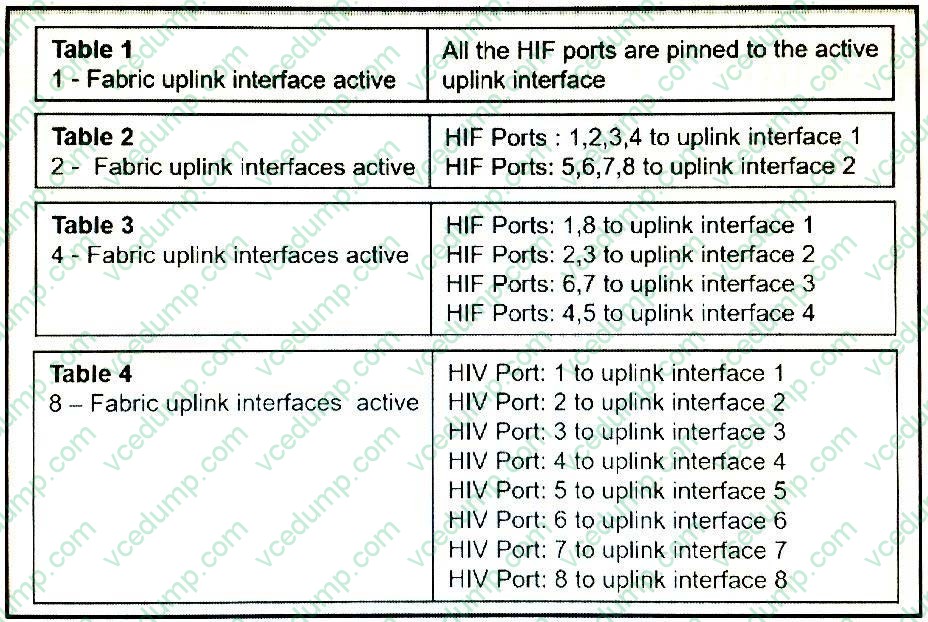

  Refer to the exhibit. Which tables correctly map the HIF ports to active FEX NIF ports on a Cisco UCS 2208X IOM in discrete pinning mode?



  A. Table 2 and Table 4
  B. Table 1 and T able 4
  C. Table 2 and Table 3
  D. Table 1 and Table 2
  E. Table 3 and Table 4
  B. Table 1 and T able 4

  ---

  http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ts/guide/UCSTroubleshooting/UCST roubleshooting_chapter_01001.html
