Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 921:

  Using new backup router in spite of faulty one in ospf domain but relationship with neighbor in one interface only not working , what is the reason of this problem? (Choose Two)

  A. area Id match
  B. authentication mismatch
  C. process id of ospf not match
  D. ospf timers not match
  E. MTU mismatch
  D. ospf timers not match
  E. MTU mismatch

• Question 922:

  Which two features are provided by EIGRP for IPv6? (choose two)

  A. Backbone areas
  B. SPF algorithm
  C. Partial updates
  D. Area border router
  E. Scaling
  C. Partial updates
  E. Scaling

• Question 923:

  Where can NetFlow export data for long term storage and analysis?

  A. syslog
  B. collector
  C. another network device
  D. flat file
  B. collector

• Question 924:

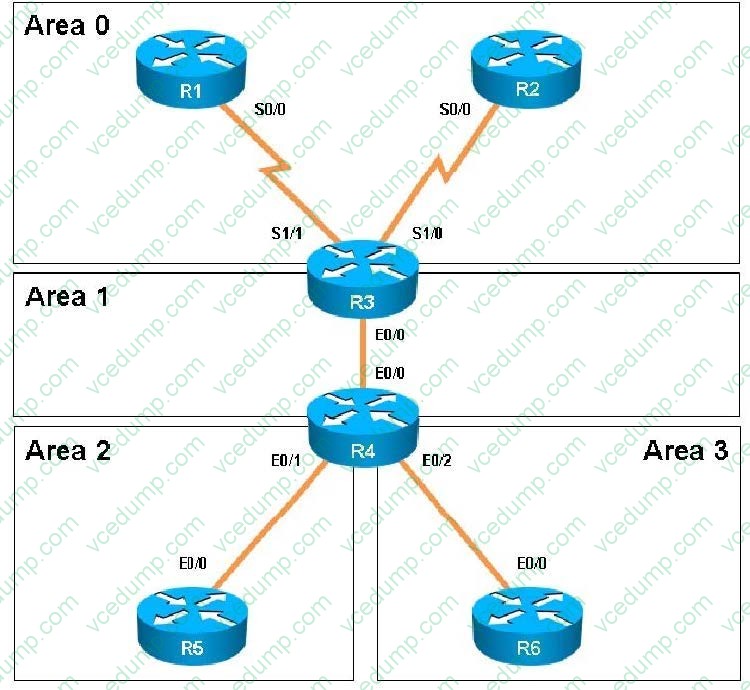

  You have been asked to evaluate an OSPF network setup in a test lab and to answer questions a customer has about its operation. The customer has disabled your access to the show running- config command.



  Areas of Router 5 and 6 are not normal areas, inspect their routing tables and determine which statement is true?

  A. R5's Loopback and R6's Loopback are both present in R5's Routing table
  B. R5's Loopback and R6's Loopback are both present in R6's Routing table
  C. Only R5's loopback is present in R5's Routing table
  D. Only R6's loopback is present in R5's Routing table
  E. Only R5's loopback is present in R6's Routing table
  A. R5's Loopback and R6's Loopback are both present in R5's Routing table

• Question 925:

  To configure 6to4 on a dual-stack edge router. Which three of the following are valid in 6to4 Tunneling configuration? (Choose three)

  A. IPv4 Tunnel IP address
  B. Tunnel mode (6to4)
  C. Tunnel Keepalives
  D. IPv4 Tunnel Destination
  E. IPv4 Tunnel Source.
  F. 6to4 IPv6 address (within 2002::/16)
  B. Tunnel mode (6to4)
  E. IPv4 Tunnel Source.
  F. 6to4 IPv6 address (within 2002::/16)

• Question 926:

  When an IPv6 enabled host boots, it sends a router solicitation (RS) message. An IPv6 router responds with a router advertisement (RA). Which two items are contained in the RA? (Choose two.)

  A. IPv6 address for the host
  B. lifetime of the prefix
  C. prefixes for the link
  D. keepalive timers
  E. request for the local host IP address
  F. any route advertisements it has received
  B. lifetime of the prefix
  C. prefixes for the link

• Question 927:

  The OSPF which type of Router CAN BE aggregated? (Choose two)

  A. the ABR
  B. the ASBR
  C. Backbone Router
  D. Intra Router
  A. the ABR
  B. the ASBR

• Question 928:

  What is the default authentication in RIPv2 when authentication is enabled

  A. SHA1 authentication
  B. Enable password authentication
  C. Plain text authentication
  D. MD5 authentication
  C. Plain text authentication

• Question 929:

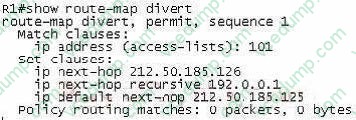

  Refer to the exhibit. Based upon the configuration, you need to understand why the policy routing match counts are not increasing. Which would be the first logical step to take?



  A. Confirm if there are other problematic route-map statements that precede divert.
  B. Check the access list for log hits.
  C. Check the routing table for 212.50.185.126.
  D. Remove any two of the set clauses. (Multiple set clause entries will cause PBR to use the routing table.)
  B. Check the access list for log hits.

• Question 930:

  If routers in a single area are configured with the same priority value, what value does a router use for the OSPF Router ID in the absence of a loopback interface?

  A. The lowest IP address of any physical interface
  B. The highest IP address of any physical interface
  C. The lowest IP address of any logical interface
  D. The highest IP address of any logical interface
  B. The highest IP address of any physical interface
