Cisco 300-101 Online Practice Questions and Exam Preparation

300-101 Exam Details

  • Exam Code
    :300-101
  • Exam Name
    :Implementing Cisco IP Routing
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :1008 Q&As
  • Last Updated
    :Dec 08, 2021

Cisco 300-101 Online Questions & Answers

  • Question 81:

    A network administrator executes the command clear ip route. Which two tables does this command clear and rebuild? (Choose two.)

    A. IP routing
    B. FIB
    C. ARP cache
    D. MAC address table
    E. Cisco Express Forwarding table
    F. topology table

  • Question 82:

    What are two protocols used for user with authentication on network device? (OR)

    What are two options for authenticating a user who is attempting to access a network device?(Choose two)

    A. CHAP
    B. Radius
    C. 802.1x
    D. PAP
    E. TACACS+

  • Question 83:

    The following configuration is applied to a router at a branch site: ipv6 dhcp pool dhcp-pool dns-server 2001:DB8:1:B::1 dns-server 2001:DB8:3:307C::42 domain-name example.com ! If IPv6 is configured with default settings on all interfaces on the router, which two dynamic IPv6 addressing mechanisms could you use on end hosts to provide end-to-end connectivity? (Choose two.)

    A. EUI-64
    B. SLAAC
    C. DHCPv6
    D. BOOTP

  • Question 84:

    Which two methods of deployment can you use when implementing NAT64? (Choose two.)

    A. stateless
    B. stateful
    C. manual
    D. automatic
    E. static
    F. functional
    G. dynamic

  • Question 85:

    A network engineer is investigating the cause of a service disruption on a network segment and executes the debug condition interface fastethernet f0/0 command. In which situation is the debugging output generated?

    A. when packets on the interface are received and the interface is operational
    B. when packets on the interface are received and logging buffered is enabled
    C. when packets on the interface are received and forwarded to a configured syslog server
    D. when packets on the interface are received and the interface is shut down

  • Question 86:

    which two statements are limitations of Stateful NAT64?(choose two)

    A. it is unable to route VRF traffic
    B. it is unable to route multicast traffic
    C. it supports FTP traffic only with an ALG
    D. it supports DNS64 only
    E. layer 4 supports TCP only

  • Question 87:

    Which two different configurations can you apply to a device incoming SSH access? (Choose two)

    A. ipv6 access-list VTY-ACCESS-IN secuence 10 deny tcp any any eq 22 sequence 20 permit ipv6 any any line vty 0 15 ipv6 access-list VTY-ACCESS-IN out
    B. ipv6 access-list VTY-ACCESS-IN secuence 10 deny tcp any any eq 22 sequence 20 permit ipv6 any any interface Ethernet0/0 ip traffic-filter VTY-ACCESS-IN out
    C. ipv6 access-list VTY-ACCESS-IN secuence 10 deny tcp any any eq 22 sequence 20 permit ipv6 any any line vty 0 15 ipv6 access-class VTY-ACCESS-IN in
    D. ipv6 access-list VTY-ACCESS-IN secuence 10 deny tcp any any eq 22 sequence 20 permit ipv6 any any interface Ethernet0/0 ipv6 traffic-filter VTY-ACCESS-IN in
    E. ipv6 access-list VTY-ACCESS-IN secuence 10 deny tcp any any eq 22 sequence 20 permit ipv6 any any interface Ethernet0/0 ipv6 traffic-filter VTY-ACCESS-IN out

  • Question 88:

    The company network is in the process of migrating the IP address scheme to use IPv6. Which of the following address types are associated with IPv6? (Select three)

    A. Unicast
    B. Private
    C. Broadcast
    D. Public
    E. Multicast
    F. Anycast

  • Question 89:

    SIMULATION

    OSPF Sim

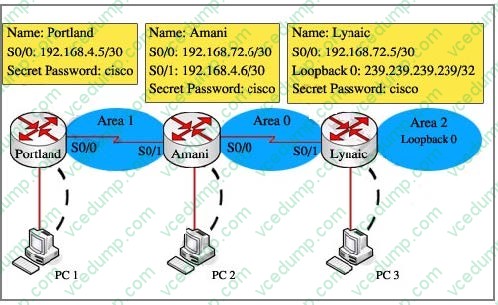

    OSPF is configured on routers Amani and Lynaic. Amani's S0/0 interface and Lynaic‘s S0/1 interface are in Area 0. Lynaic‘s Loopback0 interface is in Area 2.

    Your task is to configure the following:

    Portland's S0/0 interface in Area 1 Amani's S0/1 interface in Area 1 Use the appropriate mask such that ONLY Portland's S0/0 and Amnani's S0/1 could be in Area 1. Area 1 should not receive any external or inter-area routes (except the

    default route).

    Correct Answer. Check the answer below

  • Question 90:

    SIMULATION

    EIGRP OSPF Redistribution Sim

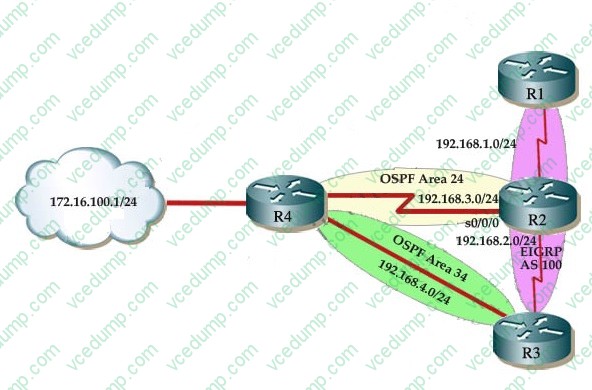

    You are a network engineer with ROUTE.com, a small IT company. They have recently merged two organizations and now need to merge their networks as shown in the topology exhibit. One network is using OSPF as its IGP and the other is using EIGRP as its IGP. R4 has been added to the existing OSPF network to provide the interconnect between the OSPF and EIGRP networks. Two links have been added that will provide redundancy.

    The network requirements state that you must be able to ping and telnet from loopback 101 on R1 to the OPSF domain test address of 172.16.1.100. All traffic must use the shortest path that provides the greatest bandwidth. The redundant paths from the OSPF network to the EIGRP network must be available in case of a link failure. No static or default routing is allowed in either network.

    A previous network engineer has started the merger implementation and has successfully assigned and verified all IP addressing and basic IGP routing. You have been tasked with completing the implementation and ensuring that the network requirements are met. You may not remove or change any of the configuration commands currently on any of the routers. You may add new commands or change default values.

    Correct Answer. Check the answer below
