• Question 101:

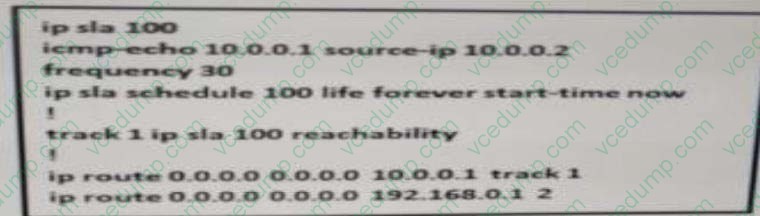

  Refer to the exhibit.

  Which statements describes the effect of this configuration on a Cisoc router?



  A. The default router through 10.0.1 is never used
  B. The default router through 192.168.0.1 is used only when 10.0.0 is unreachable.
  C. The default router through 10.0.0.1 only when 192.168.0.1 is unreachable.
  D. The default router through 192.168.0.1 is never used.
  B. The default router through 192.168.0.1 is used only when 10.0.0 is unreachable.

• Question 102:

  Which three route filtering statements are true? (Choose three)

  A. After the router rip and passive-interface s0/0 commands have been issued, the s0/0 interface will not send any RIP updates, but will receive routing updates on that interface.
  B. After the router eigrp 10 and passive-interface s0/0 commands have been issued, the s0/0 interface will not send any EIGRP updates, but will receive routing updates on that interface
  C. After the router ospf 10 and passive-interface s0/0 commands have been issued , the s0/0 interface will not send any OSPF updates, but will receive routing updates on that interface
  D. When you use the passive-interface command with RIPv2, multicasts are sent out the specified interface
  E. When you use the passive-interface command with EIGRP, hello messages are not sent out the specified interface
  F. When you use the passive-interface command with OSPF, hello messages are not sent out the specified interface
  A. After the router rip and passive-interface s0/0 commands have been issued, the s0/0 interface will not send any RIP updates, but will receive routing updates on that interface.
  E. When you use the passive-interface command with EIGRP, hello messages are not sent out the specified interface
  F. When you use the passive-interface command with OSPF, hello messages are not sent out the specified interface

• Question 103:

  Windows Server Syslog blocked by ACL and....?

  A. port UDP 514
  B. port UDP 541
  C. port UDP 520
  D. port UDP 521
  A. port UDP 514

• Question 104:

  Which three algorithms can you configure with the ip cef load-sharing algorithm command?(Choose three)

  A. per-packed
  B. Tunnel
  C. per-destination
  D. Universal
  E. Per-source
  F. Include-ports
  B. Tunnel
  D. Universal
  F. Include-ports

• Question 105:

  Which Cisco IOS VPN technology leverages IPsec, mGRE, dynamic routing protocol, NHRP, and Cisco Express Forwarding?

  A. FlexVPN
  B. DMVPN
  C. GETVPN
  D. Cisco Easy VPN
  B. DMVPN

• Question 106:

  Which value Identifies VPNs in an EVN environment?

  A. route target
  B. VLAN ID
  C. DLCI
  D. virtual network tag
  D. virtual network tag

• Question 107:

  BGP updates will consume less memory--not sure about the question ?(Choose Two)

  A. prefix lists
  B. access lists
  C. aggregate routes
  D. other option
  A. prefix lists
  C. aggregate routes

• Question 108:

  Drag and Drop

  Drag and Drop each GRE feature on the left to the correct answer on right.

  Select and Place:





• Question 109:

  Which two commands must be used to troubleshoot high memory usage for a process?

  A. router#show memory allocating-process table
  B. router#show memory processor statistics
  C. router#show memory events
  D. router#show memory summary
  E. routertfshow memory dead
  A. router#show memory allocating-process table
  D. router#show memory summary

• Question 110:

  Which three steps are most helpful in verifying proper route redistribution? (Choose three)

  A. On the routers not performing the route redistribution, use the show ip route command to see if the redistributed routes show up.
  B. On the ASBR router performing the route redistribution, use the show ip protocol command to verify the redistribution configurations.
  C. On the ASBR router performing the route redistribution, use the show ip route command to verify that the proper routes from each routing protocol are there.
  D. On the routers not performing the route redistribution, use the show ip protocols command to verify the routing information sources.
  E. On the routers not performing the route redistribution, use the debug ip routing command to verify the routing updates from the ASBR.
  A. On the routers not performing the route redistribution, use the show ip route command to see if the redistributed routes show up.
  B. On the ASBR router performing the route redistribution, use the show ip protocol command to verify the redistribution configurations.
  C. On the ASBR router performing the route redistribution, use the show ip route command to verify that the proper routes from each routing protocol are there.
