Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 91:

  which configuration can you apply to a device so that it always blocks the outbound web traffic on Saturdays and Sunday between the hours of 1:00AM and 11:59 PM?

  A. time-range SATSUN absoute Staturday Sunday 1:00 to 23:59 access-list 102 permit tcp any any eq 80 time-range SATSUN access-list 102 permit tcp any any eq 443 time-range SATSUN interface Vlan 303 ip address 10.9.5.3 255.255.255.0 ip access-group 102 in
  B. time-range SATSUN periodic Staturday Sunday 1:00 to 23:59 access-list 102 permit tcp any any eq 80 time-range SATSUN access-list 102 permit tcp any any eq 443 time-range SATSUN interface Vlan 303 ip address 10.9.5.3 255.255.255.0 ip access-group 102 in
  C. time-range SATSUN periodic Staturday Sunday 1:00 to 11:59 access-list 102 permit tcp any any eq 80 time-range SATSUN access-list 102 permit tcp any any eq 443 time-range SATSUN interface Vlan 303 ip address 10.9.5.3 255.255.255.0 ip access-group 102 in
  D. time-range SATSUN absoute Staturday Sunday 1:00 to 11:59 access-list 102 permit tcp any any eq 80 time-range SATSUN access-list 102 permit tcp any any eq 443 time-range SATSUN interface Vlan 303 ip address 10.9.5.3 255.255.255.0 ip access-group 102 in
  B. time-range SATSUN periodic Staturday Sunday 1:00 to 23:59 access-list 102 permit tcp any any eq 80 time-range SATSUN access-list 102 permit tcp any any eq 443 time-range SATSUN interface Vlan 303 ip address 10.9.5.3 255.255.255.0 ip access-group 102 in

• Question 92:

  A corporate policy requires PPPoE to be enabled and to maintain a connection with the ISP, even if no interesting traffic exists. Which feature can be used to accomplish this task?

  A. TCP Adjust
  B. Dialer Persistent
  C. PPPoE Groups
  D. half-bridging
  E. Peer Neighbor Route
  B. Dialer Persistent

• Question 93:

  A network engineer is trying to implement broadcast-based NTP in a network and executes the ntp broadcast client command. Assuming that an NTP server is already set up, what is the result of the command?

  A. It enables receiving NTP broadcasts on the interface where the command was executed.
  B. It enables receiving NTP broadcasts on all interfaces globally.
  C. It enables a device to be an NTP peer to another device.
  D. It enables a device to receive NTP broadcast and unicast packets.
  A. It enables receiving NTP broadcasts on the interface where the command was executed.

• Question 94:

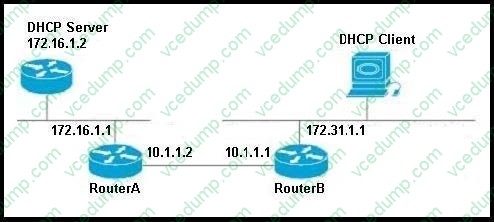

  Refer to the exhibit. The DHCP client is unable to receive a DHCP address from the DHCP server. Consider the following output: hostname RouterB ! interface fastethernet 0/0 ip address 172.31.1.1 255.255.255.0 interface serial 0/0 ip address 10.1.1.1 255.255.255.252 ! ip route 172.16.1.0 255.255.255.0 10.1.1.2 Which configuration is required on the Router B fastethernet 0/0 port in order to allow the DHCP client to successfully receive an IP address from the DHCP server?



  A. RouterB(config-if)# ip helper-address 172.16.1.2
  B. RouterB(config-if)# ip helper-address 172.16.1.1
  C. RouterB(config-if)# ip helper-address 172.31.1.1
  D. RouterB(config-if)# ip helper-address 255.255.255.255
  A. RouterB(config-if)# ip helper-address 172.16.1.2

• Question 95:

  Refer to the exhibit.



  Based on the output from the show ip protocols vrf RED command, what is happening with the routing processes?

  A. OSPF 1 is redistributing into BGP 800
  B. Static routes are redistributed into OSPF 1.
  C. BGP 800 is redistributing into OSPF 1
  D. Static routes are redistributed into BGP 800
  C. BGP 800 is redistributing into OSPF 1

• Question 96:

  Expanding off potential new question where people are talking about [PADO/PADI] -- this refers to PPPoE: PPPoE requires certain signals and information to establish, accept, control and terminate the session. The basic signalling is shown below.

  A. (PPPoE Active Discovery Request), PADI (PPPoE Active Discovery Initiation)
  B. (PPPoR Active Discovery Request), PARP (PPPoE Active Discovery Initiation)
  C. (PPPoE Active Discovery Reaching), PADI (PPPoE Active Discovery Initiating)
  D. (PPP Active Discovery Request), PADI (PPP Active Discovery Initiation)
  A. (PPPoE Active Discovery Request), PADI (PPPoE Active Discovery Initiation)

• Question 97:

  How to set up IP SLA to monitor Bandwidth between the certain limits?

  A. Timer
  B. Frequency
  C. Threshold
  D. Queue-limit
  C. Threshold

• Question 98:

  Which protocol uses dynamic address mapping to request the next-hop protocol address for a specific connection?

  A. Frame Relay inverse ARP
  B. static DLCI mapping
  C. Frame Relay broadcast queue
  D. dynamic DLCI mapping
  A. Frame Relay inverse ARP

• Question 99:

  What is the default maximum segment size for TCP traffic?

  A. 536
  B. 1492
  C. 1500
  D. 1508
  A. 536

• Question 100:

  Which protocol sort out of order packet at the receiving end?

  A. UDP
  B. TCP
  C. IP
  D. Gyros for all
  B. TCP
