Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 821:

  Which command do you enter to filter only routing updates that are sent through interface GigabitEthemet0/0?

  A. R1(config-if)#passive-interface GigabitEthemet0/0
  B. R1(config-router)#no passive-interface GigabitHthemet0/0
  C. R1config-router)#passrve-interface GigabitEthemet0/0
  D. R1(conffg-router)passive-interface default
  E. R1(config-if)#passive-interface default
  F. R1(config-router)#distribute-list 1 GigabitEthemet0/0 out
  F. R1(config-router)#distribute-list 1 GigabitEthemet0/0 out

• Question 822:

  A network engineer has left a NetFlow capture enabled over the weekend to gather information regarding excessive bandwidth utilization. The following command is entered:

  switch#show flow exporter Flow_Exporter-1

  What is the expected output?

  A. configuration of the specified flow exporter
  B. current status of the specified flow exporter
  C. status and statistics of the specified flow monitor
  D. configuration of the specified flow monitor
  B. current status of the specified flow exporter

• Question 823:

  Which values identifies VPNs in an EVN environment?

  A. DLCI
  B. route target
  C. virtual network tag
  D. VLAN ID
  C. virtual network tag

• Question 824:

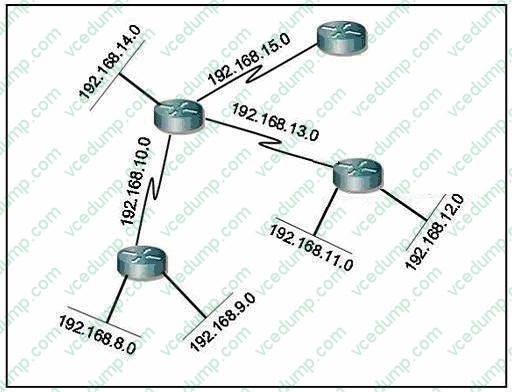

  Which address would successfully summarize only the networks seen?

  A. 192.168.0.0/24
  B. 192.168.8.0/20
  C. 192.168.8.0/21
  D. 192.168.12.0/20
  E. 192.168.16.0/21
  F. These networks cannot be summarized
  C. 192.168.8.0/21

• Question 825:

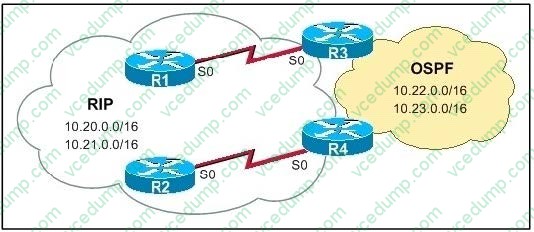

  Refer to the exhibit.



  R1 and R2 belong to the RIP routing domain that includes the networks 10.20.0.0/16 and 10.21.0.0/16.

  R3 and R4 are performing two-way route redistribution between OSPF and RIP.

  A network administrator has discovered that R2 is receiving OSPF routes for the networks 10.20.0.0/16 and 10.21.0.0/16 and a routing loop has occurred.

  Which action will correct this problem?

  A. Apply an inbound ACL to the R2 serial interface.
  B. Change the RIP administrative distance on R3 to 110.
  C. Configure distribute-lists on R3 and R4.
  D. Set the OSPF default metric to 20.
  E. Change the OSPF administrative distance on R3 to 110.
  C. Configure distribute-lists on R3 and R4.

• Question 826:

  Using the rules for IPv6 addressing, how can the address 2031:0000:240F:0000:0000:09C0:123A:121B be rewritten?

  A. 2031:0:240F::09C0:123A:121B
  B. 2031::240F::09C0:123A:121B
  C. 2031::240F:9C0::123A:121B
  D. 2031::240F:::09C0:123A:121B
  A. 2031:0:240F::09C0:123A:121B

• Question 827:

  Where are EIGRP successor routes stored?

  A. In the routing table only
  B. In the neighbor table only
  C. In the topology table only
  D. In the routing table and the topology table
  E. In the routing table and the neighbor table
  D. In the routing table and the topology table

• Question 828:

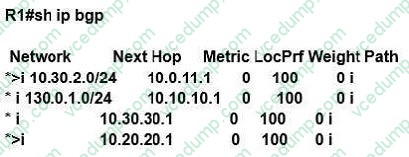

  Refer to the exhibit



  Based on the output, which option is the next hop to get to the 130.0.1.0/24 network?

  A. 10.30.30.1
  B. 10.0.11.1
  C. 10.20.20.1
  D. 10.10.10.1
  C. 10.20.20.1

• Question 829:

  Which two features were added in MSCHAP version 2?(Choose two)

  A. Mutual authentication between peers.
  B. Using the MD5 hash for stronger security
  C. Using three-way handshakes for authentication.
  D. Ability to change an expired password
  E. Backward-compatibility with MSCHAP version 1
  A. Mutual authentication between peers.
  D. Ability to change an expired password

• Question 830:

  A network engineer wants to ensure an optimal end-to-end delay bandwidth product. The delay is less than 64 KB. Which TCP feature ensures steady state throughput?

  A. Window scaling
  B. Network buffers
  C. Round-trip timers
  D. TCP acknowledgments
  A. Window scaling
