• Question 591:

  A network engineer has configured a tracking object to monitor the reachability of IP SLA 1. In order to update the next hop for the interesting traffic, which feature must be used in conjunction with the newly created tracking object to manipulate the traffic flow as required?

  A. SNMP
  B. PBR
  C. IP SLA
  D. SAA
  E. ACLs
  F. IGP
  B. PBR

• Question 592:

  Which access list entry check for an ACK within a packet TCP header?

  A. access-list 49 permit ip any any eq 21 tcp-ack
  B. access-list 49 permit tcp any any eq 21 tcp-ack
  C. access-list 149 permit tcp any any eq 21 established
  D. access-list 49 permit tcp any any eq 21 established
  C. access-list 149 permit tcp any any eq 21 established

• Question 593:

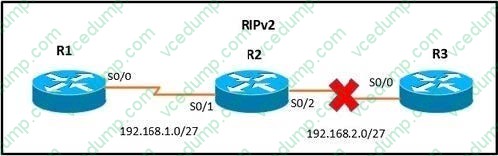

  Refer to the exhibit. The network setup is running the RIP routing protocol. Which two events will occur following link failure between R2 and R3? (Choose two.)



  A. R2 will advertise network 192.168.2.0/27 with a hop count of 16 to R1.
  B. R2 will not send any advertisements and will remove route 192.168.2.0/27 from its routing table.
  C. R1 will reply to R2 with the advertisement for network 192.168.2.0/27 with a hop count of 16.
  D. After communication fails and after the hold-down timer expires, R1 will remove the 192.168.2.0/27 route from its routing table.
  E. R3 will not accept any further updates from R2, due to the split-horizon loop prevention mechanism.
  A. R2 will advertise network 192.168.2.0/27 with a hop count of 16 to R1.
  C. R1 will reply to R2 with the advertisement for network 192.168.2.0/27 with a hop count of 16.

• Question 594:

  After you review the output of the command show ipv6 interface brief, you see that several IPv6 addresses have the 16-bit hexadecimal value of "FFFE" inserted into the address.Based on this information, what do you conclude about these IPv6 addresses?

  A. IEEE EUI-64 was implemented when assigning IPv6 addresses on the device.
  B. The addresses were misconfigured and will not function as intended.
  C. IPv6 addresses containing "FFFE" indicate that the address is reserved for multicast
  D. The IPv6 universal/local flag (bit 7) was flipped.
  E. IPv6 unicast forwarding was enabled, but IPv6 Cisco Express Forwarding was disabled.
  A. IEEE EUI-64 was implemented when assigning IPv6 addresses on the device.

• Question 595:

  What happens when a route receives a route with an administrative distance of 255?

  A. The router becomes the feasible successor for the route
  B. The router is unable to install the route into the routing fabric
  C. The- router installs the route as the most preferred path m the routing table
  D. The router installs the route as the least preferred path in the routing table
  B. The router is unable to install the route into the routing fabric

• Question 596:

  What is the result of the command ip flow-export destination 10.10.10.1 5858?

  A. It configures the router to export cache flow information to IP 10.10.10.1 on port UDP/5858.
  B. It configures the router to export cache flow information about flows with destination IP 10.10.10.1 and port UDP/5858.
  C. It configures the router to receive cache flow information from IP 10.10.10.1 on port UDP/5858.
  D. It configures the router to receive cache flow information about flows with destination IP 10.10.10.1 and port UDP/5858.
  A. It configures the router to export cache flow information to IP 10.10.10.1 on port UDP/5858.

• Question 597:

  Which action can you take to mitigate unicast flooding in a network?

  A. Configure VLANs to span multiple access-layer switches
  B. Implement a nonlooped network topology.
  C. Set the ARP timer value to less than the CAM tfmer value.
  D. Set the CAM timer value to less than the ARP timer value.
  C. Set the ARP timer value to less than the CAM tfmer value.

• Question 598:

  A network engineer executes the show crypto ipsec sa command. Which three pieces of information are displayed in the output? (Choose three.)

  A. inbound crypto map
  B. remaining key lifetime
  C. path MTU
  D. tagged packets
  E. untagged packets
  F. invalid identity packets
  A. inbound crypto map
  B. remaining key lifetime
  C. path MTU

• Question 599:

  How should a router that is being used in a Frame Relay network be configured to keep split horizon issues from preventing routing updates?

  A. Configure a separate subinterface for each PVC with a unique DLCI and subnet assigned to the subinterface.
  B. Configure each Frame Relay circuit as a point-to-point line to support multicast and broadcast traffic.
  C. Configure many subinterfaces in the same subnet.
  D. Configure a single subinterface to establish multiple PVC connections to multiple remote router interfaces.
  A. Configure a separate subinterface for each PVC with a unique DLCI and subnet assigned to the subinterface.

• Question 600:

  Which two statements about redistributing EIGRP into OSPF are true? (Choose two)

  A. The redistributed EIGRP routes appear as type 3 LSAs in the OSPF database
  B. The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database
  C. The administrative distance of the redistributed routes is 170
  D. The redistributed EIGRP routes appear as OSPF external type 1
  E. The redistributed EIGRP routes as placed into an OSPF area whose area ID matches the EIGRP autonomous system number
  F. The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table
  B. The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database
  F. The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table
