Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 581:

  Which statement about conditional debugging is true?

  A. You can limit the output to a specific interface.
  B. It is limited to Ethernet, serial, and multilink interfaces.
  C. It can support only one condition at a time.
  D. It generates debug messages only for packets entering the router.
  A. You can limit the output to a specific interface.

• Question 582:

  What command allows permit or deny IPv6 traffic?

  A. ipv6 traffic-filter access-list-name { in | out }
  B. ipv6 access-list [access-list-name]
  C. access-list ipv6 [access-list-name]
  D. ipv6 access-group [access-list-name] { in | out }
  A. ipv6 traffic-filter access-list-name { in | out }

• Question 583:

  The company network is in the process of migrating the IP address scheme to use IPv6. Which of the following address types are associated with IPv6? (Select three)

  A. Unicast
  B. Private
  C. Broadcast
  D. Public
  E. Multicast
  F. Anycast
  A. Unicast
  E. Multicast
  F. Anycast

• Question 584:

  A network engineer wants to implement an SNMP notification process for host machines using the strongest security available Which command accomplishes this task?

  A. router(config)#snmp-server host 172 16 200 225 traps v2c auth
  B. router(config)#snmp-server host 172 16 200 225 traps v1
  C. router(config)#snmp-server host 172 16 200.225 traps v3
  D. router(config)#snmp-server host 172 16 200 225 traps v2c
  C. router(config)#snmp-server host 172 16 200.225 traps v3

• Question 585:

  Which three methods can a network engineer use to fix a metric based routing loop in the network.(choose three)

  A. Implement offset lists at network boundaries
  B. Filter routes manually using distribute lists
  C. Filter routes manually using prefix lists
  D. Implement proper network summarisation on key routing points
  E. Filter routes based on tags
  F. Utilise root database filters
  A. Implement offset lists at network boundaries
  B. Filter routes manually using distribute lists
  E. Filter routes based on tags

• Question 586:

  A network engineer is modifying RIPng timer configuration. Which configuration mode should the engineer use?

  A. router(config-rtr)#
  B. router(config-ripng)#
  C. router(config-if)#
  D. router(config)#
  A. router(config-rtr)#

• Question 587:

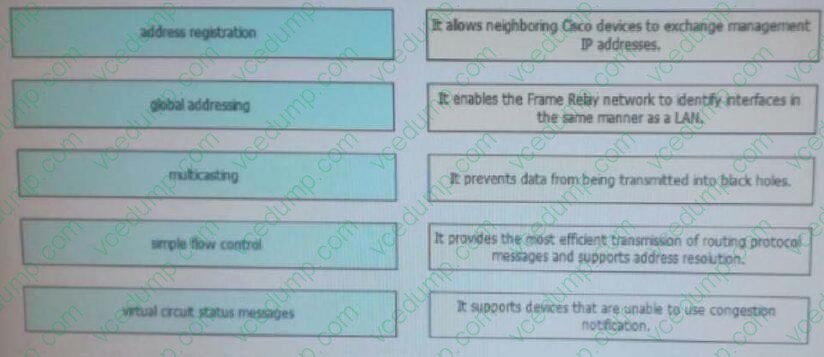

  Drag and Drop

  Drag and Drop the Frame Relay LMI extensions from the left onto the correct descriptions on the right.

  Select and Place:





  ---

  + Address registration - allows neighboring Cisco devices to exchange the management ip addresses

  + Global addressing - Enables Frame Relay to identify interfaces in same manner as LAN

  + Multicasting - Provides most efficient transmission of routing protocol messages and support address resolution

  + Simple flow control - Supports devices that are unable to use congestion notification

  + Virtual circuit - Prevents data from being transmitted in black hole

• Question 588:

  which statement about local policy routing is true?

  A. It is used to policy route packets that are generated by the device.
  B. It requires all packets to be packet switched.
  C. It is used to policy route packets that pass through the device.
  D. It requires all packets to be CEF switched.
  E. It supports IPv4 packets only.
  F. It requires an ip address or access list as the mactching criteria.
  A. It is used to policy route packets that are generated by the device.

• Question 589:

  A network engineer is troubleshooting connectivity issues with a directly connected RIPng neighbor. Which command should directly connected RIPng neighbor adjacencies only?

  A. router#show ipv6 rip next-hops
  B. router#show ip rip neighbors
  C. router#show ipv6 routers
  D. router#show ipv6 rip database
  A. router#show ipv6 rip next-hops

• Question 590:

  A diagram with 3 routers:

  +

  H1 (with IPv6 IP and Loopback 1.1.1.1)

  +

  R1 (with IP IPv6 and Loopback 2.2.2.2)

  +

  R2 (with IP IPv6 and Loopback 3.3.3.3)

  Running with EIGRP 100 on both routers and what command you will implement so that you will see the loopback IP of R2 to be advertised at H1

  A. H1(config t)#router eigrp 100 H1(config t)#no stub only
  B. H1(config t) router eigrp 100 H1(config t)#no stub only
  C. R2(config t)#router eigrp 100 R2(config t)#no stub receive only
  D. R2# router eigrp 100 R2(config t)#no stub only
  C. R2(config t)#router eigrp 100 R2(config t)#no stub receive only
