Cisco 300-101 Online Questions & Answers

• Question 511:

  Which Cisco Express Forwarding component maintains Layer 2 addressing information?

  A. dCEF
  B. adjacency table.
  C. FIB
  D. fast switching
  E. RIB
  B. adjacency table.

• Question 512:

  DRAG DROP

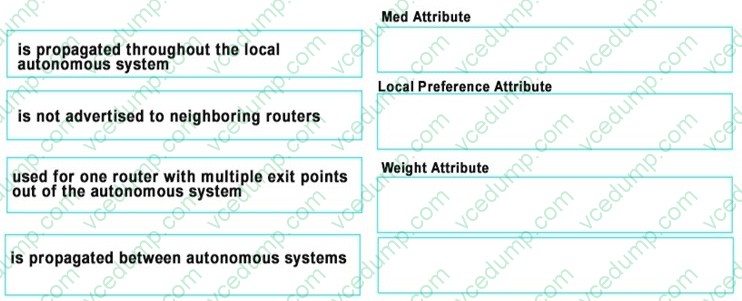

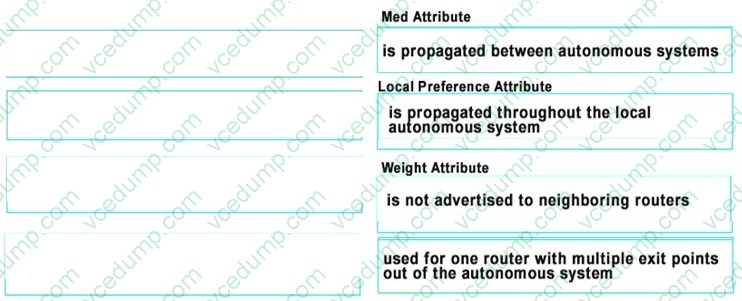

  Click and drag the BGP attribute characterization on the left to the correct BGP attribute on the right.

  Select and Place:





• Question 513:

  SIMULATION

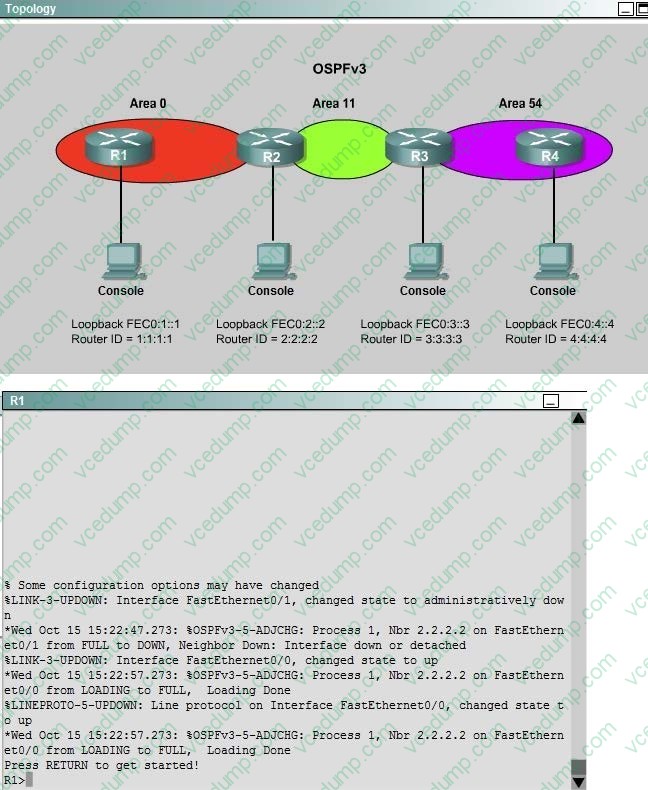

  ROUTE.com is a small IT corporation that has an existing enterprise network that is running IPv6 0SPFv3. Currently OSPF is configured on all routers. However, R4's loopback address (FEC0:4:4) cannot be seen in R1's IPv6 routing table.

  You are tasked with identifying the cause of this fault and implementing the needed corrective actions that use OSPF features and do not change the current area assignments. You will know that you have corrected the fault when R4's

  loopback address (FEC0:4:4) can be seen in R1's IPv6 routing table.

  Special Note: To gain the maximum number of points you must remove all incorrect or unneeded configuration statements related to this issue.





  A. Check the answer below
  A. Check the answer below

  ---

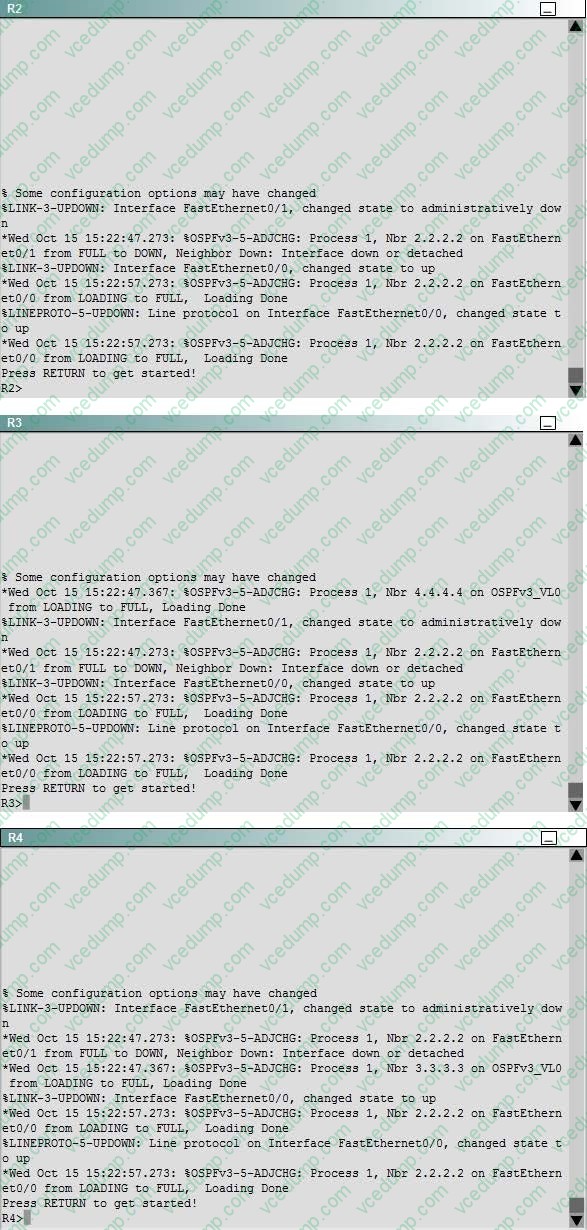

  To troubleshoot the problem, first issue the show running-config on all of 4 routers. Pay more attention to the outputs of routers R2 and R3 The output of the “show running-config” command of R2:

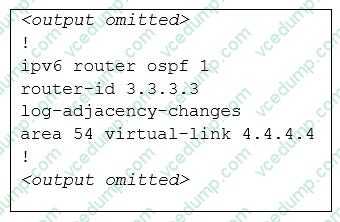

  The output of the “show running-config” command of R3:



  We knew that all areas in an Open Shortest Path First (OSPF) autonomous system must be physically connected to the backbone area (Area 0). In some cases, where this is not possible,we can use a virtual link to connect to the backbone through a non-backbone area.The area through which you configure the virtual link is known as a transit area. In this case, the area 11 will become the transit area. Therefore, routers R2 and R3 must be configured with the area virtuallinkcommand.

  + Configure virtual link on R2 (from the first output above, we learned that the OSPF process ID of R2 is 1):

  R2>enable R2#configure terminalR2(config)#ipv6 router ospf 1R2(config-rtr)#area 11 virtual-link 3.3.3.3R2(config-rtr)#endR2#copy run start

  (Notice that we have to use neighbor router-id 3.3.3.3, not R2′s router-id 2.2.2.2)

  + Configure virtual link on R3 (from the second output above, we learned that the OSPF process ID of R3 is 1 and we have to disable the wrong configuration of “rea 54 virtual-link 4.4.4.4″):

  R3>enable R3#configure terminalR3(config)#ipv6 router ospf 1R3(config-rtr)#no area 54 virtual-link 4.4.4.4R3(config-rtr)#area 11 virtual-link 2.2.2.2R3(config-rtr)#endR3#copy run start

  We should check the configuration on R4:

  R4>enable R4#show running-config

  You will see a wrongly configured virtual-link command. To get full mark we have to disable this command:

  R4#configure terminalR4(config)#ipv6 router ospf 1R4(config-rtr)#no area 54 virtual-link 3.3.3.3R4(config-rtr)#endR4#copy run start

  After finishing the configuration don’ forget to ping between R1 and R4 to make sure they work well!

  Now all the configuration was done. It is weird that we can't ping the IPv6 loopback interface of R4 (with the ping or ping ipv6 command) but we can check by using the command show ipv6 route on R1

  The copying running-config startup-config command will not work but don't worry, just skip it.

  Notice: If you issue the command “show running-config” on R1, you will see these two lines: passive-interface default no passive-interface fa0/0 (fa0/0 is the interface connecting with R2)

  These two lines make all the interfaces of R1 become passive interfaces except interface fa0/0. They are correctly configured so don't try to disable them.

• Question 514:

  Which two routing protocols are supported by Easy Virtual Network? (Choose two.)

  A. RIPv2
  B. OSPFV2
  C. BGP
  D. EIGRP
  E. IS-IS
  B. OSPFV2
  D. EIGRP

• Question 515:

  Which routing protocol routers traffic through the best path and second best path at the same time?

  A. OSPF
  B. EIGRP
  C. RIP
  D. BGP
  B. EIGRP

• Question 516:

  How should a router that is being used in a Frame Relay network be configured to keep split horizon issues from preventing routing updates?

  A. Configure a separate subinterface for each PVC with a unique DLCI and subnet assigned to the subinterface
  B. Configure each Frame Relay circuit as a point-to-point line to support multicast and broadcast traffic
  C. Configure many subinterfaces in the same subnet.
  D. Configure a single subinterface to establish multiple PVC connections to multiple remote router interfaces.
  A. Configure a separate subinterface for each PVC with a unique DLCI and subnet assigned to the subinterface

• Question 517:

  Which two options for authenticating a user who is attempting to access a network device are true? (Choose two.)

  A. PAP
  B. 802.1x
  C. CHAP
  D. TACACS+
  E. RADIUS
  D. TACACS+
  E. RADIUS

• Question 518:

  Drag and Drop

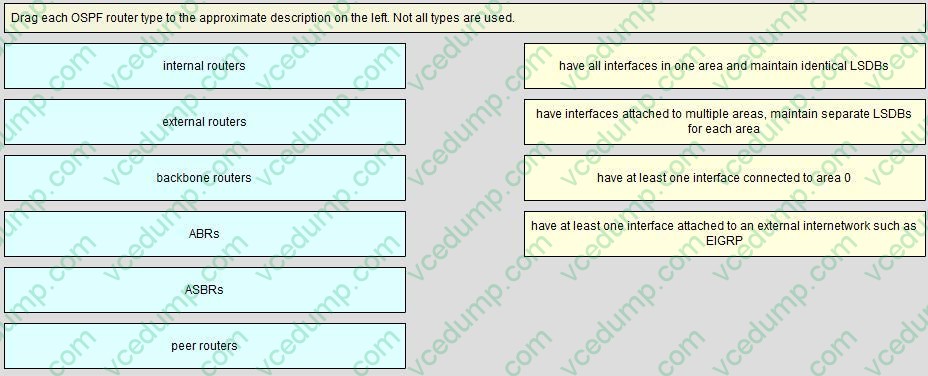

  Drag each OSPF router type to the approximate descritpion on the left.

  Select and Place:





• Question 519:

  In which two areas does OSPF send a summary route by default ?choose two

  A. NSSA
  B. Backbone
  C. Totally stubby
  D. Stub
  E. Normal
  C. Totally stubby
  D. Stub

• Question 520:

  PPPoE is composed of which two phases?

  A. Active Authentication Phase and PPP Session Phase
  B. Passive Discovery Phase and PPP Session Phase
  C. Active Authorization Phase and PPP Session Phase
  D. Active Discovery Phase and PPP Session Phase
  D. Active Discovery Phase and PPP Session Phase
