Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 501:

  DRAG DROP

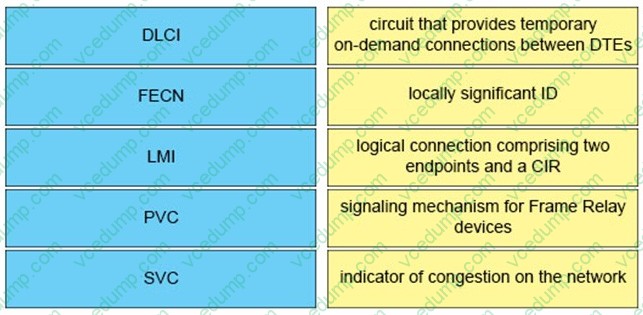

  Drag and drop the Frame Relay components from the left onto the correct descriptions on the right.

  Select and Place:





• Question 502:

  Which IP SLA deployment cycle reduces the deployment time for network applications?

  A. Collect, Measure, Optimize
  B. Scan, Adjust, Modify C. Baseline, Understand, Quantify, Optimize
  D. Monitor, Collect, Tune
  C

• Question 503:

  Which correct three causes of unicast flooding are true? (Choose tree)

  A. forwarding table overflow
  B. changes in STP topology
  C. symmetric routing
  D. consistent STP topology
  E. asymmetric routing
  A. forwarding table overflow
  B. changes in STP topology
  E. asymmetric routing

• Question 504:

  Drag and Drop

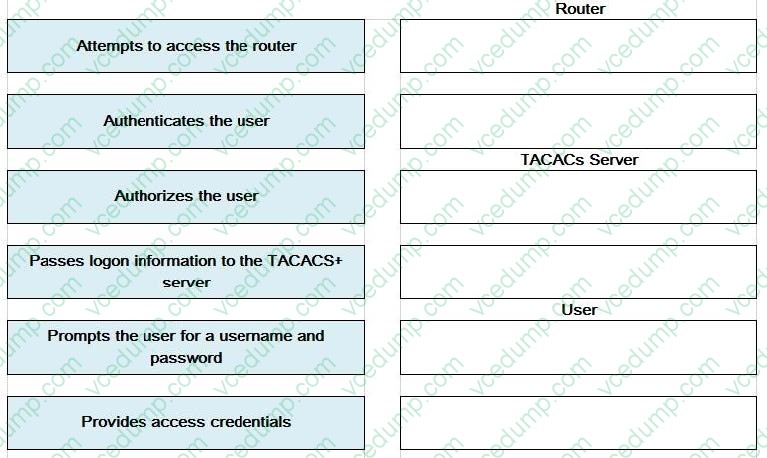

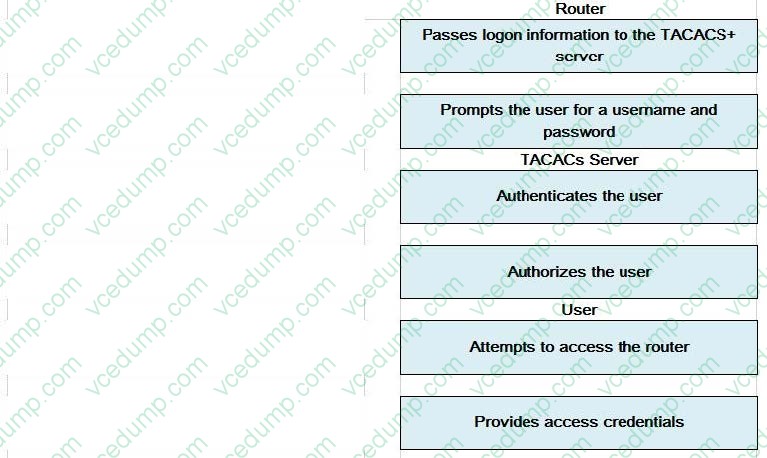

  Drag and drop steps in the TACACS+ authentication process from the left onto the actors that perform on the right.

  Select and Place:





• Question 505:

  A route map was configured and it was distributing OSPF external routes

  A. Distributing E1 only
  B. Distributing E1 and E2 using prefix list
  C. Distributing E1 and E2 using access list
  D. Distributing E2 routes
  B. Distributing E1 and E2 using prefix list

• Question 506:

  A network engineer wants to configure logging to compile and send information to an external server. Which type of logging must be configured?

  A. console
  B. syslog
  C. buffer
  D. terminal
  B. syslog

• Question 507:

  Router# show ntp associations Address ref clock st when poll reach delay offset disp ~172.31.32.2 172.31.32.1 5 29 1024 377 4.2 -8.59 1.6 +~192.168.13.33 192.168.1.111 4 69 128 377 4.1 3.48 2.3 *~192.168.13.57 192.168.1.111 3 32 128 377 7.9 11.18 3.6

  *

  Master (synced), # master (unsynced), + selected, ?candidate, ~ configured Which of the following is true?

  A. Master is syncing and exchanging NTP packets successfully
  B. Master is not syncing but exchanging NTP packets successfully
  C. Master is not syncing and not exchanging NTP packets
  D. All NTP packets are droped
  A. Master is syncing and exchanging NTP packets successfully

• Question 508:

  By default, which type of IPv6 address is used to build the EUI-64 bit format?

  A. unique-local address
  B. IPv4-compatible IPv6 address
  C. link-local address
  D. aggregatable-local address
  C. link-local address

• Question 509:

  A network engineer is configuring SNMP on network devices to utilize one-way SNMP notifications. However, the engineer is not concerned with authentication or encryption. Which command satisfies the requirements of this scenario?

  A. router(config)#snmp-server host 172.16.201.28 traps version 2c CISCORO
  B. router(config)#snmp-server host 172.16.201.28 informs version 2c CISCORO
  C. router(config)#snmp-server host 172.16.201.28 traps version 3 auth CISCORO
  D. router(config)#snmp-server host 172.16.201.28 informs version 3 auth CISCORO
  A. router(config)#snmp-server host 172.16.201.28 traps version 2c CISCORO

• Question 510:

  When does a Cisco router send an ICMP redirect?

  A. when the packet's source and destination VRFs are different
  B. when the packet is cource-routed
  C. when the packet's destination has load-balanced entries in the route table
  D. when the packet's ingress and egress interface are the same
  D. when the packet's ingress and egress interface are the same
