Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 481:

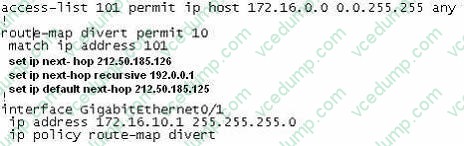

  Refer to the exhibit. Which command would verify if PBR reacts to packets sourced from 172.16.0.0/16?



  A. show ip route
  B. show policy-map
  C. show access-lists
  D. show route-map
  D. show route-map

• Question 482:

  which the Valid range for BGP private ASNs?

  A. 64512-65535
  B. 62464-65024
  C. 64512-65024
  D. 62464-64511
  A. 64512-65535

• Question 483:

  What is used in EIGRP metric calculation?

  A. maximum delay
  B. minimum delay
  C. average delay
  D. minimum interface bandwidth
  D. minimum interface bandwidth

• Question 484:

  NPTv6 restrictions?

  A. Virtual Routing and Forwarding (VRF)
  B. NAT64 on the same interface.
  C. Multicast and Firewall is not supported.
  D. Payload address or port translation is not supported.
  E. Syslog is not supported.
  A. Virtual Routing and Forwarding (VRF)
  B. NAT64 on the same interface.
  C. Multicast and Firewall is not supported.
  D. Payload address or port translation is not supported.
  E. Syslog is not supported.

• Question 485:

  A network engineer is working on an IPv6 scenario and must ensure that addresses are restricted from being advertised in a pubic routing space. Which type of IPv6 address meets this requirement?

  A. link-local
  B. unique-local
  C. global
  D. multicast
  E. site-local
  E. site-local

• Question 486:

  What command is needed to get the ip address assigned from the PPPOE server?

  A. Interface dialer
  B. pppoe enable
  C. ip address negotiated
  D. ip address auto negotiated
  C. ip address negotiated

• Question 487:

  Which two mask you perform to enable a point-to-point Frame Relay connection

  A. Configure the encapsulation type
  B. Disable inverse ARP
  C. Enable inverse ARP
  D. Configure static address mapping
  A. Configure the encapsulation type

• Question 488:

  Refer to the exhibit.



  Which statement about this neighbor of R1 is true?

  A. OSPFv3 adjacency has been lost, which causes the neighbor to be considered Stale.
  B. Aggregate global addresses are always used between IPv6 neighbors.
  C. OSPFv3 adjacency will not work between link-local addresses.
  D. R1 used ICMP to learn about this neighbor.
  D. R1 used ICMP to learn about this neighbor.

• Question 489:

  Refer to following: router eigrp 1 redistribute ospf 1 route-map ospf-to-eigrp default-metric 20000 2000 255 1 1500 ! route-map ospf-to-eigrp deny 10 match tag 6 match route-type external type-2 ! route-map ospf-to-eigrp permit 20 match ip address prefix-list pfx set metric 40000 1000 255 1 1500 ! route-map ospf-to-eigrp permit 30 set tag 8

  Which three statements accurately describe the result of applying the exhibited route map?

  A. The map prohibits the redistribution of all type 2 external OSPF routes with tag 6 set.
  B. The map prohibits the redistribution of all type 2 external OSPF routes.
  C. The map redistributes into EIGRP all routes that match the pfx prefix list and the five metric values 40000, 1000, 255, 1, and 1500.
  D. The map prohibits the redistribution of all external OSPF routes with tag 6 set
  E. All routes that do no match clauses 10 and 20 of the route map are redistributed with their tags set to 8.
  F. The map permits the redistribution of all type 1 external OSPF routes.
  A. The map prohibits the redistribution of all type 2 external OSPF routes with tag 6 set.
  E. All routes that do no match clauses 10 and 20 of the route map are redistributed with their tags set to 8.
  F. The map permits the redistribution of all type 1 external OSPF routes.

• Question 490:

  Which IP SLA operation can be used to simulate voice traffic on a network?

  A. TCP connect
  B. UDP-jitter
  C. ICMP-echo
  D. ICMP-jitter
  B. UDP-jitter
