Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 301:

  What is the reasons of command:

  router(config)#snmp-server host 192.168.1.3 traps version 2c CISCORO

  A. For network system to management server
  B. allow 192.168.1.3 only
  C. PlaceHolder
  D. PlaceHolder
  A. For network system to management server

• Question 302:

  Which version or versions of NetFlow support MPLS?

  A. all versions of NetFlow B. NetFlow version 9
  C. NetFlow version 8
  D. NetFlow version 5
  E. NetFlow version 8 and 9
  B

• Question 303:

  A network engineer is asked to configure a "site-to-site" IPsec VPN tunnel. One of the last things that the engineer does is to configure an access list (access-list 1 permit any) along with the command ip nat inside source list 1 int s0/0 overload. Which functions do the two commands serve in this scenario?

  A. The command access-list 1 defines interesting traffic that is allowed through the tunnel
  B. The command ip nat inside source list 1 int s0/0 overload disables "many-to-one" access for all devices on a defined segment to share a single IP address upon exiting the external interface.
  C. The command access-list 1 permit any defines only one machine that is allowed through the tunnel.
  D. The command ip nat inside source list 1 int s0/0 overload provides "many-to-one" access for all devices on a defined segment to share a single IP address upon exiting the external interface.
  D. The command ip nat inside source list 1 int s0/0 overload provides "many-to-one" access for all devices on a defined segment to share a single IP address upon exiting the external interface.

• Question 304:

  Which two statements about NAT in a DMVPN environment are true?(Choose two)

  A. a hub router can be behind a dynamic NAT on a device.
  B. Spoke routers can reside only on the public side of a NAT device.
  C. Two spokes can establish session among themselves using PAT behind different NAT devices.
  D. A spoke router can be represented by a static NAT on a device.
  E. A hub router can user static NAT for its public UP address.
  D. A spoke router can be represented by a static NAT on a device.
  E. A hub router can user static NAT for its public UP address.

• Question 305:

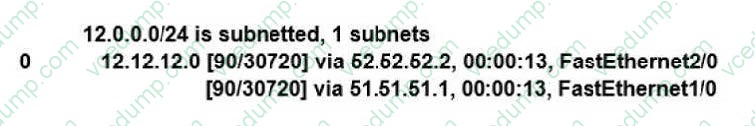

  Refer to the exhibit



  The extract was taken from the routing table of router SATX. Which option ensures that routes from 51.51.51.1 are preferred over routes from 52.52.52.2?

  A. SATX(config-router)#distance 90 51.51.51.10.0.0.0
  B. SATX(config-router)#distance 89.52.52.52.2 0.0.0.0
  C. SATX(config-router)#distance 90.52.52.52.2 0.0.0.0
  D. SATX(config-router)#administrative distance 91 51.51.510.0.0.0
  E. SATX(config-router)#distance 89 51.51.51.10.0.0.0
  F. SATX(config-router)#administrative distance 91 52.52.52.2 0.0.0.0
  E. SATX(config-router)#distance 89 51.51.51.10.0.0.0

• Question 306:

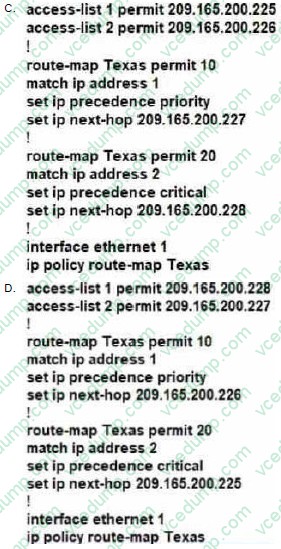

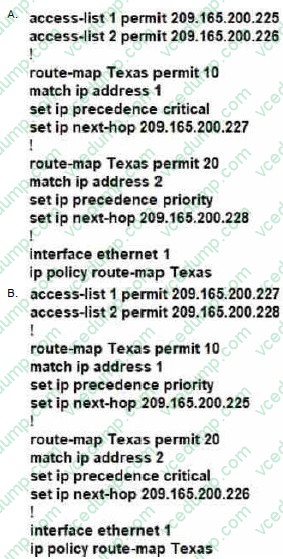

  A customer requests policy-based routing Packets arriving from source 209 165 200 225 should be sent to the next hop at 209.165.200.227 with the precedence bit set to priority Packets arriving from source 209.165.200.226 should be sent to the next hop at 209.165.200.228 with the precedence bit set to critical. Which configuration completes these requirements?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 307:

  Refer to the exhibit. After configuring GRE between two routers running OSPF that are connected to each other via a WAN link, a network engineer notices that the two routers cannot establish the GRE tunnel to begin the exchange of routing updates. What is the reason for this?



  A. Either a firewall between the two routers or an ACL on the router is blocking IP protocol number 47.
  B. Either a firewall between the two routers or an ACL on the router is blocking UDP 57.
  C. Either a firewall between the two routers or an ACL on the router is blocking TCP 47.
  D. Either a firewall between the two routers or an ACL on the router is blocking IP protocol number 57.
  A. Either a firewall between the two routers or an ACL on the router is blocking IP protocol number 47.

• Question 308:

  Which logical operator do you use to ensure that the status of an object track list is up only when all configured objects are up?

  A. and
  B. or
  C. true
  D. xor
  A. and

• Question 309:

  Which two commands do you need to implement on a router to support PPPoE client? (Choose two)

  A. peer default ip address pool
  B. MTU
  C. bba-group pppoe
  D. pppoe enable group
  E. pppoe-client dialer-pool-number
  B. MTU
  E. pppoe-client dialer-pool-number

• Question 310:

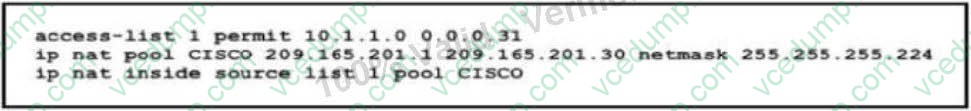

  Refer to the exhibit.



  Which two effects of this configuration are true? (Choose two.)

  A. The 10.1.1 0/27 subnet is assigned as the inside local addresses
  B. The 209 165 201 0/27 subnet is assigned as the outside local address range
  C. Inside source addresses are translated to the 209 165 201 0/27 subnet
  D. It establishes a one-to-one NAT translation.
  E. The 10 11 0/27 subnet is assigned as the inside global address range
  A. The 10.1.1 0/27 subnet is assigned as the inside local addresses
  C. Inside source addresses are translated to the 209 165 201 0/27 subnet
