Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 291:

  What attribute is used to influce traffic form AS200 and AS300 so that it uses link1 to reach AS100?

  A. MED
  B. AS_path
  C. Weight
  D. Local preference
  A. MED

• Question 292:

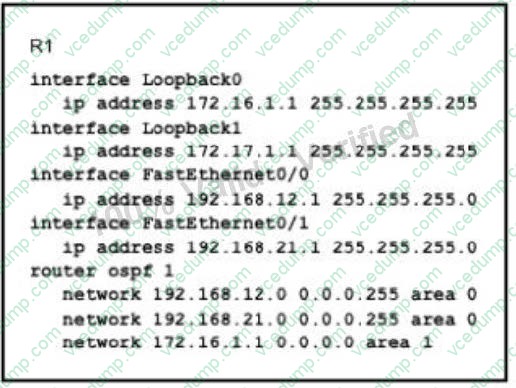

  Refer to the exhibit.



  Which IP address does OSPF choose as the R1 router ID?

  A. 172.16.1.1
  B. 172.17.1.1
  C. 192.168.12.1
  D. 192.168.21.1
  B. 172.17.1.1

• Question 293:

  Which two options are requirements for EIGRP authentication? (Choose two)

  A. A crypto map must be configured.
  B. The Authentication key must be configured under the interface running EIGRP.
  C. The authentication key must be configured within the EIGRP routing configuration.
  D. The authentication key IDs must match between two neighbors.
  E. A separate key chain must be configured.
  F. AN IPsec profile must be configured.
  B. The Authentication key must be configured under the interface running EIGRP.
  D. The authentication key IDs must match between two neighbors.

• Question 294:

  A network engineer is asked to create an SNMP-enabled proactive monitoring solution to ensure that jitter levels remain between particular boundaries. Which IP SLA option should the engineer usa?

  A. threshold
  B. frequency
  C. verify-data
  D. timeout
  A. threshold

• Question 295:

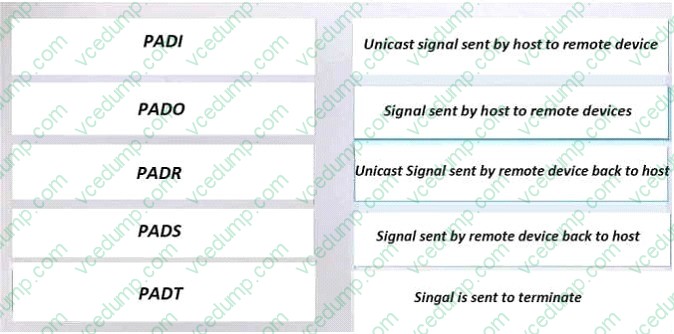

  DRAG DROP

  PADO, PADR and PADI definition. Drag and Drop for knowledge NEW!!!

  Select and Place:





  ---

  + PPPoE Active Discovery Initiation (PADI): The client initiates a session by broadcasting a PADI packet to the LAN to request a service.

  + PPPoE Active Discovery Offer (PADO): Any access concentrator that can provide the service requested by the client in the PADI packet replies with a PADO packet that contains its own name, the unicast address of the client, and the service requested. An access concentrator can also use the PADO packet to offer other services to the client.

  + PPPoE Active Discovery Request (PADR): From the PADOs it receives, the client selects one access concentrator based on its name or the services offered and sends it a PADR packet to indicate the service or services needed.

  + PPPoE Active Discovery Session-Confirmation (PADS): When the selected access concentrator receives the PADR packet, it accepts or rejects the PPPoE session:

  To accept the session, the access concentrator sends the client a PADS packet with a unique session ID for a PPPoE session and a service name that identifies the service under which it accepts the session.

  To reject the session, the access concentrator sends the client a PADS packet with a service name error and resets the session ID to zero.

  + After a session is established, the client or the access concentrator can send a PPPoE Active Discovery Termination (PADT) packet anytime to terminate the session. The PADT packet contains the destination address of the peer and the session ID of the session to be terminated. After this packet is sent, the session is closed to PPPoE traffic.

• Question 296:

  Which CLI command can you enter to permit or deny IPv6 traffic travelling through an interface?

  A. ipv6 access-class
  B. access-list
  C. access-group
  D. ipv6 traffic-filter
  D. ipv6 traffic-filter

• Question 297:

  How is network layer addressing accomplished in the OSI protocol suite?

  A. Internet Protocol address
  B. Media Access Control address
  C. Packet Layer Protocol address
  D. Network Service Access Point address
  E. Authority and Format Identifier address
  D. Network Service Access Point address

• Question 298:

  What happens when a router receives a route with an administrative distance of 255

  A. The router installs the route as the most preferred path in the routing table.
  B. The router installs the route as the least preferred path in the routing table
  C. The router becomes the feasible successor for the route
  D. The router is unable to install the route into the routing table
  D. The router is unable to install the route into the routing table

• Question 299:

  OSPF routers that communicate with other network routers like EIGRP are called ?

  A. ASBR
  B. ABR
  C. Backbone
  D. Internal
  A. ASBR

• Question 300:

  What two situations could require the use of multiple routing protocols? (Choose two)

  A. when using UNIX host-based routers
  B. when smaller broadcast domains are desired
  C. because having multiple routing protocols confuses hackers
  D. when migrating from an older Interior Gateway Protocol (IGP) to a new IGP
  E. when all equipment is manufactured by Cisco
  F. when there are multiple paths to destination networks
  A. when using UNIX host-based routers
  D. when migrating from an older Interior Gateway Protocol (IGP) to a new IGP
