Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 231:

  Which of the following is a GRE Tunnel characteristic?

  A. GRE impose more CPU overhead than IPSec on VPN gateways
  B. GRE tunnels can run through IPsec tunnels.
  C. GRE Tunnel doesn't have support for IPv6
  D. GRE consists of two sub-protocols: Encapsulated Security Payload (ESP) and Authentication Header (AH).
  B. GRE tunnels can run through IPsec tunnels.

• Question 232:

  Refer to the exhibit.

  ip vrf BLUEip vrf RED! interface-FastEthernet0/0ip vrf forwarding REDip address 10.1.1.1

  255.255.255.0 ! interface FastEthernet0/1ip vrf forwarding BLUEip address 10.1.2.1

  255.255.255.0

  Network users on the 10.1.2.0/24 subnet have a default gateway of 10.1.2.254. Which command will configure this gateway?

  A. router(config)#ip route vrf RED 0 0.0 0 0 0.0.0 10.1.2.254
  B. router(config)#ip route 0.0.0.0 0.0.0.0 10.1.2.254
  C. router(config)#ip route 0.0.0 0 0.0.0.0 fastethernet0/1
  D. router(config)#ip route vrf BLUE 0.0.0.0 0.0.0.0 10.1.2.254
  D. router(config)#ip route vrf BLUE 0.0.0.0 0.0.0.0 10.1.2.254

• Question 233:

  What does the command clear ipv6 ospf process accomplish?

  A. The OSPF adjacencies are cleared and initiated again.
  B. The route table is cleared. Then the OSPF neighbors are reformed.
  C. The shortest path first (SPF) algorithm is performed on the LSA database.
  D. The OSPF database is repopulated. Then the shortest path first (SPF) algorithm is performed.
  D. The OSPF database is repopulated. Then the shortest path first (SPF) algorithm is performed.

• Question 234:

  Question about IPv6 EIGRP features? (Choose Two)

  A. scaling
  B. Windows Update
  C. Unix Update
  D. partials updates
  A. scaling
  D. partials updates

• Question 235:

  In which two ways can split horizon issues be overcome in a Frame Relay network environment? (choose two.)

  A. Configuring one physical serial interface with Frame Relay to various remote sites.
  B. Configure a loopback interface with Frame Relay to various remote sites
  C. Configuring multiple subinterfaces on a single physical interface to various remote sites.
  D. Enabling split horizon.
  E. Disabling split horizon.
  C. Configuring multiple subinterfaces on a single physical interface to various remote sites.
  E. Disabling split horizon.

• Question 236:

  Which two tasks does a DHCP relay agent perform? (Choose two.)

  A. It forwards DHCPHELLO and DHCPREQUEST messages to the DHCP server
  B. It forwards DHCPREQUEST and DHCPACK messages to the DHCP server.
  C. It forwards DHCPOFFER and DHCPCOMPLETE messages to the DHCP client.
  D. It forwards DHCPDISCOVER and DHCPREQUEST messages to the DHCP server.
  E. t forwards DHCPOFFER and DHCPACK messages to the DHCP client.
  D. It forwards DHCPDISCOVER and DHCPREQUEST messages to the DHCP server.
  E. t forwards DHCPOFFER and DHCPACK messages to the DHCP client.

• Question 237:

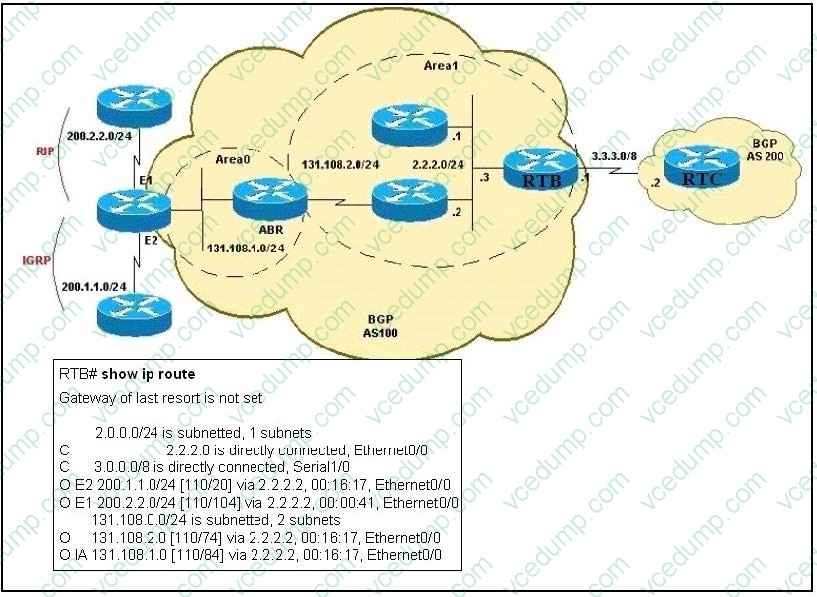

  Which command should be added to RTB under router bgp 100 to allow only the external OSPF routes to be redistributed to RTC?



  A. redistribute ospf 1
  B. redistribute ospf 1 match external 1
  C. redistribute ospf 1 match external 2
  D. redistribute ospf 1 match external 1 external 2
  D. redistribute ospf 1 match external 1 external 2

• Question 238:

  Which command do you enter on router R6 so that BGP supports multiple protocols?

  A. R6(config-router)#no bgp default ipv4-unicast
  B. R6(config-router)#bgp default ipv4-multicast
  C. R6(config-router-af)#no bgp default ipv4-multicast
  D. R6(config-router-af)#bgp additional-paths install
  E. R6(config-router)#no address-family ipv4 unicast
  A. R6(config-router)#no bgp default ipv4-unicast

• Question 239:

  RIPng ____________.

  A. Firewall Port block UDP 520
  B. Firewall Port block TCP 520
  C. Firewall Port block UDP 521
  D. Firewall Port block TCP 521
  C. Firewall Port block UDP 521

• Question 240:

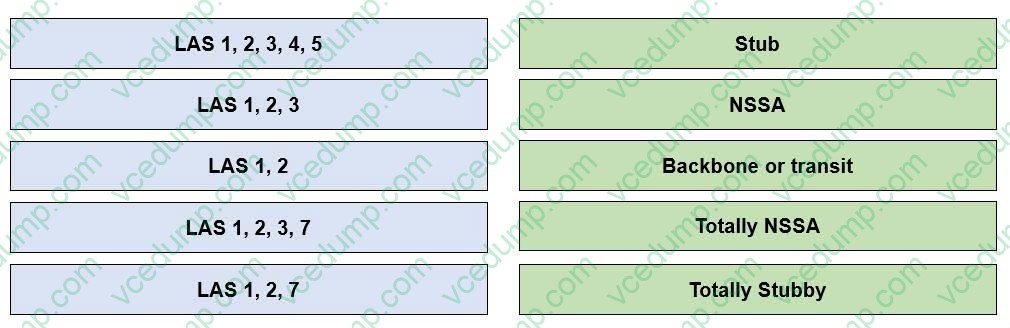

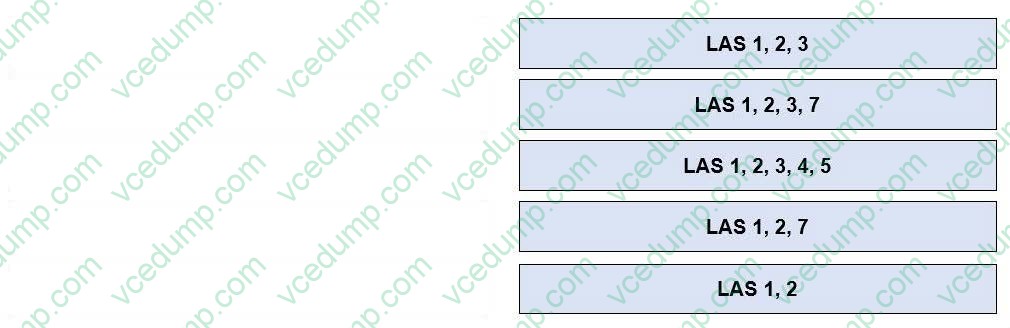

  Click and drag the associated set of OSPF LEAs on the left to the corresponding area type on the right where this set of LEAs may be seen.

  Select and Place:
