• Question 21:

  Given the CIA triad elements, which ensures first that the data is encrypted and secure, second that the data is trustworthy, and third that the data is accessible by those who need it?

  A. CIA
  B. ICA
  C. ACI
  D. CAI
  A. CIA

• Question 22:

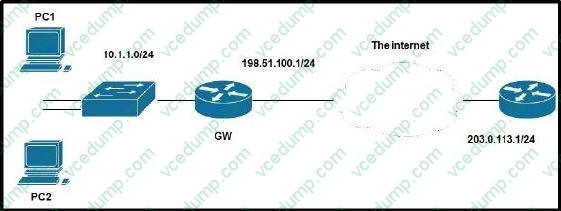

  Refer to the exhibit.



  Which three options are needed to configure NAT on router GW so PC1 and PC2 will be able to ping 203.0.113.1? (Choose three)

  A. interface Ethernet0 ip nat inside interface Ethernet1 ip nat outside
  B. ip access-list standard ACL_NAT permit 10.1.1.0 0.0.0.255
  C. ip nat inside source static tcp 10.1.1.0 80 interface Ethernet1 80
  D. interface Ethernet0 ip nat outside interface Ethernet1 ip nat inside
  E. ip nat inside source list ACL_NAT interface Ethernet1 overload
  F. ip access-list extended ACL_NAT permit tcp 10.1.1.0 0.0.0.255 any eq 80
  A. interface Ethernet0 ip nat inside interface Ethernet1 ip nat outside
  B. ip access-list standard ACL_NAT permit 10.1.1.0 0.0.0.255
  E. ip nat inside source list ACL_NAT interface Ethernet1 overload

• Question 23:

  Which describes a best practice rule for controlling traffic between the corporate network and the controls network?

  A. Outbound traffic from the control network to the corporate network and outbound traffic from the corporate network to the control network can be restricted based on source and destination address only.
  B. Outbound traffic from the corporate network to the control network should be restricted but outbound traffic from the control network to the corporate network should not be restricted.
  C. Outbound traffic from the control network to the corporate network should be restricted based on source and destination address and service only.
  D. Outbound traffic from the control network to the corporate network should be restricted based on source and destination address, service, and port.
  D. Outbound traffic from the control network to the corporate network should be restricted based on source and destination address, service, and port.

• Question 24:

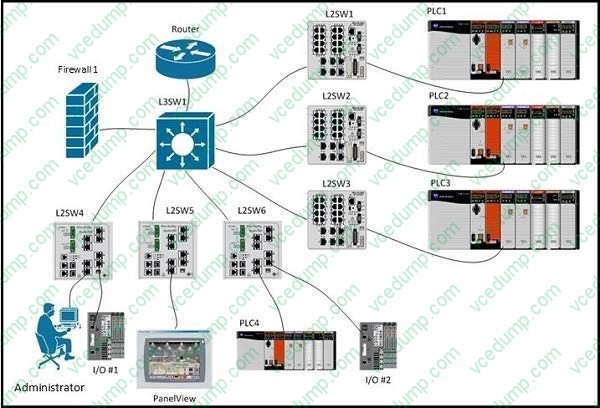

  Refer to the exhibit.



  A new device, PanelView, has been added to the network. See the table for device details:

  All devices are able to ping their default gateway and all other devices except PanelView.

  PanelView can only ping its default gateway.

  After the administrator has done some investigation they have discovered the following information:

  L3SW1# show run interface

  interface Vlan1

  no ip address

  shutdown

  !

  interface Vlan191

  ip address 10.10.27.125 255.255.255.192

  ip helper-address 165.28.96.96

  ip helper-address 165.28.32.235

  no ip redirects

  standby 191 ip 10.10.27.126

  standby 191 priority 120 standby 191 preempt delay minimum 90 no ip route-cache ! interface Vlan398 ip vrf forwarding mosaic ip address 10.15.153.203 255.255.255.0 ip helper-address 10.15.154.252 ip helper-address 10.1.0.252 standby 98 ip 10.15.153.202 standby 98 priority 120 standby 98 preempt delay minimum 90 ! interface Vlan399 ip vrf forwarding mosaic ip address 10.15.154.203 255.255.255.0 ip helper-address 10.1.0.252 ip helper-address 10.1.1.252 standby 99 ip 10.15.154.254 standby 99 priority 120 standby 99 preempt delay minimum 90 !

  L3SW1# show ip route connected 10.0.0.0/8 is variably subnetted, 1149 subnets, 17 masks C 10.10.27.64/26 is directly connected, Vlan191 C 10.10.31.254/32 is directly connected, Loopback1 What is preventing PanelView from pinging the other endpoints in the network?

  A. Routing isn't enabled on L3SW1 for SVI 398 and SVI 399
  B. SVI 191 is in a different routing instance than SVI 398 and SVI 399
  C. Firewall1 is blocking pings from PanelView to the other endpoints
  D. An access list on L3SW1 is blocking pings from PanelView to the other endpoints
  B. SVI 191 is in a different routing instance than SVI 398 and SVI 399

• Question 25:

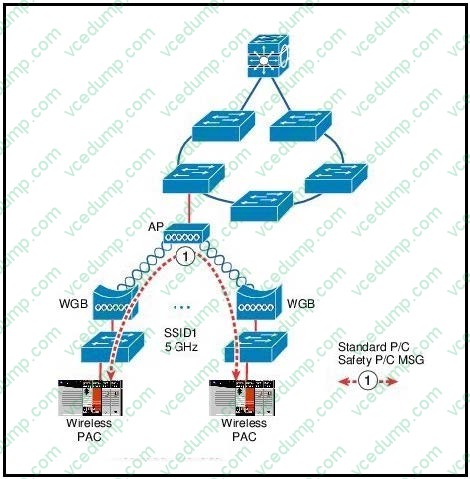

  Refer to the exhibit.



  What issue does this topology present for the represented traffic flow?

  A. Standard Produce/Consume traffic is not suitable for an 802.11 wireless environment.
  B. Only one of the Work Group Bridges can transmit at a time, because 802.11 is half duplex.
  C. The Converged Plant-wide Ethernet best practices for 802.11 wireless don't allow for PAC to PAC traffic.
  D. I/O control traffic should utilize the 2.4 GHz band based on best practices.
  B. Only one of the Work Group Bridges can transmit at a time, because 802.11 is half duplex.

• Question 26:

  What is the purpose of Spanning Tree Protocol?

  A. to prevent routing loops
  B. to create a default route
  C. to provide multiple gateways for hosts
  D. to maintain a loop-free Layer 2 network topology
  E. to enhance the functions of SNMP
  D. to maintain a loop-free Layer 2 network topology

• Question 27:

  You have been tasked to design an Ethernet network capable of Motion control with cycle times not to exceed 1ms. In order to create a more deterministic network, what characteristic/s should you primarily focus on?

  A. Lattency and Jitter
  B. Redundancy and high availability
  C. Explicit and Implicit messaging
  D. This cycle time is not possible on an Ethernet network
  E. Gigabit port speed
  A. Lattency and Jitter

• Question 28:

  Given a ring topology, which loop prevention mechanism provides the fastest reconvergence time after a link failure?

  A. Rapid Per-VLAN Spanning Tree Protocol
  B. Resilient Ethernet Protocol
  C. Multiple Spanning Tree Protocol
  D. Spanning Tree Protocol
  B. Resilient Ethernet Protocol

• Question 29:

  ProfiNET has been disabled on a Cisco Industrial Ethernet switch. Which CLI command will correctly enable ProfiNET on the switch?

  A. switch(config)#profinet
  B. switch(config-if)#switchport profinet vlan 10
  C. switch(config)#vlan 10 profinet
  D. switch#enable profinet
  A. switch(config)#profinet

• Question 30:

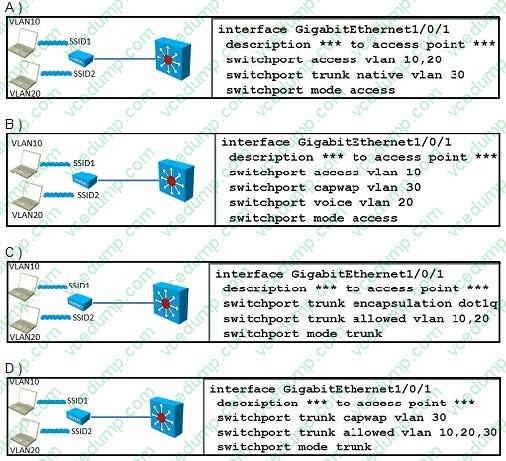

  AP CAPWAP control traffic should be isolated from wireless client traffic. Which scenario represents the correct configuration to support the SSIDs of this controller-based access point in FlexConnect local switching mode?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C
