Cisco Cisco Industrial Networking Specialist 200-401 Questions & Answers

• Question 41:

  Which option best describes a mechanical, ingress, climatic, chemical and electromagnetic environment that is classified as M3 I3 C3 E3?

  A. the highest quality

  B. office environment

  C. severe

  D. serviced by multiple cable segments

  Correct Answer: C

• Question 42:

  Exhibit:



  Refer to the exhibit. An industrial ruggedized network device needs to be installed in the place of the icon labeled Network Device to accommodate a leased line attachment to the Internet. Which network device and interface configuration meets the minimum requirements for this installation?

  A. a router with two Ethernet interfaces

  B. a switch with two Ethernet interfaces

  C. a router with one Ethernet and one serial interface

  D. a switch with one Ethernet and one serial interface

  E. a router with one Ethernet and one modem interface

  Correct Answer: C

• Question 43:

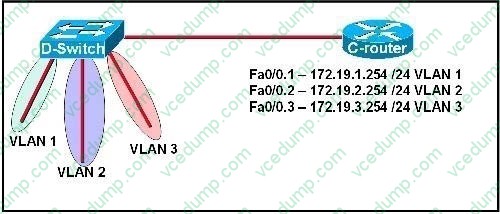

  Exhibit:



  Refer to the exhibit. C-router is to be used as a "router-on-a-stick" to route between the VLANs. All the interfaces have been properly configured and IP routing is operational. The hosts in the VLANs have been configured with the appropriate default gateway. What is true about this configuration?

  A. These commands need to be added to the configuration:C-router(config)# router eigrp 123C- router (config-router)# network 172.19.0.0

  B. These commands need to be added to the configuration:C-router(config)# router ospf 1C- router (config-router)# network 172.19.0.0 0.0.3.255 area 0

  C. These commands need to be added to the configuration:C-router(config)# router ripC-router(config- router)# network 172.19.0.0

  D. No further routing configuration is required.

  Correct Answer: D

• Question 44:

  According to the Purdue Reference Model, at which layer would you perform manufacturing operations and control?

  A. Level 0

  B. Level 1

  C. Level 2

  D. Level 3

  E. Level 4

  Correct Answer: D

• Question 45:

  An administrator has connected devices to an industrial switch and, for security reasons, wants the dynamically learned MAC addresses from the address table added to the running configuration. What must be done to accomplish this?

  A. Enable port security and use the keyword sticky.

  B. Set the switchport mode to trunk and save the running configuration.

  C. Use the switchport protected command to have the MAC addresses added to the configuration.

  D. Use the no switchport port-security command to allow MAC addresses to be added to the configuration.

  Correct Answer: A

• Question 46:

  Which prompt is used to configure parameters for the Ethernet ports of an industrial switch?

  A. Switch(config-if)#

  B. Switch(config-if-ind)#

  C. Switch(config-line)#

  D. Switch(config-ind)#

  E. Switch(config-vlan)#

  Correct Answer: A

• Question 47:

  What are the two most relevant factors in determining the class of administration that is required to maintain the telecommunications infrastructure? (Choose two.)

  A. the size of the infrastructure

  B. the complexity of the infrastructure

  C. the age of the infrastructure

  D. the industry that the infrastructure supports

  E. the physical environment of the infrastructure

  Correct Answer: AB

• Question 48:

  Which two ports does EtherNet/IP use to communicate? (Choose two.)

  A. TCP 44818

  B. UDP 44818

  C. TCP 502

  D. UDP 502

  E. TCP 2222

  F. UDP 2222

  Correct Answer: AF

• Question 49:

  EtherNet/IP is an Ethernet implementation of which protocol?

  A. CIP

  B. Industrial Protocol

  C. DeviceNet

  D. ControlNet

  Correct Answer: A

• Question 50:

  Given a ring topology, which loop prevention mechanism provides the fastest reconvergence time after a link failure?

  A. Rapid Per-VLAN Spanning Tree Protocol

  B. Resilient Ethernet Protocol

  C. Multiple Spanning Tree Protocol

  D. Spanning Tree Protocol

  Correct Answer: B
