Cisco 200-401 Online Practice Questions and Exam Preparation

Cisco 200-401 Online Questions & Answers

• Question 21:

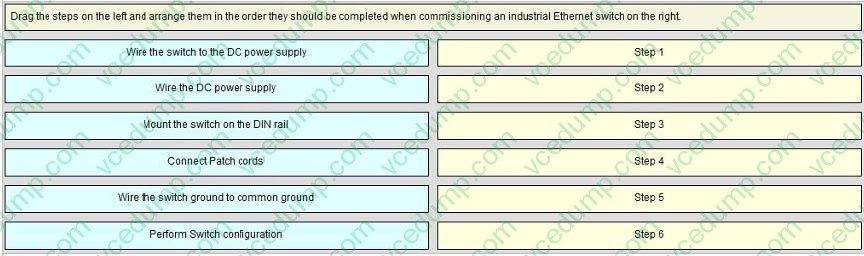

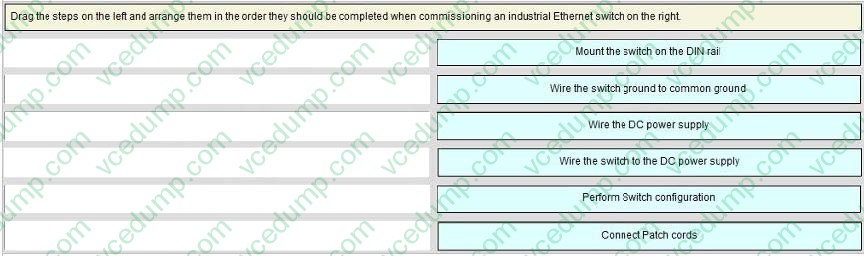

  DRAG DROP

  Select and Place:





• Question 22:

  What two things does a router do when it forwards a packet? (Choose two.)

  A. switches the packet to the appropriate outgoing interfaces
  B. computes the destination host address
  C. determines the next hop on the path
  D. updates the destination IP address
  E. forwards ARP requests
  A. switches the packet to the appropriate outgoing interfaces
  C. determines the next hop on the path

• Question 23:

  Given a ring topology, which loop prevention mechanism provides the fastest reconvergence time after a link failure?

  A. Rapid Per-VLAN Spanning Tree Protocol
  B. Resilient Ethernet Protocol
  C. Multiple Spanning Tree Protocol
  D. Spanning Tree Protocol
  B. Resilient Ethernet Protocol

• Question 24:

  In which two ways could you minimize the impact of monitoring an industrial network? (Choose two.)

  A. Send random messages to a device and see what the response is.
  B. Do frequent ping sweeps to industrial devices to check for their proper operations.
  C. Make a copy of all the network traffic and analyze it offline.
  D. Use an industrial-network-grade IDS-IPS system.
  C. Make a copy of all the network traffic and analyze it offline.
  D. Use an industrial-network-grade IDS-IPS system.

• Question 25:

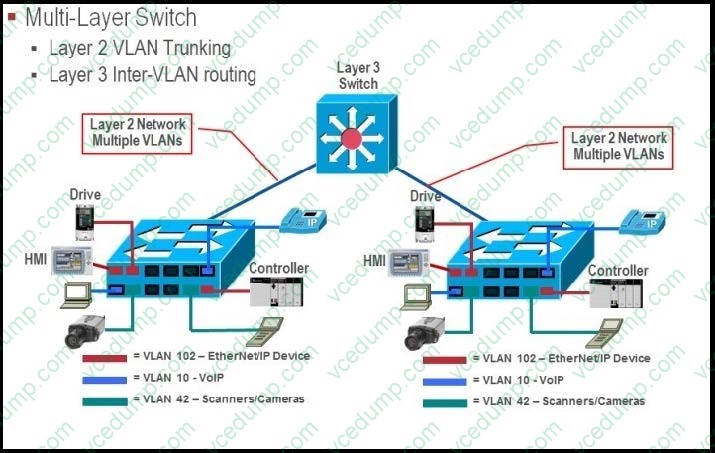

  Exhibit: Refer to the exhibit. What are three traffic and interconnection requirements for the devices in the exhibit? (Choose three.)



  A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
  B. EtherNet/IP devices such as the controller, drive, VoIP phone, and IP camera should be in the same VLAN.
  C. CIP traffic has the highest bandwidth requirement so it needs the highest QoS setting.
  D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
  E. Real-time motion control and VoIP traffic can share the same VLAN with the proper QoS setting.
  F. IEEE1588 and PTP are important for ensuring real-time synchronization.
  A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
  D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
  F. IEEE1588 and PTP are important for ensuring real-time synchronization.

• Question 26:

  Exhibit:



  Refer to the exhibit. A technician enters the exhibited commands to configure a new router on the plant floor, but receives an error message when attempting to save the configuration. What can the technician do to correct the problem?

  A. Enter the correct command.
  B. Enter the command at the correct prompt.
  C. Upgrade the amount of flash memory in the router.
  D. Erase NVRAM to make room for the configuration file.
  E. Add NVRAM because there is not enough room for the configuration file.
  A. Enter the correct command.

• Question 27:

  What are two benefits that are provided by proper grounding and bonding systems? (Choose two.)

  A. higher speed communications
  B. safe discharge of electrostatic energy
  C. lower equipment power consumption
  D. equipotential termination points for equipment and cable shields
  E. lowest carbon footprint
  B. safe discharge of electrostatic energy
  D. equipotential termination points for equipment and cable shields

• Question 28:

  You are a called upon to troubleshoot connectivity problems to a network device on a production floor. You have used ping and traceroute to verify that you cannot connect to the device from the management network. The network is 209.165.202.128/27 and the device has been given the IP address 209.165.202.158 and mask 255.255.255.224. You have verified that you can reach the device with your computer connected to the same switch as the device. What could be the cause of this problem?

  A. The device is set to the wrong subnet mask.
  B. The device is set to the wrong IP address.
  C. The device has no IP default gateway.
  D. The device is connected to a switchport in the wrong VLAN.
  C. The device has no IP default gateway.

• Question 29:

  What is the purpose of a time domain reflectometer?

  A. It uses pulses to locate and test for sheath faults, damaged conductors, loose connectors, splices, bridge taps, split pairs, and other problems.
  B. It opens shorts and pinholes in cable shielding.
  C. It correlates the returned light pulses with a location in the fiber.
  D. It opens kinks and mismatched cable connectors.
  A. It uses pulses to locate and test for sheath faults, damaged conductors, loose connectors, splices, bridge taps, split pairs, and other problems.

• Question 30:

  Which prompt is used to configure parameters for the Ethernet ports of an industrial switch?

  A. Switch(config-if)#
  B. Switch(config-if-ind)#
  C. Switch(config-line)#
  D. Switch(config-ind)#
  E. Switch(config-vlan)#
  A. Switch(config-if)#
