• Question 11:

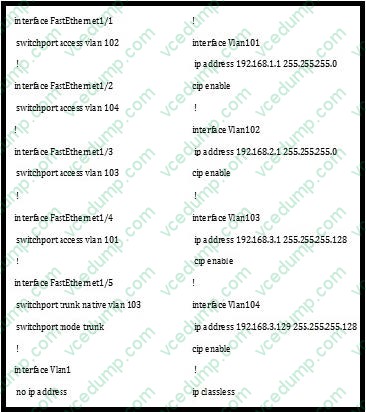

  Exhibit:



  Refer to the exhibit. Which port should a PLC with IP address 192.168.3.65 be plugged into in order to communicate to the rest of the network?

  A. FastEthernet1/1
  B. FastEthernet1/2
  C. FastEthernet1/3
  D. FastEthernet1/4
  E. FastEthernet1/5
  C. FastEthernet1/3

• Question 12:

  Which three pieces of information must be maintained for all stakeholders as part of the change management process? (Choose three.)

  A. the location of the person who applied the change
  B. the date and time that the change was applied and on which device
  C. the original change request form that indicates why the change is necessary
  D. the size of the change (in bytes)
  E. a description of the actual change itself (configuration, program code, and so on)
  F. the names of the current members of the change advisory board
  G. the industrial protocol that is used
  B. the date and time that the change was applied and on which device
  C. the original change request form that indicates why the change is necessary
  E. a description of the actual change itself (configuration, program code, and so on)

• Question 13:

  At which Layer would you check ACLs for TCP ports being blocked?

  A. Layer 1
  B. Layer 2
  C. Layer 3
  D. Layer 4
  D. Layer 4

• Question 14:

  With a Cisco IE 2000 switch, what does a port status LED indicate when it is alternating green and amber?

  A. The port is sending or receiving data.
  B. A link is present.
  C. No link is present.
  D. There is a link fault.
  E. The port is not forwarding.
  D. There is a link fault.

• Question 15:

  With a Cisco IE 2000 switch, what does a port status LED indicate when it is solid green?

  A. The port is sending or receiving data.
  B. A link is present.
  C. No link is present.
  D. There is a link fault.
  E. The port is not forwarding.
  B. A link is present.

• Question 16:

  You are troubleshooting a connectivity problem and want to isolate the problem. You suspect that a router on the route to an unreachable network is at fault. Which command would you issue to see where the packets stop?

  A. router#ping
  B. router#tracert
  C. router#show ip route
  D. router#show cdp neighbors
  E. router#traceroute
  E. router#traceroute

• Question 17:

  According to the Purdue Reference Model, at which layer would you perform manufacturing operations and control?

  A. Level 0
  B. Level 1
  C. Level 2
  D. Level 3
  E. Level 4
  D. Level 3

• Question 18:

  What are two benefits of a star network topology? (Choose two.)

  A. Disruption of the entire network is not required when adding new machines.
  B. Any problem which leaves the network inoperable can be traced to the central hub.
  C. This network type requires less cable as compared to linear bus topology.
  D. The performance of one of the numerous nodes cannot reflect on the performance of other nodes.
  E. The performance of the entire network is directly dependent on the performance of the hub.
  A. Disruption of the entire network is not required when adding new machines.
  B. Any problem which leaves the network inoperable can be traced to the central hub.

• Question 19:

  An administrator has connected devices to an industrial switch and, for security reasons, wants the dynamically learned MAC addresses from the address table added to the running configuration. What must be done to accomplish this?

  A. Enable port security and use the keyword sticky.
  B. Set the switchport mode to trunk and save the running configuration.
  C. Use the switchport protected command to have the MAC addresses added to the configuration.
  D. Use the no switchport port-security command to allow MAC addresses to be added to the configuration.
  A. Enable port security and use the keyword sticky.

• Question 20:

  Which characteristic causes multimode fiber-optic cable to differ from single mode?

  A. by allowing multiple network services in the same cable
  B. shorter maximum network segment length for a given bandwidth
  C. a wider variety of available connector types
  D. use outdoors as well as indoors
  B. shorter maximum network segment length for a given bandwidth
