Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1611:

  What is the primary function of a Layer 3 device?

  A. to analyze traffic and drop unauthorized traffic from the Internet
  B. to transmit wireless traffic between hosts
  C. to pass traffic between different networks
  D. forward traffic within the same broadcast domain
  C. to pass traffic between different networks

  ---

  The primary function of a Layer 3 device is to pass traffic between different networks.

• Question 1612:

  What does physical access control regulate?

  A. access to spec fie networks based on business function
  B. access to servers to prevent malicious activity
  C. access :o computer networks and file systems
  D. access to networking equipment and facilities
  D. access to networking equipment and facilities

  ---

  There are two types of access control: physical and logical. Physical access control limits access to campuses, buildings, rooms and physical IT assets. Logical access control limits connections to computer networks, system files and data.

• Question 1613:

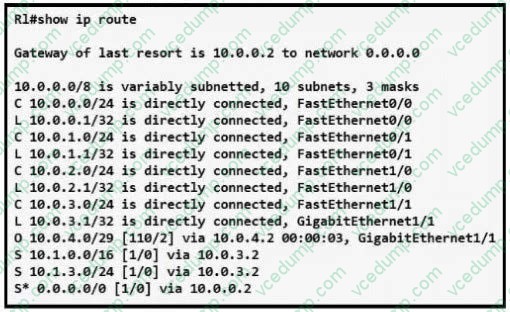

  Refer to the exhibit.



  How does router R1 forward packets destined to 10.0.4.10?

  A. via 10.0.4.2
  B. via 10.0.0.2
  C. via FastEthernet0/1
  D. via FastEthernet1/1
  C. via FastEthernet0/1

• Question 1614:

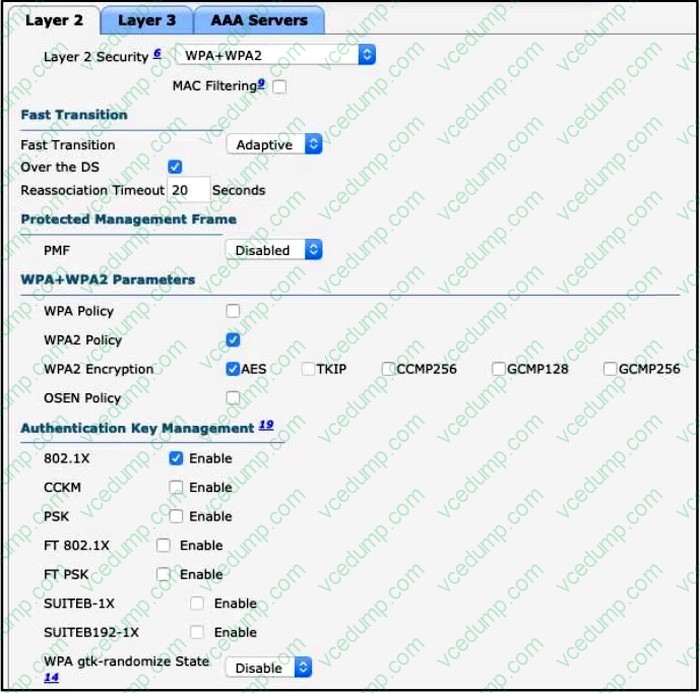

  Refer to the exhibit. Clients on the WLAN are required to use 802.11r. What action must be taken to meet the requirement?



  A. Under Protected Management Frames, set the PMF option to Required.
  B. Enable CCKM under Authentication Key Management.
  C. Set the Fast Transition option and the WPA gtk-randomize State to disable.
  D. Set the Fast Transition option to Enable and enable FT 802.1X under Authentication Key Management.
  D. Set the Fast Transition option to Enable and enable FT 802.1X under Authentication Key Management.

  ---

  Fast BSS Transition (802.11r)

  Fast BSS Transition (often abbreviated to Fast Transition or FT) describes mechanisms by which a mobile device can reestablish existing security and/or QoS parameters prior to reassociating to a new AP. These mechanisms are referred to as “fast” because they seek to significantly reduce the length of time that connectivity is interrupted between a mobile device and Wi-Fi infrastructure when that mobile device is connecting to a new AP.

  https://blogs.cisco.com/networking/what-is-802-11r-why-is-this-important

• Question 1615:

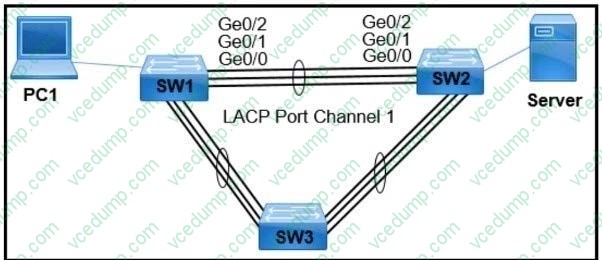

  Refer to the exhibit.

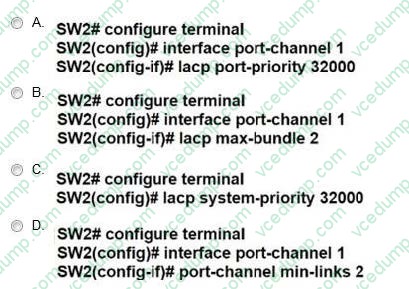

  PC1 regularly sends 1800 Mbps of traffic to the server. A network engineer needs to configure the EtherChannel to disable Port Channel 1 between SW1 and SW2 when the Ge0/0 and Ge0/1 ports on SW2 go down. Which configuration must the engineer apply to the switch?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 1616:

  What is a function of an endpoint on a network?

  A. forwards traffic between VLANs on a network
  B. connects server and client devices to a network
  C. allows users to record data and transmit to a tile server
  D. provides wireless services to users in a building
  C. allows users to record data and transmit to a tile server

  ---

  An endpoint is a remote computing device that communicates back and forth with a network to which it is connected. Examples of endpoints include:

  1. Desktops

  2. Laptops

  3. Smartphones

  4. Tablets

  5. Servers

  6. Workstations

  7. Internet-of-things (IoT) devices

• Question 1617:

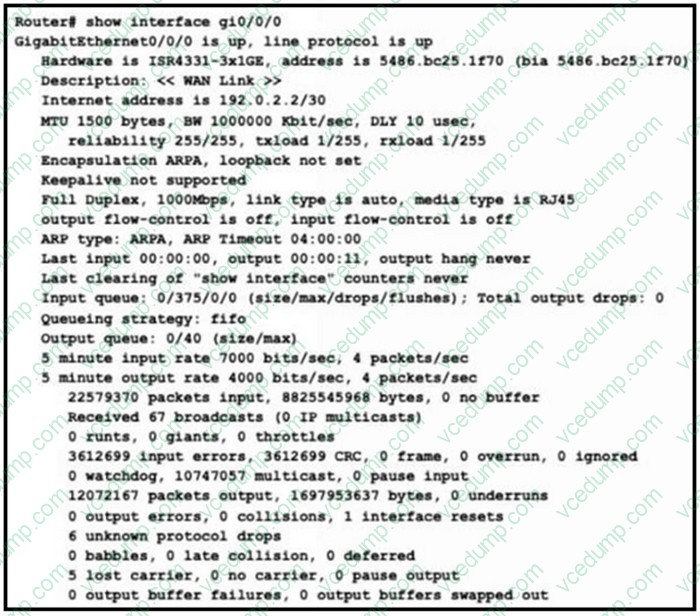

  Refer to the exhibit.



  What is a reason for poor performance on the network interface?

  A. The interface is receiving excessive broadcast traffic.
  B. The cable connection between the two devices is faulty.
  C. The interface is operating at a different speed than the connected device.
  D. The bandwidth setting of the interface is misconfigured
  B. The cable connection between the two devices is faulty.

  ---

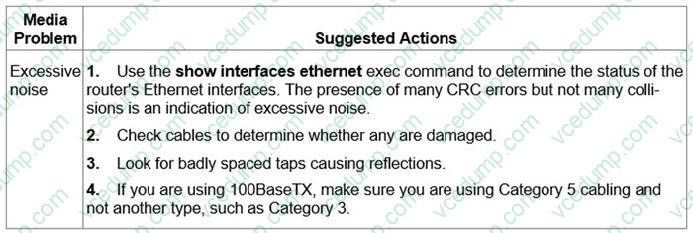

  Here we see a large number of input errors and CRC errors.



• Question 1618:

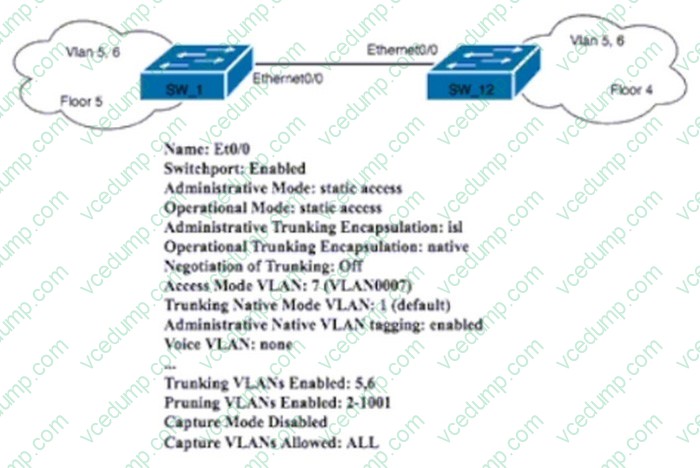

  Refer to the exhibit



  SW_1 and SW_12 represent two companies that are merging. They use separate network vendors. The VLANs on both sides have been migrated to share IP subnets.

  Which command sequence must be issued on both sides to join the two companies and pass all VLANs between the companies?

  A. switchport mode trunk switchport trunk encapsulation dot1q
  B. switchport mode trunk switchport trunk allowed vlan all switchport dot1q ethertype 0800
  C. switchport mode dynamic desirable switchport trunk allowed vlan all switchport trunk native vlan 7
  D. switchport dynamic auto switchport nonegotiate
  A. switchport mode trunk switchport trunk encapsulation dot1q

  ---

  purpose is to change the encapsulation to dot1q because isl is a Cisco proprietary protocol

• Question 1619:

  Which protocol prevents routing loops by using a maximum hop count?

  A. OSPF
  B. EIGRP
  C. RIP
  D. IS-IS
  C. RIP

  ---

  RIP uses hop count as its routing metric and limits routes to a maximum of 15 hops. Any route exceeding this limit is considered unreachable, which helps prevent routing loops.

• Question 1620:

  DRAG DROP

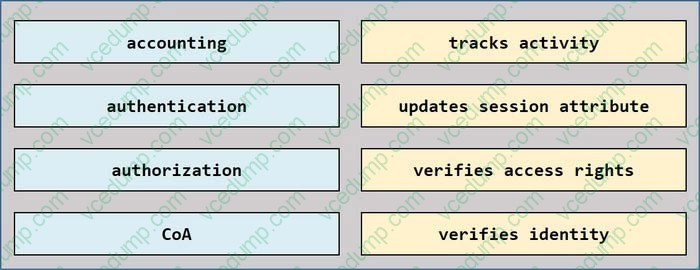

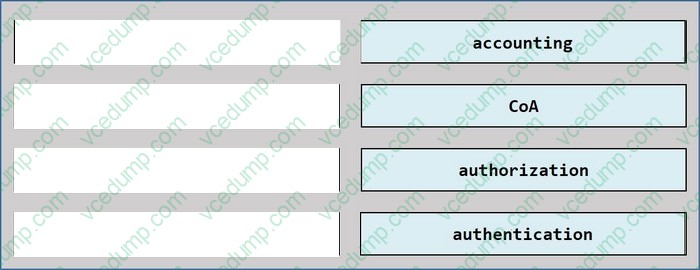

  Drag and drop the AAA terms from the left onto the description on the right.

  Select and Place:
