Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1701:

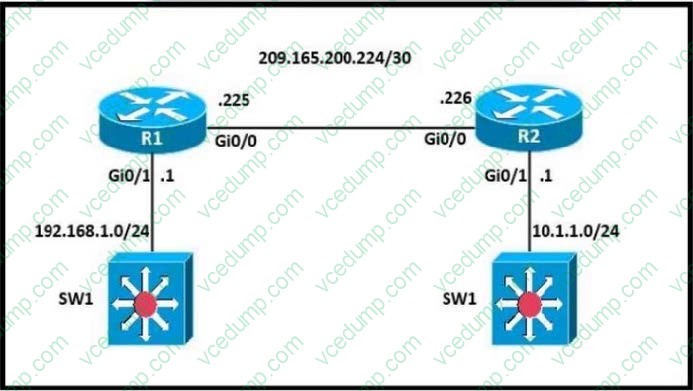

  Refer to the exhibit.



  A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs.

  Which command set configures the IP connectivity between devices located on both LANs in each site?

  A. R1 ip route 192.168.1.1 255.255.255.0 GigabitEthernet0/1 R2 ip route 10.1.1.1 255.255.255.0 GigabitEthernet0/1
  B. R1 ip route 192.168.1.0 255.255.255.0 GigabitEthernet0/0 R2 ip route 10.1.1.1 255.255.255.0 GigabitEthernet0/0
  C. R1 ip route 0.0.0.0 0.0.0.0 209.165.200.225 R2 ip route 0.0.0.0 0.0.0.0 209.165.200.226
  D. R1 ip route 0.0.0.0 0.0.0.0 209.165.200.226 R2 ip route 0.0.0.0 0.0.0.0 209.165.200.225
  D. R1 ip route 0.0.0.0 0.0.0.0 209.165.200.226 R2 ip route 0.0.0.0 0.0.0.0 209.165.200.225

  ---

  Router(config)#ip route 0.0.0.0 0.0.0.0 [exit-interface or IP address of the next-hop]

• Question 1702:

  Which command entered on a switch configured with Rapid PVST+ listens and learns for a specific time period?

  A. switch(config)#spanning-tree vlan 1 priority 4096
  B. switch(config)#spanning-tree vlan 1 hello-time 10
  C. switch(config)#spanning-tree vlan 1 max-age 6
  D. switch(config)#spanning-tree vlan 1 forward-time 20
  D. switch(config)#spanning-tree vlan 1 forward-time 20

• Question 1703:

  What are two benefits of using VTP in a switching environment? (Choose two.)

  A. It allows switches to read frame tags.
  B. It allows ports to be assigned to VLANs automatically.
  C. It maintains VLAN consistency across a switched network.
  D. It allows frames from multiple VLANs to use a single interface.
  E. It allows VLAN information to be automatically propagated throughout the switching environment.
  C. It maintains VLAN consistency across a switched network.
  E. It allows VLAN information to be automatically propagated throughout the switching environment.

• Question 1704:

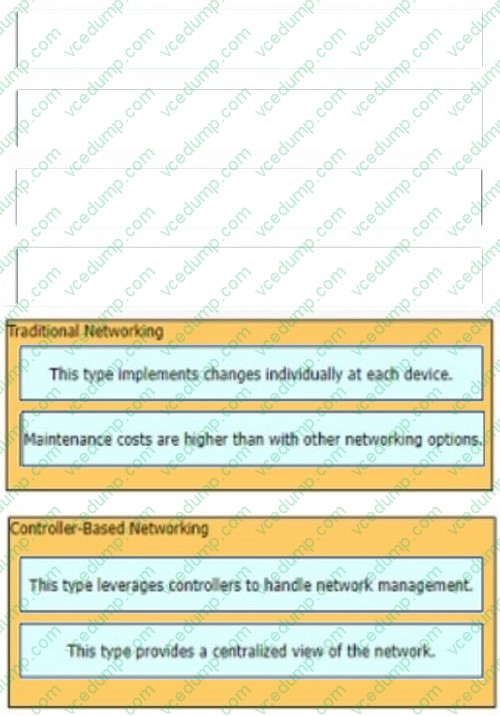

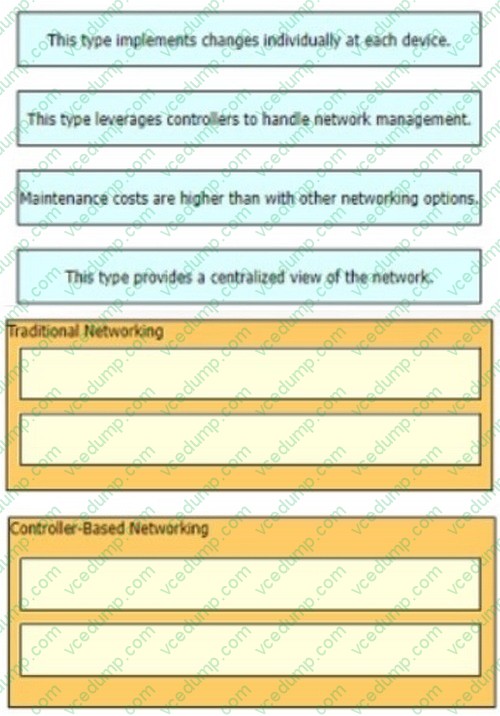

  DRAG DROP Drag and drop the statements about networking from me left onto the corresponding networking types on the right

  Select and Place:





• Question 1705:

  Which enhancements were implemented as part of WPA3?

  A. Forward secrecy and SAE in personal mode for secure initial key exchange
  B. 802.1x authentication and AES-128 encryption
  C. AES-64 in personal mode and AES-128 in enterprise mode
  D. TKIP encryption improving WEP and per-packet keying
  A. Forward secrecy and SAE in personal mode for secure initial key exchange

  ---

  Forward security and SAE in personal mode for secure initial key exchange were implemented as part of WPA3.

• Question 1706:

  Which state does the switch port move to when PortFast is enabled?

  A. learning
  B. forwarding
  C. blocking
  D. listening
  B. forwarding

• Question 1707:

  What is the function of SNMP?

  A. It defines access policies and enforces them at the network management server.
  B. It collects device performance data and forwards it to the management system.
  C. It differentiates configuration and state data to monitor and compare network deviations.
  D. It enables automation use cases with TCP-based transactions in the network.
  B. It collects device performance data and forwards it to the management system.

  ---

  SNMP is a protocol used for network management. It enables network devices such as routers, switches, and servers to send performance data, statistics, and alerts to a network management system (NMS). SNMP allows administrators to monitor and manage network performance, detect faults, and sometimes configure devices remotely. The data is collected in the form of variables that can be queried or monitored by the NMS.

• Question 1708:

  Which device tracks the state of active connections in order to make a decision to forward a packet through?

  A. wireless access point
  B. firewall
  C. wireless LAN controller
  D. router
  B. firewall

  ---

• Question 1709:

  What is the primary purpose of a recursive query in DNS?

  A. to perform a reverse DNS lookup
  B. to update DNS records on a server
  C. to refresh the TTL of specific DNS records
  D. to resolve domain names via multiple DNS servers
  D. to resolve domain names via multiple DNS servers

  ---

  In a recursive DNS query, the client (usually a user's device or application) asks a DNS resolver (like a local DNS server) to resolve a domain name. The DNS resolver takes on the responsibility of performing all the necessary queries to other DNS servers (including root, TLD, and authoritative servers) until it finds the IP address for the requested domain. The recursive DNS resolver then returns the final result (the IP address) to the client.

• Question 1710:

  What is the role of community strings in SNMP operations?

  A. It serves as a sequence tag on SNMP traffic messages.
  B. It serves as a password lo protect access to MIB objects.
  C. It passes the Active Directory username and password that are required for device access
  D. It translates alphanumeric MIB output values to numeric values.
  B. It serves as a password lo protect access to MIB objects.

  ---

  https://www.dnsstuff.com/snmp-community-string#what-is-an-snmp-community-string
