Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1621:

  Which connection type is used when an engineer connects to an AP without a configured IP address or dial-up number to manage the device?

  A. AUX
  B. Ethernet
  C. VIY
  D. console
  D. console

• Question 1622:

  A wireless administrator has configured a WLAN; however, the clients need access to a less congested 5-GHz network for their voice quality. What action must be taken to meet the requirement?

  A. enable AAA override
  B. enable RX-SOP
  C. enable DTIM
  D. enable Band Select
  D. enable Band Select

  ---

  Ref: Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide, Cisco IOS XE Gibraltar 16.12.x

  Information About Configuring Band Selection, 802.11 Bands, and Parameters

  Band Select

  Band select enables client radios that are capable of dual-band (2.4 and 5-GHz) operations to move to a less congested 5-GHz access point. The 2.4-GHz band is often congested. Clients on this band typically experience interference from Bluetooth devices, microwave ovens, and cordless phones as well as co-channel interference from other access points because of the 802.11b/g limit of 3 nonoverlapping channels. To prevent these sources of interference and improve overall network performance, configure band selection on the device.

• Question 1623:

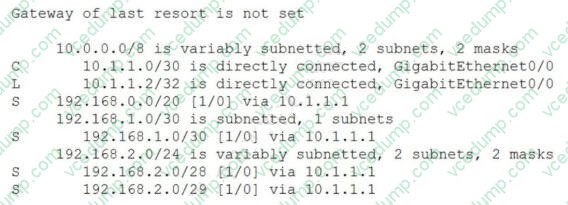

  Refer to the exhibit.



  An engineer is checking the routing table in the main router to identify the path to a server on the network. Which route does the router use to reach the server at 192.168.2.2?

  A. S 192.168.0.0/20 [1/0] via 10.1.1.1
  B. S 192.168.2.0/29 [1/0] via 10.1.1.1
  C. S 192.168.2.0/28 [1/0] via 10.1.1.1
  D. S 192.168.1.0/30 [1/0] via 10.1.1.1
  B. S 192.168.2.0/29 [1/0] via 10.1.1.1

  ---

  The route selected will use the longest match rule. IE, the longest matching subnet will be routed first so the 192.168.2.0/29 will be used over the 192.168.2.0/28 route.

• Question 1624:

  Which type of address is shared by routers in a HSRP implementation and used by hosts on the subnet as their default gateway address?

  A. multicast address
  B. loopback IP address
  C. virtual IP address
  D. broadcast address
  C. virtual IP address

  ---

  The general idea behind HSRP is rather simple: Configure multiple devices that all exist on the same subnet and are able to act as gateways to the hosts on the subnet. Basic redundancy can be configured by configuring some of the hosts to use one gateway and the other hosts to use another. However, in this situation, if either one of the gateways was to fail, then there are still a large number of hosts that would lose outside network access. HSRP provides a solution to this problem by allowing two of the connected gateways to be configured to provide redundancy. HSRP does this by providing a virtual MAC and IP address that is shared between these two devices; the active device between the two of them will be responsible for the handling of traffic to the virtual IP address, while the standby device will monitor the active device for signs of failure.

• Question 1625:

  Which cable type must be used when connecting two like devices together using these criteria?

  1. Pins 1 to 3 and 2 to 6 are required.

  2. Auto detection MDI-X is unavailable.

  A. straight-through
  B. console
  C. crossover
  D. rollover
  C. crossover

  ---

  When connecting two like devices together (e.g., two computers or two switches) directly without an intermediate device like a hub or a switch, and auto detection MDI-X (Media Dependent Interface with Crossover) is unavailable, a crossover cable is used. In a crossover cable, the transmit (TX) pins on one end are connected to the receive (RX) pins on the other end, and vice versa.

• Question 1626:

  On a corporate network, hosts on the same VLAN can communicate with each other, but they are unable to communicate with hosts on different VLANs. What is needed to allow communication between the VLANs?

  A. a router with subinterfaces configured on the physical interface that is connected to the switch
  B. a router with an IP address on the physical interface connected to the switch
  C. a switch with an access link that is configured between the switches
  D. a switch with a trunk link that is configured between the switches
  A. a router with subinterfaces configured on the physical interface that is connected to the switch

  ---

  Different VLANs can't communicate with each other, they can communicate with the help of Layer3 router. Hence, it is needed to connect a router to a switch, then make the sub-interface on the router to connect to the switch, establishing Trunking links to achieve communications of devices which belong to different VLANs.

• Question 1627:

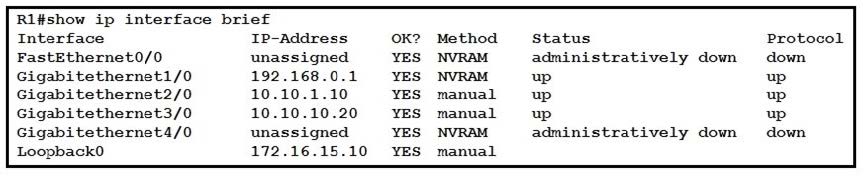

  Refer to the exhibit.



  What does router R1 use as its OSPF router-ID?

  A. 10.10.1.10
  B. 10.10.10.20
  C. 172.16.15.10
  D. 192.168.0.1
  C. 172.16.15.10

  ---

  OSPF uses the following criteria to select the router ID:

  1. Manual configuration of the router ID (via the "router-id x.x.x.x" command under OSPF router configuration mode).

  2. Highest IP address on a loopback interface.

  3. Highest IP address on a non-loopback and active (no shutdown) interface.

• Question 1628:

  A network engineer must create a diagram of a multivendor network. Which command must be configured on the Cisco devices so that the topology of the network can be mapped?

  A. Device(config)#lldp run
  B. Device(config)#cdp run
  C. Device(config-if)#cdp enable
  D. Device(config)#flow-sampler-map topology
  A. Device(config)#lldp run

  ---

  As CDP only for cisco devices. but since multi vendor then should be LLDP.

• Question 1629:

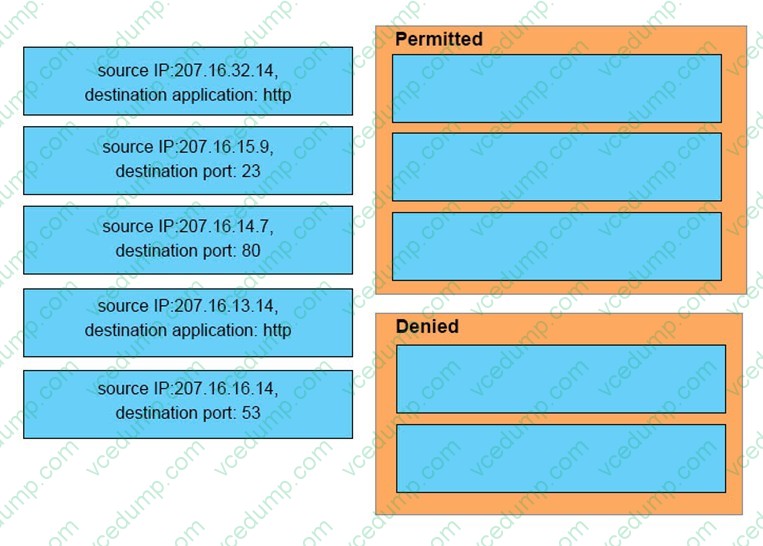

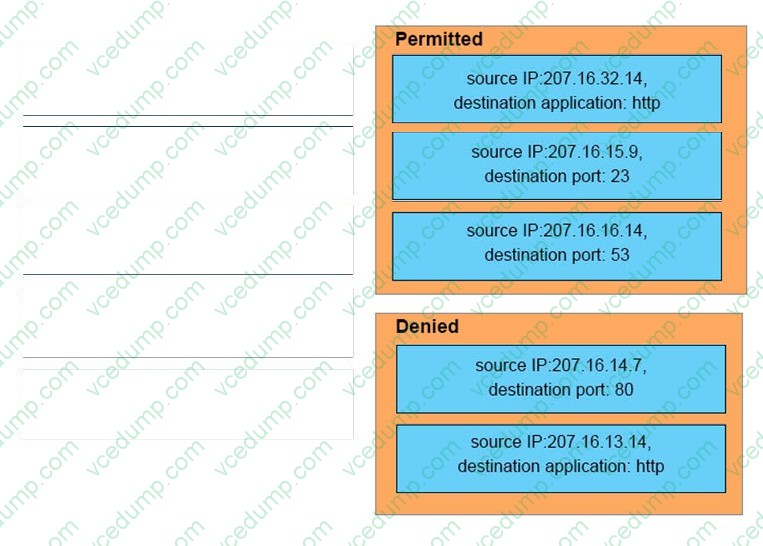

  DRAG DROP

  An interface has been configured with the access list that is shown below.



  On the basis of that access list, drag each information packet on the left to the appropriate category on the right.

  Select and Place:





• Question 1630:

  How do UTP and STP cables compare?

  A. UTP cables provide faster and more reliable data transfer rates and STP cables are slower and less reliable.
  B. STP cables are shielded and protect against electromagnetic interference and UTP lacks the same protection against electromagnetic interference.
  C. STP cables are cheaper to procure and easier to install and UTP cables are more expensive and harder to install.
  D. UTP cables are less prone to crosstalk and interference and STP cables are more prone to crosstalk and interference.
  B. STP cables are shielded and protect against electromagnetic interference and UTP lacks the same protection against electromagnetic interference.
