Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1601:

  DRAG DROP

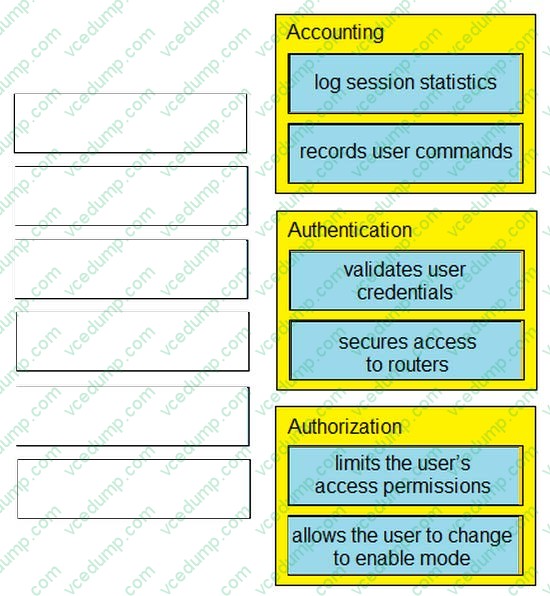

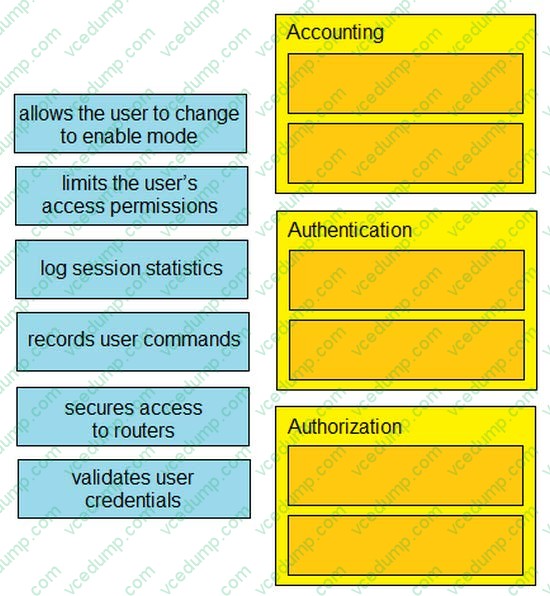

  Drag and drop the descriptions of AAA services from the left onto the corresponding services on the right.

  Select and Place:





• Question 1602:

  How do servers connect to the network in a virtual environment?

  A. wireless to an access point that is physically connected to the network
  B. a cable connected to a physical switch on the network
  C. a virtual switch that links to an access point that is physically connected to the network
  D. a software switch on a hypervisor that is physically connected to the network
  D. a software switch on a hypervisor that is physically connected to the network

• Question 1603:

  What is a requirement for nonoverlapping Wi-Fi channels?

  A. different security settings
  B. discontinuous frequency ranges
  C. different transmission speeds
  D. unique SSIDs
  B. discontinuous frequency ranges

  ---

  The requirement for non-overlapping Wi-Fi channels is that they must use discontinuous frequency ranges. Wi-Fi channels are defined by a specific frequency range, and adjacent channels overlap with each other. If two access points are using channels that overlap, they will cause interference and reduce the quality of the Wi-Fi network.

  To avoid interference, it's necessary to choose Wi-Fi channels that don't overlap. The most common Wi-Fi channels in use are 1, 6, and 11, and they don't overlap with each other. This means that if you have multiple access points in the same area, you can assign each access point a different channel from this set of channels to avoid interference.

  Different security settings, unique SSIDs, and different transmission speeds are not requirements for non-overlapping Wi-Fi channels, but they are important considerations for setting up a secure and efficient Wi-Fi network.

• Question 1604:

  A router running EIGRP has learned the same route from two different paths. Which parameter does the router use to select the best path?

  A. as-path
  B. administrative distance
  C. metric
  D. cost
  C. metric

  ---

  Metric EIGRP Cost OSPF Hop count RIP

• Question 1605:

  What are two characteristics of an SSID? (Choose Two)

  A. It can be hidden or broadcast in a WLAN
  B. It uniquely identifies an access point in a WLAN
  C. It uniquely identifies a client in a WLAN
  D. It is at most 32 characters long.
  E. IT provides secured access to a WLAN
  A. It can be hidden or broadcast in a WLAN
  D. It is at most 32 characters long.

• Question 1606:

  Which two actions are taken as the result of traffic policing? (Choose two.)

  A. bursting
  B. dropping
  C. remarking
  D. fragmentation
  E. buffering
  B. dropping
  C. remarking

  ---

  Traffic policing propagates bursts. When the traffic rate reaches the configured maximum rate, excess traffic is dropped (or remarked). The result is an output rate that appears as a saw-tooth with crests and troughs. In contrast to policing, traffic shaping retains excess packets in a queue and then schedules the excess for later transmission over increments of time. The result of traffic shaping is a smoothed packet output rate.

• Question 1607:

  Which two protocols are supported on service-port interfaces? (Choose two.)

  A. RADIUS
  B. TACACS+
  C. SCP
  D. Telnet
  E. SSH
  D. Telnet
  E. SSH

  ---

  The service-port interface supports the following protocols:

  1. SSH and Telnet

  2. HTTP and HTTPS

  3. SNMP

  4. FTP, TFTP, and SFTP

  5. Syslog

  6. ICMP (ping)

  7. NTP

• Question 1608:

  How does automation affect network management processes?

  A. It interoperates with ISE to define and manage patch and update schedules.
  B. It performs configuration updates based on user profiles.
  C. It improves the efficiency of system lifecycle management.
  D. It provides a reactive support model.
  C. It improves the efficiency of system lifecycle management.

• Question 1609:

  What is a reason to configure a trunk port that connects to a WLC distribution port?

  A. Eliminate redundancy with a link failure in the data path.
  B. Allow multiple VLAN to be used in the data path.
  C. Provide redundancy if there is a link failure for out-of-band management.
  D. Permit multiple VLANs to provide out-of-band management.
  B. Allow multiple VLAN to be used in the data path.

  ---

  distribution port is connected to the wired network( distribution system) and used for data traffic, and usually it's trunk which allows multiple vlans

• Question 1610:

  DRAG DROP

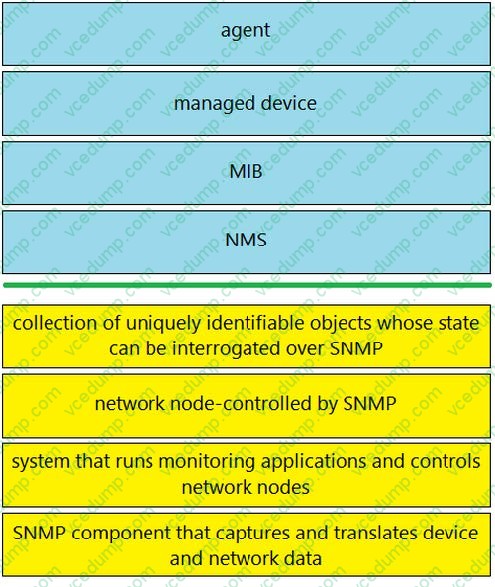

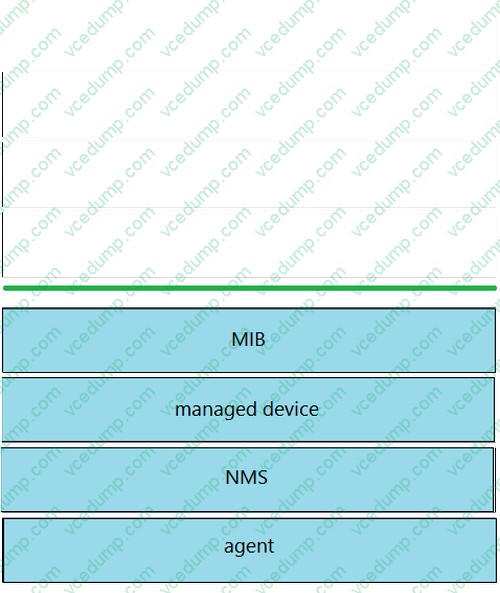

  Drag and drop the SNMP components from the left onto the descriptions on the right.

  Select and Place:
