Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1711:

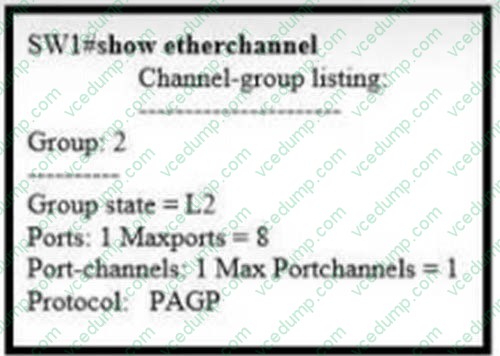

  Refer to the exhibit.



  A network engineer updates the existing configuration on interface fastethernet1/1 switch SW1. It must establish an EtherChannel by using the same group designation with another vendor switch.

  Which configuration must be performed to complete the process?

  A. interface port-channel 2 channel-group 2 mode desirable
  B. interface fastethernet 1/1 channel-group 2 mode on
  C. interface fastethernet 1/1 channel-group 2 mode active
  D. interface port-channel 2 channel-group 2 mode auto
  C. interface fastethernet 1/1 channel-group 2 mode active

• Question 1712:

  What are two reasons a switch experiences frame flooding? (Choose two.)

  A. A defective patch cable is connected to the switch port
  B. Topology changes are occurring within spanning-tree
  C. An aged MAC (able entry is causing excessive updates
  D. Port-security is configured globally
  E. The forwarding table has overflowed
  A. A defective patch cable is connected to the switch port
  B. Topology changes are occurring within spanning-tree

• Question 1713:

  DRAG DROP

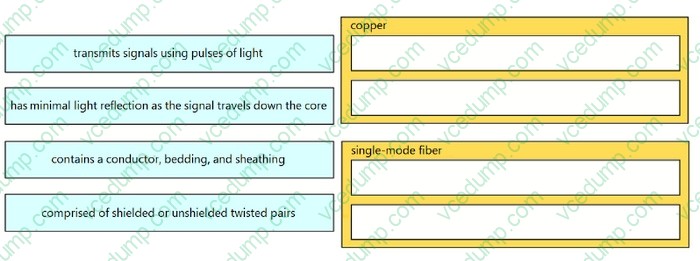

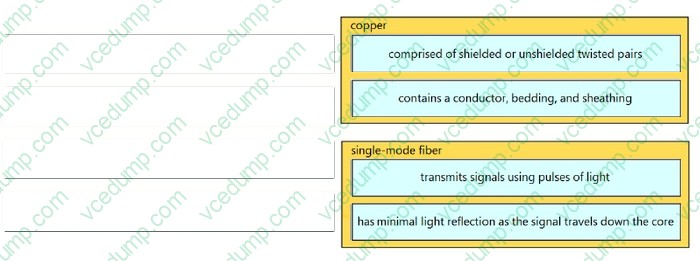

  Drag and drop the characteristic from the left onto the cable type on the right.

  Select and Place:





• Question 1714:

  An organization has decided to start using cloud-provided services. Which cloud service allows the organization to install its own operating system on a virtual machine?

  A. platform-as-a-service
  B. network-as-a-service
  C. software-as-a-service
  D. infrastructure-as-a-service
  D. infrastructure-as-a-service

  ---

  Below are the 3 cloud supporting services cloud providers provide to customer:

  1. SaaS (Software as a Service): SaaS uses the web to deliver applications that are managed by a third-party vendor and whose interface is accessed on the clients' side. Most SaaS applications can be run directly from a web browser without any downloads or installations required, although some require plugins.

  2. PaaS (Platform as a Service): are used for applications, and other development, while providing cloud components to software. What developers gain with PaaS is a framework they can build upon to develop or customize applications. PaaS makes the development, testing, and deployment of applications quick, simple, and cost-effective. With this technology, enterprise operations, or a third-party provider, can manage OSes, virtualization, servers, storage, networking, and the PaaS software itself. Developers, however, manage the applications.

  3. IaaS (Infrastructure as a Service): self-service models for accessing, monitoring, and managing remote datacenter infrastructures, such as compute (virtualized or bare metal), storage, networking, and networking services (e.g. firewalls). Instead of having to purchase hardware outright, users can purchase IaaS based on consumption, similar to electricity or other utility billing. In general, IaaS provides hardware so that an organization can install their own operating system.

• Question 1715:

  Refer to the exhibit.



  Which switch in this configuration will be elected as the root bridge?

  SW1: 0C:5A:05.:53:27:17

  SW2: 0C:0A:A8:1A:3C:9D

  SW3: 0C:0A:18:81:83:19

  SW4: 0C:0A:05:22:05:97

  A. SW1
  B. SW2
  C. SW3
  D. SW4
  C. SW3

  ---




• Question 1716:

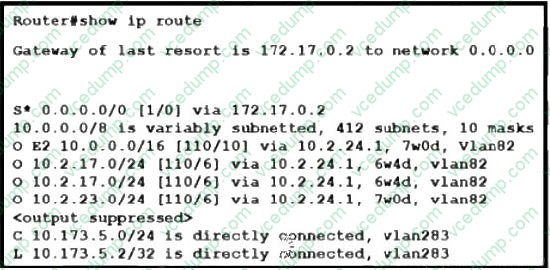

  Refer to the exhibit.



  What is the value of the administrative distance for the default gateway?

  A. 110
  B. 10
  C. 1
  C. 1
