Cisco 200-301 Online Practice Questions and Exam Preparation

200-301 Exam Details

  • Exam Code
    :200-301
  • Exam Name
    :Implementing and Administering Cisco Solutions (200-301 CCNA) v1.1
  • Certification
    :CCNA
  • Vendor
    :Cisco
  • Total Questions
    :1716 Q&As
  • Last Updated
    :Jun 01, 2026

Cisco 200-301 Online Questions & Answers

  • Question 1591:

    What are two reasons a network administrator would use CDP? (Choose two.)

    A. to verify the type of cable interconnecting two devices
    B. to determine the status of network services on a remote device
    C. to obtain VLAN information from directly connected switches
    D. to verify Layer 2 connectivity between two devices when Layer 3 fails
    E. to obtain the IP address of a connected device in order to telnet to the device
    F. to determine the status of the routing protocols between directly connected routers

  • Question 1592:

    DRAG DROP

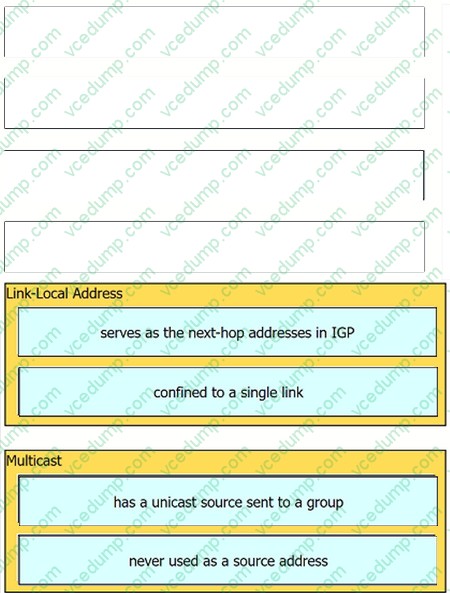

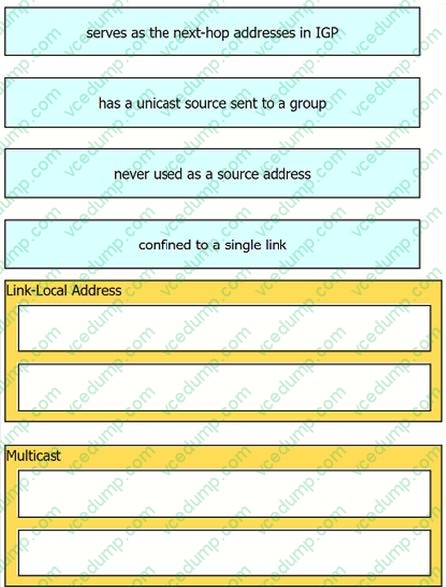

    Drag and drop the characteristic from the left onto the IPv6 address type on the right.

    Select and Place:

  • Question 1593:

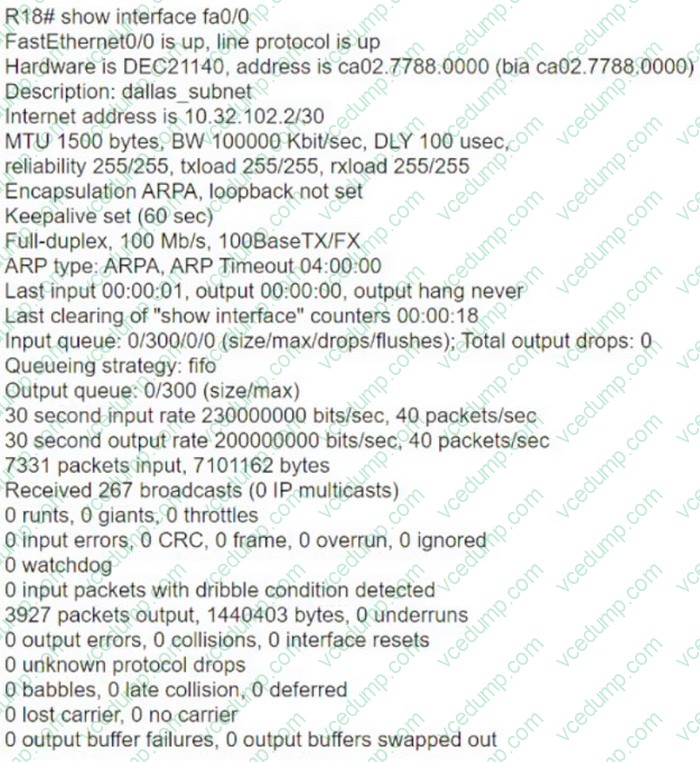

    Which interface condition is occurring in this output?

    A. bad NIC
    B. broadcast storm
    C. duplex mismatch
    D. high throughput

  • Question 1594:

    Which command is used to configure an IPv6 static default route?

    A. ipv6 route ::/0 interface next-hop5
    B. ipv6 route default interface next-hop
    C. ipv6 route 0.0.0.0/0 interface next-hop
    D. ip route 0.0.0.0/0 interface next-hop

  • Question 1595:

    When the active router in a VRRP group fails, which router assumes the role and forwards packets?

    A. forwarding
    B. standby
    C. backup
    D. listening

  • Question 1596:

    Which command should you enter to view the error log in an EIGRP for IPv6 environment?

    A. show ipv6 eigrp neighbors
    B. show ipv6 eigrp topology
    C. show ipv6 eigrp traffic
    D. show ipv6 eigrp events

  • Question 1597:

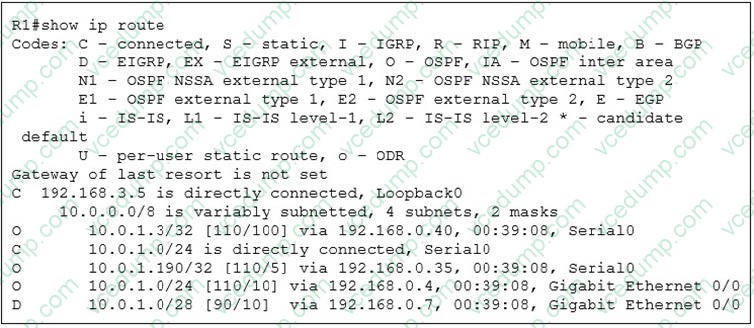

    Refer to the exhibit.

    Traffic sourced from the loopback0 interface is trying to connect via ssh to the host at 10.0.1.15. What is the next hop to the destination address?

    A. 192.168.0.7
    B. 192.168.0.4
    C. 192.168.0.40
    D. 192.168.3.5

  • Question 1598:

    Which level of severity must be set to get informational syslogs?

    A. alert
    B. critical
    C. notice
    D. debug

  • Question 1599:

    Which DSCP per-hop forwarding behavior is divided into subclasses based on drop probability?

    A. expedited
    B. default
    C. assured
    D. class-selector

  • Question 1600:

    CCNA Lab simulation

    Guidelines

    This is a lab item in which tasks will be performed on virtual devices.

    1. Refer to the Tasks tab to view the tasks for this lab item.

    2. Refer to the Topology tab to access the device console(s) and perform the tasks.

    3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

    4. All necessary pre-configurations have been applied.

    5. Do not remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

    6. Do not change the enable password or hostname for any device.

    7. Save your configurations to NVRAM before moving to the next item.

    8. Click Next at the bottom of the screen to submit this lab and move to the next question.

    9. When Next is clicked, the lab closes and cannot be reopened.

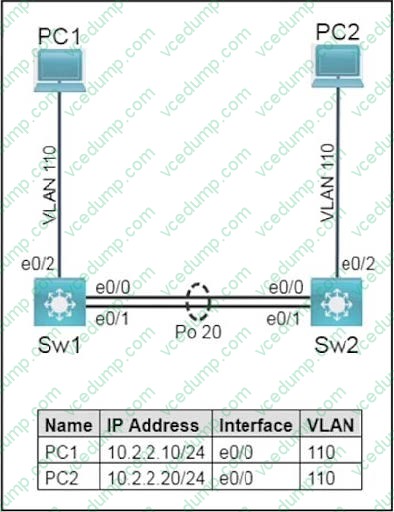

    Topology

    Tasks

    Task 1

    Configure trunks between Sw1 and Sw2 on ports E0/0 and E0/1 using the IEEE standard frame tagging method.

    1. Add VLAN 99 as untagged on the trunk ports.

    2. Only extend VLAN 110 and the untagged VLAN across the trunk.

    3. Verify that PC1 is capable of pinging PC2.

    Task 2

    On Sw1 and Sw2, use IEEE 802.3ad link aggregation.

    1. Combine E0/0 and E0/1 into a single logical link while leaving the trunk configurations intact.

    2. Assign number 20 to the link.

    3. Both links must negotiate aggregation.

    A. Check the Explanation below
    B. Place Holder
    C. Place Holder
    D. Place Holder
