Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1581:

  Which command on a port enters the forwarding state immediately when a PC is connected to it?

  A. switch(config)#spanning-tree portfast default
  B. switch(config)#spanning-tree portfast bpduguard default
  C. switch(config-if)#spanning-tree portfast trunk
  D. switch(config-if)#no spanning-tree portfast
  A. switch(config)#spanning-tree portfast default

  ---

  int g0/2 spanning-tree portfast.

  You can also enable portfast with the following command:

  SW1(config)# spanning-tree portfast default

  (this enables portfast on all access ports (not trunk ports).

• Question 1582:

  DRAG DROP

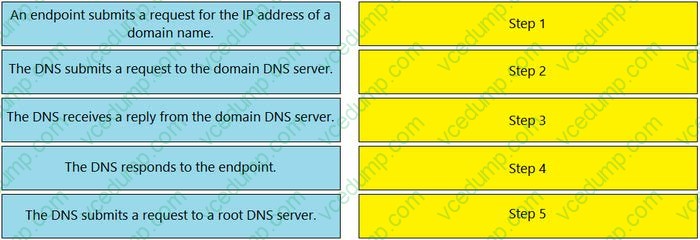

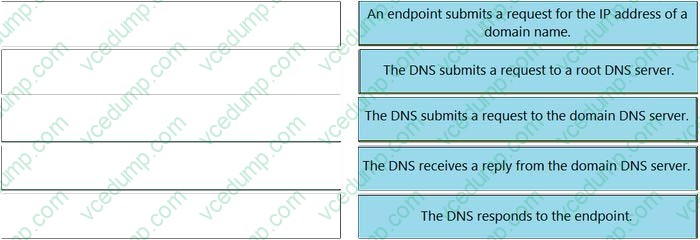

  Drag and drop the steps in a standard DNS lookup operation from the left into the order on the right.

  Select and Place:





• Question 1583:

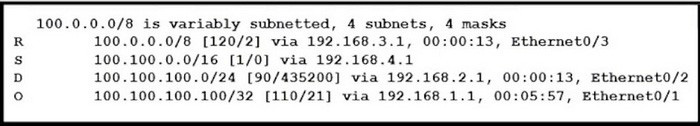

  Refer to the exhibit.



  How will the device handle a packet destined to IP address 100.100.100.100?

  A. It will always prefer the static route over dynamic routes and choose the route S 100.100.0.0/16 [1/0] via 192.168.4.1.
  B. It will choose the route with the lowest metric, R 100.0.0.0/8 [120/2] via 192.168.3.1, 00:00:13, Ethernet0/3.
  C. It will choose the route with the highest metric, D 100.100.100.0/24 [90/435200] via 192.168.2.1, 00:00:13, Ethernet0/2.
  D. It will choose the route with the longest match, O 100.100.100.100/32 [110/21] via 192.168.1.1, 00:05:57, Ethernet0/1.
  D. It will choose the route with the longest match, O 100.100.100.100/32 [110/21] via 192.168.1.1, 00:05:57, Ethernet0/1.

  ---




• Question 1584:

  The address block 192 168 32 0/24 must be subnetted into smaller networks The engineer must meet these requirements:

  1. Create 8 new subnets

  2. Each subnet must accommodate 30 hosts

  3. Interface VLAN 10 must use the last usable IP in the first new subnet

  4. A Layer 3 interface is used

  Which configuration must be applied to the interface?

  A. no switchport mode trunk ip address 192.168.32.97 255.255.255.224
  B. switchport ip address 192.168.32.65 255.255.255.240
  C. no switchport ip address 192.168.32.30 255.255.255.224
  D. no switchport mode access ip address 192.168.32.62 255.255.255.240
  C. no switchport ip address 192.168.32.30 255.255.255.224

  ---

  Requirement is 8 networks with 30 hosts

  255.255.255.0 = 11111111.11111111.11111111.00000000 8 networks = 1111 with increment of 16 which is less host number than require. 30 hosts = 11100000 with increment of 32

  255.255.255.224 or 11111111.11111111.11111111.11100000 8 networks for /27 are 0,32,64,96,128,160,192,224

• Question 1585:

  Which interface is used to send traffic to the destination network?



  A. G0/21
  B. G0/4
  C. G0/5
  D. G0/16
  D. G0/16

• Question 1586:

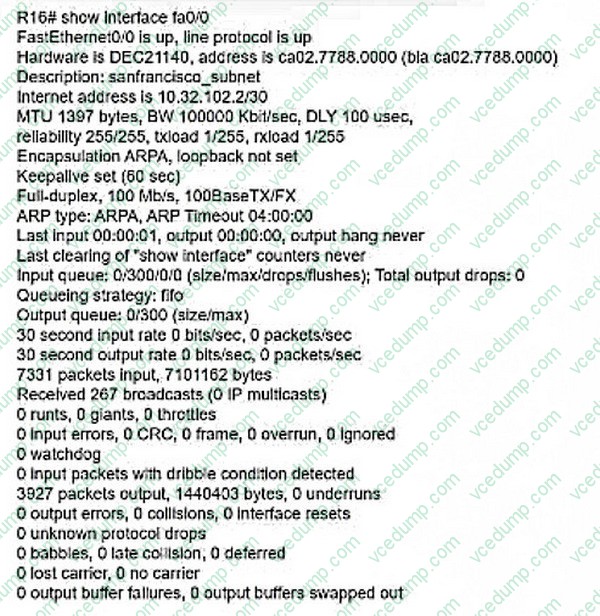

  Which interface condition is occurring in this output?



  A. bad NIC
  B. high throughput
  C. queueing
  D. broadcast storm
  B. high throughput

• Question 1587:

  What is the default interface for in-band wireless network management on a WLC?

  A. out-of-band
  B. redundant port
  C. service port
  D. wireless management
  D. wireless management

• Question 1588:

  Which part of the HTTP request is used in REST API basic authentication to carry credentials?

  A. accept
  B. content-type
  C. cookie
  D. authorization
  D. authorization

  ---

  In REST API basic authentication, credentials (usually a username and password) are encoded in Base64 and sent in the Authorization header of the HTTP request. The format for basic authentication is: Authorization: Basic

• Question 1589:

  By default, how long will the switch continue to know a workstation MAC address after the workstation stops sending traffic?

  A. 200 seconds
  B. 300 seconds
  C. 600 seconds
  D. 900 seconds
  B. 300 seconds

  ---

  Command or Action Purpose

  Step 1 switch# configure terminal Enters configuration mode.

  Specifies the time before an entry ages out and is discarded from the MAC address table. The range is from 0 to 1000000; the default is 300 switch(config)# mac-address-table

  aging-time seconds [vlan vlan_id]

  Step 2

  seconds. Entering the value 0 disables the MAC aging. If a VLAN is not specified, the aging specification applies to all VLANs.

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n2_1/b_Cisco_n5k_layer2_config_gd_rel_503_N2_1/b_Cisco_n5k_layer2_config_gd_rel_503_N2_1_chapter_01111.pdf

• Question 1590:

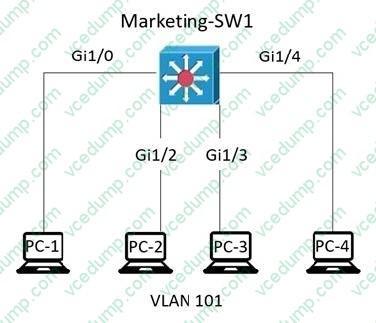

  Refer to the exhibit.

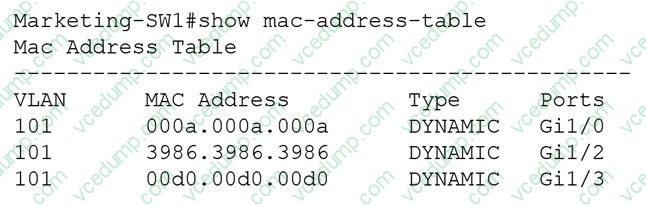

  The entire Marketing-SW1 MAC address table is shown here:



  What does the switch do when PC-4 sends a frame to PC-1?

  A. It performs a lookup in the MAC address table and discards the frame due to a missing entry
  B. It maps the Layer 2 MAC address to the Layer 3 IP address and forwards the frame.
  C. It inserts the source MAC address and port into the table and forwards the frame to PC-1.
  D. It floods the frame out of all ports except on the port where PC-1 is connected.
  C. It inserts the source MAC address and port into the table and forwards the frame to PC-1.
