Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1571:

  Which functionality is provided by the console connection on a Cisco WLC?

  A. out-of-band management
  B. secure in-band connectivity for device administration
  C. unencrypted in-band connectivity for file transfers
  D. HTTP-based GUI connectivity
  A. out-of-band management

  ---

  The console connection on a Cisco Wireless LAN Controller (WLC) provides out-of-band management functionality.

• Question 1572:

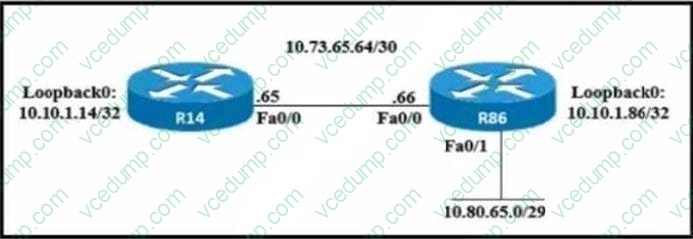

  Refer to the exhibit.



  An engineer must configure a floating static route on an external EIGRP network. The destination subnet is the /29 on the LAN interface of R86. Which command must be executed on R14?

  A. ip route 10.80.65.0 255.255.248.0 10.73.65.66 1
  B. ip route 10.80.65.0 255.255.255.240 fa0/1 89
  C. ip route 10.80.65.0 255.255.255.248 10.73.65.66 171
  D. ip route 10.73.65.66 0.0.0.224 10.80.65.0 255
  C. ip route 10.80.65.0 255.255.255.248 10.73.65.66 171

• Question 1573:

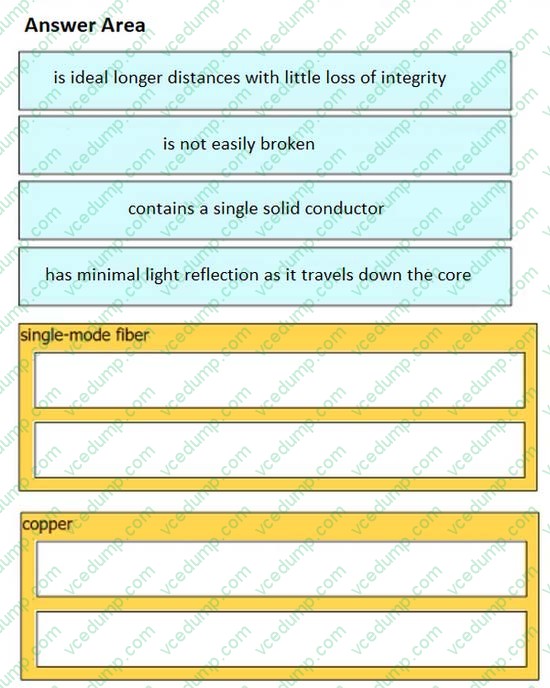

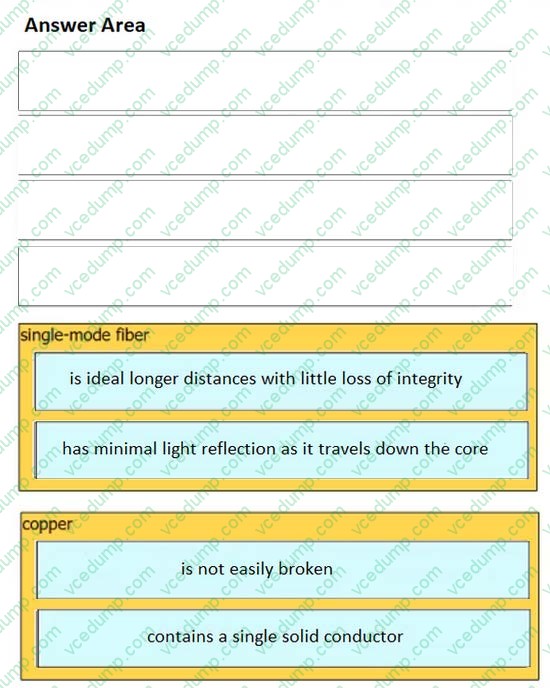

  DRAG DROP

  Drag and drop the characteristic from the left onto the cable type on the right.

  Select and Place:





• Question 1574:

  Which QoS per-hop behavior changes the value of the ToS field in the IPv4 packet header?

  A. shaping
  B. classification
  C. policing
  D. marking
  D. marking

• Question 1575:

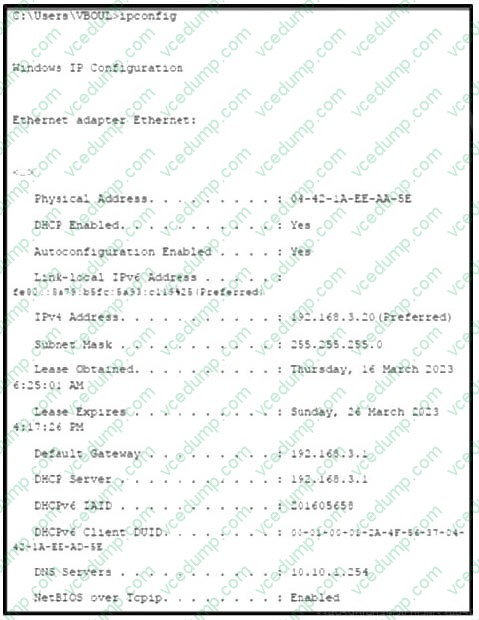

  Refer to the exhibit.



  The user has connectivity to devices on network 192.168.3.0/24 but cannot reach users on the network 10.10.1.0/24. What is the first step to verify connectivity?

  A. Is the internet reachable?
  B. Is the default gateway reachable?
  C. Is the DNS server reachable?
  D. Is the IPv4 address reachable?
  B. Is the default gateway reachable?

  ---

  Based on the provided configuration, the user is on the network 192.168.3.0/24 and can communicate with other devices on that network but is unable to reach users on the 10.10.1.0/24 network.

  The first step in troubleshooting this connectivity issue would be to check if the default gateway is reachable. The default gateway serves as the path to other networks, and without this communication, the user would be unable to access devices on different subnets such as 10.10.1.0/24.

• Question 1576:

  A Cisco engineer notices that two OSPF neighbors are connected using a crossover Ethernet cable. The neighbors are taking too long to become fully adjacent. Which command must be issued under the interface configuration on each router to reduce the time required for the adjacency to reach the FULL state?

  A. ip ospf dead-interval 40
  B. ip ospf network broadcast
  C. ip ospf priority 0
  D. ip ospf network point-to-point
  D. ip ospf network point-to-point

  ---

  Because of ethernet (CSMA/CD) - With this cmd, we will avoid DR/BDR election.

• Question 1577:

  Two switches are connected and using Cisco Dynamic Trunking Protocol SW1 is set to Dynamic Desirable.

  What is the result of this configuration?

  A. The link is in a down state.
  B. The link is in an error disables state
  C. The link is becomes an access port.
  D. The link becomes a trunk port.
  D. The link becomes a trunk port.

• Question 1578:

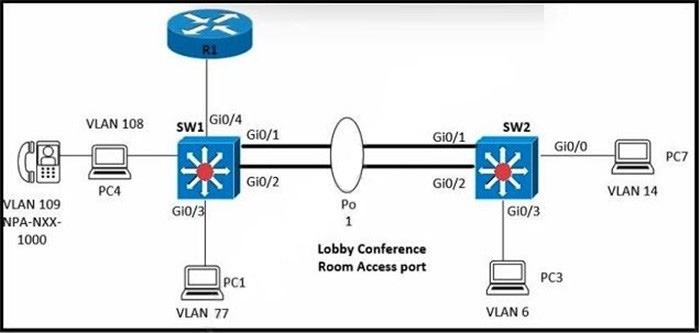

  Refer to the exhibit.



  Which configuration enables an EtherChannel to form dynamically between SW1 and SW2 by using an industry-standard protocol, and to support full IP connectivity between all PCs?

  A. SW1# interface Gi0/1 switchport switchport mode access channel-group 1 mode active ! interface Gi0/2 switchport switchport mode access channel-group 1 mode active SW2# interface Gi0/1 switchport switchport mode access channel-group 1 mode desirable ! interface Gi0/2 switchport switchport mode access channel-group 1 mode desirable
  B. SW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode on ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode auto SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode auto ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode on interface port-channel 1 switchport switchport mode trunk
  C. SW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode active ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode active SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode passive ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode passive
  D. SW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode auto ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode auto SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode desirable ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode desirable
  C. SW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode active ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode active SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode passive ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode passive

  ---




  LACP is the industrial standard protocol for EtherChannel.

• Question 1579:

  A device detects two stations transmitting frames at the same time. This condition occurs after the first 64 bytes of the frame is received interface counter increments?

  A. collision
  B. CRC
  C. runt
  D. late collision
  D. late collision

  ---

  If a device detects two stations transmitting frames at the same time after the first 64 bytes of the frame is received, this is an indication of a collision on the network. When a collision occurs, the device's interface counter for collisions will increment.

  The collision counter is a metric that is used to track the number of collisions that occur on a network interface. It is one of several counters that can be used to monitor the performance of a network interface and identify potential problems. Other counters that may be used to monitor the performance of a network interface include counters for transmitted and received frames, errors, and discards.

  If the collision counter is consistently high, it may indicate that there is a problem with the network, such as a high level of contention for network resources or a configuration issue. In this case, it may be necessary to troubleshoot the issue and take steps to reduce the number of collisions on the network. This could involve optimizing network configuration, adding additional network resources, or implementing other strategies to improve network performance.

• Question 1580:

  How can the Cisco Discovery Protocol be used?

  A. to allow a switch to discover the devices that are connected to its ports
  B. to determine the hardware platform of the device
  C. to determine the IP addresses of connected Cisco devices
  D. all of the above
  D. all of the above
