Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1041:

  Refer to the exhibit.



  VLAN 23 is being implemented between SW1 and SW2. The command show interface ethernet0/0 switchport has been issued on SW1. Ethernet0/0 on SW1 is the uplink to SW2. Which command when entered on the uplink interface allows PC 1 and PC 2 to communicate without impact to the communication between PC 11 and PC 12?

  A. switchport trunk allowed vlan 2-1001
  B. switchport trunk allowed vlan 23
  C. switchport trunk allowed vian add 23
  D. switchport trunk allowed vian 22-23
  C. switchport trunk allowed vian add 23

• Question 1042:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked the lab closes and cannot be reopened.

  Tasks

  Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.180.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:acca::/48 subnet.

  1.Using Ethernet0/1 on routers R1 and R2, configure the next usable /28 from the 192.168.180.0/24 range. The network 192.168.180.0/28 is unavailable.

  2.For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.

  3.For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.

  4.For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.

  5.A ping must work between the routers on the IPv4 and IPv6 address ranges.

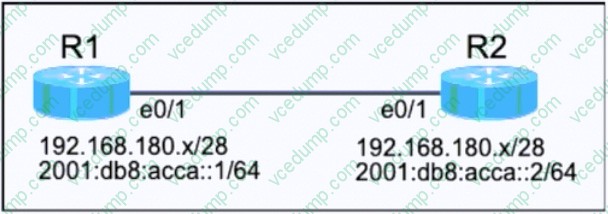

  Topology



  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

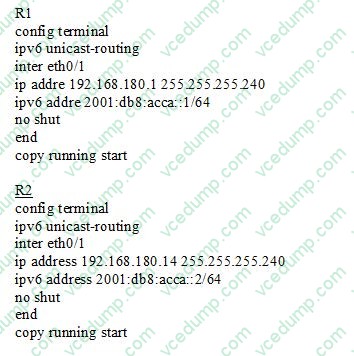

  Explanation



  for test from R1

  ping ipv6 2001:db8:acca::1

  for test from R2

  ping ipv6 2001:db8:acca::2

• Question 1043:

  Which device controls the forwarding of authentication requests for users when connecting to the network using a lightweight access point?

  A. TACACS server
  B. wireless access point
  C. RADIUS server
  D. wireless LAN controller
  D. wireless LAN controller

• Question 1044:

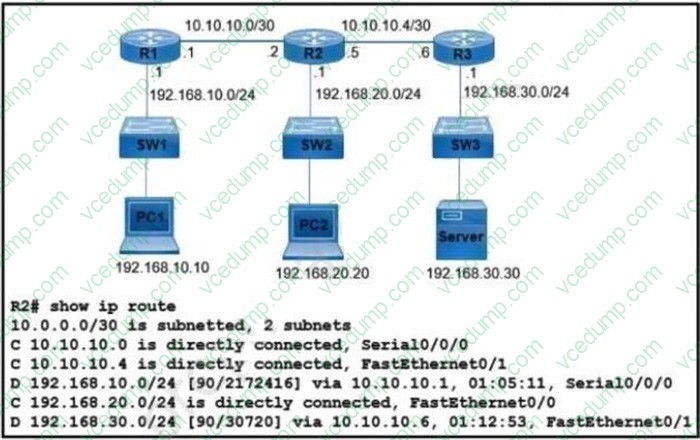

  Refer to the exhibit.



  What is the next-hop IP address for R2 so that PC2 reaches the application server via EIGRP?

  A. 192.168.30.1
  B. 10.10.10.6
  C. 10.10.10.5
  D. 192.168.20.1
  B. 10.10.10.6

• Question 1045:

  How do TCP and UDP differ in the way they guarantee packet delivery?

  A. TCP uses checksum, acknowledgements, and retransmissions, and UDP uses checksums only
  B. TCP uses retransmissions, acknowledgement and parity checks and UDP uses cyclic redundancy checks only.
  C. TCP uses checksum, parity checks, and retransmissions, and UDP uses acknowledgements only.
  D. TCP uses two-dimensional parity checks, checksums, and cyclic redundancy checks and UDP uses retransmissions only.
  A. TCP uses checksum, acknowledgements, and retransmissions, and UDP uses checksums only

  ---

  Ref: TCP vs UDP - Difference and Comparison | Diffen Comparison chart

  ...

  Error Checking

  TCP does error checking and error recovery. Erroneous packets are retransmitted from the source to the destination.

  UDP does error checking but simply discards erroneous packets. Error recovery is not attempted.

• Question 1046:

  What software-defined architecture plane assists network devices with making packet-forwarding decisions by providing Layer 2 reachability and Layer 3 routing information?

  A. management plane
  B. control plane
  C. data plane
  D. policy plane
  B. control plane

• Question 1047:

  What is a similarly between 1000BASE-LX and 1000BASE-T standards?

  A. Both use the same data-link header and trailer formats
  B. Both cable types support LP connectors
  C. Both cable types support Rj-45 connectors
  D. Both support up to 550 meters between nodes
  A. Both use the same data-link header and trailer formats

  ---

  In computer networking, Gigabit Ethernet (GbE or 1 GigE) is the term applied to transmitting Ethernet frames at a rate of a gigabit per second." Both standards use Ethernet framing (same headers and trailers)

• Question 1048:

  DRAG DROP

  Drag and drop the networking parameters from the left on to the correct values on the right.

  Select and Place:





• Question 1049:

  Which interface is used to send traffic to the destination network?



  A. G0/6
  B. G0/3
  C. G0/16
  D. G0/23
  A. G0/6

• Question 1050:

  Refer to the exhibit. Which type of JSON data is represented?



  A. number
  B. array
  C. object
  D. string
  B. array
