Cisco 200-301 Online Questions & Answers

• Question 1031:

  Which action is taken by the data plane within a network device?

  A. forwards traffic to the next hop
  B. constructs a routing table based on a routing protocol
  C. provides CLI access to the network device
  D. looks up an egress interface in the forwarding information base
  A. forwards traffic to the next hop

  ---

  The data plane forwards traffic flows. The data plane is the forwarding plane, which is responsible for the switching of packets through the router.

• Question 1032:

  Which three statements are typical characteristics of VLAN arrangements? (Choose three.)

  A. A new switch has no VLANs configured.
  B. Connectivity between VLANs requires a Layer 3 device.
  C. VLANs typically decrease the number of collision domains.
  D. Each VLAN uses a separate address space.
  E. A switch maintains a separate bridging table for each VLAN.
  F. VLANs cannot span multiple switches.
  B. Connectivity between VLANs requires a Layer 3 device.
  D. Each VLAN uses a separate address space.
  E. A switch maintains a separate bridging table for each VLAN.

  ---

  To communicate between two different VLANs we need to use a Layer 3 device like router or Layer 3 switch -> B is correct.

  VLANs don't affect the number of collision domains, they are the same -> C is not correct. Typically, VLANs increase the number of broadcast domains.

  We must use a different network (or sub-network) for each VLAN. For example we can use 192.168.1.0/24 for VLAN 1, 192.168.2.0/24 for VLAN 2 -> D is correct.

  A switch maintains a separate bridging table for each VLAN so that it can send frame to ports on the same VLAN only. For example, if a PC in VLAN 2 sends a frame then the switch look-ups its bridging table and only sends frame out of its ports which belong to VLAN 2 (it also sends this frame on trunk ports) -> E is correct.

• Question 1033:

  Which interface is used to send traffic to the destination network?



  A. G0/9
  B. G0/12
  C. G0/19
  D. G0/1
  B. G0/12

• Question 1034:

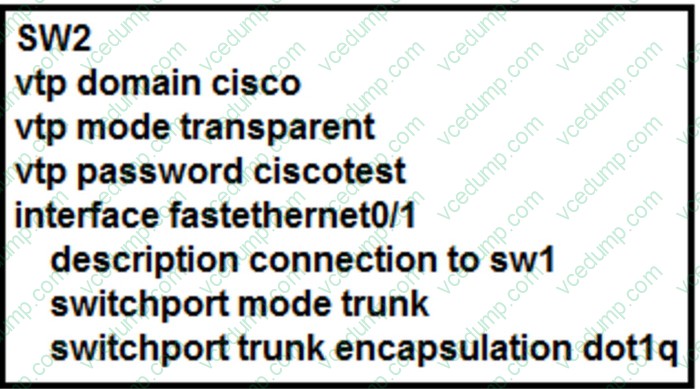

  Refer to Exhibit.



  How does SW2 interact with other switches in this VTP domain?

  A. It transmits and processes VTP updates from any VTP clients on the network on its trunk ports.
  B. It processes VTP updates from any VTP clients on the network on its access ports.
  C. It receives updates from all VTP servers and forwards all locally configured VLANs out all trunk ports.
  D. It forwards only the VTP advertisements that it receives on its trunk ports.
  D. It forwards only the VTP advertisements that it receives on its trunk ports.

  ---

  The VTP mode of SW2 is transparent so it only forwards the VTP updates it receives to its trunk links without processing them. Reference: https://www.cisco.com/c/en/us/support/docs/lan-switching/vtp/10558-21.html

• Question 1035:

  A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded. Which command must be configured to increment the security-violation count and forward an SNMP trap?

  A. switchport port-security vilation access
  B. switchport port-security vilation protect
  C. switchport port-security vilation restrict
  D. switchport port-security vilation shutdown
  C. switchport port-security vilation restrict

  ---

  https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12- 2/25ew/configuration/guide/conf/port_sec.html

• Question 1036:

  Which 802.11 management frame type is sent when a client roams between access points on the same SSID?

  A. Reassociation Request
  B. Probe Request
  C. Authentication Request
  D. Association Request
  A. Reassociation Request

• Question 1037:

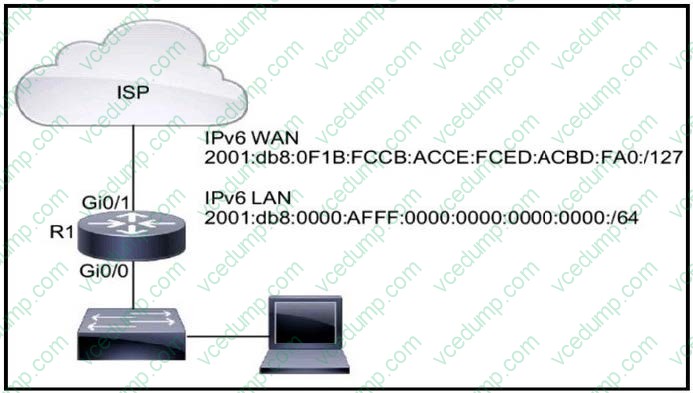

  Refer to the exhibit.



  IPv6 must be implemented on R1 to the ISP. The uplink between R1 and the ISP must be configured with a manual assignment, and the LAN interface must be self-provisioned. Both connections must use the applicable IPv6 networks. Which two configurations must be applied to R1? (Choose two.)

  A. interface Gi0/0 ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA03:/127
  B. interface Gi0/0 ipv6 address 2001:db8:0:AFFF::/64 eui-64
  C. interface Gi0/1 ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA02:/127
  D. interface Gi0/0 ipv6 address 2001:db8:1:AFFF::/64 eui-64
  E. interface Gi0/1 ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA00:/127
  D. interface Gi0/0 ipv6 address 2001:db8:1:AFFF::/64 eui-64
  E. interface Gi0/1 ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA00:/127

• Question 1038:

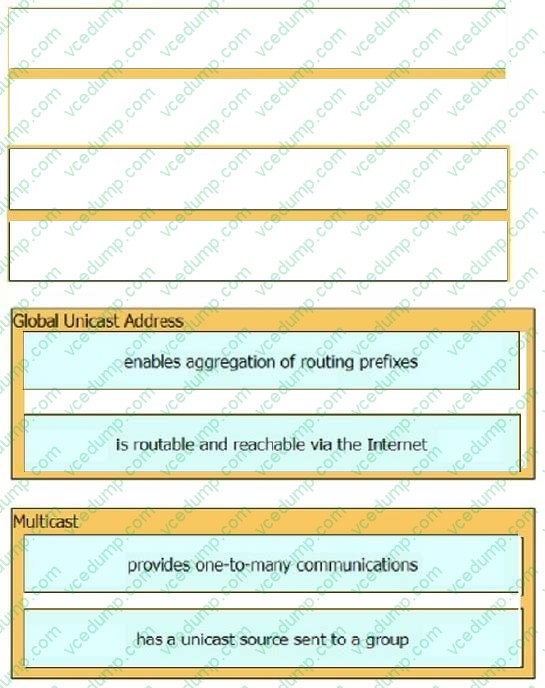

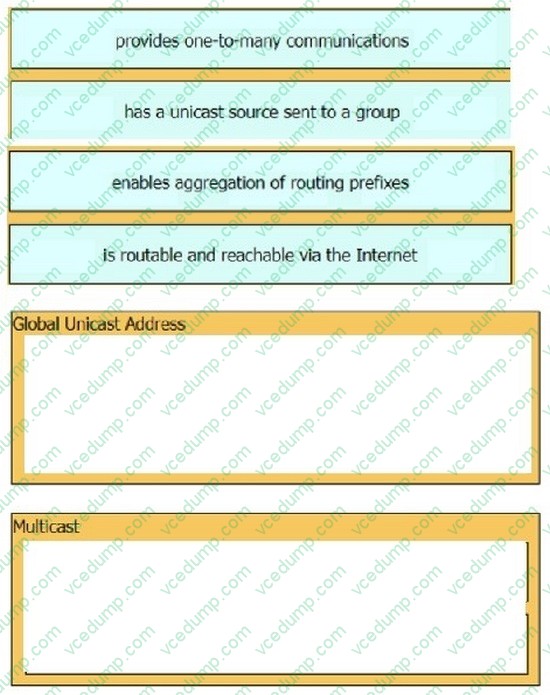

  DRAG DROP

  Drag and drop the characteristic from the left onto the IPv6 address type on the right.

  Select and Place:





• Question 1039:

  What is the purpose of the show ip ospf interface command?

  A. displaying OSPF-related interface information
  B. displaying general information about OSPF routing processes
  C. displaying OSPF neighbor information on a per-interface basis
  D. displaying OSPF neighbor information on a per-interface-type basis
  A. displaying OSPF-related interface information

• Question 1040:

  Which resource is able to be shared among virtual machines deployed on the same physical server?

  A. disk
  B. applications
  C. VM configuration file
  D. operating system
  A. disk
