Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1061:

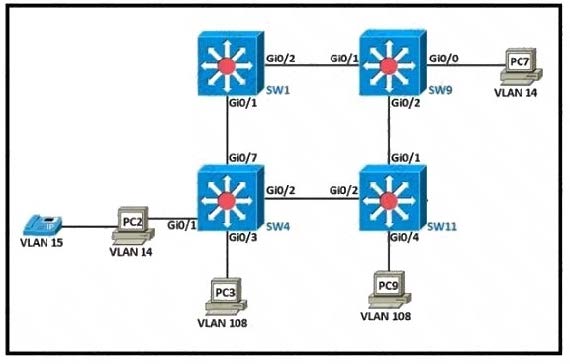

  Refer to the exhibit.



  The following must be considered:

  1. SW1 is fully configured for all traffic

  2. The SW4 and SW9 links to SW1 have been configured

  3. The SW4 interface Gi0/1 and Gi0/0 on SW9 have been configured

  4. The remaining switches have had all VLANs added to their VLAN database

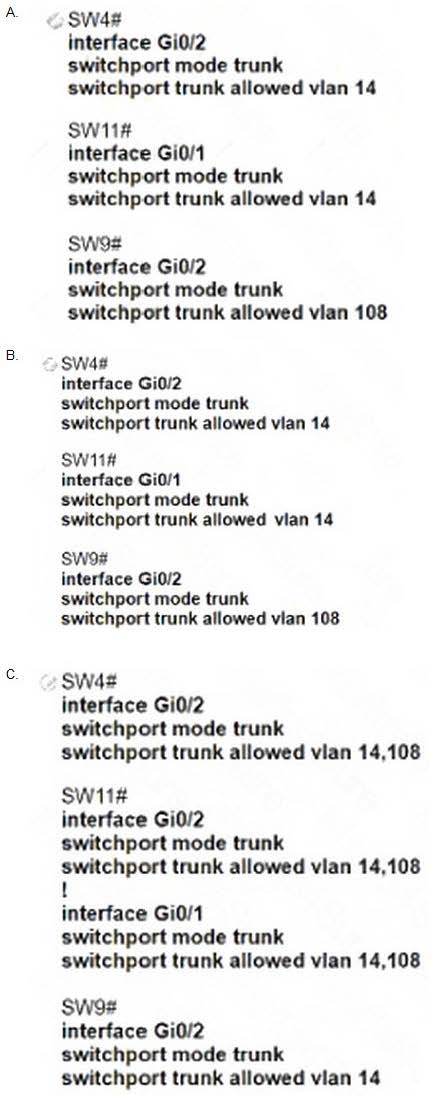

  Which configuration establishes a successful ping from PC2 to PC7 without interruption to traffic flow between other PCs?





  A. Option A
  B. Option B
  C. Option C

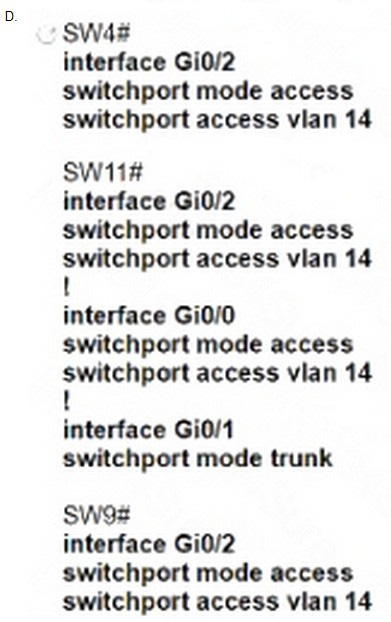

  D. Option D
  C. Option C

  ---




• Question 1062:

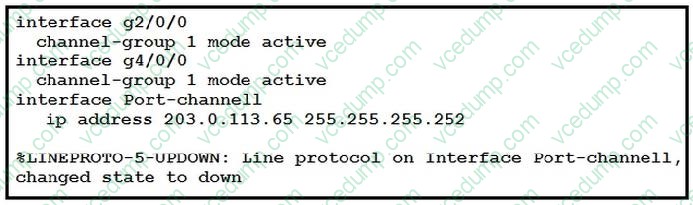

  Refer to the exhibit.



  An engineer is configuring a Layer 3 port-channel interface with LACP. The configuration on the first device is complete, and it is verified that both interfaces have registered the neighbor device in the CDP table. Which task on the neighbor device enables the new port channel to come up without negotiating the channel?

  A. Change the EtherChannel mode on the neighboring interfaces to auto.
  B. Configure the IP address of the neighboring device.
  C. Bring up the neighboring interfaces using the no shutdown command.
  D. Modify the static EtherChannel configuration of the device to passive mode.
  D. Modify the static EtherChannel configuration of the device to passive mode.

• Question 1063:

  What does the term "split MAC" refer to in a wireless architecture?

  A. leverages two APs to handle control and data traffic
  B. uses different MAC addresses for 2.4 GHz and 5 GHz bands on the same AP
  C. divides data link layer functions between the AP and WLC
  D. combines the management and control functions from the data-forwarding functions
  C. divides data link layer functions between the AP and WLC

  ---

  In a split MAC architecture, the functions of the MAC layer (Media Access Control layer, part of the data link layer) are divided between the Access Point (AP) and the Wireless LAN Controller (WLC).

  The AP handles real-time functions like beaconing, responding to probe requests, and packet encryption.

  The WLC manages higher-level control functions like authentication, association, and mobility management.

  This division allows for more efficient management of wireless networks, where the WLC can centralize control and the AP focuses on fast, real-time operations.

• Question 1064:

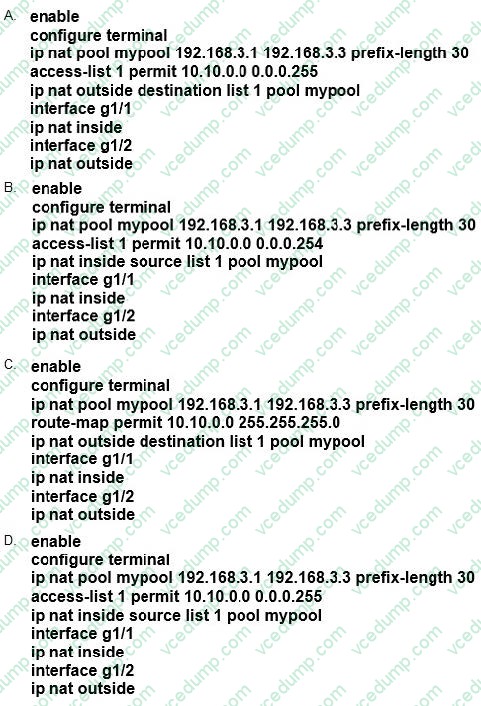

  An engineer is configuring NAT to translate the source subnet of 10.10.0.0/24 to any one of three addresses: 192.168.3.1, 192.168.3.2, or 192.168.3.3. Which configuration should be used?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

  ---

• Question 1065:

  Which device protects an internal network from the Internet?

  A. router
  B. firewall
  C. access point
  D. Layer 2 switch
  B. firewall

• Question 1066:

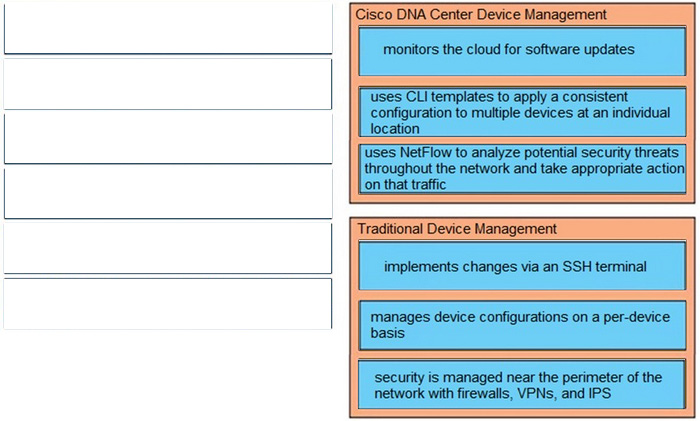

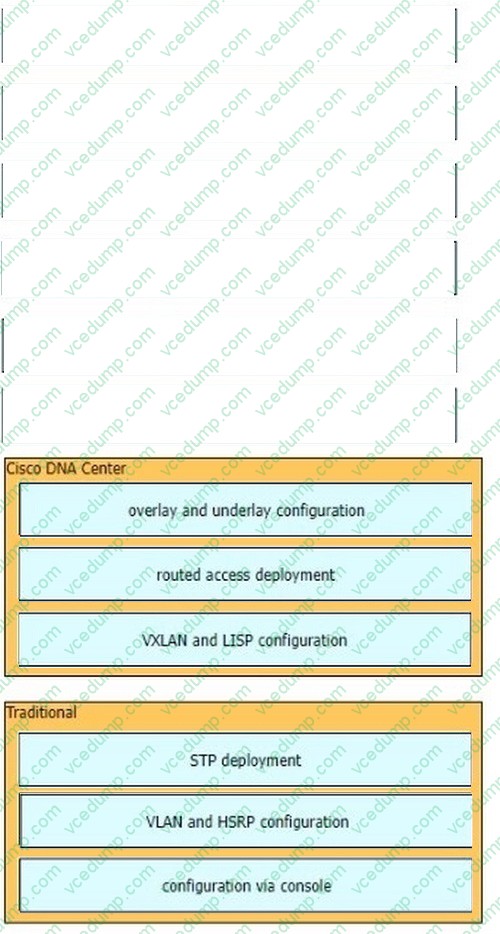

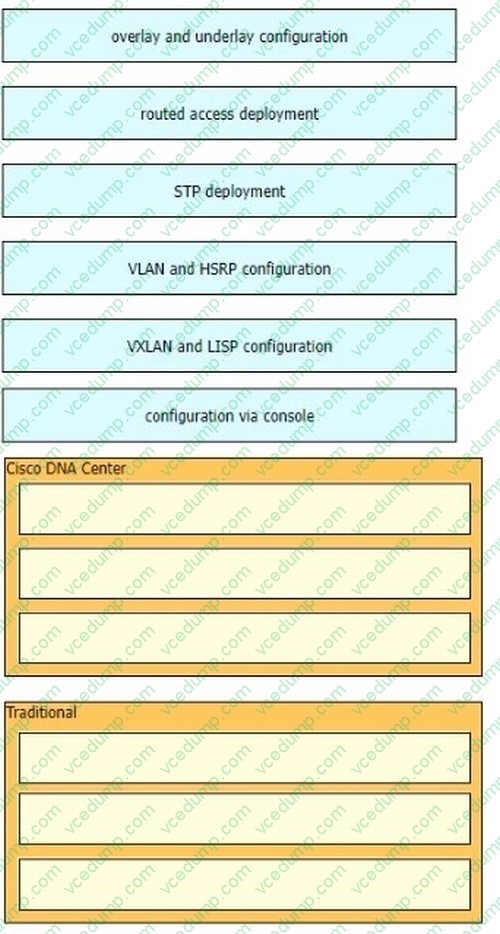

  DRAG DROP

  Drag and drop the use cases for device-management technologies from the left onto the corresponding.

  Select and Place:





• Question 1067:

  What is the function of a hub-and-spoke WAN topology?

  A. allows access restrictions to be implemented between subscriber sites.
  B. provides direct connections between subscribers
  C. supports Layer 2 VPNs
  D. supports application optimization
  B. provides direct connections between subscribers

• Question 1068:

  What is a function of Layer 3 switches?

  A. They route traffic between devices in different VLANs.
  B. They transmit broadcast traffic when operating in Layer 3 mode exclusively.
  C. They move frames between endpoints limited to IP addresses.
  D. They forward Ethernet frames between VLANs using only MAC addresses,
  A. They route traffic between devices in different VLANs.

  ---

  They route traffic between devices in different VLANs.

• Question 1069:

  What are two functions of an SDN controller? (Choose two)

  A. Layer 2 forwarding
  B. coordinating VTNs
  C. tracking hosts
  D. managing the topology
  E. protecting against DDoS attacks
  B. coordinating VTNs
  D. managing the topology

• Question 1070:

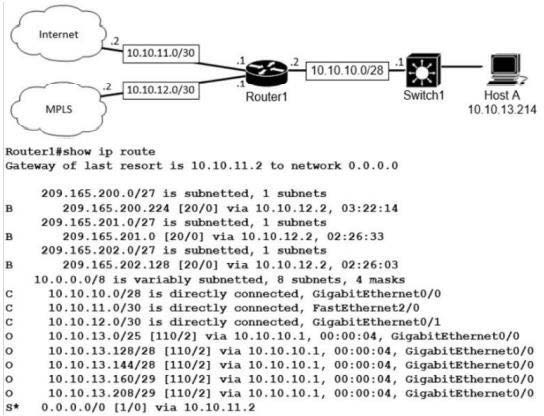

  Refer to the exhibit.



  What is the prefix length for the route that router1 will use to reach host A?

  A. /25
  B. /27
  C. /28
  D. /29
  D. /29

  ---

  32-bit mask − 29-bit mask = 3 bits.

  2 to the power of 3 is 8 per subnet, while there are 6 hosts in a subnet (2 to the power of 3 minus 2).

  So 8 addresses are in a subnet. Take this question’s example:

  1st subnet = 10.10.13.0 – 10.10.13.7

  2nd subnet = 10.10.13.8 – 10.10.13.15

  3rd subnet = 10.10.13.16 – 10.10.13.23

  ...

  Some numbered subnet later = 10.10.13.208 – 10.10.13.215, so 10.10.13.214 is in the range, so that’s the answer right there.

  Note:
  Each subnet has a network address and a broadcast address, so to know how many hosts are in a subnet you need to ALWAYS MINUS 2. That’s why we minus 2 (as with 2 to the power of 3 minus 2).
