Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1021:

  Which type does a port become when it receives the best BPDU on a bridge?

  A. The designated port
  B. The backup port
  C. The alternate port
  D. The root port
  D. The root port

• Question 1022:

  By default, which virtual MAC address does HSRP group 14 use?

  A. 00:05:5e:19:0c:14
  B. 00:05:0c:07:ac:14
  C. 04:15:26:73:3c:0e
  D. 00:00:0c:07:ac:0e
  D. 00:00:0c:07:ac:0e

• Question 1023:

  Which option about JSON is true?

  A. uses predefined tags or angle brackets () to delimit markup text
  B. used to describe structured data that includes arrays
  C. used for storing information D. similar to HTML, it is more verbose than XML
  B. used to describe structured data that includes arrays

  ---

  JSON data is written as name/value pairs.

  A name/value pair consists of a field name (in double quotes), followed by a colon, followed by a value:

  "name":"Mark"

  JSON can use arrays. Array values must be of type string, number, object, array, boolean or null..

  For example:

  {

  "name":"John",

  "age":30,

  "cars":[ "Ford", "BMW", "Fiat" ]

  }

• Question 1024:

  Which event has occurred if a router sends a notice level message to a syslog server?

  A. An interface line has changed status.
  B. An ICMP connection has been built.
  C. A TCP connection has been torn down.
  D. A certificate has expired.
  A. An interface line has changed status.

• Question 1025:

  Which function does an iterative DNS query serve in the domain name resolution process?

  A. Obtain information directly from all root DNS servers configured within the scope.
  B. Encrypt communication automatically between DNS clients and servers.
  C. Allow a DNS client to contact several DNS servers until the correct information is found.
  D. Update records dynamically across multiple DNS servers at the same time.
  C. Allow a DNS client to contact several DNS servers until the correct information is found.

• Question 1026:

  Which 802.11 frame type is association response?

  A. management
  B. protected frame
  C. action
  D. control
  A. management

  ---

  https://en.wikipedia.org/wiki/802.11_Frame_Types

• Question 1027:

  What is a characteristic of encryption in wireless networks?

  A. prevents intercepted data from being easily read
  B. uses a unidirectional handshake for authentication
  C. intercepts data threats before they attack a network
  D. uses integrity checks to identify forgery attacks
  A. prevents intercepted data from being easily read

• Question 1028:

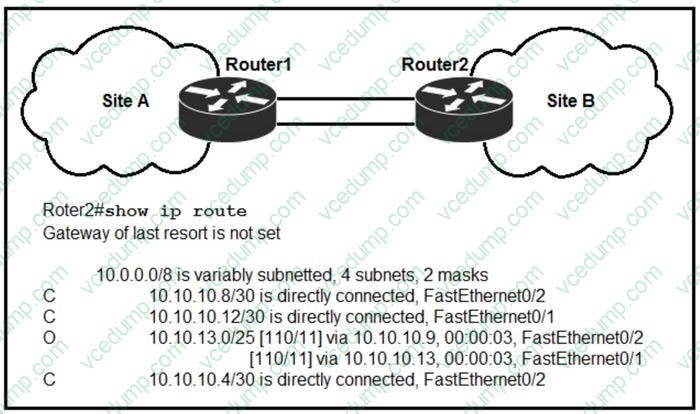

  Refer to the exhibit.



  If OSPF is running on this network, how does Router 2 handle traffic from Site B to 10.10.13.128/25 at Site A?

  A. It load-balances traffic out of Fa0/1 and Fa0/2.
  B. It is unreachable and discards the traffic.
  C. It sends packets out of interface Fa0/2.
  D. It sends packets out of interface Fa0/1.
  B. It is unreachable and discards the traffic.

  ---

• Question 1029:

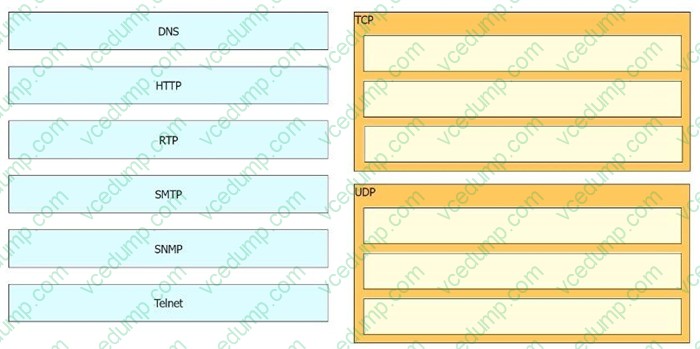

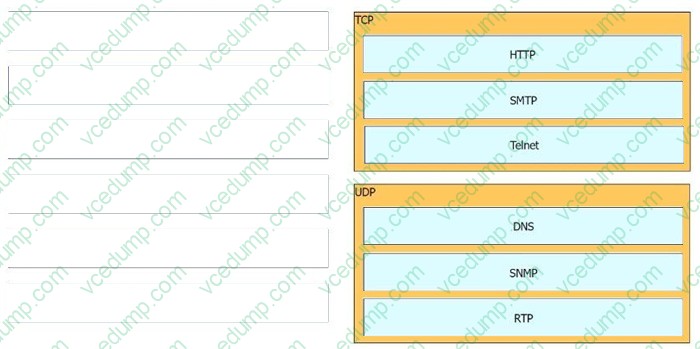

  DRAG DROP

  Drag the following application protocols to the correct transport protocol group.

  Select and Place:





• Question 1030:

  Which virtualization technology requires a base OS installation but does not require a hypervisor?

  A. virtual server
  B. virtual routers
  C. container
  D. Kubernetes
  C. container

  ---

  Containers are a form of virtualization where applications and their dependencies are packaged together in isolated environments, but they all share the same base OS kernel. Unlike traditional virtual machines, containers do not require a hypervisor because they run directly on the operating system, leveraging OS-level virtualization. This makes containers lightweight and efficient compared to full VMs. Technologies like Docker are commonly used to create and manage containers. Containers are popular in microservices architectures because they allow applications to run in isolated environments but with very low overhead.
