Cisco 200-105 Online Questions & Answers

• Question 261:

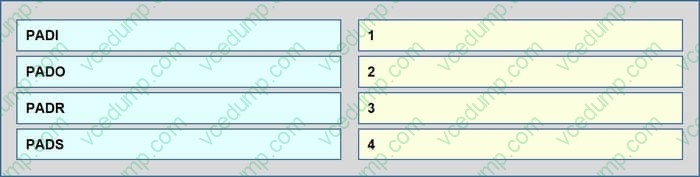

  Drag and Drop the PPPoE message types from the left into the sequence in which PPPoE messages are sent on the right.

  Select and Place:





• Question 262:

  Which value must you configure on a device before EIGRP for IPv6 can start running?

  A. public IP address
  B. loopback interface
  C. router ID
  D. process ID
  C. router ID

• Question 263:

  Which type of EIGRP route entry describes a feasible successor?

  A. a backup route, stored in the routing table
  B. a primary route, stored in the routing table
  C. a backup route, stored in the topology table
  D. a primary route, stored in the topology table
  C. a backup route, stored in the topology table

  ---

  Feasible Successors

  A destination entry is moved from the topology table to the routing table when there is a feasible successor. All minimum cost paths to the destination form a set. From this set, the neighbors that have an advertised metric less than the current

  routing table metric are considered feasible successors.

  Feasible successors are viewed by a router as neighbors that are downstream with respect to the destination.

  These neighbors and the associated metrics are placed in the forwarding table.

  When a neighbor changes the metric it has been advertising or a topology change occurs in the network, the set of feasible successors may have to be re-evaluated. However, this is not categorized as a route recomputation. Feasible

  successor is a route whose Advertised Distance (AD) is less than the Feasible Distance (FD) of the current best path. A feasible successor is a backup route, which is not stored in the routing table but, stored in the topology table.

  Reference:

  http://www.cisco.com/en/US/tech/tk365/technologies_tech_note09186a0080093f07.shtml

• Question 264:

  Instructions

  This item contains several questions that you must answer. You can view these questions by clicking on the corresponding button to the left. Changing questions can be accomplished by clicking the numbers to the left of each question. In

  order to complete the questions, you will need to refer to the topology.

  To gain access to the topology, click on the topology button at the bottom of the screen. When you have finished viewing the topology, you can return to your questions by clicking on the Questions button to the left.

  Each of the windows can be minimized by clicking on the [-]. You can also reposition a window by dragging it by the title bar.

  Scenario

  Refer to the topology. Using the information shown, answer the four questions shown on the Questions tab.



  To allow or prevent load balancing to network 172.16.3.0/24, which of the following commands could be used in R2? (Choose two.)

  A. R2(config-if)#clock rate
  B. R2(config-if)#bandwidth
  C. R2(config-if)#ip ospf cost
  D. R2(config-if)#ip ospf priority
  E. R2(config-router)#distance ospf
  B. R2(config-if)#bandwidth
  C. R2(config-if)#ip ospf cost

  ---

  OSPF Cost The cost (also called metric) of an interface in OSPF is an indication of the overhead required to send packets across a certain interface. The cost of an interface is inversely proportional to the bandwidth of that interface. A higher bandwidth indicates a lower cost. There is more overhead (higher cost) and time delays involved in crossing a 56k serial line than crossing a 10M Ethernet line. The formula used to calculate the cost is:

  cost= 10000 0000/bandwith in bps

  For example, it will cost 10 EXP8/10 EXP7 = 10 to cross a 10M Ethernet line and will cost 10 EXP8/1544000 =64 to cross a T1 line. By default, the cost of an interface is calculated based on the bandwidth; you can force the cost of an interface with the ip ospf cost interface subconfiguration mode command.

  Reference: http://www.cisco.com/en/US/tech/tk365/technologies_white_paper09186a0080094e9e.shtml#t6

• Question 265:

  Which two statements about VLAN port assignment are true? (Choose two.)

  A. By default, all ports are assigned to VLAN 2
  B. Ports are assigned to a dynamic VLAN based on the device IP address
  C. It can be performed statically or dynamically
  D. Static port assignments are based on a preset configuration on a dedicated server.
  E. A port in access mode can be assigned to only one VLAN
  C. It can be performed statically or dynamically
  E. A port in access mode can be assigned to only one VLAN

• Question 266:

  You enter the show ipv6 route command on an OSPF device and the device displays a remote route. Which conclusion can you draw about the environment?

  A. OSPF is distributing IPv6 routes to BGP.
  B. The router is designated as an ABR.
  C. The router is designated as totally stubby.
  D. OSPFv3 is in use.
  D. OSPFv3 is in use.

• Question 267:

  The output of the show frame-relay pvc command shows "PVC STATUS = INACTIVE". What does this mean?

  A. The PVC is configured correctly and is operating normally, but no data packets have been detected for more than five minutes.
  B. The PVC is configured correctly, is operating normally, and is no longer actively seeking the address of the remote router.
  C. The PVC is configured correctly, is operating normally, and is waiting for interesting traffic to trigger a call to the remote router.
  D. The PVC is configured correctly on the local switch, but there is a problem on the remote end of the PVC
  E. The PVC is not configured on the local switch.
  D. The PVC is configured correctly on the local switch, but there is a problem on the remote end of the PVC

  ---

  The PVC STATUS displays the status of the PVC. The DCE device creates and sends the report to the DTE devices. There are 4 statuses:

  ACTIVE: the PVC is operational and can transmit dataINACTIVE: the connection from the local router to the switch is working, but the connection to the remote router is not availableDELETED: the PVC is not present and no LMI information

  is being received from the Frame Relay switch STATIC: the Local Management Interface (LMI) mechanism on the interface is disabled (by using the "no keepalive" command). This status is rarely seen.

• Question 268:

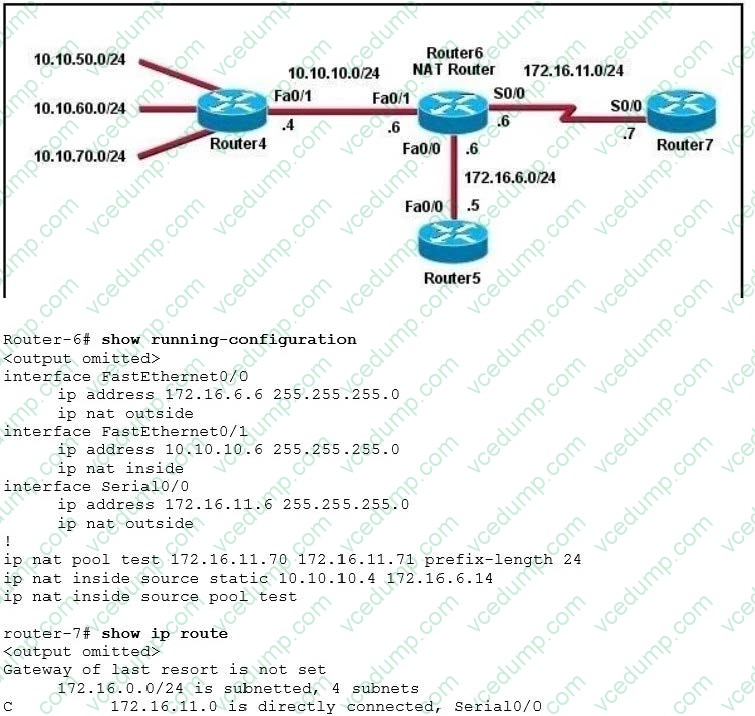

  Refer to the exhibit. Router4 can ping Router5 (172.16.6.5), but not Router7 (172.16.11.7). There are no routing protocols running in any of the routers, and Router4 has Router6 as its default gateway. What can be done to address this problem?



  A. Convert to static NAT.
  B. Convert to dynamic NAT.
  C. Add a static route in Router7 back to Router4.
  D. Change the inside and outside NAT commands.
  C. Add a static route in Router7 back to Router4.

• Question 269:

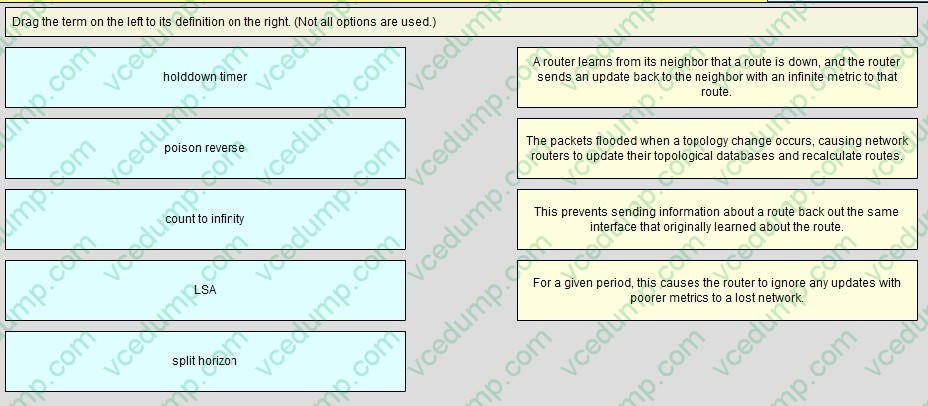

  Drag the term on the left to its definition on the right (Not all options are used.)

  Select and Place:





• Question 270:

  When you configure VTP on a switch, which VTP mode is enabled by default?

  A. transparent
  B. server
  C. off
  D. client
  B. server
