Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 281:

  Which IEEE standard does PVST+ use to tunnel information?

  A. 802.1x
  B. 802.1q
  C. 802.1w
  D. 802.1s
  B. 802.1q

• Question 282:

  A network engineer wants to allow a temporary entry for a remote user with a specific username and password so that the user can access the entire network over the Internet.

  Which ACL can be used?

  A. standard
  B. extended
  C. dynamic
  D. reflexive
  C. dynamic

• Question 283:

  Which three statements about RSTP are true? (Choose three.)

  A. RSTP significantly reduces topology reconverging time after a link failure.
  B. RSTP expands the STP port roles by adding the alternate and backup roles.
  C. RSTP port states are blocking, discarding, learning, or forwarding.
  D. RSTP provides a faster transition to the forwarding state on point-to-point links than STP does.
  E. RSTP also uses the STP proposal-agreement sequence.
  F. RSTP uses the same timer-based process as STP on point-to-point links.
  A. RSTP significantly reduces topology reconverging time after a link failure.
  B. RSTP expands the STP port roles by adding the alternate and backup roles.
  D. RSTP provides a faster transition to the forwarding state on point-to-point links than STP does.

  ---

  Convergence Cisco enhanced the original 802.1D specification with features such as Uplink Fast, Backbone Fast, and Port Fast to speed up the convergence time of a bridged network. The drawback is that these mechanisms are proprietary and need additional configuration. Alternate and Backup Port Roles These two port roles correspond to the blocking state of 802.1D. A blocked port is defined as not being the designated or root port. A blocked port receives a more useful BPDU than the one it sends out on its segment. Remember that a port absolutely needs to receive BPDUs in order to stay blocked. RSTP introduces these two roles for this purpose. Rapid Transition to Forwarding State Rapid transition is the most important feature introduced by 802.1w. The legacy STA passively waited for the network to converge before it turned a port into the forwarding state. The achievement of faster convergence was a matter of tuning the conservative default parameters (forward delay and max_age timers) and often put the stability of the network at stake. The new rapid STP is able to actively confirm that a port can safely transition to the forwarding state without having to rely on any timer configuration. There is now a real feedback mechanism that takes place between RSTP-compliant bridges. In order to achieve fast convergence on a port, the protocol relies upon two new variables: edge ports and link type.

  Reference: http://www.cisco.com/en/US/tech/tk389/tk621/technologies_white_paper09186a0080094cfa.shtml

• Question 284:

  Which of the port is not part of STP protocol?

  A. Listening
  B. Learning
  C. Forwarding
  D. Discarding
  D. Discarding

• Question 285:

  Which command is used to enable CHAP authentication, with PAP as the fallback method, on a serial interface?

  A. Router(config-if)# ppp authentication chap fallback ppp
  B. Router(config-if)# ppp authentication chap pap
  C. Router(config-if)# authentication ppp chap fallback ppp
  D. Router(config-if)# authentication ppp chap pap
  B. Router(config-if)# ppp authentication chap pap

  ---

  The command "ppp authentication chap pap" command indicates the CHAP authentication is used first. If it fails or is rejected by other side then uses PAP instead. If you want to use PAP first (then CHAP) you can use the "ppp authentication pap chap" command

  Reference: http://www.cisco.com/en/US/docs/ios/12_2/security/configuration/guide/scfathen.html

• Question 286:

  Which three features are added in SNMPv3 over SNMPv2? (Choose three.)

  A. Message Integrity
  B. Compression
  C. Authentication
  D. Encryption
  E. Error Detection
  A. Message Integrity
  C. Authentication
  D. Encryption

• Question 287:

  DRAG DROP

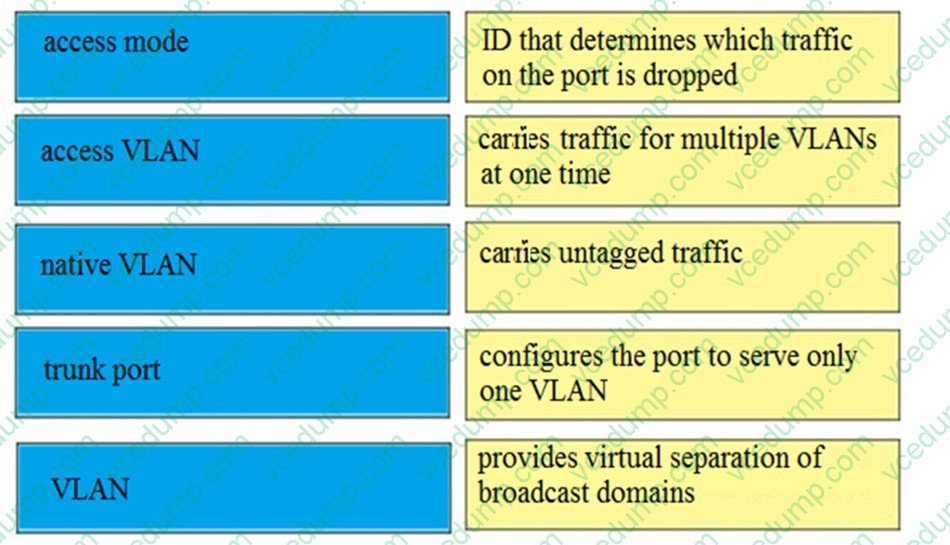

  Drag and drop the features of an Ethernet interface from the left onto the correct statements on the right.

  Select and Place:





• Question 288:

  Which two values can HSRP use to determine the device with the highest priority? (Choose two.)

  A. highest configured IP address
  B. lowest root bridge ID
  C. lowest port ID
  D. highest configured priority value
  E. highest interface MAC address
  A. highest configured IP address
  D. highest configured priority value

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/ip/hot-standby-router-protocol-hsrp/9281-3.html#q4

• Question 289:

  Which two functions of the APIC-EM Path Trace ACL Analysis tool are true? (Choose two.)

  A. It can identify the path between two specified IP addresses
  B. It can determine whether traffic along a specific path will be filtered
  C. It can manage access lists in an SDN environment
  D. It can create and modify access lists in a private cloud infrastructure
  E. It applies the ACLs from a specified path to permit and deny incoming traffic
  A. It can identify the path between two specified IP addresses
  B. It can determine whether traffic along a specific path will be filtered

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/cloud-systems-management/application-policy-infrastructure-controller-enterprise-module/1-4-x/path_trace/user-guide/b_Cisco_Path_Trace_User_Guide_1_4_0_x/ b_Cisco_Path_Trace_Solution_Guide_1_4_0_x_chapter_01.html

• Question 290:

  Which two outcomes are effects of configuring the snmp-server host 10.1.1.1 traps version 3 auth md5 cisco command on router R1? (Choose two.)

  A. It configures R1 to accept SNMP traffic from the device at 10.1.1.1
  B. It configures R1 to send SNMP traps to the device at 10.1.1.1
  C. It sets the username cisco on the device at 10.1.1.1
  D. It sets the R1 password to cisco
  E. It configures R1 to send SNMP informs to the device at 10.1.1.1
  B. It configures R1 to send SNMP traps to the device at 10.1.1.1
  D. It sets the R1 password to cisco
