• Question 251:

  Which two features are compatible with SPAN sessions? (Choose two.)

  A. using private VLANs to identify SPAN destination ports
  B. source ports configured as routed ports
  C. port security
  D. using active port channels as source ports
  E. destination ports configured as trunk ports
  D. using active port channels as source ports
  E. destination ports configured as trunk ports

• Question 252:

  Which term describes a spanning-tree network that has all switch ports in either the blocking or forwarding state?

  A. converged
  B. redundant
  C. provisioned
  D. spanned
  A. converged

  ---

  Spanning Tree Protocol convergence (Layer 2 convergence) happens when bridges and switches have transitioned to either the forwarding or blocking state. When layer 2 is converged, root bridge is elected and all port roles (Root, Designated and Non-Designated) in all switches are selected.

• Question 253:

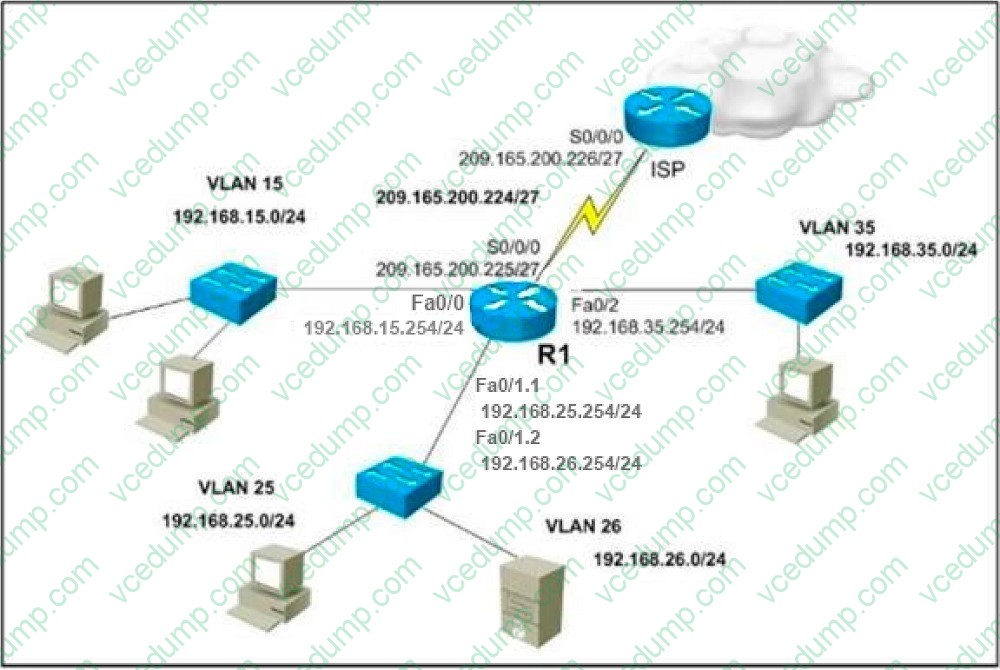

  Refer to the exhibit.

  How many interfaces on R1 should be configured as ip nat inside to grant external access to the entire network?



  A. 1
  B. 3
  C. 4
  D. 5
  C. 4

• Question 254:

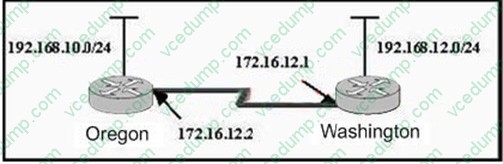

  The network administrator of the Oregon router adds the following command to the router configuration: ip route 192.168.12.0 255.255.255.0 172.16.12.1. What are the results of adding this command? (Choose two.)



  A. The command establishes a static route.
  B. The command invokes a dynamic routing protocol for 192.168.12.0.
  C. Traffic for network 192.168.12.0 is forwarded to 172.16.12.1.
  D. Traffic for all networks is forwarded to 172.16.12.1.
  E. This route is automatically propagated throughout the entire network.
  F. Traffic for network 172.16.12.0 is forwarded to the 192.168.12.0 network.
  A. The command establishes a static route.
  C. Traffic for network 192.168.12.0 is forwarded to 172.16.12.1.

• Question 255:

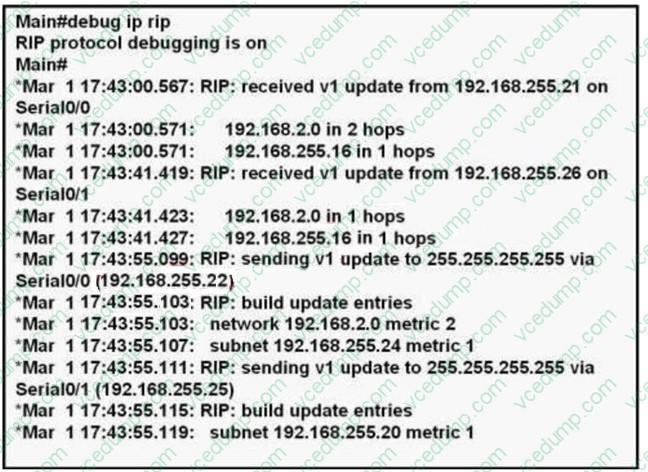

  Refer to the exhibit. Which route will be found in the routing table of the Main router?



  A. C 192.168.2.0 is directly connected, Serial0/1
  B. R 192.168.2.0/24 [120/1] via 192.168.255.26, 00:00:24, Serial0/0
  C. R 192.168.255.16 [120/1] via 192.168.255.26, 00:00:24, Serial0/1
  D. R 192.168.255.16 [120/2] via 192.168.255.21, 00:00:22, Serial0/0
  C. R 192.168.255.16 [120/1] via 192.168.255.26, 00:00:24, Serial0/1

• Question 256:

  DRAG DROP

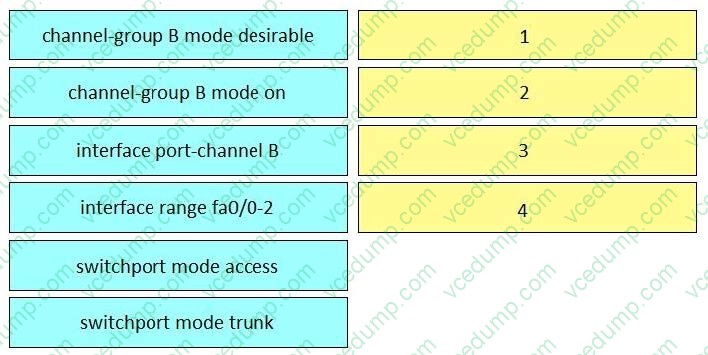

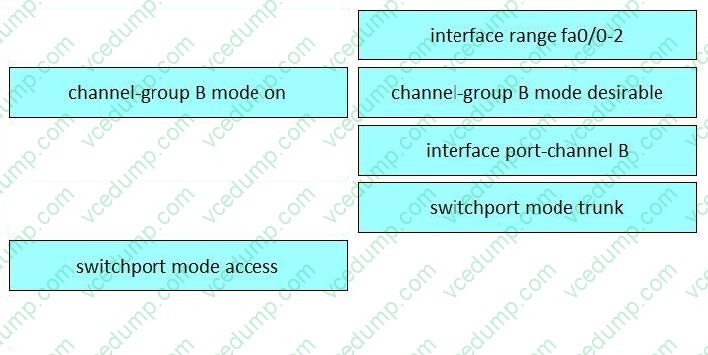

  You are configuring an EthernetChannel interface to carry multiple VLANs using a Cisco proprietary protocol. Drag and drop the relevant configuration commands from the left onto a valid configuration sequence on the right. Not all commands are used.

  Select and Place:





• Question 257:

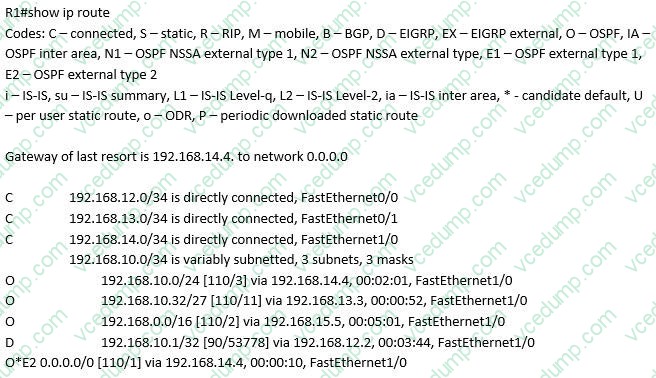

  Refer to the exhibit. On R1 which routing protocol is in use on the route to 192.168.10.1?



  A. RIP
  B. OSPF
  C. IGRP
  D. EIGRP
  D. EIGRP

• Question 258:

  After you configure multiple point-to-point tunnels on one interface, you notice that the interface is suffering from saturation. Which action do you take to correct the problem?

  A. set the tunnel mode
  B. set the bandwidth value
  C. set the tunnel key argument
  D. set the keepalive period
  B. set the bandwidth value

  ---

  Multiple point-to-point tunnels can saturate the physical link with routing information if the bandwidth is not configured correctly on the tunnel interface. Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/interface/configuration/15-sy/ ir-15-sy-book/ir-impl-tun.html

• Question 259:

  Which networking function occurs on the data plane?

  A. forwarding remote client/server traffic
  B. sending and receiving OSPF Hello packets
  C. spanning-tree election
  D. processing inbound SSH management traffic
  A. forwarding remote client/server traffic

• Question 260:

  What are two characteristics of Frame Relay point-to-point subinterfaces? (Choose two.)

  A. They create split-horizon issues.
  B. They require a unique subnet within a routing domain.
  C. They emulate leased lines.
  D. They are ideal for full-mesh topologies.
  E. They require the use of NBMA options when using OSPF.
  B. They require a unique subnet within a routing domain.
  C. They emulate leased lines.

  ---

  Configuring Frame Relay Subinterfaces

  On partially meshed Frame Relay networks, the problem of split horizon can be overcome by using Frame Relay subinterfaces. Frame Relay provides a mechanism to allow a physical interface to be partitioned into multiple virtual interfaces.

  In a similar way, using subinterfaces allows a partially meshed network to be divided into a number of smaller, fully meshed point-to-point networks. Generally, each point-to-point subnetwork is assigned a unique network address. This allows

  packets received on one physical interface to be sent out from the same physical interface, albeit forwarded on VCs in different subinterfaces.

  There are two types of subinterfaces supported by Cisco routers: point-to-point and multipoint subinterfaces.

  Reference:

  http://www.ciscopress.com/articles/article.asp?p=170741andseqNum=5
