Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 241:

  Which component of VPN technology ensures that data is unaltered between the sender and recipient?

  A. encryption
  B. authentication
  C. key exchange
  D. data integrity
  D. data integrity

• Question 242:

  Which command can be used from a router to verify the Layer 3 path to a host?

  A. tracert address
  B. traceroute address
  C. telnet address
  D. ssh address
  B. traceroute address

• Question 243:

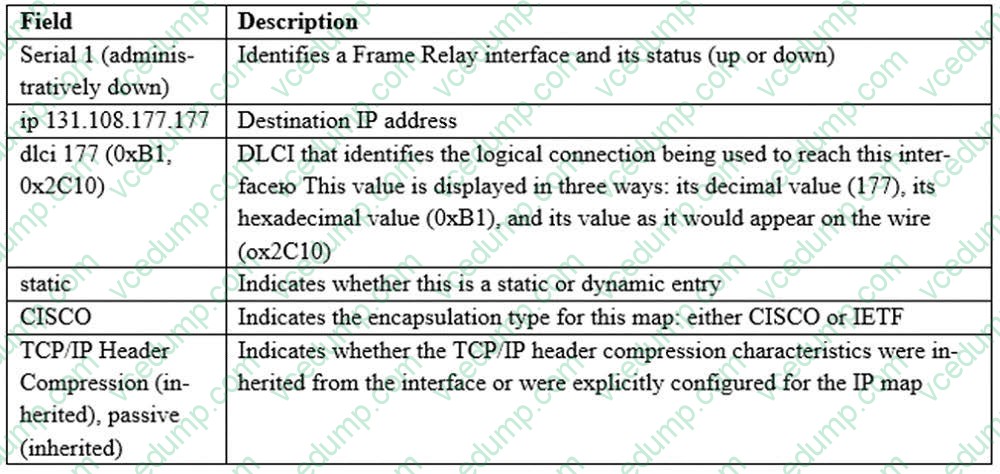

  Which command allows you to verify the encapsulation type (CISCO or IETF) for a Frame Relay link?

  A. show frame-relay lmi
  B. show frame-relay map
  C. show frame-relay pvc
  D. show interfaces serial
  B. show frame-relay map

  ---

  map will show frame relay encapsulation (cisco or ietf)

  show frame-relay map" will show frame relay encapsulation type (CISCO or IETF)



  Reference: http://www.cisco.com/en/US/docs/ios/12_2/wan/command/reference/wrffr4.html#wp1029343

• Question 244:

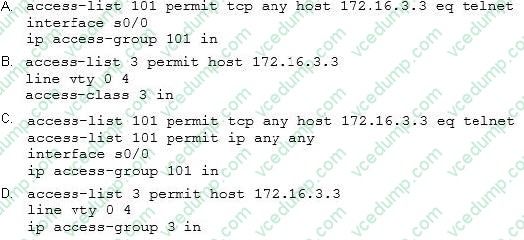

  Unauthorized users have used Telnet to gain access to a company router. The network administrator wants to configure and apply an access list to allow Telnet access to the router, but only from the network administrator's computer.

  Which group of commands would be the best choice to allow only the IP address 172.16.3.3 to have Telnet access to the router?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 245:

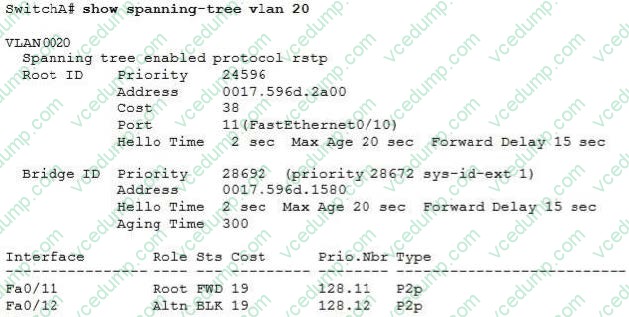

  Refer to the exhibit. Which statement is true?



  A. The Fa0/11 role confirms that SwitchA is the root bridge for VLAN 20.
  B. VLAN 20 is running the Per VLAN Spanning Tree Protocol.
  C. The MAC address of the root bridge is 0017.596d.1580.
  D. SwitchA is not the root bridge, because not all the interface roles are designated.
  D. SwitchA is not the root bridge, because not all the interface roles are designated.

• Question 246:

  What does split horizon prevent?

  A. routing loops, link state
  B. routing loops, distance vector
  C. switching loops, STP
  D. switching loops, VTP
  B. routing loops, distance vector

• Question 247:

  What two options are causes of network slowness that can result from inter-VLAN routing problems? (Choose two.)

  A. Root guard disabled on an EtherChannel
  B. Packet loss
  C. DTP disabled on a switchport
  D. BPDU guard enabled on a switchport
  E. Hardware forwarding issues
  B. Packet loss
  E. Hardware forwarding issues

  ---

  Causes for Network Slowness Packet Loss In most cases, a network is considered slow when higher-layer protocols (applications) require extended time to complete an operation that typically runs faster. That slowness is caused by the loss of some packets on the network, which causes higher-level protocols like TCP or applications to time out and initiate retransmission.

  Hardware Forwarding Issues With another type of slowness, caused by network equipment, forwarding (whether Layer 2 [L2] or L3) is performed slowly. This is due to a deviation from normal (designed) operation and switching to slow path forwarding. An example of this is when Multilayer Switching (MLS) on the switch forwards L3 packets between VLANs in the hardware, but due to misconfiguration, MLS is not functioning properly and forwarding is done by the router in the software (which drops the interVLAN forwarding rate significantly).

  Reference: https://www.cisco.com/c/en/us/support/docs/lan-switching/virtual-lans-vlan-trunking-protocol-vlans-vtp/23637-slow-int-vlan-connect.html#common_causes

• Question 248:

  Which mode is compatible with Trunk, Access, and desirable ports?

  A. Trunk Ports
  B. Access Ports
  C. Dynamic Auto
  D. Dynamic Desirable
  C. Dynamic Auto

• Question 249:

  Which VLAN bridge priority value is assigned by the set span tree root command?

  A. 8192
  B. 16384
  C. 28672
  D. 32768
  A. 8192

• Question 250:

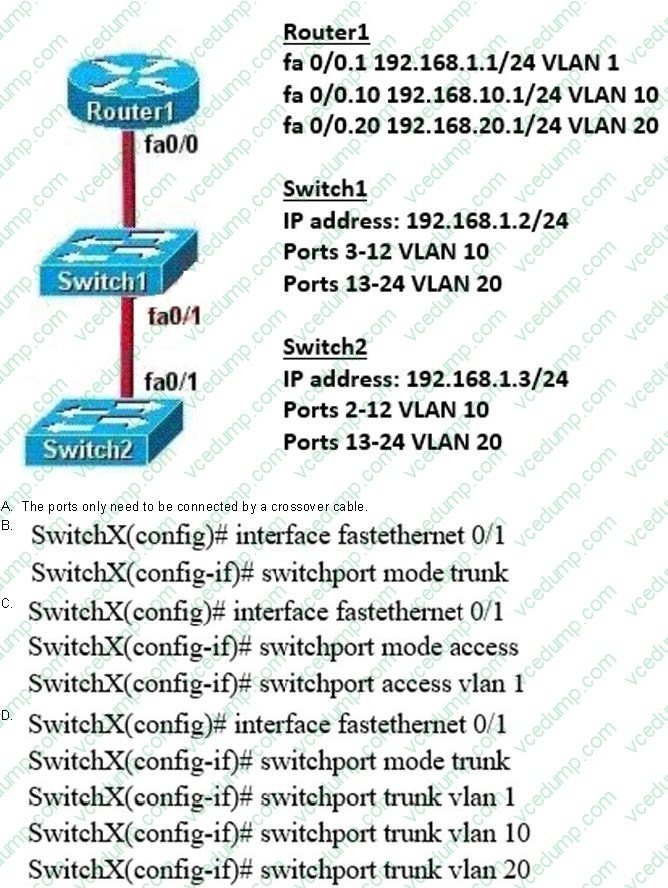

  Refer to the exhibit.

  How should the FastEthernet0/1 ports on the 2950 model switches that are shown in the exhibit be configured to allow connectivity between all devices?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B
