Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 231:

  Refer to the exhibit.

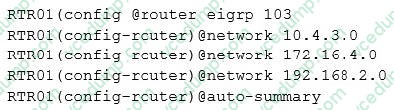

  If RTR01 is configured as shown, which three addresses will be received by other routers that are running EIGRP on the network? (Choose three.)



  A. 192.168.2.0
  B. 10.4.3.0
  C. 10.0.0.0
  D. 172.16.0.0
  E. 172.16.4.0
  F. 192.168.0.0
  A. 192.168.2.0
  C. 10.0.0.0
  D. 172.16.0.0

• Question 232:

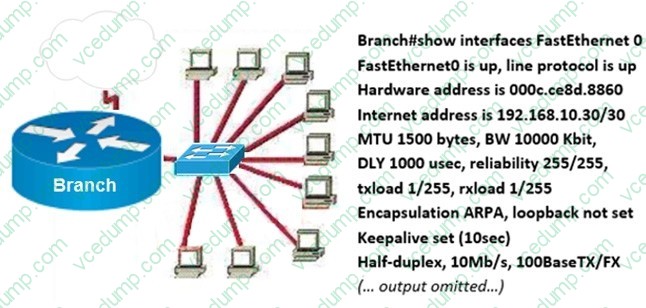

  A router has been configured to provide the nine users on the branch office LAN with Internet access, as shown in the diagram. It is found that some of the users on the LAN cannot reach the Internet.

  Based on the topology and router output shown, which command should be issued on the router to correct the problem?



  A. Branch(config-if)# no shutdown
  B. Branch(config-if)# duplex full
  C. Branch(config-if)# no keepalive
  D. Branch(config-if)# ip address 192.168.10.30 255.255.255.240
  E. Branch(config-if)# bandwidth 100
  F. Branch(config-if)# encapsulation 802.3
  D. Branch(config-if)# ip address 192.168.10.30 255.255.255.240

• Question 233:

  Which two benefits of using MPLS for WAN access are true? (Choose two.)

  A. It supports hub-and-spoke connectivity.
  B. It supports CoS.
  C. It provides VPN support.
  D. It provides payload security with ESP.
  E. It supports Authentication Header.
  B. It supports CoS.
  C. It provides VPN support.

• Question 234:

  A router has learned three possible routes that could be used to reach a destination network One route is from EIGRP and has a composite metric of 07104371. Another route is from OSPF with a metric of 782 The last is from RIPv2 and has a metric of 4.

  Which route or routes will the router install in the routing table?

  A. the EIGRP route
  B. the OSPF route
  C. the RIPv2 route
  D. all three routes
  E. the OSPF and RIPv2 routes
  A. the EIGRP route

• Question 235:

  What command instructs the device to timestamp Syslog debug messages in milliseconds?

  A. service timestamps log datetime localtime
  B. service timestamps debug datetime msec
  C. service timestamps debug datetime localtime
  D. service timestamps log datetime msec
  B. service timestamps debug datetime msec

• Question 236:

  A department decides to replace its hub with a Catalyst 2950 switch that is no longer needed by another department. To prepare the switch for installation, the network administrator has erased the startup configuration and reloaded the switch. However, PCs that are connected to the switch experience various connectivity problems.

  What is a possible cause of the problem?

  A. The VLAN database was not erased.
  B. The management VLAN is disabled.
  C. The running configuration should have been erased.
  D. The "mode" button was not pressed when the switch was reloaded.
  E. The switch was not configured with an IP address or a default gateway.
  A. The VLAN database was not erased.

• Question 237:

  DRAG DROP

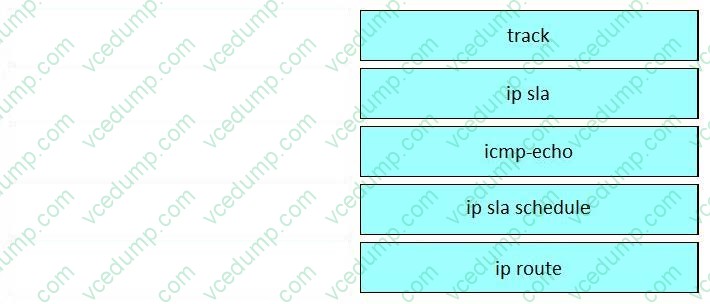

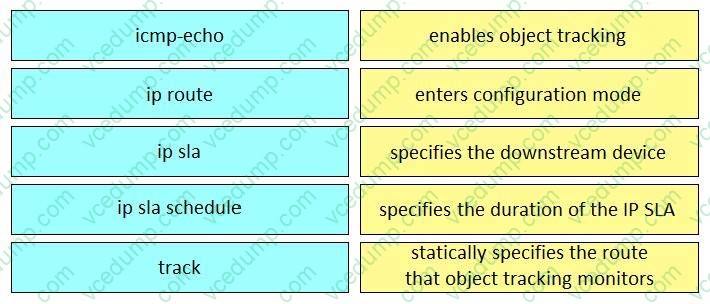

  Drag and drop the IP SLA route failover configuration commands or keywords from the left onto the correct purposes on the right.

  Select and Place:





• Question 238:

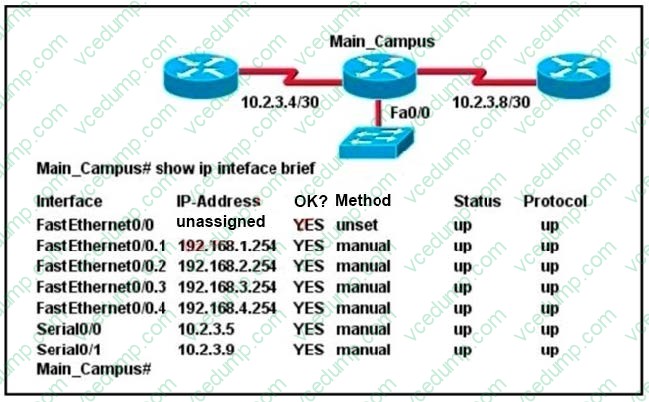

  Refer to the exhibit. What can be determined about the interfaces of the Main_Campus router from the output shown?



  A. The LAN interfaces are configured on different subnets.
  B. Interface FastEthernet 0/0 is configured as a trunk.
  C. The Layer 2 protocol of interface Serial 0/1 is NOT operational.
  D. The router is a modular router with five FastEthernet interfaces.
  E. Interface FastEthernet 0/0 is administratively deactivated.
  B. Interface FastEthernet 0/0 is configured as a trunk.

• Question 239:

  From which PPPoE server configuration does a PPPoE client get an IP address?

  A. AAA authentication
  B. DHCP
  C. dialer interface
  D. virtual-template interface
  D. virtual-template interface

• Question 240:

  Scenario

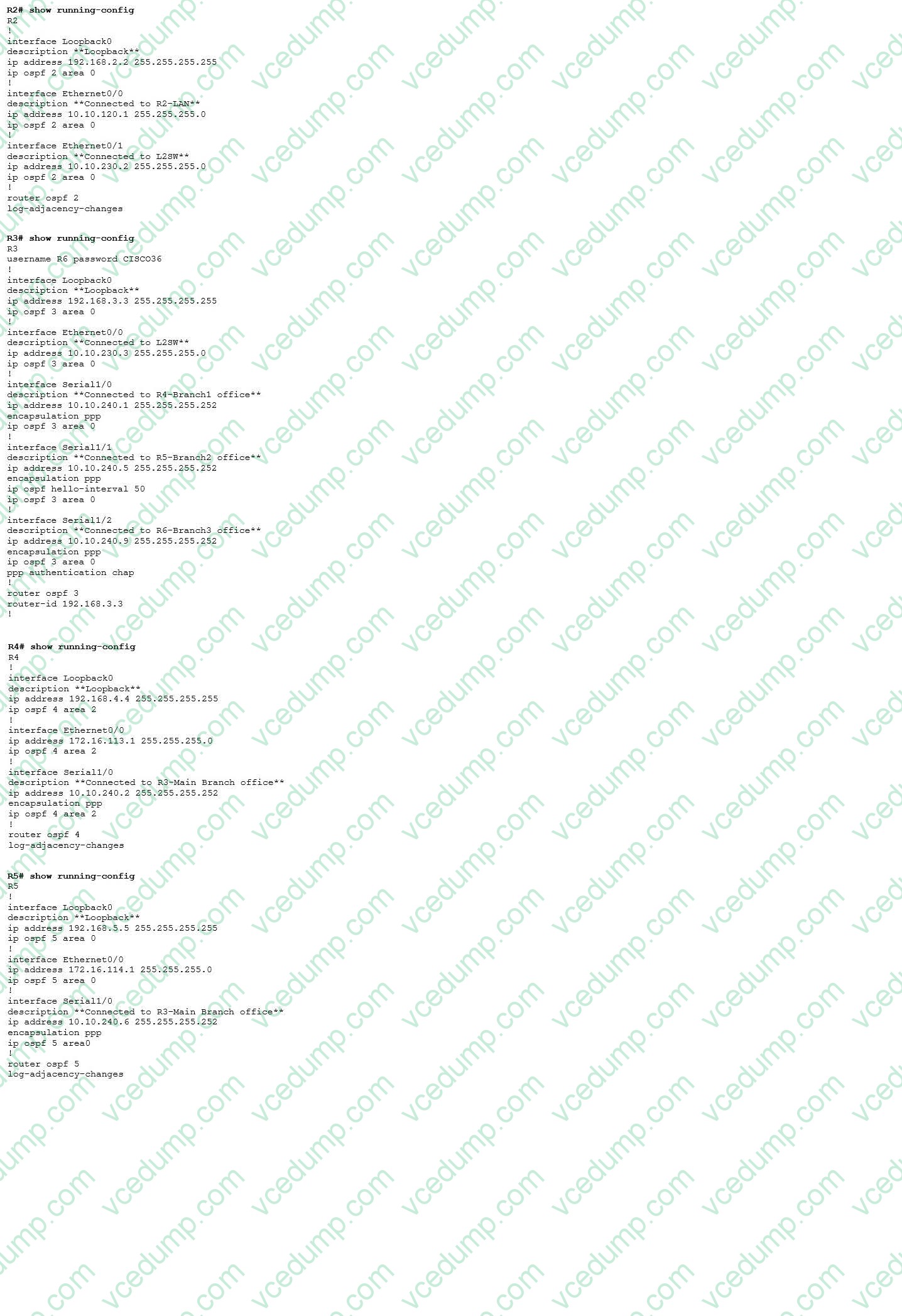

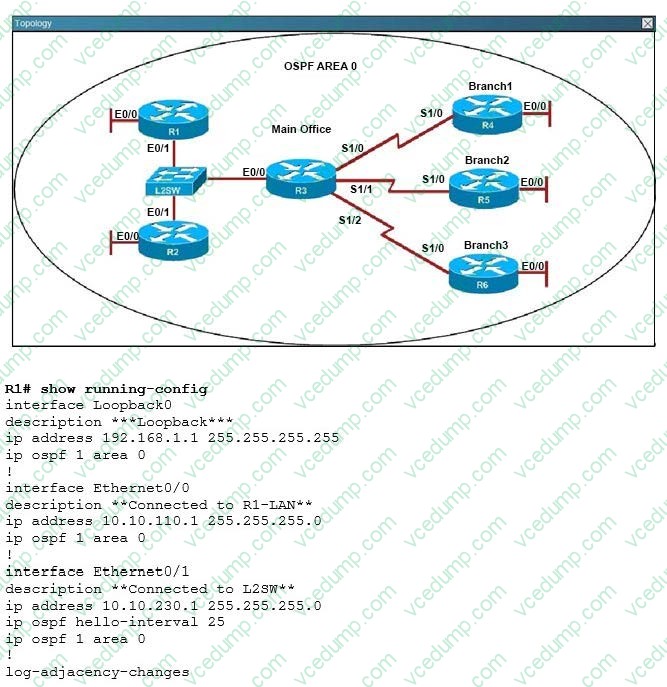

  Refer to the topology. Your company has decided to connect the main office with three other remote branch offices using point-to-point serial links. You are required to troubleshoot and resolve OSPF neighbor adjacency issues between the

  main office and the routers located in the remote branch offices.

  Use appropriate show commands to troubleshoot the issues and answer all four questions.

  Instructions

  Enter Cisco IOS commands on the device to verify network operation and answer the multiple-choice questions.

  THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.

  Click on the device to gain access to the console of the device. No console or enable passwords are required.

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.

  There are four multiple-choice questions with this task. Be sure to answer all four questions before clicking the Next button.







  An OSPF neighbor adjacency is not formed between R3 in the main office and R6 in the Branch3 office. What is causing the problem?

  A. There is an area ID mismatch.
  B. There is a PPP authentication issue; the username is not configured on R3 and R6.
  C. There is an OSPF hello and dead interval mismatch.
  D. The R3 router ID is configured on R6.
  D. The R3 router ID is configured on R6.
