Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 221:

  How does a router handle an incoming packet whose destination network is missing from the Routing table?

  A. it discards the packet.
  B. it broadcasts the packet to each network on the router.
  C. it routes the packet to the default route.
  D. it broadcasts the packet to each interface on the router.
  C. it routes the packet to the default route.

• Question 222:

  Which three are the components of SNMP? (Choose three.)

  A. MIB
  B. SNMP Manager
  C. SysLog Server
  D. SNMP Agent
  E. Set
  A. MIB
  B. SNMP Manager
  D. SNMP Agent

• Question 223:

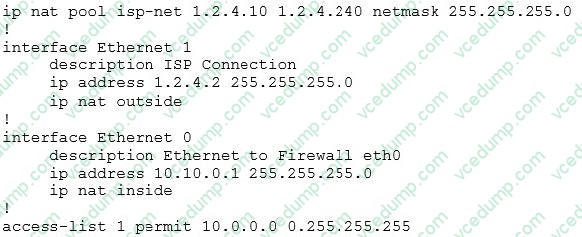

  Refer to the exhibit. What command sequence will enable PAT from the inside to outside network?



  A. (config) ip nat pool isp-net 1.2.4.2 netmask 255.255.255.0 overload
  B. (config-if) ip nat outside overload
  C. (config) ip nat inside source list 1 interface ethernet1 overload
  D. (config-if) ip nat inside overload
  C. (config) ip nat inside source list 1 interface ethernet1 overload

• Question 224:

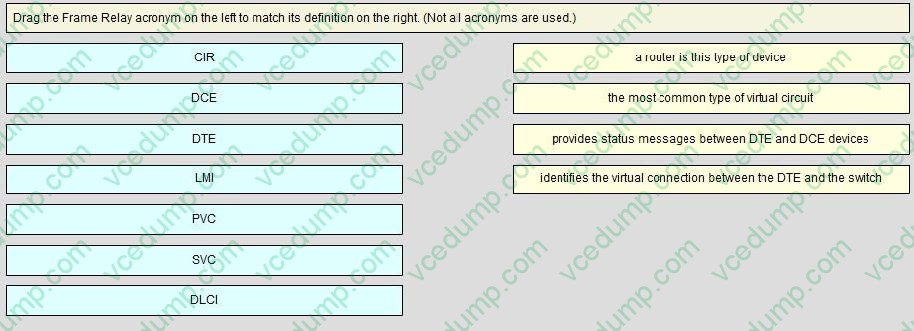

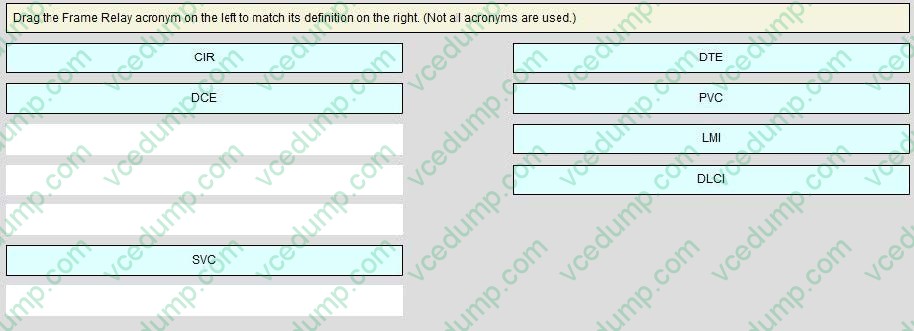

  Drat the Frame Relay acronym on the left to match its definition on the right. (Not all acronyms are used)

  Select and Place:





• Question 225:

  Which value is used to determine the active router in an HSRP default configuration?

  A. Router loopback address
  B. Router IP address
  C. Router priority
  D. Router tracking number
  A. Router loopback address

• Question 226:

  Which three options are types of Layer 2 network attack? (Choose three.)

  A. ARP attacks
  B. brute force attacks
  C. spoofing attacks
  D. DDOS attacks
  E. VLAN hopping
  F. botnet attacks
  A. ARP attacks
  C. spoofing attacks
  E. VLAN hopping

• Question 227:

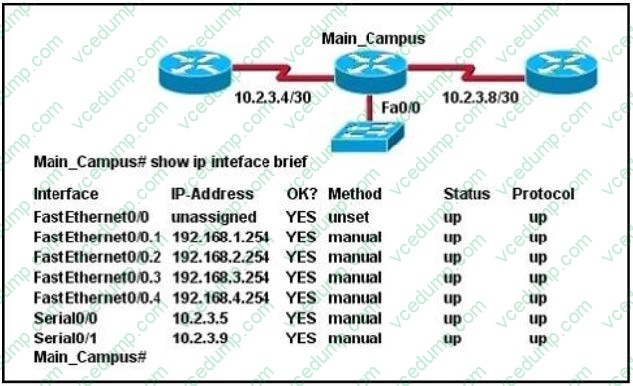

  Refer to the exhibit. What information about the interfaces on the Main_Campus router is true?



  A. The LAN interfaces are configured on different subnets.
  B. Interface FastEthernet 0/0 is configured as a trunk.
  C. The Layer 2 protocol of interface Serial 0/1 is NOT operational.
  D. The router is a modular router with five FastEthernet interfaces.
  E. Interface FastEthernet 0/0 is administratively deactivated.
  B. Interface FastEthernet 0/0 is configured as a trunk.

  ---

  Interface fa0/0 breaks into sub interface and Main_Campus router is connected with switch via fa0/0. Subinterfaces configured with different subnet mask so its seem switch has multiple vlans and allow communication between vlan, router and inter-vlan we need to make a trunk port. So B will be the correct answer.

• Question 228:

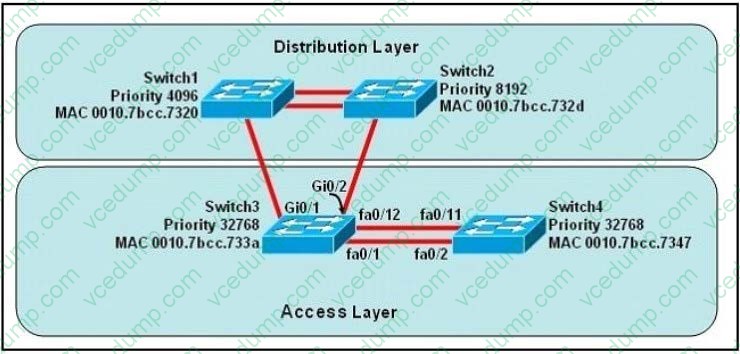

  Refer to the exhibit.

  At the end of an RSTP election process, which access layer switch port will assume the discarding role?



  A. Switch3, port fa0/1
  B. Switch3, port fa0/12
  C. Switch4, port fa0/11
  D. Switch4, port fa0/2
  E. Switch3, port Gi0/1
  F. Switch3, port Gi0/2
  C. Switch4, port fa0/11

  ---

  In this question, we only care about the Access Layer switches (Switch3 and 4). Switch 3 has a lower bridge ID than Switch 4 (because the MAC of Switch3 is smaller than that of Switch4) so both ports of Switch3 will be in forwarding state. The

  alternative port will surely belong to Switch4.

  Switch4 will need to block one of its ports to avoid a bridging loop between the two switches.

  But how does Switch4 select its blocked port?

  Well, the answer is based on the BPDUs it receives from Switch3.

  A BPDU is superior than another if it has:



  These four parameters are examined in order. In this specific case, all the BPDUs sent by Switch3 have the same Root Bridge ID, the same path cost to the Root and the same Sending Bridge ID. The only parameter left to select the best one is the Sending Port ID (Port ID = port priority + port index). In this case the port priorities are equal because they use the default value, so Switch4 will compare port index values, which are unique to each port on the switch, and because Fa0/12 is inferior to Fa0/1, Switch4 will select the port connected with Fa0/1 (of Switch3) as its root port and block the other port -> Port fa0/11 of Switch4 will be blocked (discarding role).

• Question 229:

  Which utility can you use to identify redundant or shadow rules?

  A. The ACL trace tool in Cisco APIC-EM.
  B. The ACL analysis tool in Cisco APIC-EM.
  C. The Cisco APIC-EM automation scheduler.
  D. The Cisco IWAN application.
  B. The ACL analysis tool in Cisco APIC-EM.

• Question 230:

  In a GLBP network, who is responsible for the arp request?

  A. AVF
  B. AVG
  C. Active Router
  D. Standby Router
  B. AVG
