Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 191:

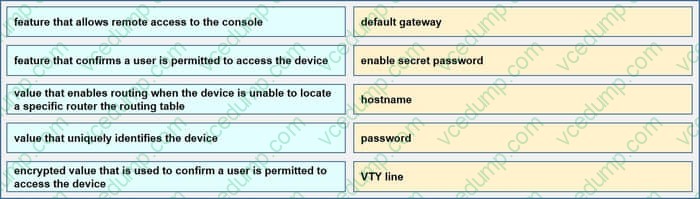

  Drag and drop the descriptions of performing an initial device configuration from the left onto the correct features or compnents on the right.

  Select and Place:





• Question 192:

  Which two statements are benefits of stackable switches? (Choose two.)

  A. They can support dissimilar Cisco IOS features in a single stack.
  B. They are less redundant than modular aggregation.
  C. They cannot perform switch-to-router aggregation.
  D. They can perform link aggregation.
  E. They perform unified management from a single switch stack.
  D. They can perform link aggregation.
  E. They perform unified management from a single switch stack.

• Question 193:

  Which two types of cloud services may require you to alter the design of your network infrastructure? (Choose two.)

  A. Sudo as a Service
  B. Platform as a Service
  C. Infrastructure as a Service
  D. Software as a Service
  E. Business as a Service
  B. Platform as a Service
  C. Infrastructure as a Service

• Question 194:

  Which type of ACL does the access-list command create?

  A. standard numbered IPv4 ACL
  B. extended named IPv4 ACL
  C. extended named IPv6 ACL D. standard numbered IPv6 ACL
  A. standard numbered IPv4 ACL

• Question 195:

  Drag and drop the descriptions of AAA device-security protocols from the left onto the correct protocols on the right.

  Select and Place:





• Question 196:

  Which option describes a drawback of proxy ARP?

  A. It overwrites MAC addresses that were learned with inverse ARP.
  B. It can make it more difficult for the administrator to locate device misconfigurations.
  C. It dynamically establishes Layer 2 tunneling protocols, which increases network overhead.
  D. If proxy ARP is configured on multiple devices, the internal Layer 2 network may become vulnerable to DDoS attacks.
  D. If proxy ARP is configured on multiple devices, the internal Layer 2 network may become vulnerable to DDoS attacks.

• Question 197:

  A network administrator is troubleshooting an EIGRP problem on a router and needs to confirm the IP addresses of the devices with which the router has established adjacency. The retransmit interval and the queue counts for the adjacent routers also need to be checked.

  What command will display the required information?

  A. Router# show ip eigrp adjacency
  B. Router# show ip eigrp topology
  C. Router#show ip eigrp interfaces
  D. Router#show ip eigrp neighbors
  D. Router#show ip eigrp neighbors

  ---

  Implementing EIGRP

  Below is an example of the show ip eigrp neighbors command. The retransmit interval (Smooth Round Trip Timer SRTT) and the queue counts (Q count, which shows the number of queued EIGRP packets) for the adjacent routers are listed:



  Reference: http://www.ciscopress.com/articles/article.asp?p=1171169andseqNum=3

• Question 198:

  Which part of the PPPoE server configuration contains the information used to assign an IP address to a PPPoE client?

  A. virtual-template interface
  B. DHCP
  C. dialer interface
  D. AAA authentication
  A. virtual-template interface

  ---

  From the ISP (server) prospective no dialer interface is configured. The ISP would create the interface virtual-template 1 and then configure a pool to assign IP addresses with.

  On the client (customer/enterprise) side the IP address is specified under the interface dialer 1 command.

• Question 199:

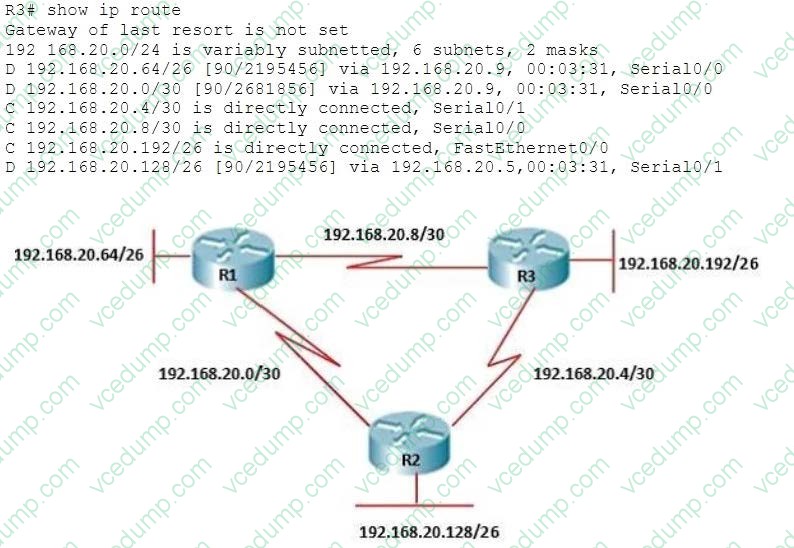

  Refer to the exhibit. The company uses EIGRP as the routing protocol.

  What path will packets take from a host on 192.168.10.192/26 network to a host on the LAN attached to router R1?



  A. The path of the packets will be R3 to R2 to R1
  B. The path of the packets will be R3 to R1 to R2
  C. The path of the packets will be both R3 to R2 to R1 and R3 to R1
  D. The path of the packets will be R3 to R1
  D. The path of the packets will be R3 to R1

  ---

  EIGRP Questions Looking at the output display above, the LAN attached to router R1 belongs to 192.168.20.64/26 subnet and learned this network via 192.168.20.9 which will be an IP address in 192.168.20.8/30 sub-network. This means that packets destined for192.168.20.64 will be routed from R3 to R1.

  Reference: http://www.9tut.net/icnd2/eigrp-questions

  http://www.orbitco-ccna-pastquestions.com/CCNA---EIGRP-Common-Question.php

• Question 200:

  When you deploy multilink PPP on your network, where must you configure the group IP Address on each device?

  A. in the global config
  B. Under serial interface
  C. Under the routing protocol
  D. Under the multilink interface
  D. Under the multilink interface
