Cisco 200-105 Online Questions & Answers

• Question 181:

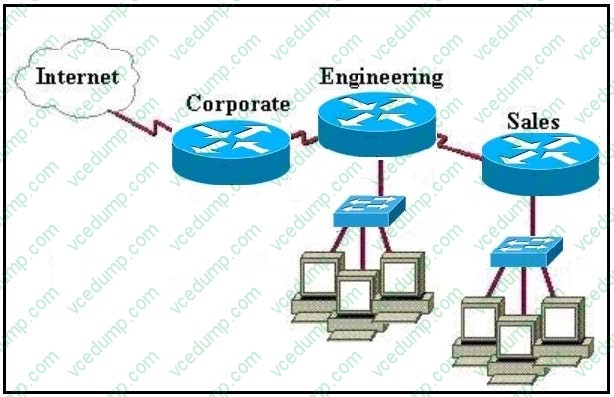

  A network administrator would like to implement NAT in the network shown in the graphic to allow inside hosts to use a private addressing scheme.

  Where should NAT be configured?



  A. Corporate router
  B. Engineering router
  C. Sales router
  D. all routers
  E. all routers and switches
  A. Corporate router

• Question 182:

  Which protocol supports sharing the VLAN configuration between two or more switches?

  A. multicast
  B. SIP
  C. VTP
  D. split-horizon
  C. VTP

  ---

  VTP allows a network manager to configure a switch so that it will propagate VLAN configurations to other switches in the network VTP minimizes misconfigurations and configuration inconsistencies that can cause problems, such as duplicate VLAN names or incorrect VLAN-type specifications. VTP helps you simplify management of the VLAN database across multiple switches. VTP is a Cisco-proprietary protocol and is available on most of the Cisco switches.

• Question 183:

  Which type of routing protocol is used to exchange routes between different autonomous system?

  A. link-state
  B. distance-vector
  C. exterior routing
  D. interior routing
  C. exterior routing

• Question 184:

  Which HSRP feature do you configure so that the device with the highest priority immediately becomes the active router?

  A. standby timers
  B. preemption
  C. standby authentication
  D. holdtime
  B. preemption

• Question 185:

  Which option is the industry-standard protocol for Etherchannel?

  A. Cisco Discovery protocol
  B. PAgp
  C. LACP
  D. DTP
  C. LACP

  ---

  Reference: http://www.omnisecu.com/cisco-certified-network-associate-ccna/etherchannel-pagp-and-lacp-modes.php

• Question 186:

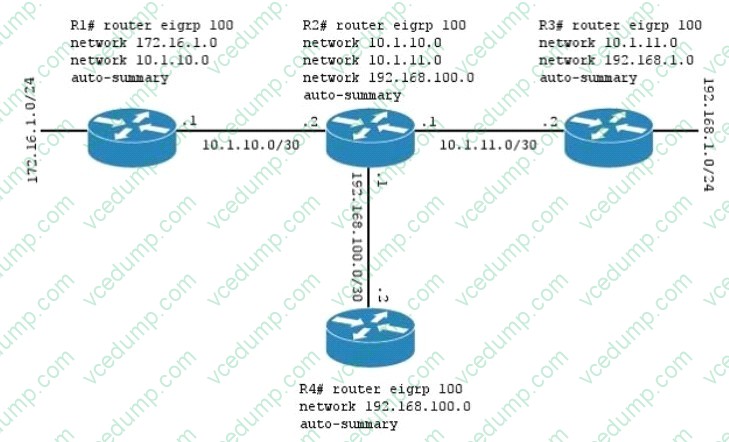

  Refer to the exhibit.

  Which three EIGRP routes will be present in the router R4's routing table? (Choose three.)



  A. 172.16.1.0/24
  B. 10.1.10.0/30
  C. 10.0.0.0/8
  D. 10.1.11.0/30
  E. 172.16.0.0/16
  F. 192.168.1.0/24
  C. 10.0.0.0/8
  E. 172.16.0.0/16
  F. 192.168.1.0/24

  ---

  EIGRP performs an auto-summarization each time it crosses a border between two different major networks, so when R2 advertises the routes to R4 it will advertise only the summarized routes of 10.0.0.0/8 and 172.16.0.0/16, along with the 192.168.1.0/24 route coming from R3.

• Question 187:

  In GLBP, which router will respond to client ARP requests?

  A. The active virtual gateway will reply with one of four possible virtual MAC addresses.
  B. All GLBP member routers will reply in round-robin fashion.
  C. The active virtual gateway will reply with its own hardware MAC address.
  D. The GLBP member routers will reply with one of four possible burned in hardware addresses.
  A. The active virtual gateway will reply with one of four possible virtual MAC addresses.

• Question 188:

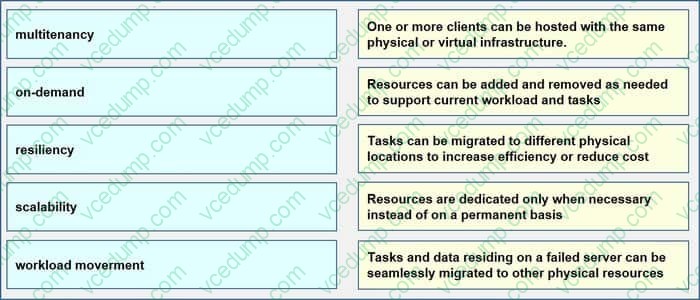

  Drag and drop the characteristics of a cloud environment from the left onto the correct examples on the right

  Select and Place:





• Question 189:

  Which statement about switch access ports is true?

  A. They drop packets with 802.1Q tags
  B. A VLAN must be assigned to an access port before it is created.
  C. They can receive traffic from more than one VLAN with no voice support.
  D. By default, they carry traffic for VLAN 10.
  A. They drop packets with 802.1Q tags

  ---

  If an access port receives a packet with an 802.1Q tag in the header other than the access VLAN value, that port drops the packet without learning its MAC source address.

• Question 190:

  Scenario

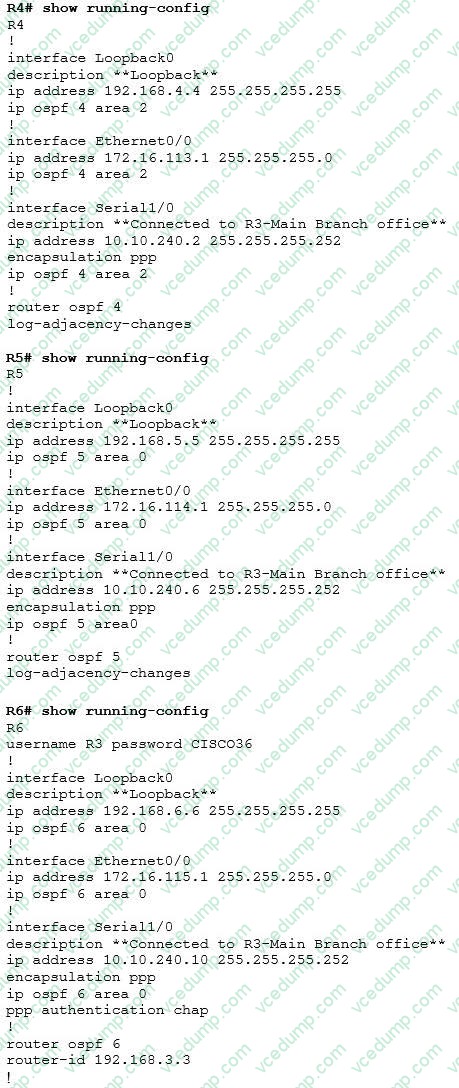

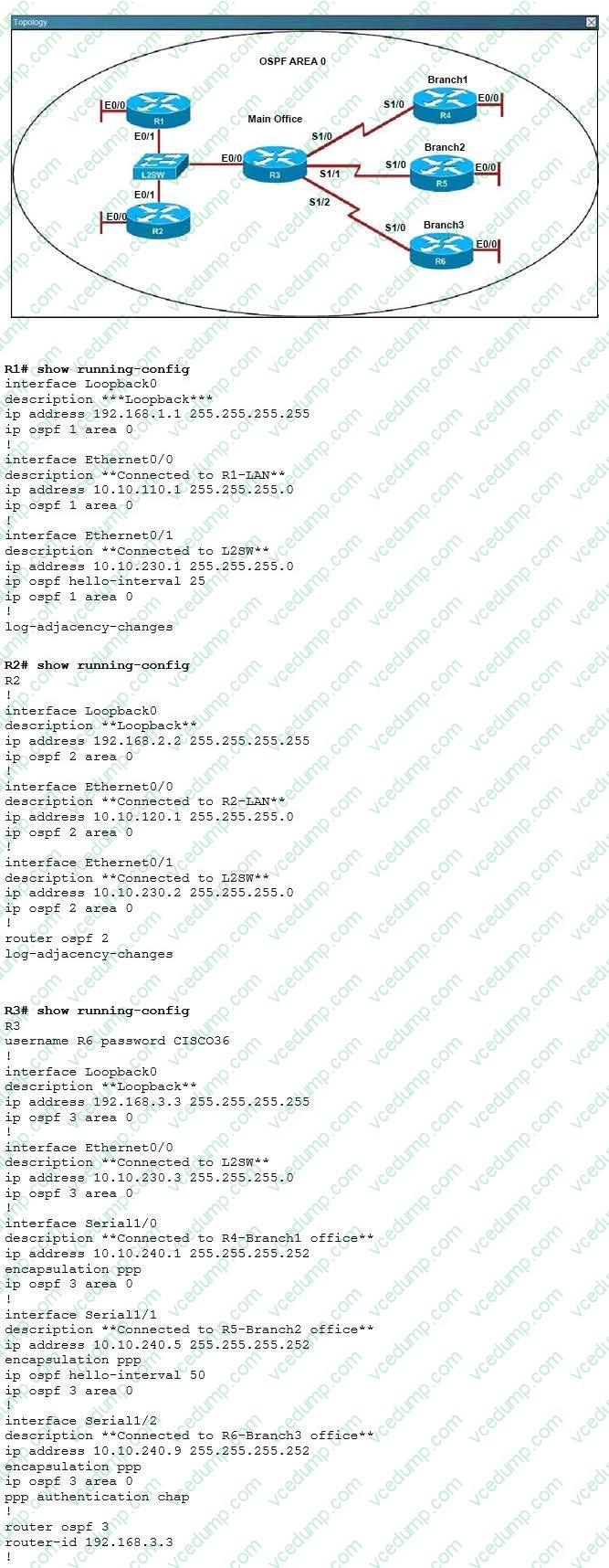

  Refer to the topology. Your company has decided to connect the main office with three other remote branch offices using point-to-point serial links. You are required to troubleshoot and resolve OSPF neighbor adjacency issues between the

  main office and the routers located in the remote branch offices.

  Use appropriate show commands to troubleshoot the issues and answer all four questions.

  Instructions

  Enter Cisco IOS commands on the device to verify network operation and answer the multiple-choice questions.

  THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.

  Click on the device to gain access to the console of the device. No console or enable passwords are required.

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.

  There are four multiple-choice questions with this task. Be sure to answer all four questions before clicking the Next button.





  An OSPF neighbor adjacency is not formed between R3 in the main office and R5 in the Branch2 office. What is causing the problem?

  A. There is an area ID mismatch.
  B. There is a PPP authentication issue; a password mismatch.
  C. There is an OSPF hello and dead interval mismatch.
  D. There is a missing network command in the OSPF process on R5.
  C. There is an OSPF hello and dead interval mismatch.

  ---

  The "show ip ospf interface command on R3 and R5 shows that the hello and dead intervals do not match. They are 50 and 200 on R3 and 10 and 40 on R5.
