• Question 691:

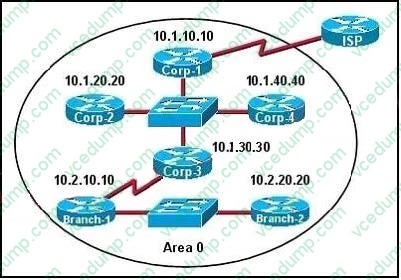

  The internetwork infrastructure of company XYZ consists of a single OSPF area as shown in the graphic. There is concern that a lack of router resources is impeding internetwork performance. As part of examining the router resources, the OSPF DRs need to be known. All the router OSPF priorities are at the default and the router IDs are shown with each router. Which routers are likely to have been elected as DR? (Choose two.)



  A. Corp-1
  B. Corp-2
  C. Corp-3
  D. Corp-4
  E. Branch-1
  F. Branch-2
  D. Corp-4
  F. Branch-2

• Question 692:

  Which two statements about VTP are true? (Choose two.)

  A. The VLANs can be configured on a VTP server without a VTP domain name.
  B. Each switch sends the VTP password in every summary-advertisement.
  C. IOS switches cannot turn off VTP.
  D. VTP negotiates a secure channel for VTP advertisements.
  E. The switches must be reloaded when you update from VTP version 1 to VTP version 2.
  B. Each switch sends the VTP password in every summary-advertisement.
  C. IOS switches cannot turn off VTP.

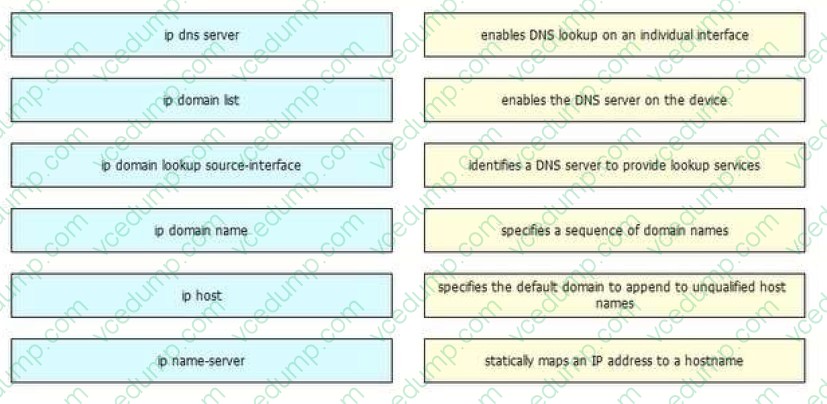

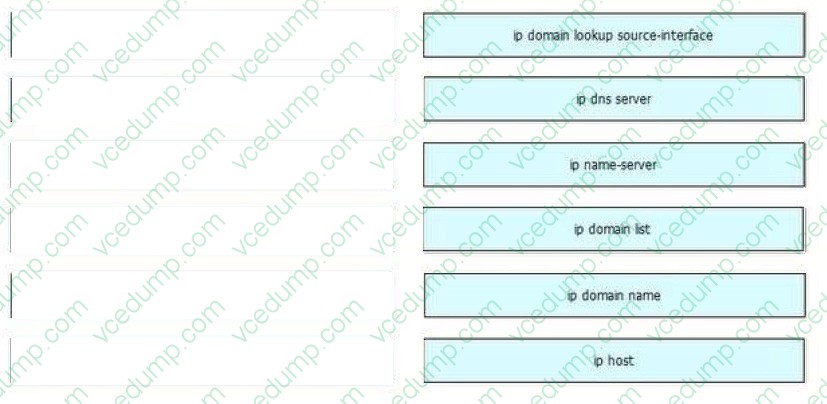

• Question 693:

  Drag and Drop Question

  Drag and drop the DNS lookup commands from the left onto the correct effects on the right.

  Select and Place:





• Question 694:

  On a live network, which two commands will verify the operational status of router interfaces? (Choose two.)

  A. Router# show ip interface brief
  B. Router# debug interface
  C. Router# show ip protocols
  D. Router# show interfaces
  E. Router# show start
  A. Router# show ip interface brief
  D. Router# show interfaces

• Question 695:

  Which three approaches can be used while migrating from an IPv4 addressing scheme to an IPv6 scheme (choose three)

  A. static mapping of IPv4 address to IPv6 addresses
  B. configuring IPv4 tunnels between IPv6 islands
  C. use DHCPv6 to map IPv4 addresses to IPv6 addresses
  D. use proxying and translation (NAT-PT) to translate IPv6 packets into IPv4 packets
  E. configure IPv6 directly
  F. enable dual-stack routing
  B. configuring IPv4 tunnels between IPv6 islands
  D. use proxying and translation (NAT-PT) to translate IPv6 packets into IPv4 packets
  F. enable dual-stack routing

• Question 696:

  Which statement about static routes is true?

  A. The source interface can be configured to make routing decisions.
  B. A subnet mask is entered for the next-hop address.
  C. The subnet mask is 255.255.255.0 by default.
  D. The exit interface can be specified to indicate where the packets will be routed.
  D. The exit interface can be specified to indicate where the packets will be routed.

• Question 697:

  What to do when the router password was forgotten?

  A. use default password cisco to reset
  B. access router physically
  C. use ssl/vpn
  D. Type confreg 0x2142 at the rommon 1
  D. Type confreg 0x2142 at the rommon 1

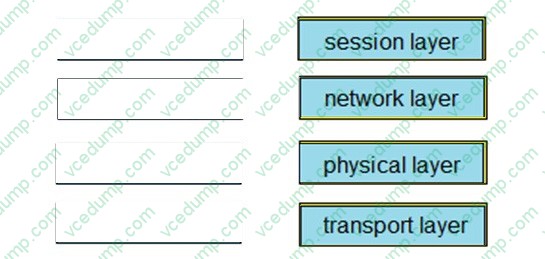

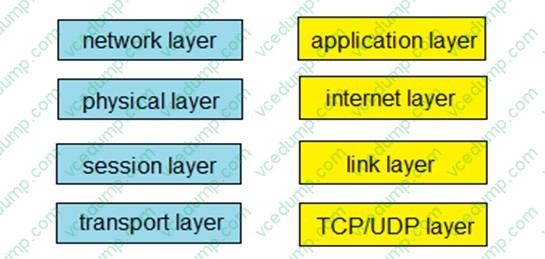

• Question 698:

  DRAG DROP

  Drag and drop the OSI model layers from the left onto the correct TCP/IP model layers on the right.

  Select and Place:





• Question 699:

  Which two statements describe characteristics of IPv6 unicast addressing? (Choose two.)

  A. Global addresses start with 2000::/3.
  B. Link-local addresses start with FE00:/12.
  C. Link-local addresses start with FF00::/10.
  D. There is only one loopback address and it is ::1.
  E. If a global address is assigned to an interface, then that is the only allowable address for the interface.
  A. Global addresses start with 2000::/3.
  D. There is only one loopback address and it is ::1.

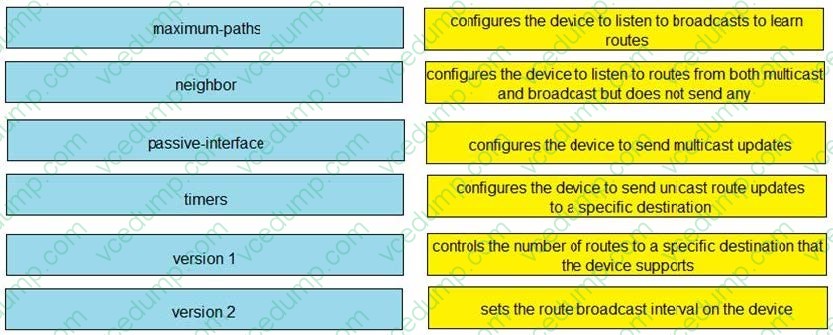

• Question 700:

  DRAG DROP

  Drag and drop the IOS commands from a RIP router from the left onto the correct effects on the right.

  Select and Place:
