Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 1:

  Open Shortest Path First (OSPF) is a routing protocol developed for Internet Protocol (IP) networks by the Interior Gateway Protocol (IGP) working group of the Internet Engineering Task Force (IETF). What is the default administrative distance of the OSPF routing protocol?

  A. 90
  B. 100
  C. 110
  D. 20
  E. 130
  F. 170
  C. 110

• Question 2:

  You have configured the host computers on a campus LAN to receive their DHCP addresses from the local router to be able to browse their corporate site. Which statement about the network environment is true?

  A. It supports a DNS server for use by DHCP clients.
  B. Two host computers may be assigned the same IP address.
  C. The DNS server must be configured manually on each host.
  D. The domain name must be configured locally on each host computer.
  A. It supports a DNS server for use by DHCP clients.

• Question 3:

  Which IPv6 routing protocol uses multicast group FF02::9 to send updates?

  A. static
  B. RIPng
  C. OSPFv3
  D. IS-IS for IPv6
  B. RIPng

• Question 4:

  Which technology allows a large number of private IP addresses to be represented by a smaller number of public IP addresses?

  A. NAT
  B. NTP
  C. RFC 1631
  D. RFC 1918
  A. NAT

• Question 5:

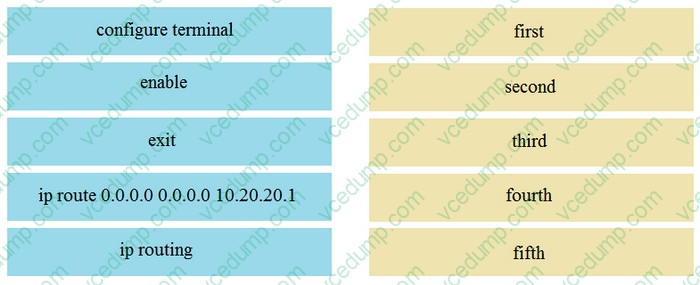

  DRAG DROP

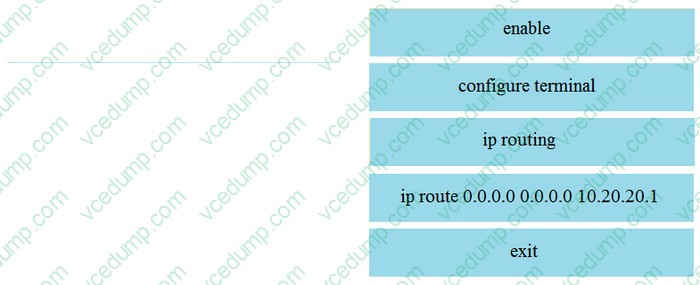

  You are configuring a default route on a Cisco router. Drag and drop the commands from the left into the correct sequence on the right. Not all commands are used.

  Select and Place:





• Question 6:

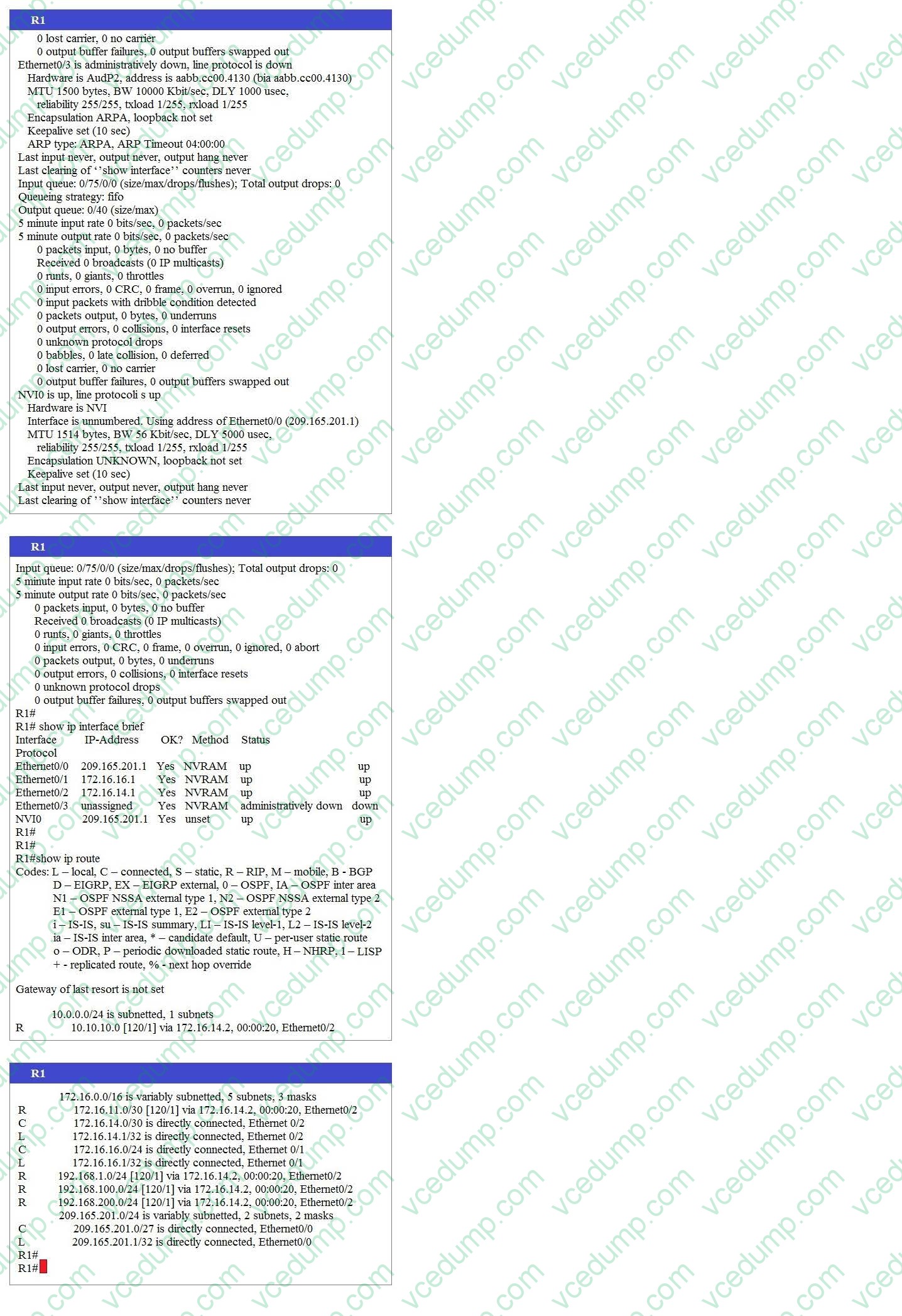

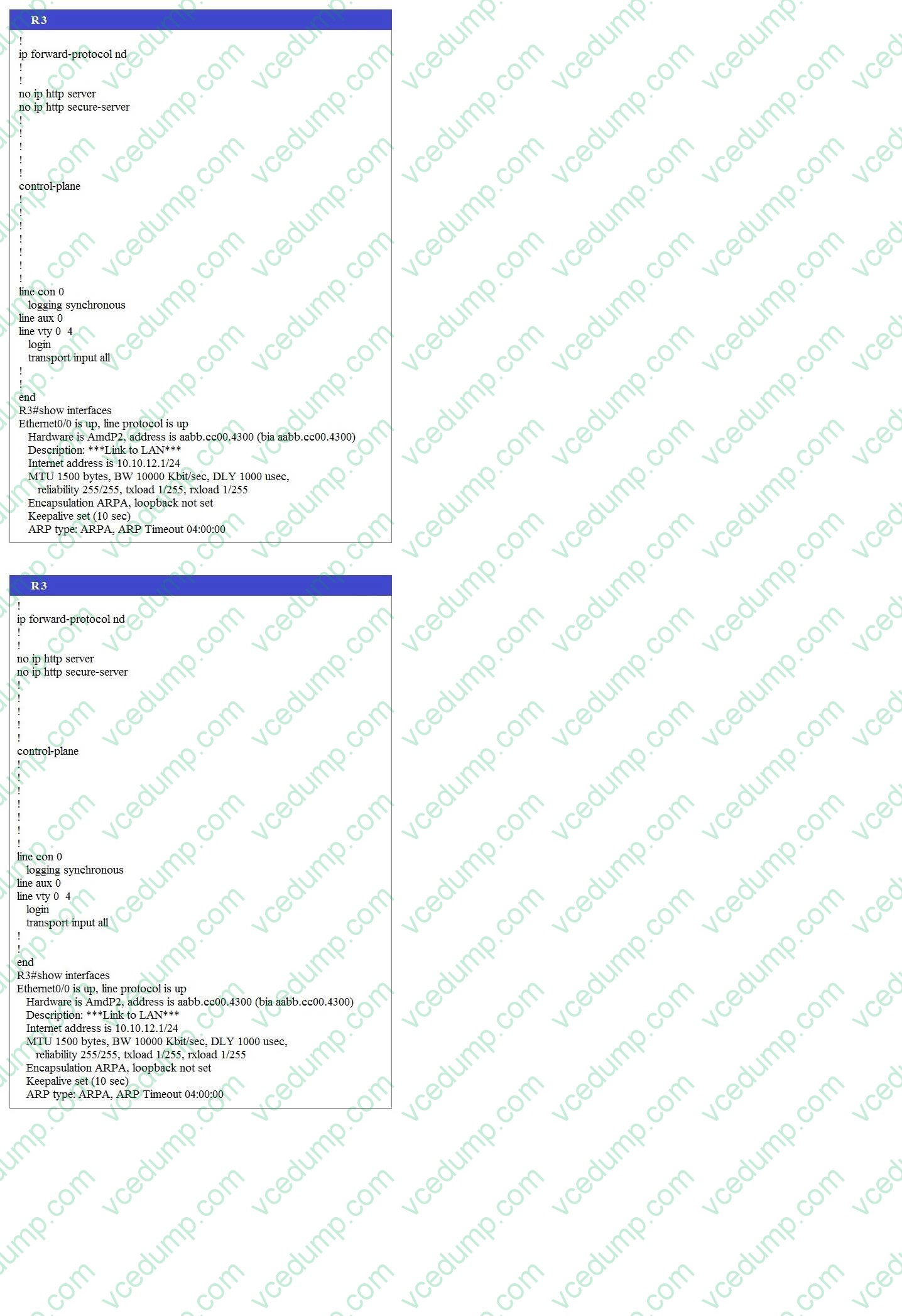

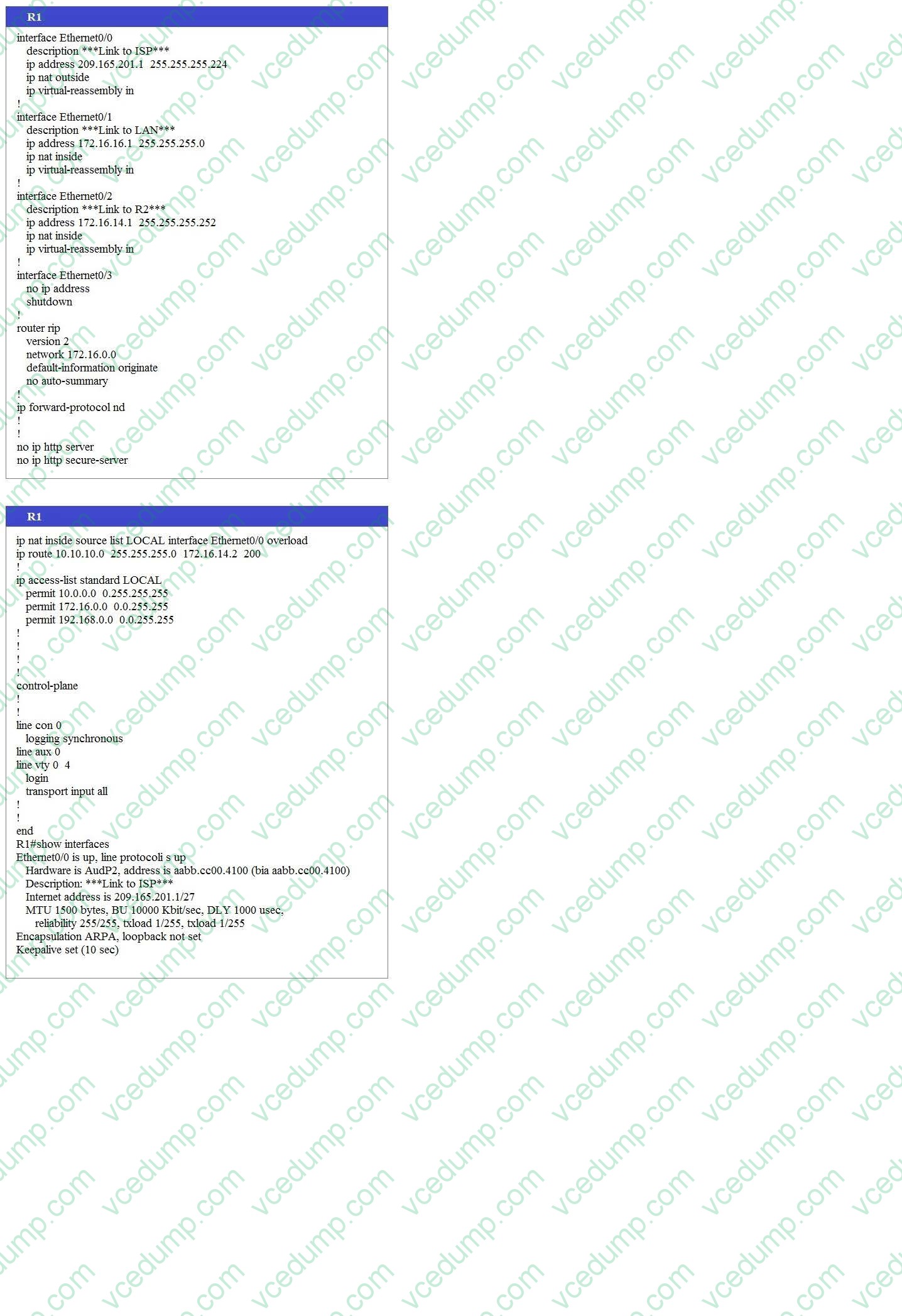

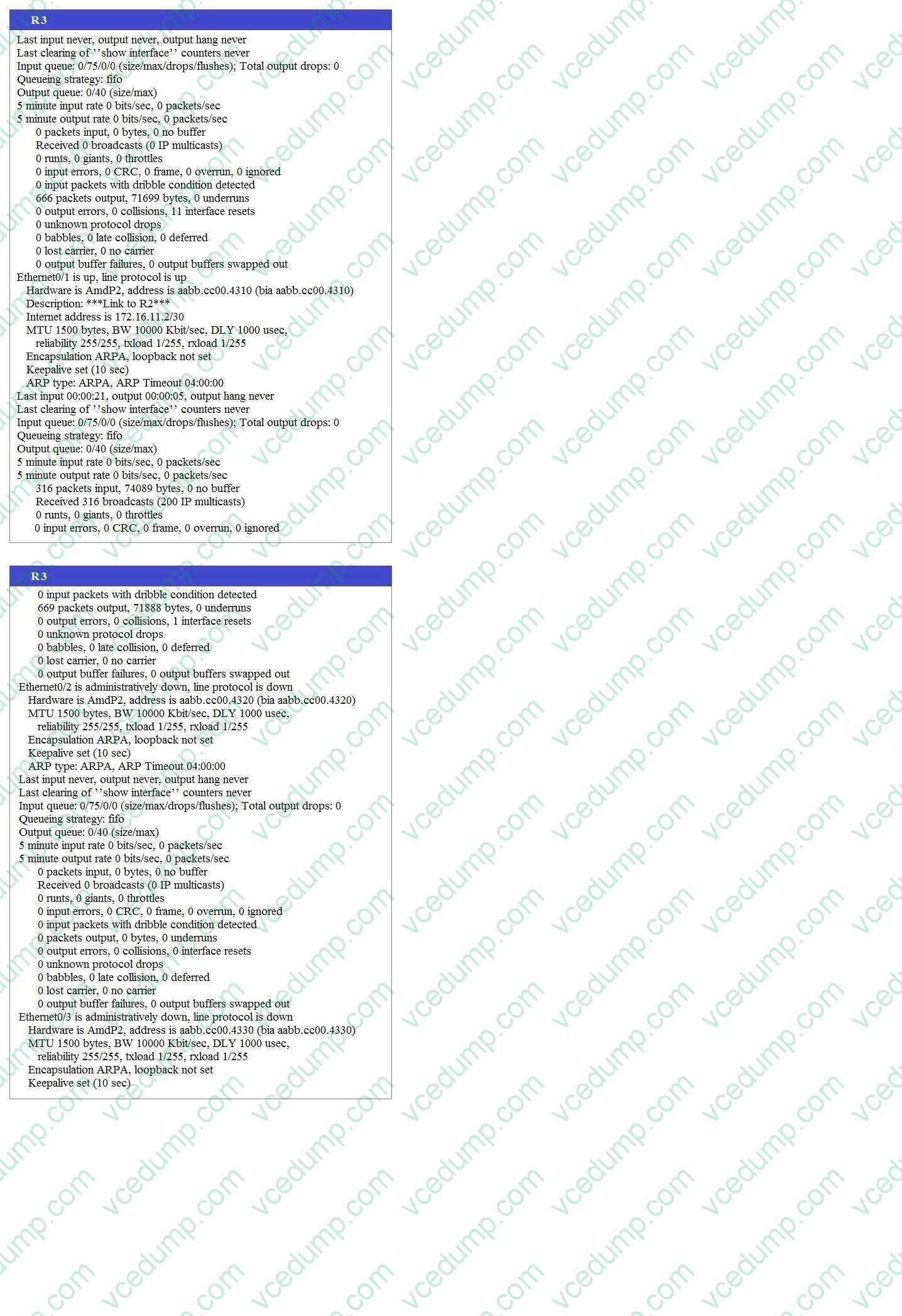

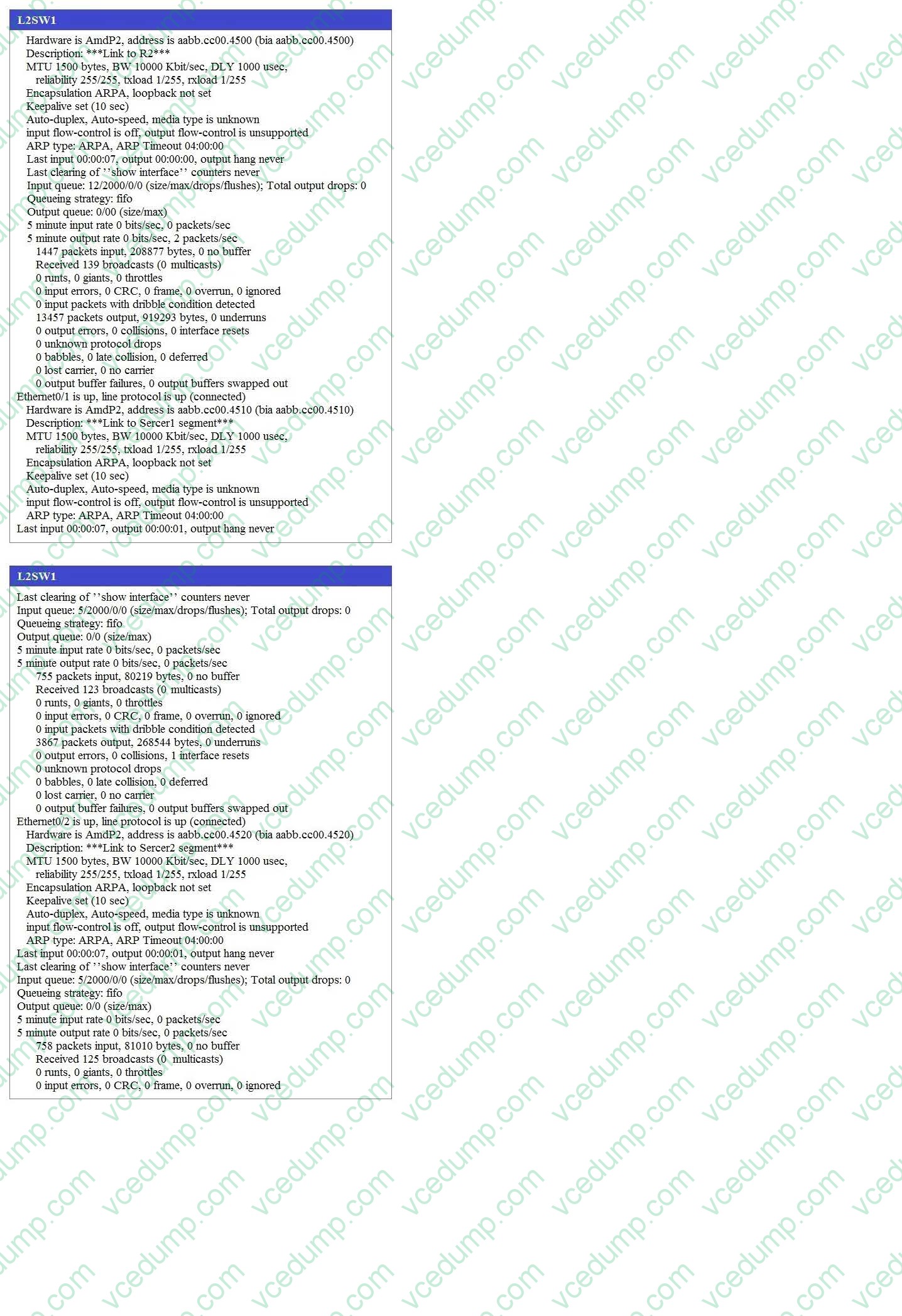

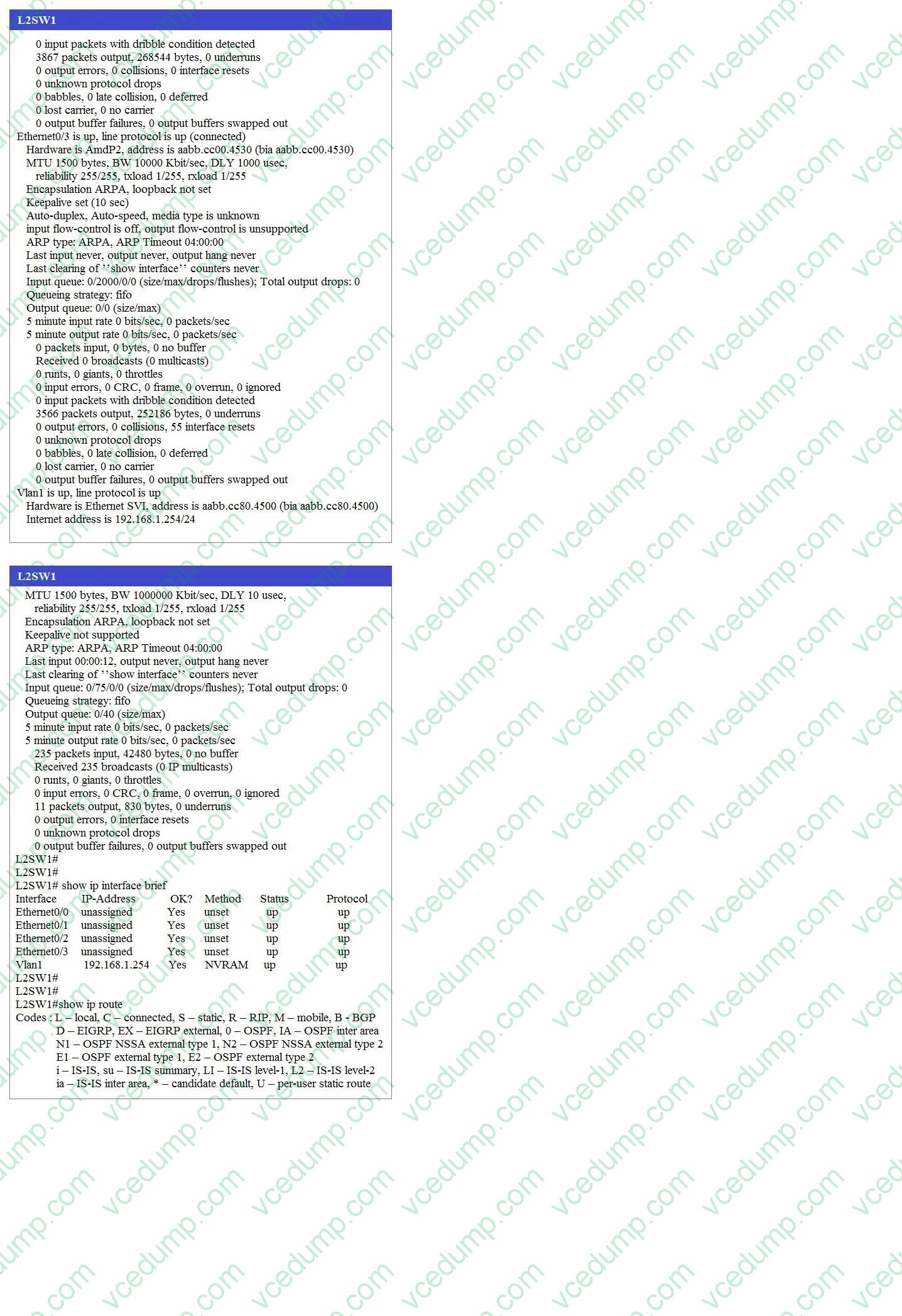

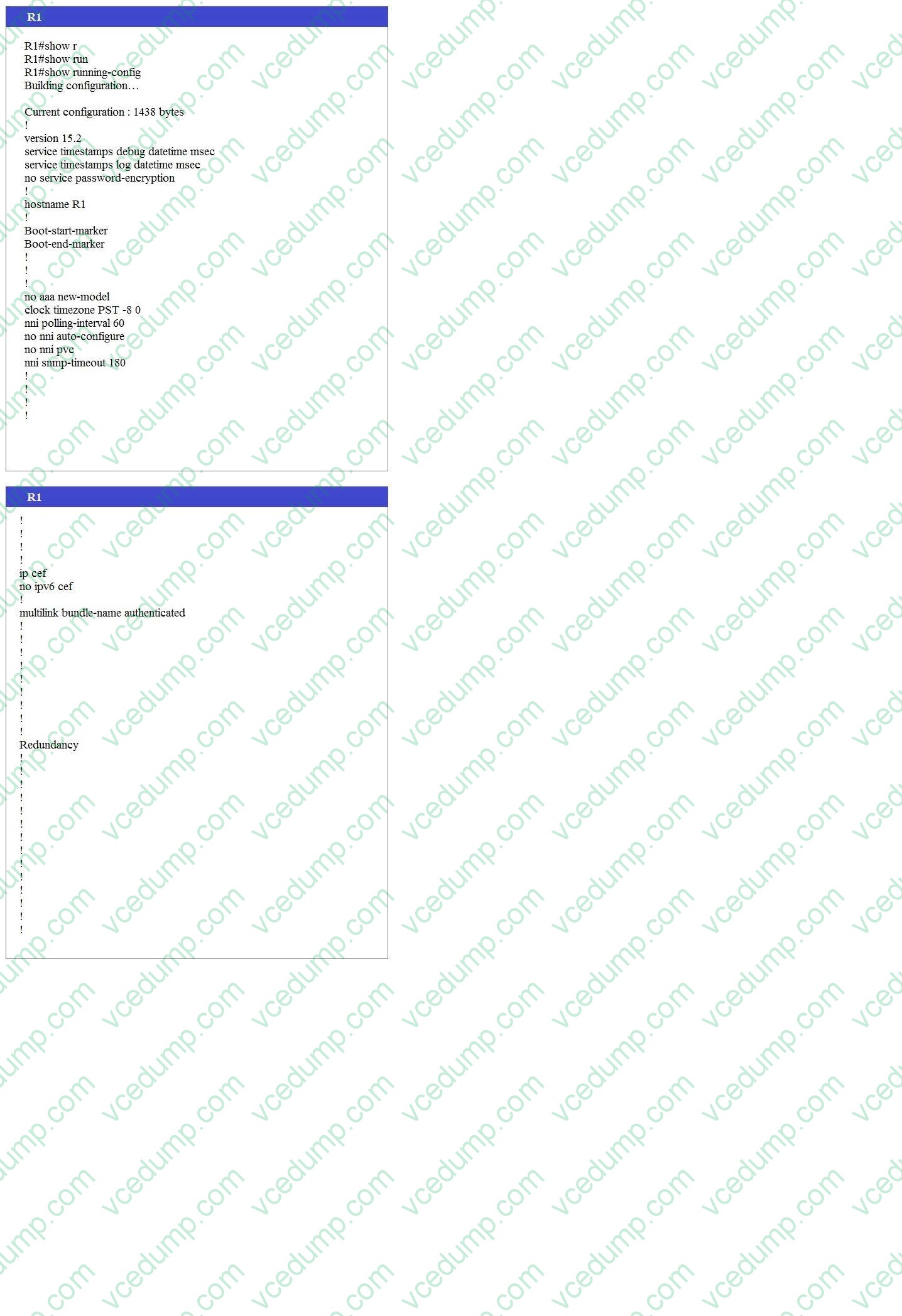

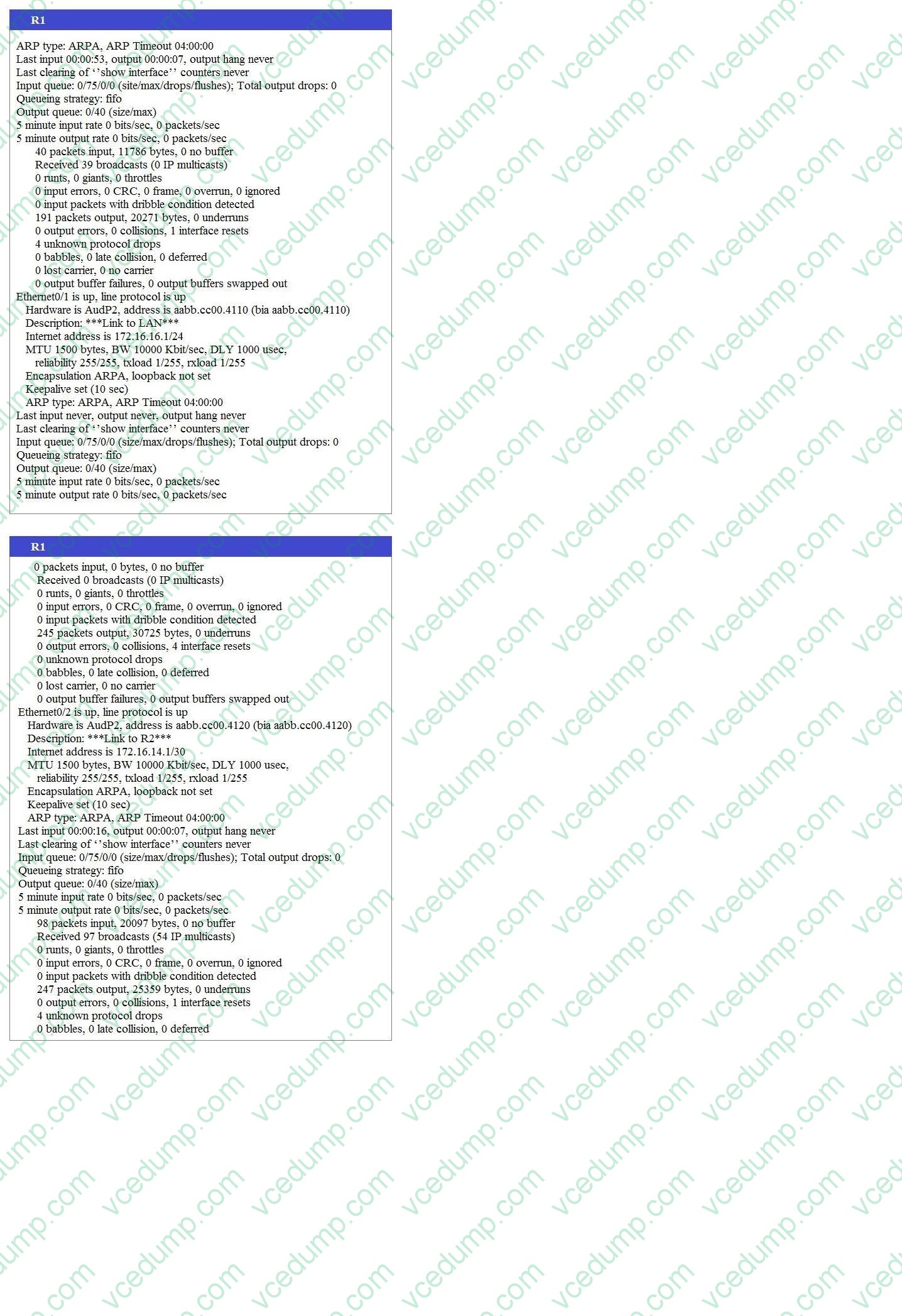

  You work for a company that provides managed network services, and of your real estate clients running a small office is experiencing network issues, Troubleshoot the network issues.

  Router R1 connects the main office to internet, and routers R2 and R3 are internal routers NAT is enabled on Router R1.

  The routing protocol that is enable between routers R1, R2, and R3 is RIPv2.

  R1 sends default route into RIPv2 for internal routers to forward internet traffic to R1.

  Server1 and Server2 are placed in VLAN 100 and 200 respectively, and dare still running router on stick configuration with router R2.

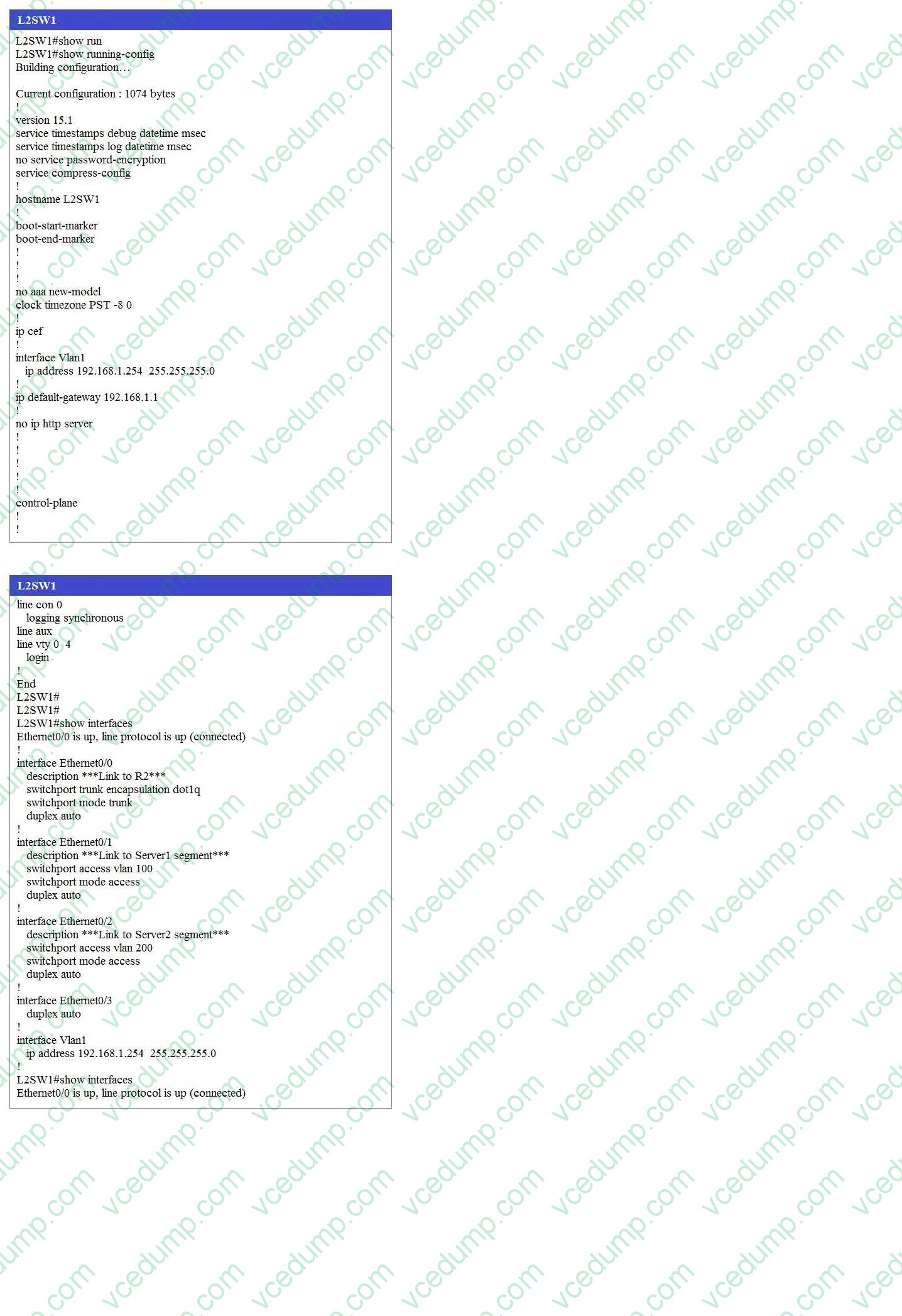

  You have console access on R1, R2, R3, and L2SW1 devices.

  Use only show commands to troubleshoot the issues.

  Instructions

  Enter IOS commands on the device to verify network operation and answer the multiple-choice questions.

  This task does not require device configuration.

  Click the device icon to gain access to the console of the device. No console or enable passwords are required.

  To access the multiple-choice questions, click the numbered boxes on the left of the top panel.

  There are four multiple-choice questions with this task. Be sure to answer all four questions before clicking Next.

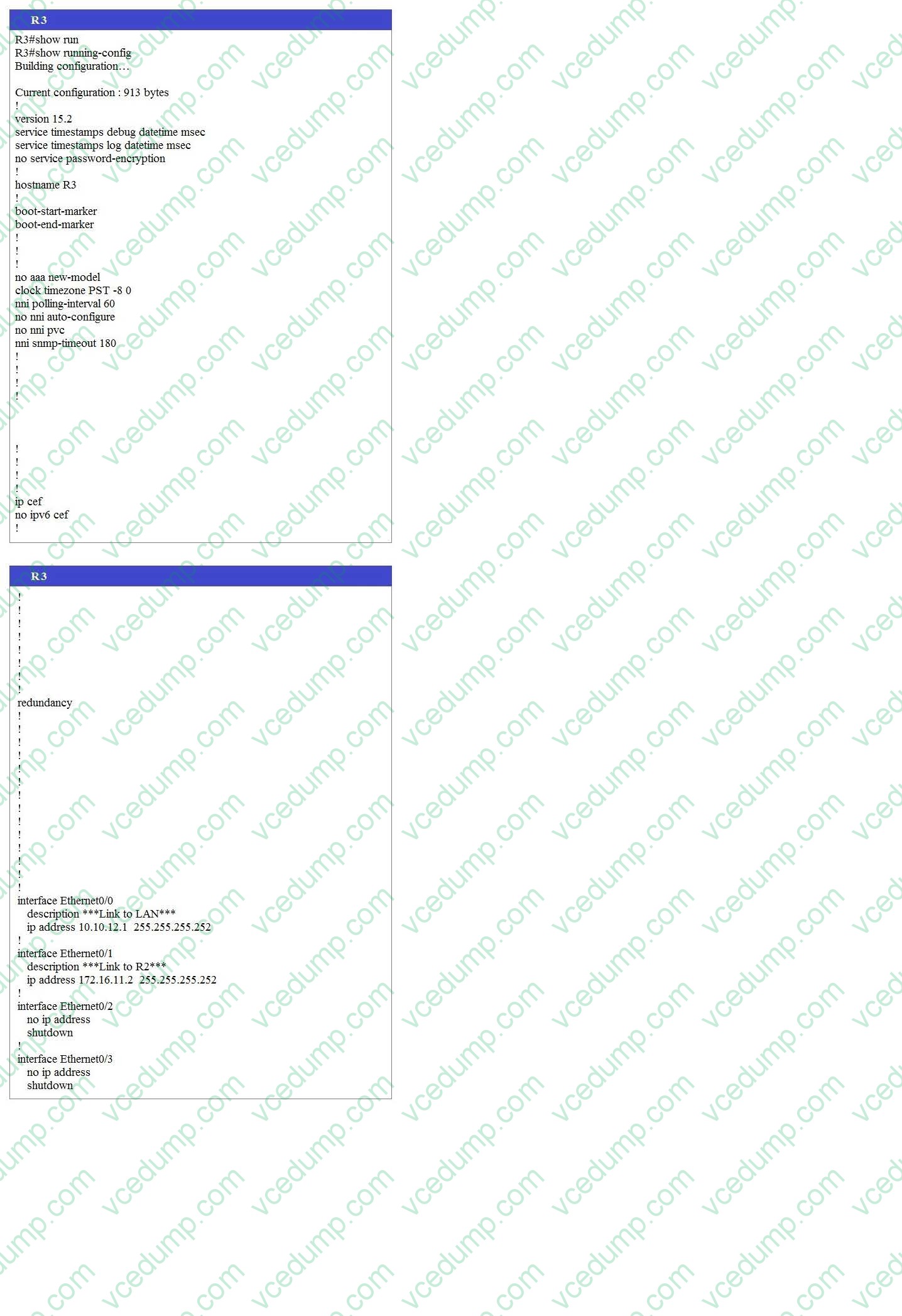

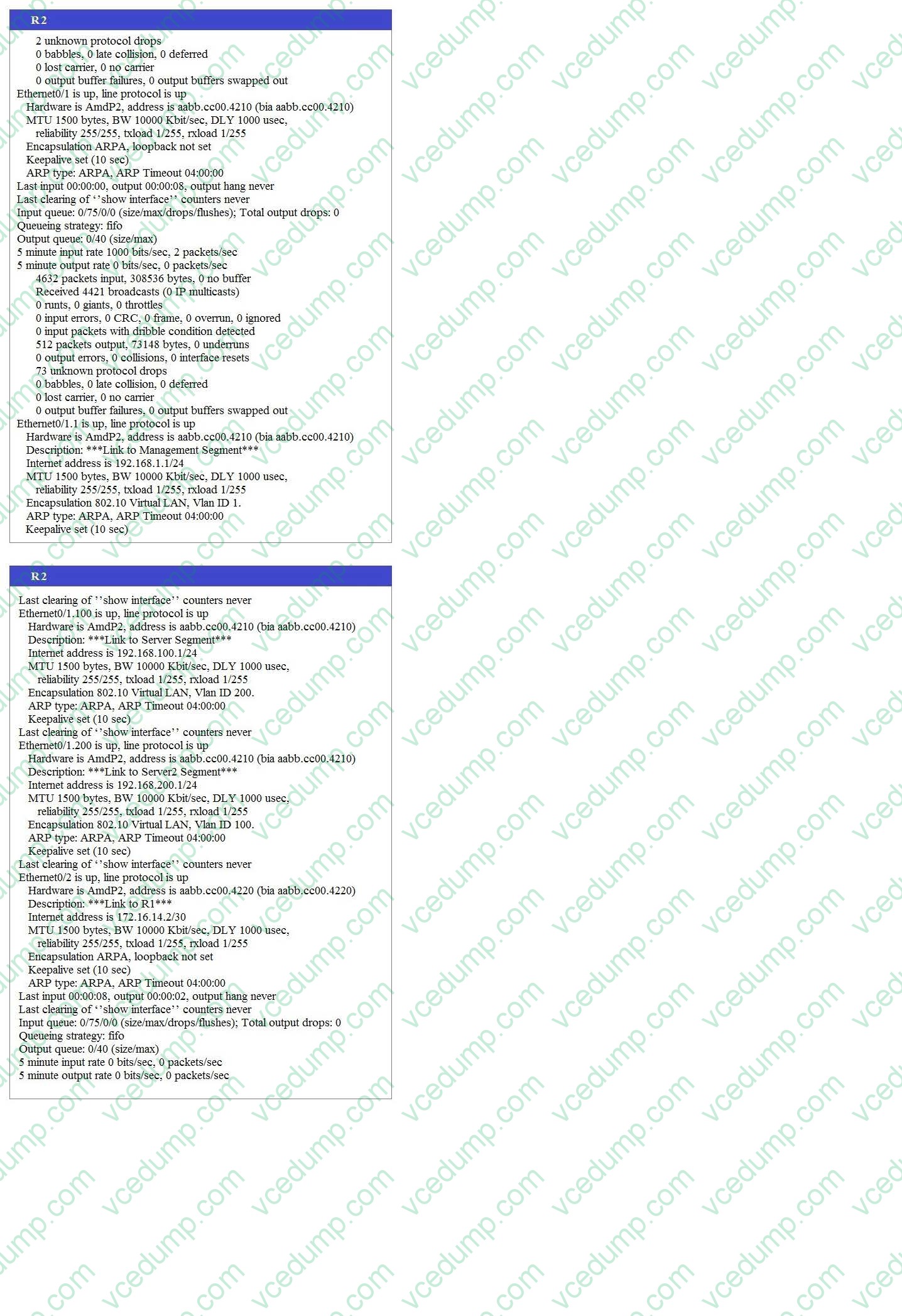

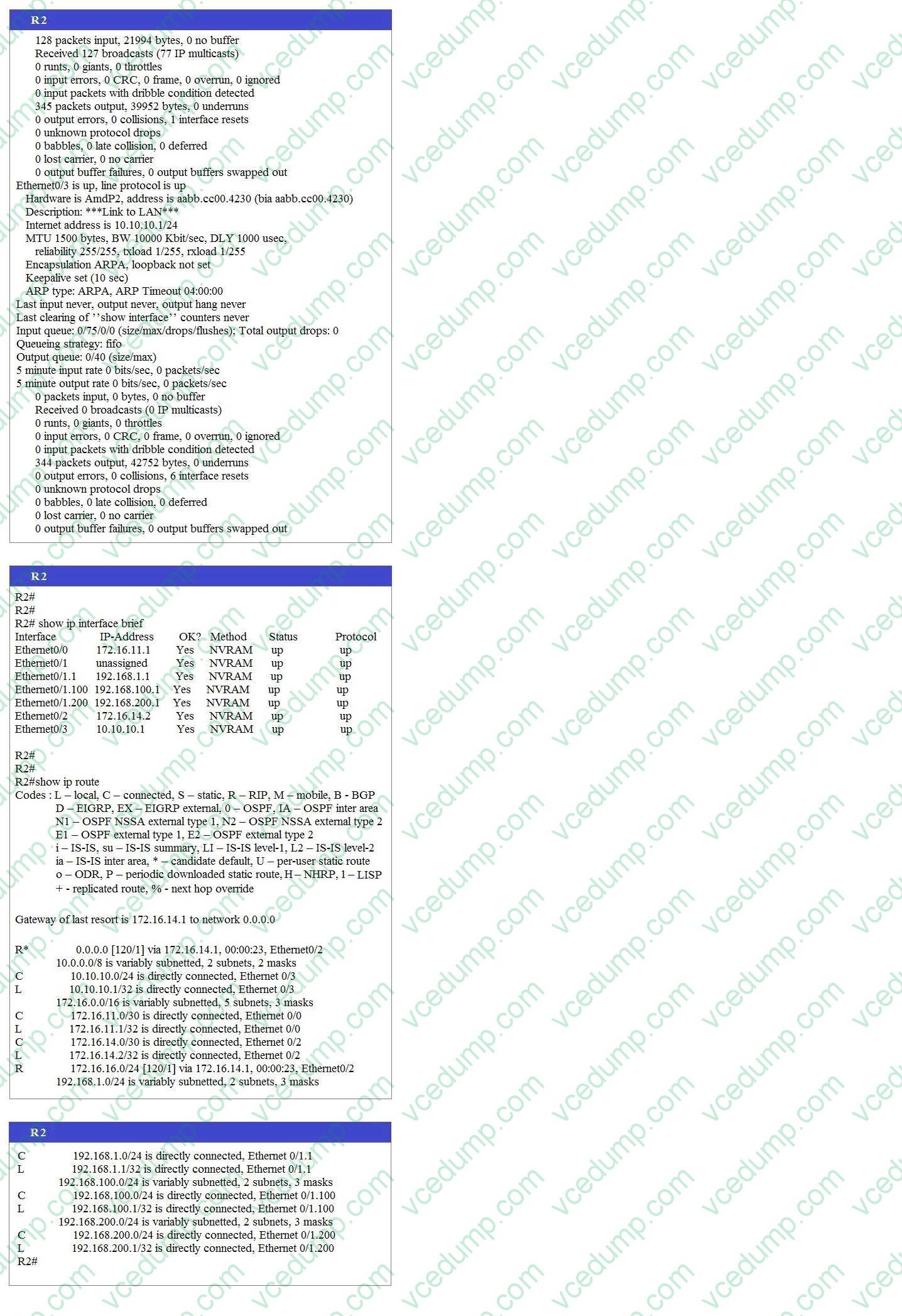

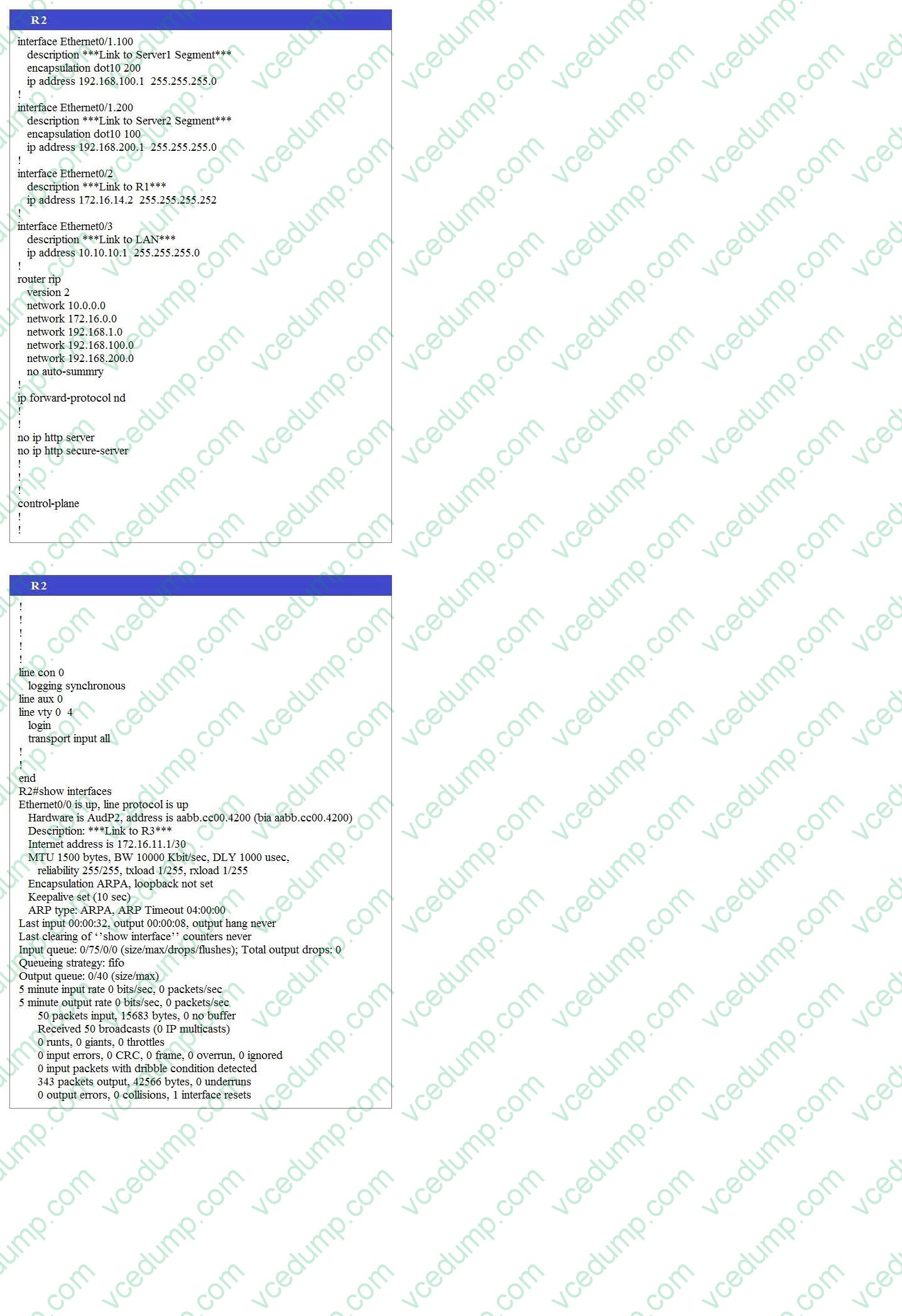

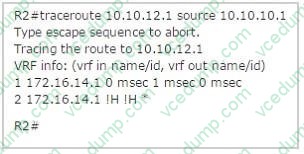

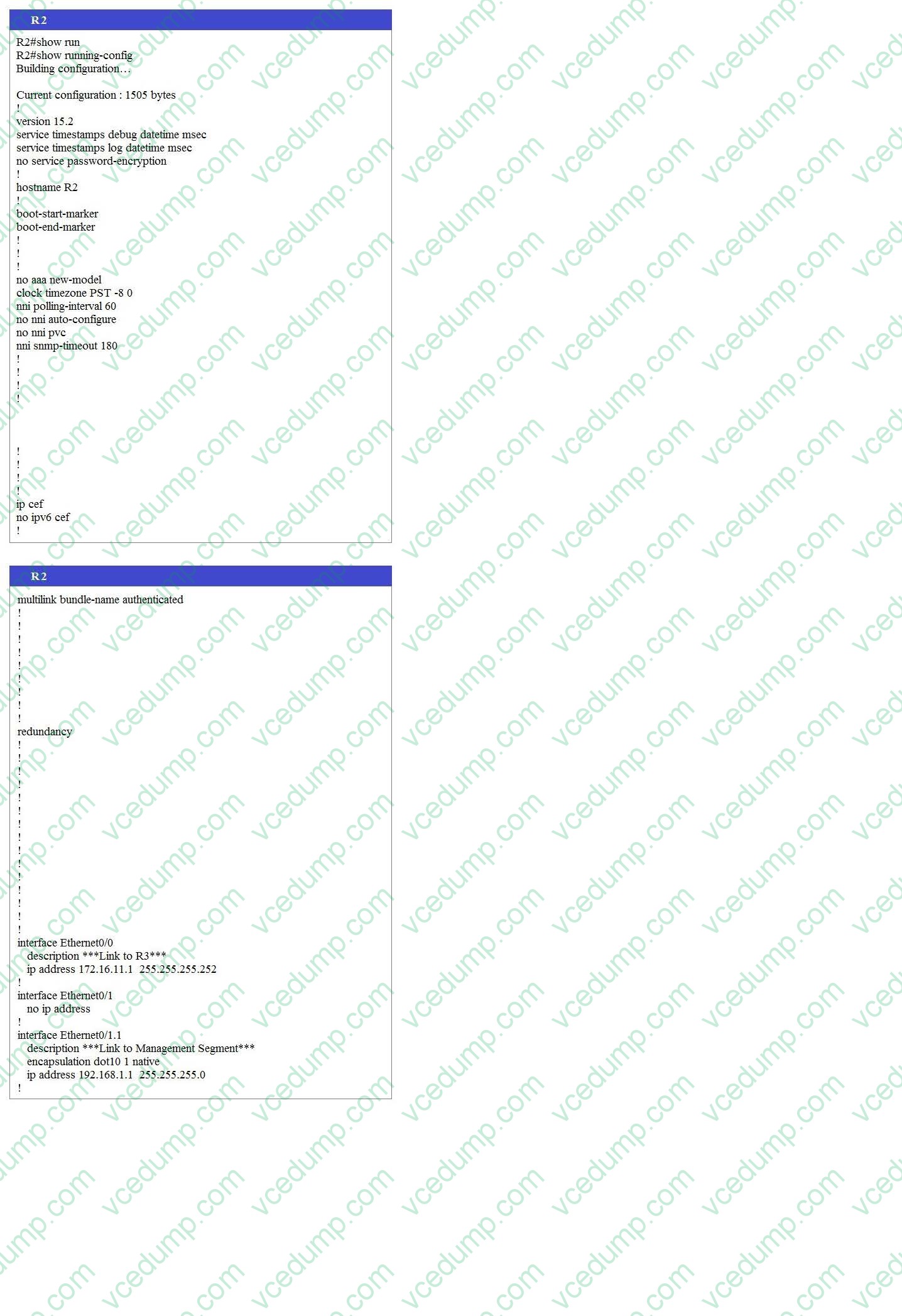

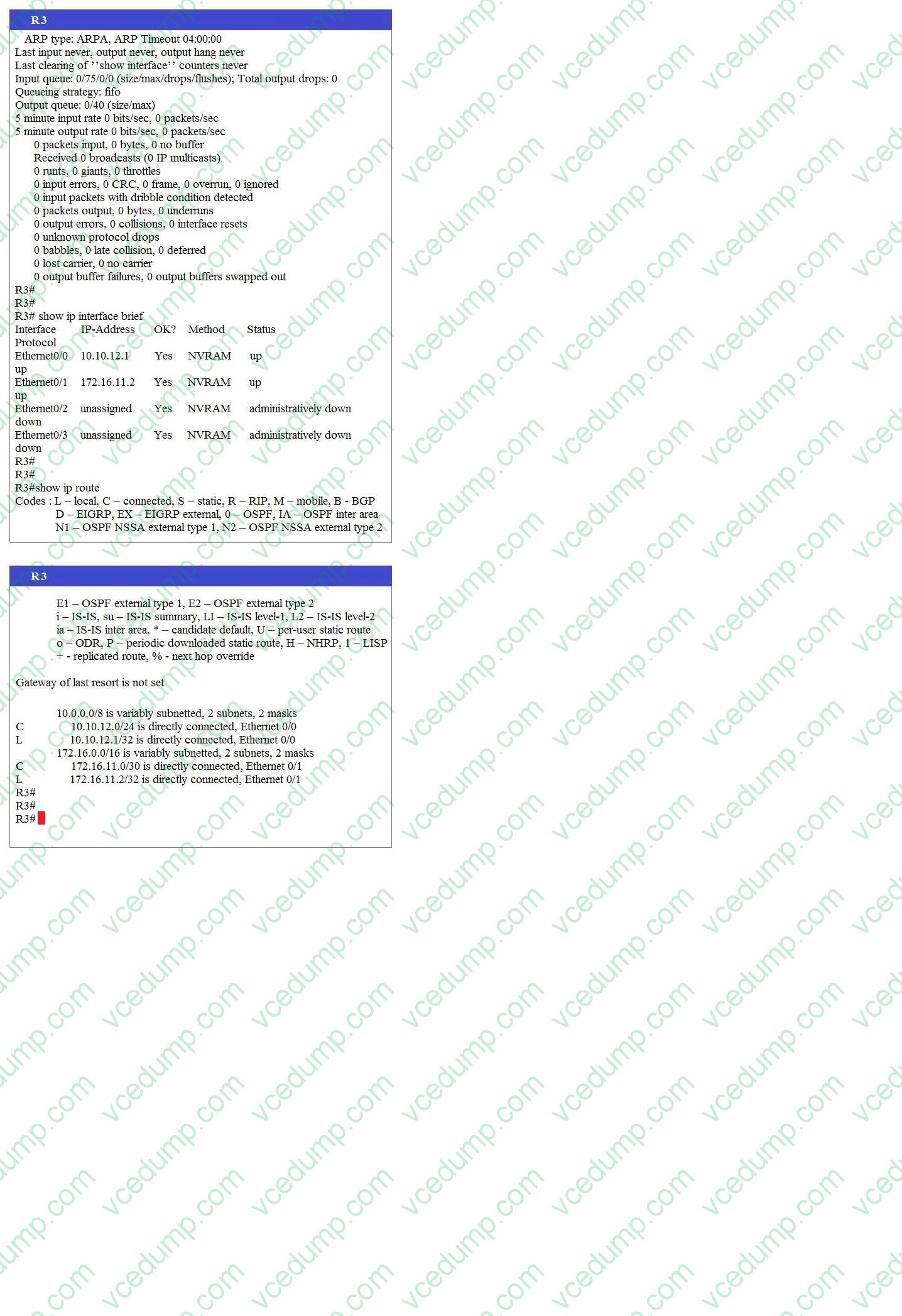

  Examine R2 configuration, the traffic that is destined to R3 LAN network sourced from Router R2 is forwarded to R1 instead R3. What could be an issue?



  A. RIPv2 enabled on R3, but R3 LAN network that is not advertised into RIPv2 domain.
  B. RIPv2 routing updates are suppressed between R2 and R3 using passive interface feature.
  C. RIPv2 not enabled on R3.
  D. No issue that is identified; this behavior is normal since default route propagated into RIPv2 domain by Router R1.
  C. RIPv2 not enabled on R3.

• Question 7:

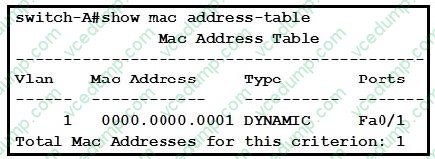

  Refer to the exhibit. If switch-A receives a frame with destination MAC address 0000.0000.0001 on its Fa0/1 interface, how does it process the frame?

  A. It holds the packet until MAC address timer expires and then drops the frame.
  B. It forwards the frame back out of interface Fa0/1.
  C. It floods the frame to all interfaces except Fa0/1.
  D. It drops the frame immediately.
  D. It drops the frame immediately.

• Question 8:

  In which two scenarios do you implement private IPv4 IP addresses? (Choose two.)

  A. on the webmail portal of an organization
  B. on the connection that a mobile device uses for application updates
  C. to connect network equipment between different IDFs
  D. for the VPN solution that end users use to connect to the local network
  E. on an application server that connects to a local database server
  C. to connect network equipment between different IDFs
  E. on an application server that connects to a local database server

• Question 9:

  A network administrator has subnetted the 172.16.0.0 network using a subnet mask of 255.255.255.192. A duplicate IP address of 172.16.2.120 has accidentally been configured on a workstation in the network. The technician must assign this workstation a new IP address within that same subnetwork. Which address should be assigned to the workstation?

  A. 172.16.1.80
  B. 172.16.2.80
  C. 172.16.1.64
  D. 172.16.2.64
  E. 172.16.2.127
  F. 172.16.2.128
  B. 172.16.2.80

• Question 10:

  A network administrator is troubleshooting the OSPF configuration of routers R1 and R2. The routers cannot establish an adjacency relationship on their common Ethernet link.

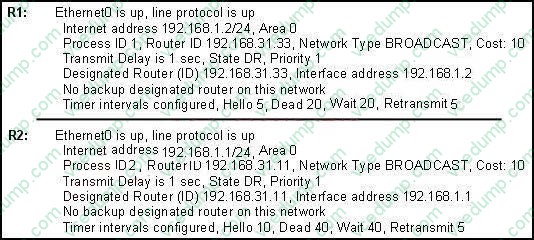

  The graphic shows the output of the show ip ospf interface e0 command for routers R1 and R2. Based on the information in the graphic, what is the cause of this problem?

  A. The OSPF area is not configured properly.
  B. The priority on R1 should be set higher.
  C. The cost on R1 should be set higher.
  D. The hello and dead timers are not configured properly.
  E. A backup designated router needs to be added to the network.
  F. The OSPF process ID numbers must match.
  D. The hello and dead timers are not configured properly.
